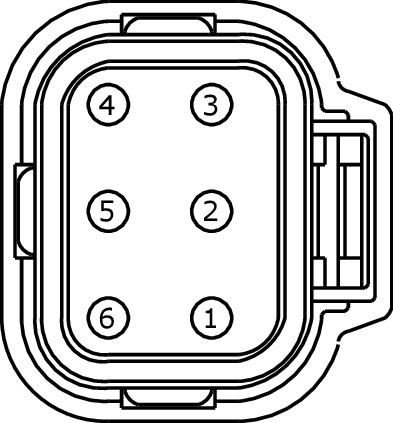

Connector End View (C1160) - EGR STEPPER MOTOR

WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

Connector:C1160

Description

EGR STEPPER MOTOR

Color

Harness

12C508

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CE101 (WH-VT)	18	CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. MOTOR (STEPPER CONTR. 1) (EGRMC1) (+)
2	CBK02 (GN)	18	FUSE - 2 OR CIRCUIT BREAKER (VPWR 2)
3	CE102 (YE-BU)	18	CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. MOTOR (STEPPER CONTR. 2) (EGRMC2) (-)
4	CE103 (BU-BN)	18	CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. MOTOR (STEPPER CONTR. 3) (EGRMC3)
5	CBK02 (GN)	18	FUSE - 2 OR CIRCUIT BREAKER (VPWR 2)
6	CE104 (GN)	18	CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. MOTOR (STEPPER CONTR. 4) (EGRMC4)

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1115

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-BGAB

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses

Sensor - EGR Valve Position

Valve - EGR
