Roof Opening Panel Shield: Removal

WARNING: This page is about a different car, the 2017 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. On both sides, remove the A-pillar trim panel. Refer to: A-Pillar Trim Panel .
  2. On both sides, remove the B-pillar trim panel. Refer to: B-Pillar Trim Panel .
  3. On both sides, remove the C-pillar upper trim panel. Refer to: C-Pillar Upper Trim Panel .

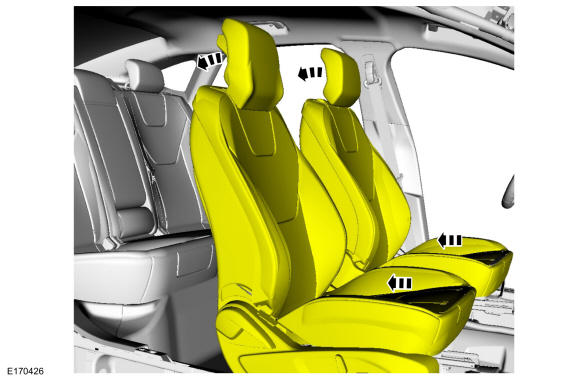

  4. Position both front seats in the full rearward and full reclined position.
    GFD199178Courtesy of FORD MOTOR COMPANY
  5. If equipped.

    1. Release the upper rear view mirror cover clips.
    2. Remove the upper rear view mirror cover.

    GFD199600Courtesy of FORD MOTOR COMPANY
  6. If equipped.

    1. Release the lower rear view mirror cover clips by squeezing on the sides.
    2. Remove the lower rear view mirror cover.

    GFD199601Courtesy of FORD MOTOR COMPANY
  7. If equipped. Disconnect the rear view mirror electrical connectors.
    GFD199183Courtesy of FORD MOTOR COMPANY

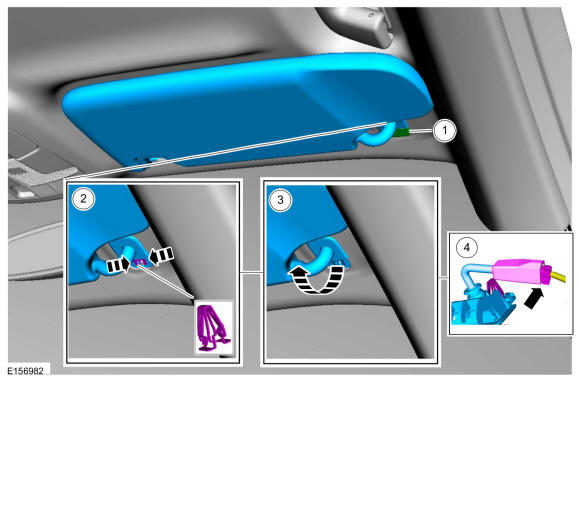

  8. On both sides. Remove the sun visors.

    1. Remove the retainer cap.
    2. Release the clip.
    3. Remove the sun visor.
    4. If equipped. Disconnect the electrical connector.

    GFD199184Courtesy of FORD MOTOR COMPANY

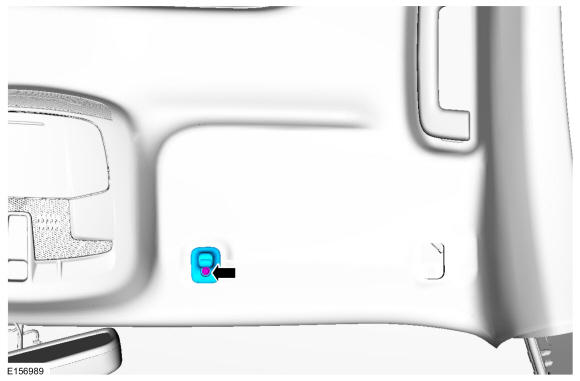

  9. On both sides. Remove the retainer and the sun visor clip.
    GFD199185Courtesy of FORD MOTOR COMPANY

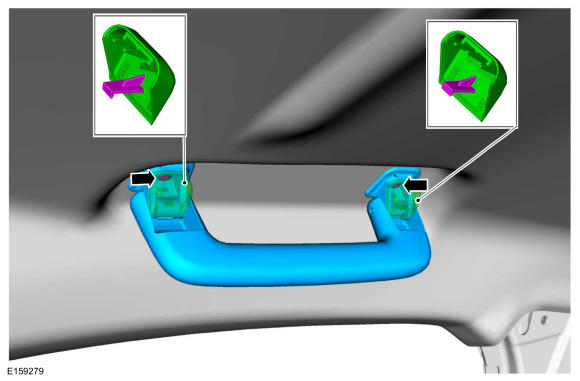

  10. NOTE: LH side shown, RH side similar.

    On both sides. Remove the retainer covers, the retainers and the grab handle.

    GFD199186Courtesy of FORD MOTOR COMPANY
  11. NOTE: Disconnect as necessary to lower the headliner.

    On both sides. Detach the wire harness retainers.

    GFD199605Courtesy of FORD MOTOR COMPANY
  12. NOTE: When releasing the magnets around the roof opening panel area, pull down on the plastic headliner reinforcement between the headliner and the roof or damage to the headliner may result.

    Release the seven magnets and two guide pins and magnets.

    GFD199189Courtesy of FORD MOTOR COMPANY

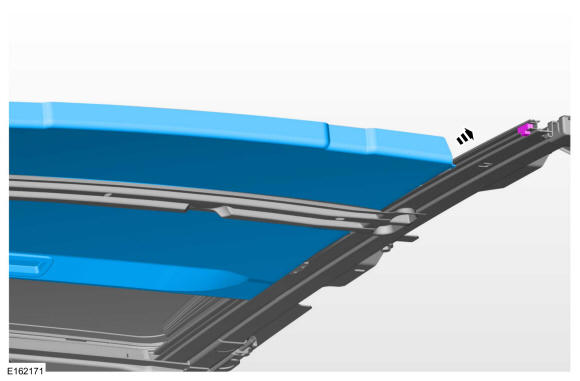

  13. On both sides. Remove the retainer, slide the roof opening panel shield rearward and remove the roof opening panel shield out of the guide track.
GFD199613Courtesy of FORD MOTOR COMPANY
