Roof Opening Panel Frame: Removal

WARNING: This page is about a different car, the 2017 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. If replacing the roof opening panel frame, remove the air deflector. Refer to: Air Deflector .
  2. Fully close the roof opening panel glass.
  3. Remove the roof opening panel glass. Refer to: Roof Opening Panel Glass .
  4. On both sides, remove the A-pillar trim panel. Refer to: A-Pillar Trim Panel .
  5. On both sides, remove the B-pillar trim panel. Refer to: B-Pillar Trim Panel .
  6. On both sides, remove the C-pillar upper trim panel. Refer to: C-Pillar Upper Trim Panel .

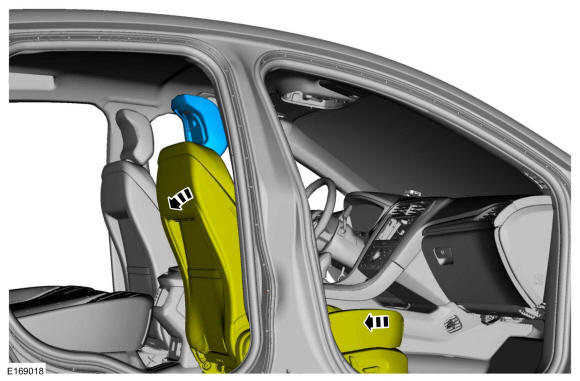

  7. Remove the passenger seat head restraint, position the passenger seat in the full rearward and full reclined position.
    GFD199598Courtesy of FORD MOTOR COMPANY

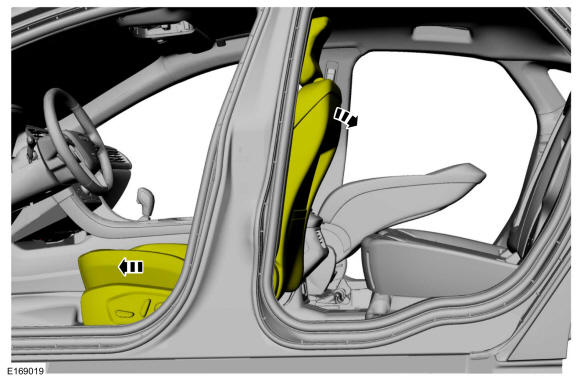

  8. Position the driver seat in the full forward and full reclined position.
    GFD199599Courtesy of FORD MOTOR COMPANY

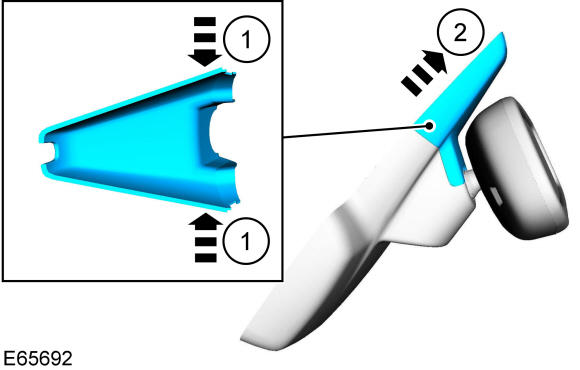

  9. If equipped.

    1. Release the upper rear view mirror cover clips.
    2. Remove the upper rear view mirror cover.

    GFD199600Courtesy of FORD MOTOR COMPANY

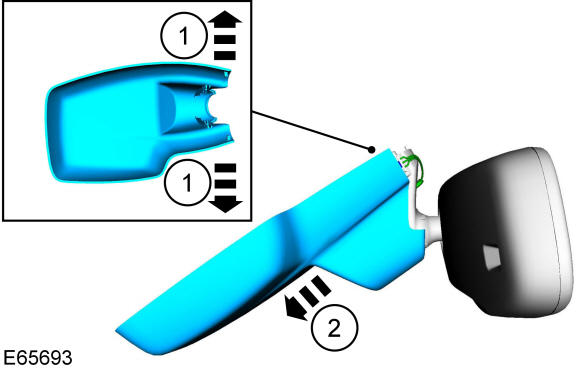

  10. If equipped.

    1. Release the lower rear view mirror cover clips by squeezing on the sides.
    2. Remove the lower rear view mirror cover.

    GFD199601Courtesy of FORD MOTOR COMPANY

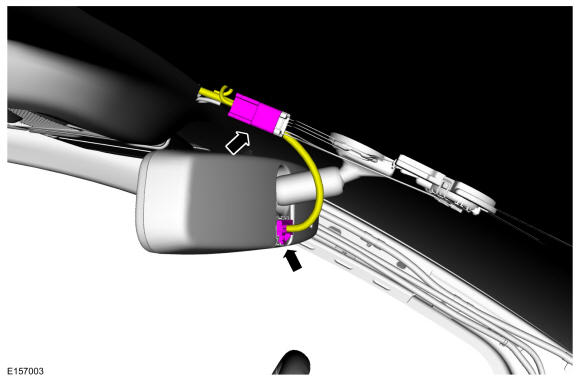

  11. If equipped. Disconnect the rear view mirror electrical connectors.
    GFD199183Courtesy of FORD MOTOR COMPANY

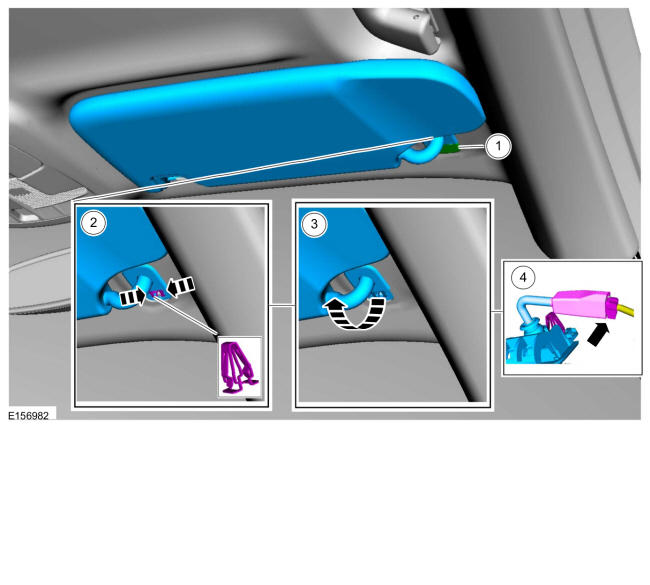

  12. On both sides. Remove the sun visors.

    1. Remove the retainer cap.
    2. Release the clip.
    3. Remove the sun visor.
    4. If equipped. Disconnect the electrical connector.

    GFD199602Courtesy of FORD MOTOR COMPANY

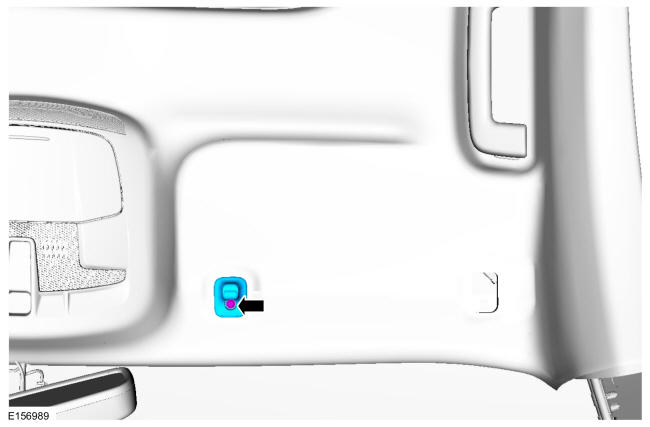

  13. On both sides. Remove the retainer and the sun visor clip.
    GFD199603Courtesy of FORD MOTOR COMPANY

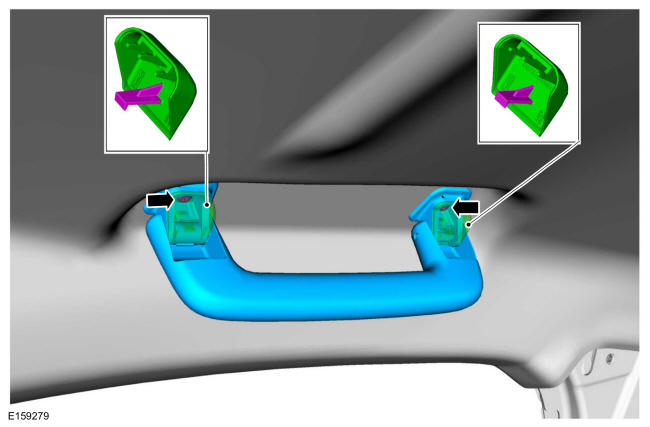

  14. NOTE: LH side shown, RH side similar.

    On both sides. Remove the retainer covers, the retainers and the grab handle.

    GFD199604Courtesy of FORD MOTOR COMPANY

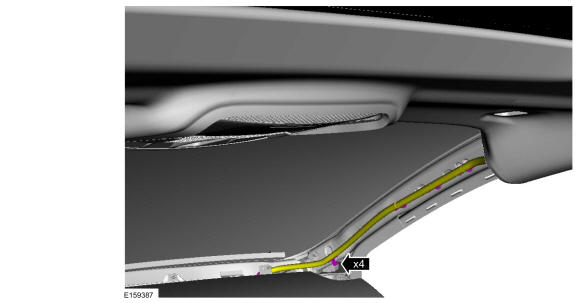

  15. On both sides. Detach the wire harness retainers.
    GFD199605Courtesy of FORD MOTOR COMPANY

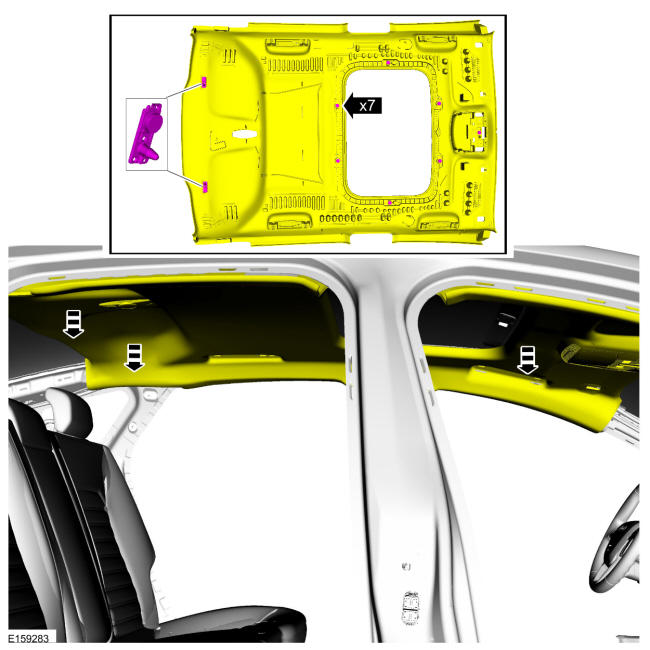

  16. NOTE: When releasing the magnets around the roof opening panel area, pull down on the plastic headliner reinforcement between the headliner and the roof or damage to the headliner may result.

    Carefully release the seven magnets and two guide pins and magnets.

    GFD199189Courtesy of FORD MOTOR COMPANY

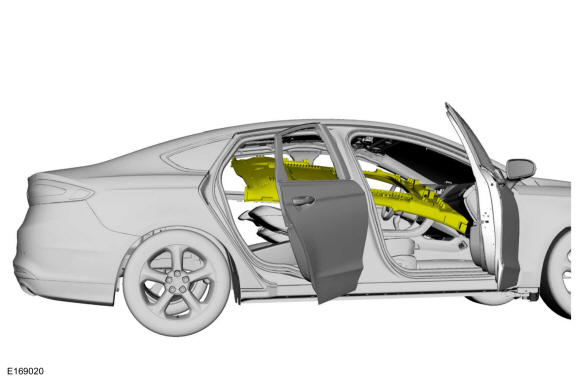

  17. Position the headliner as shown.
    GFD199606Courtesy of FORD MOTOR COMPANY
  18. Disconnect the roof opening panel drain hoses from the corners of the roof opening panel frame.
    GFD199607Courtesy of FORD MOTOR COMPANY

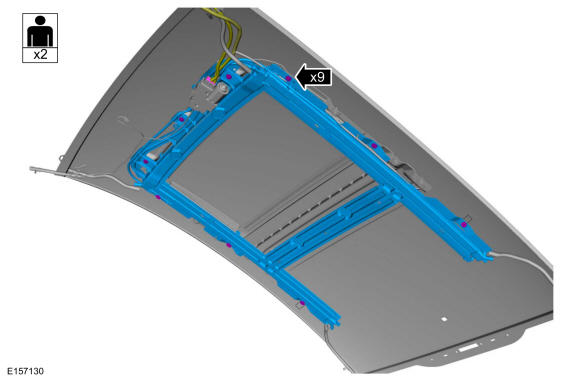

  19. With the help of an assistant. Disconnect the roof opening panel motor electrical connector, remove the roof opening panel frame bolts.

    Torque: 106 lb.in (12 Nm)

    GFD199608Courtesy of FORD MOTOR COMPANY

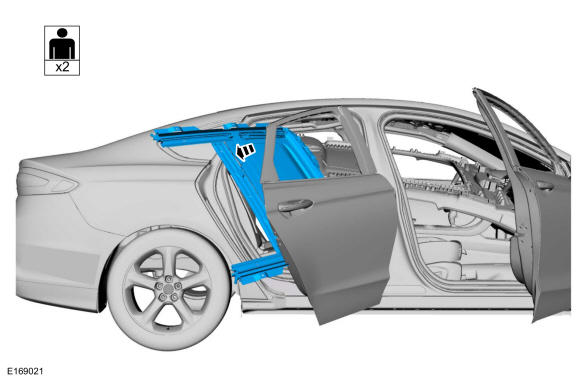

  20. With the help of an assistant. Remove the roof opening panel frame.
GFD199609Courtesy of FORD MOTOR COMPANY
