Vehicle Dynamic Systems

WARNING: This page is about a different car, the 2017 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

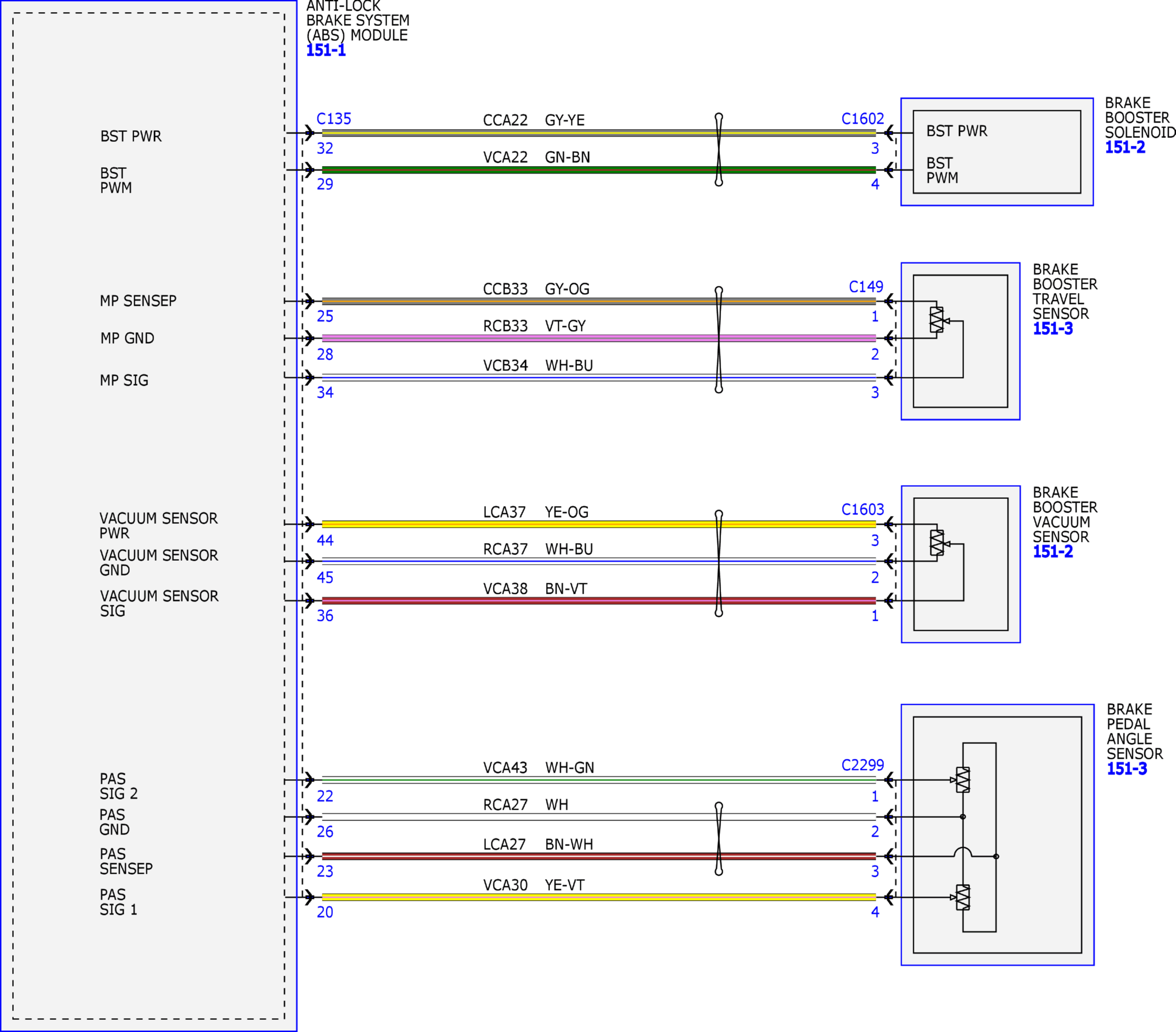

Fig 1: Vehicle Dynamic Systems (1 of 7)

Courtesy of FORD MOTOR COMPANY

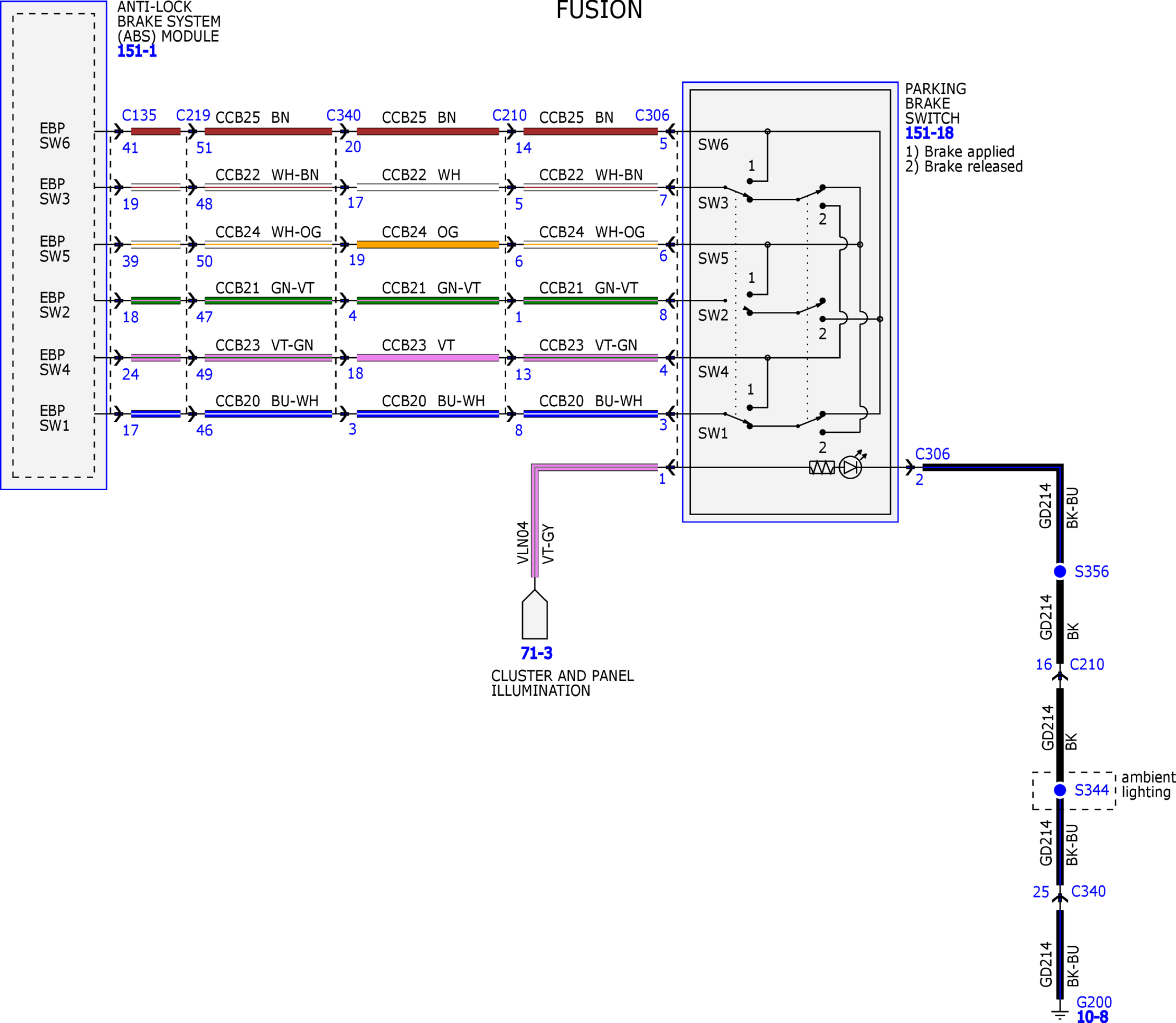

Fig 2: Vehicle Dynamic Systems (2 of 7)

Courtesy of FORD MOTOR COMPANY

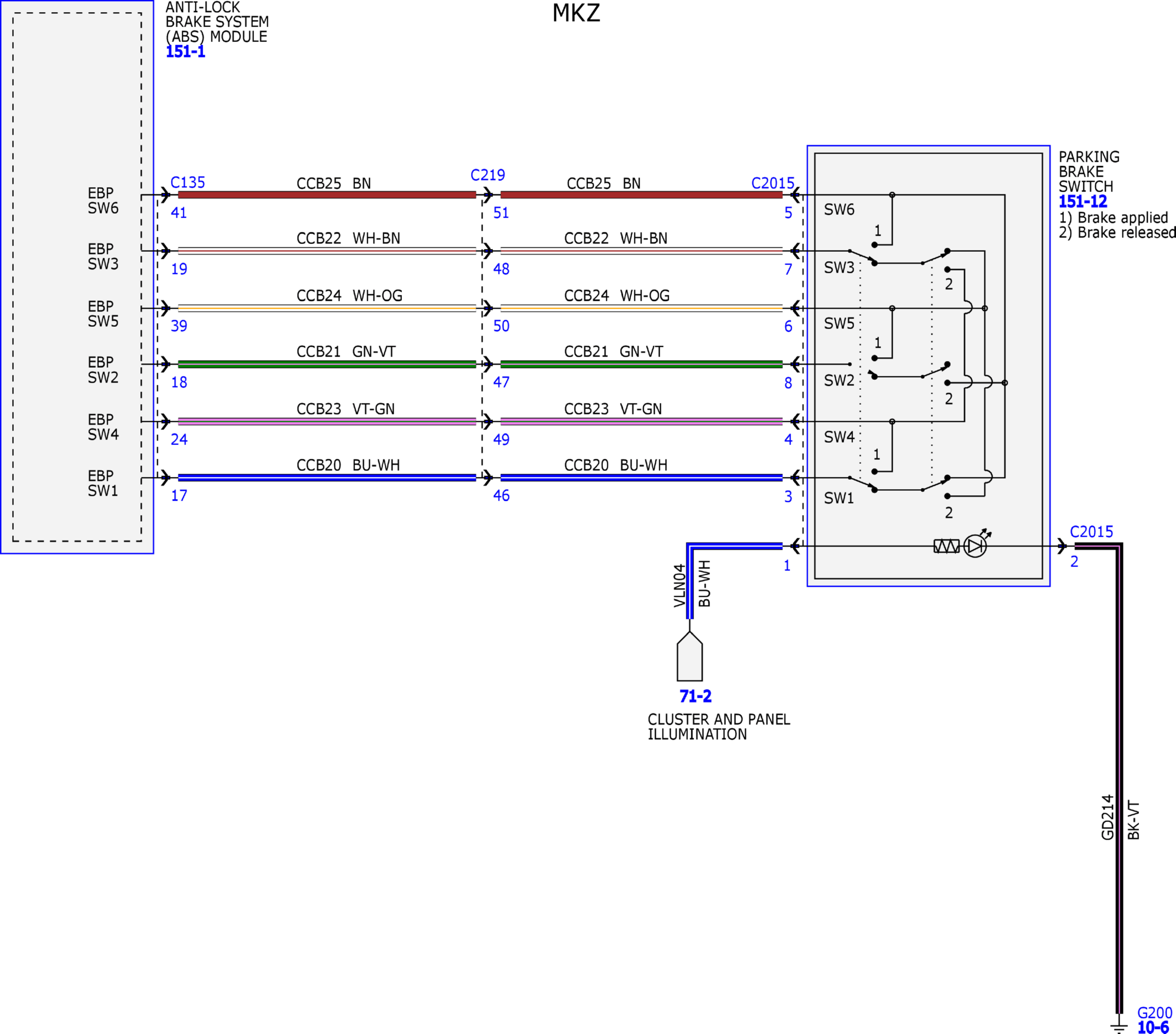

Fig 3: Vehicle Dynamic Systems (3 of 7)

Courtesy of FORD MOTOR COMPANY

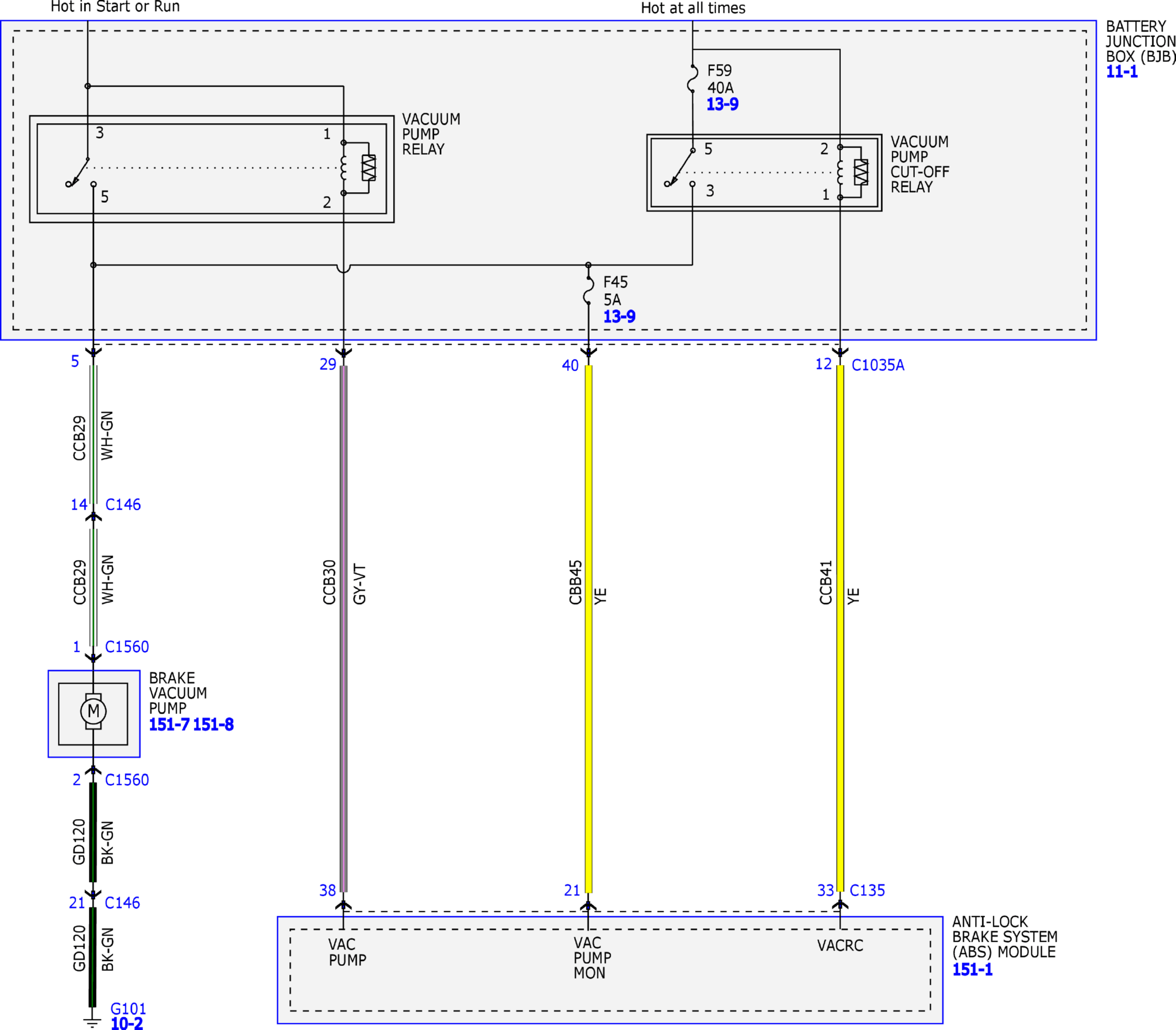

Fig 4: Vehicle Dynamic Systems (4 of 7)

Courtesy of FORD MOTOR COMPANY

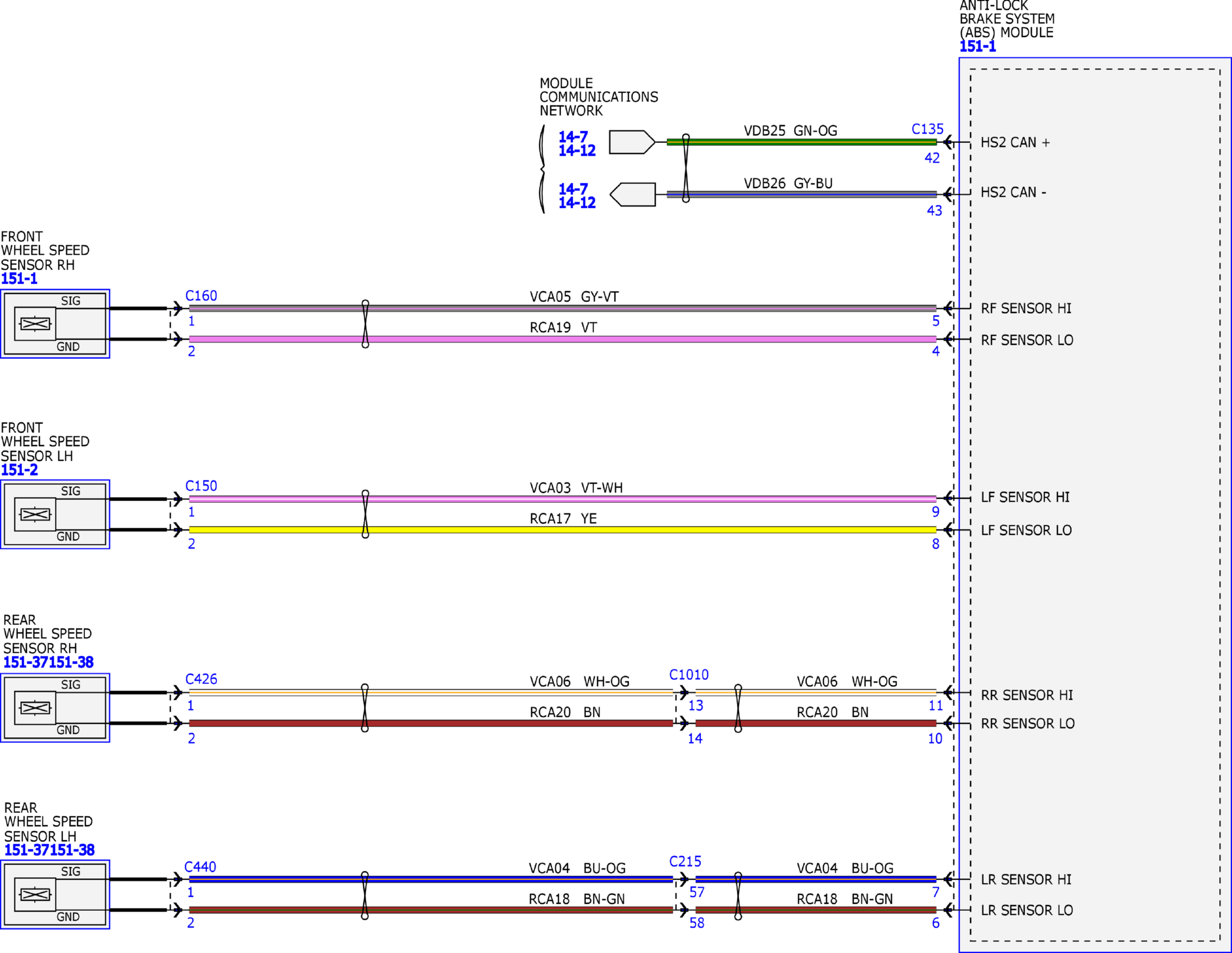

Fig 5: Vehicle Dynamic Systems (5 of 7)

Courtesy of FORD MOTOR COMPANY

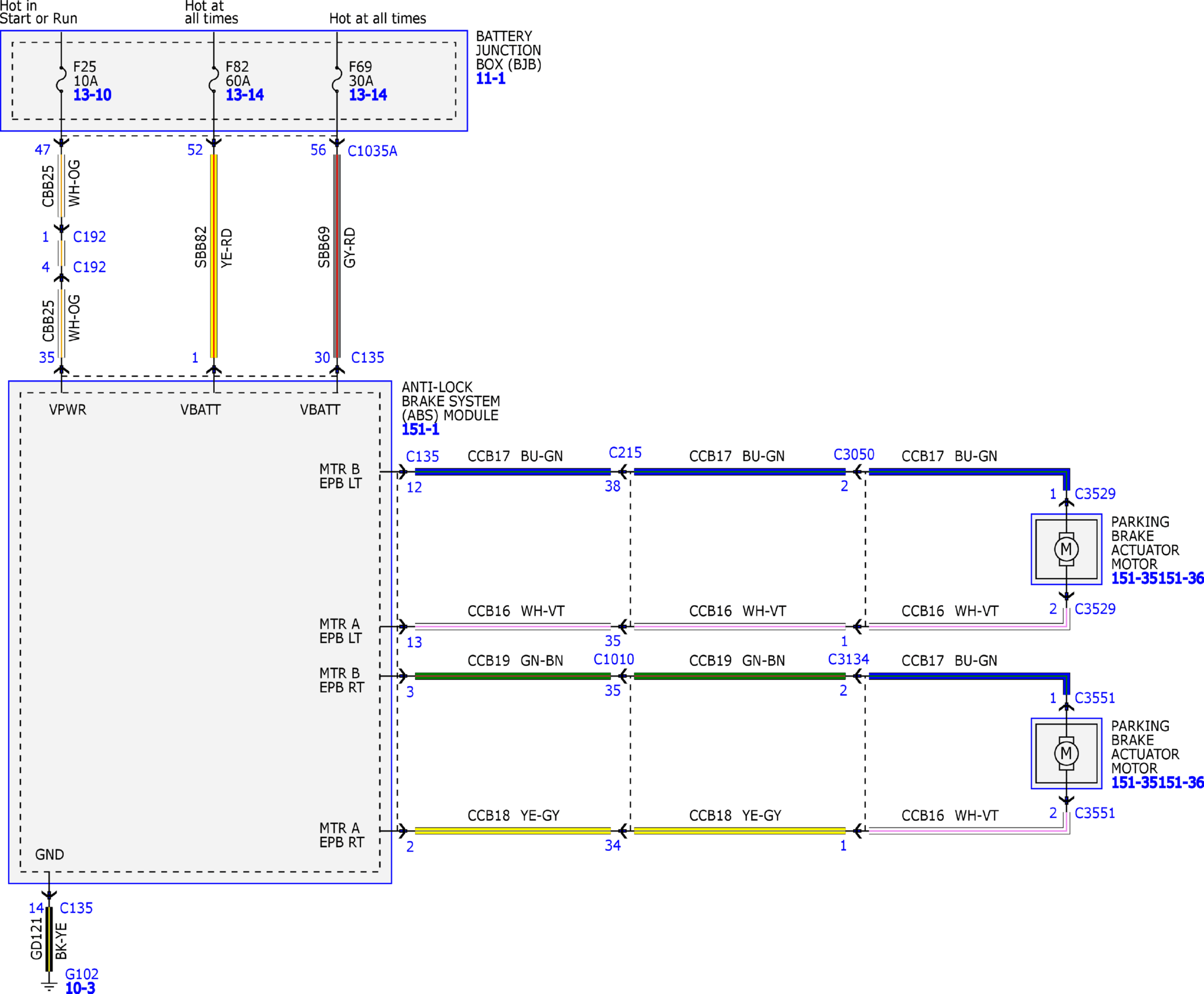

Fig 6: Vehicle Dynamic Systems (6 of 7)

Courtesy of FORD MOTOR COMPANY

Fig 7: Vehicle Dynamic Systems (7 of 7)

Courtesy of FORD MOTOR COMPANY
