Transmission Controls

WARNING: This page is about a different car, the 2017 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

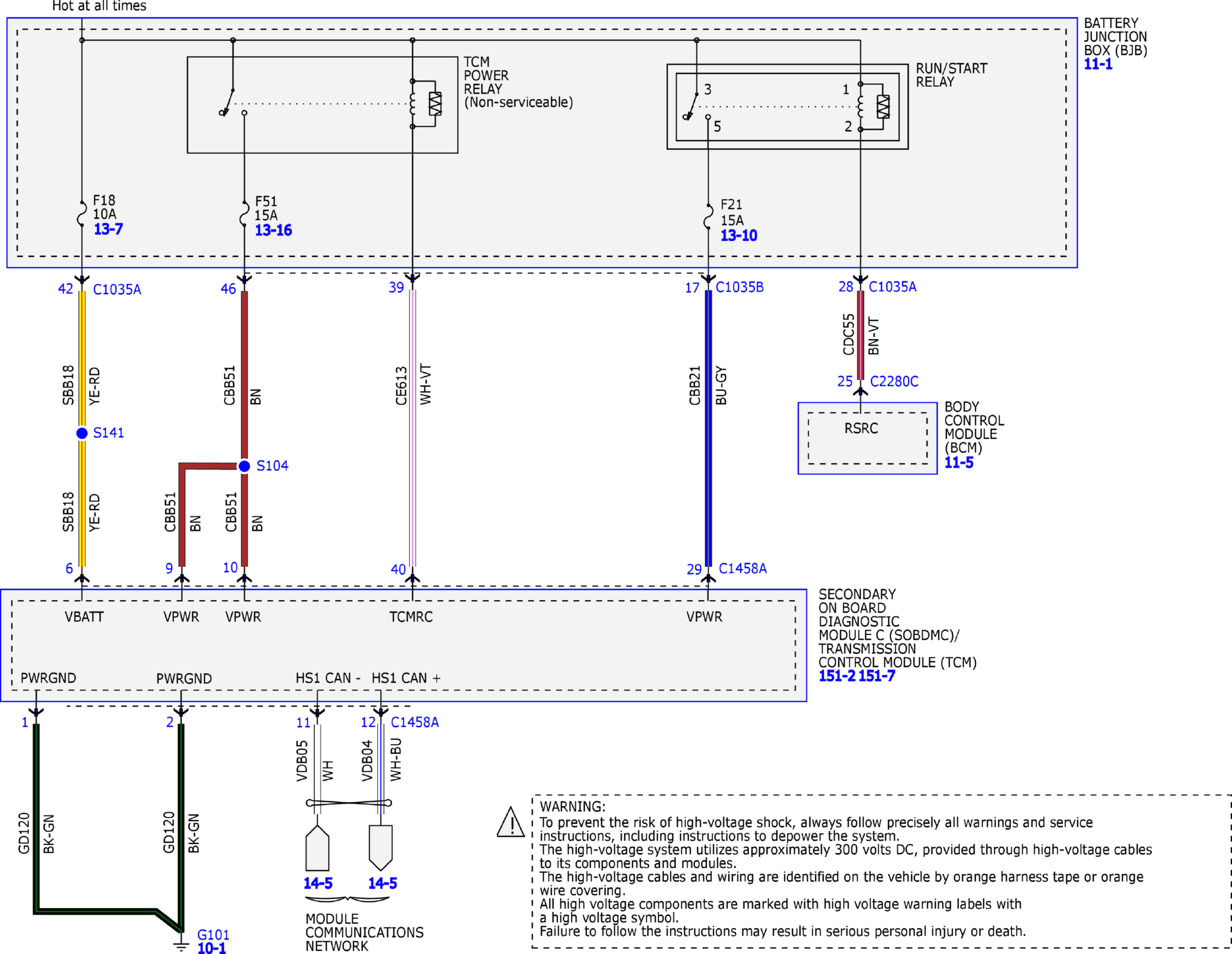

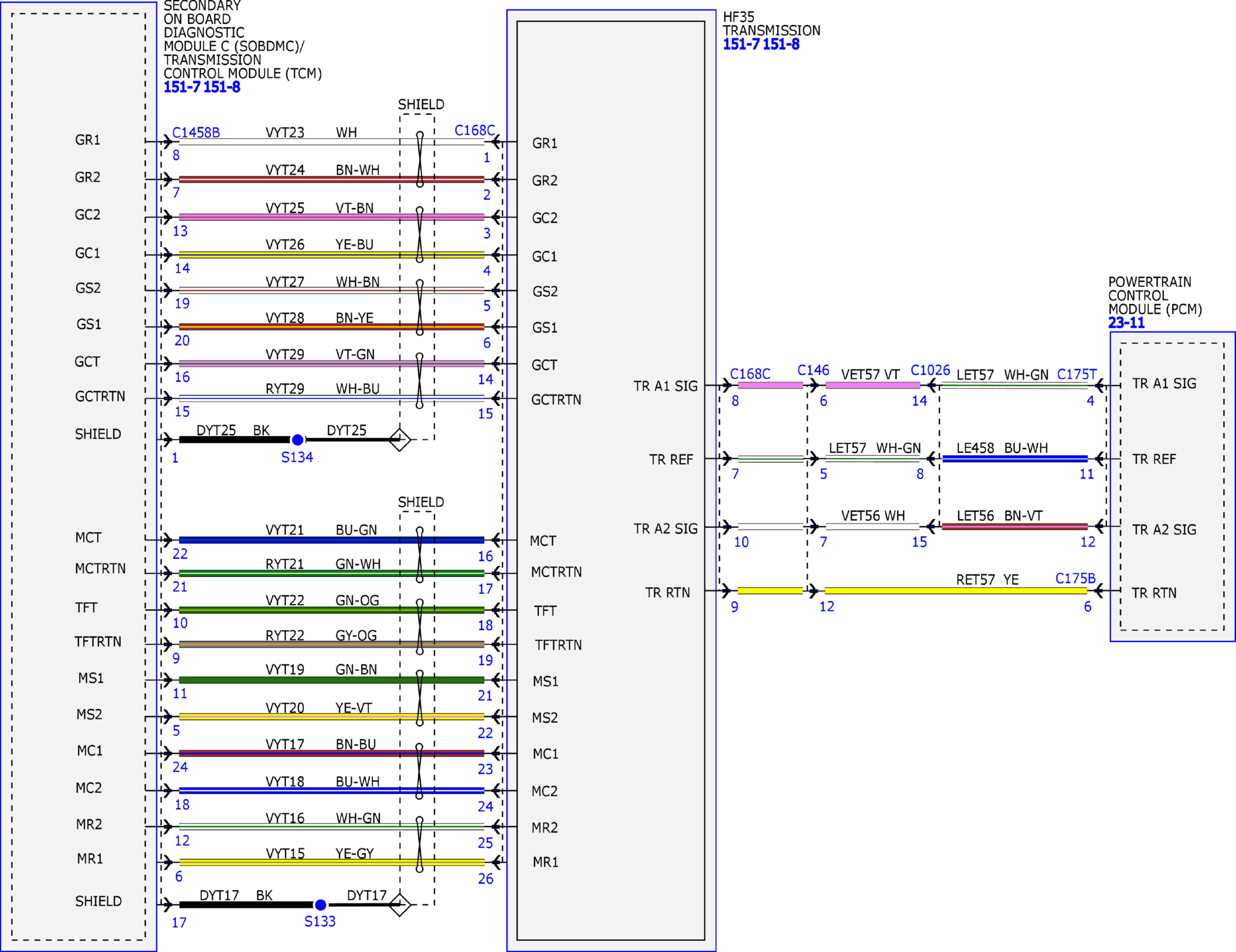

Fig 1: Transmission Controls (1 of 9)

Courtesy of FORD MOTOR COMPANY

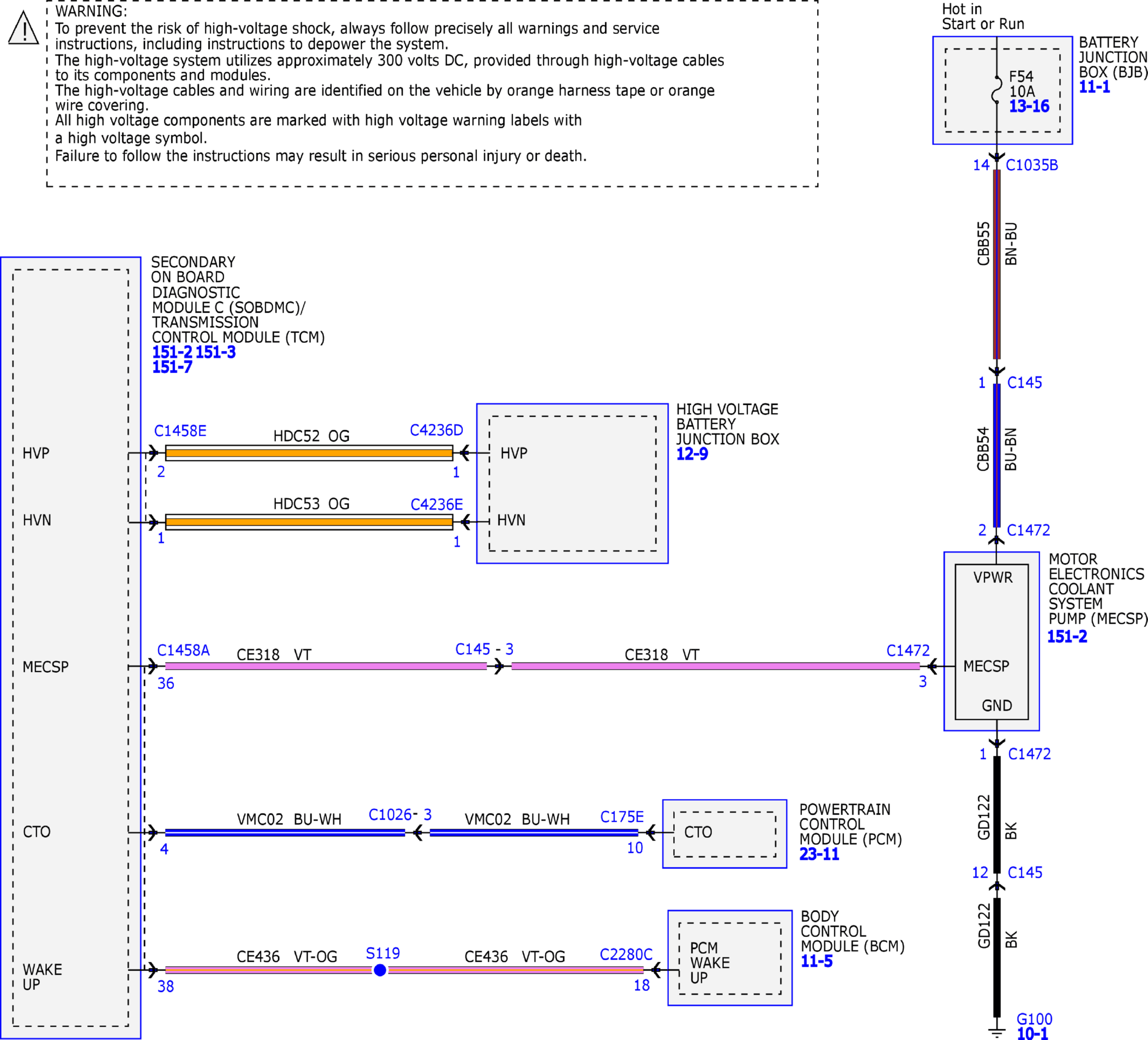

Fig 2: Transmission Controls (2 of 9)

Courtesy of FORD MOTOR COMPANY

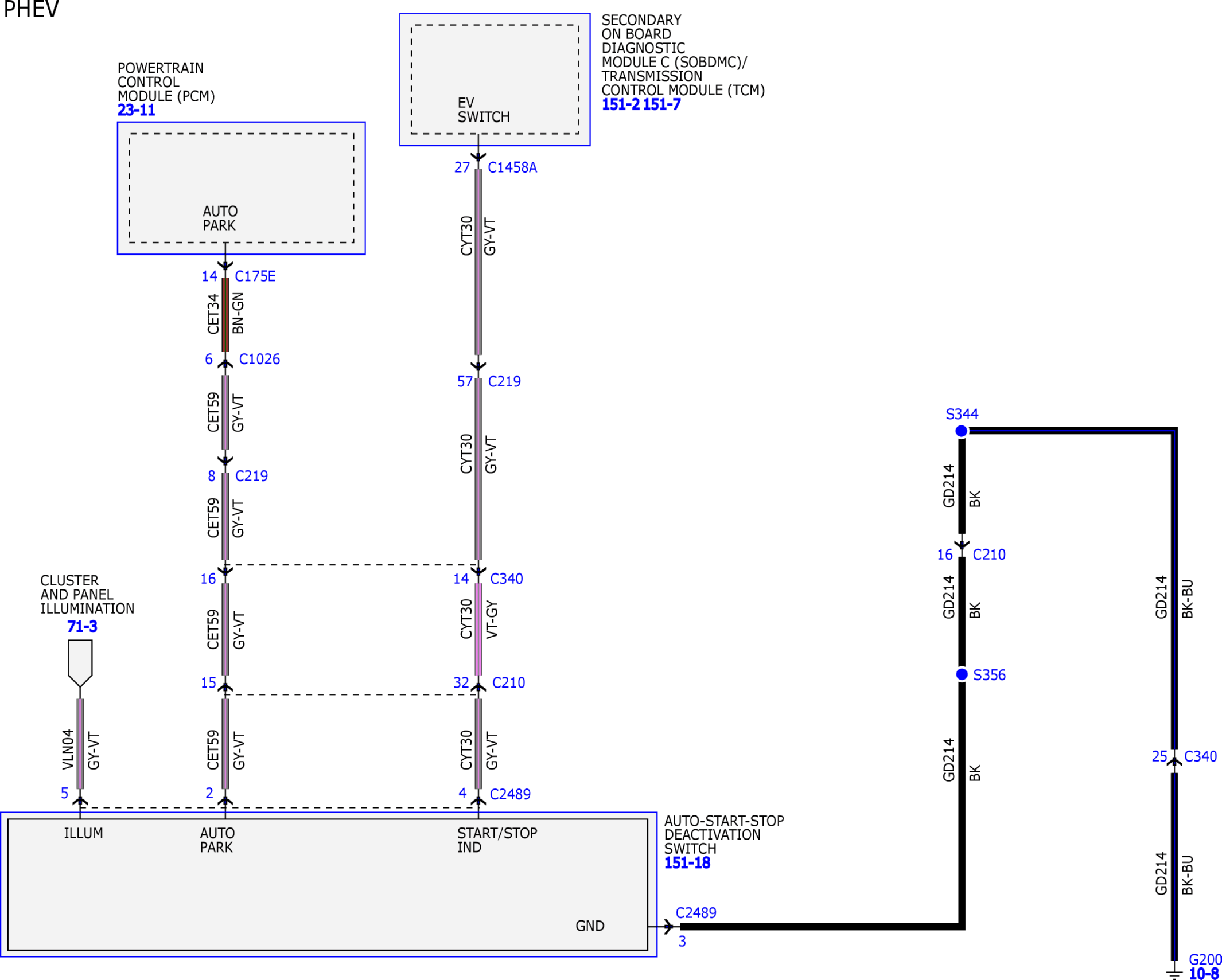

Fig 3: Transmission Controls (3 of 9)

Courtesy of FORD MOTOR COMPANY

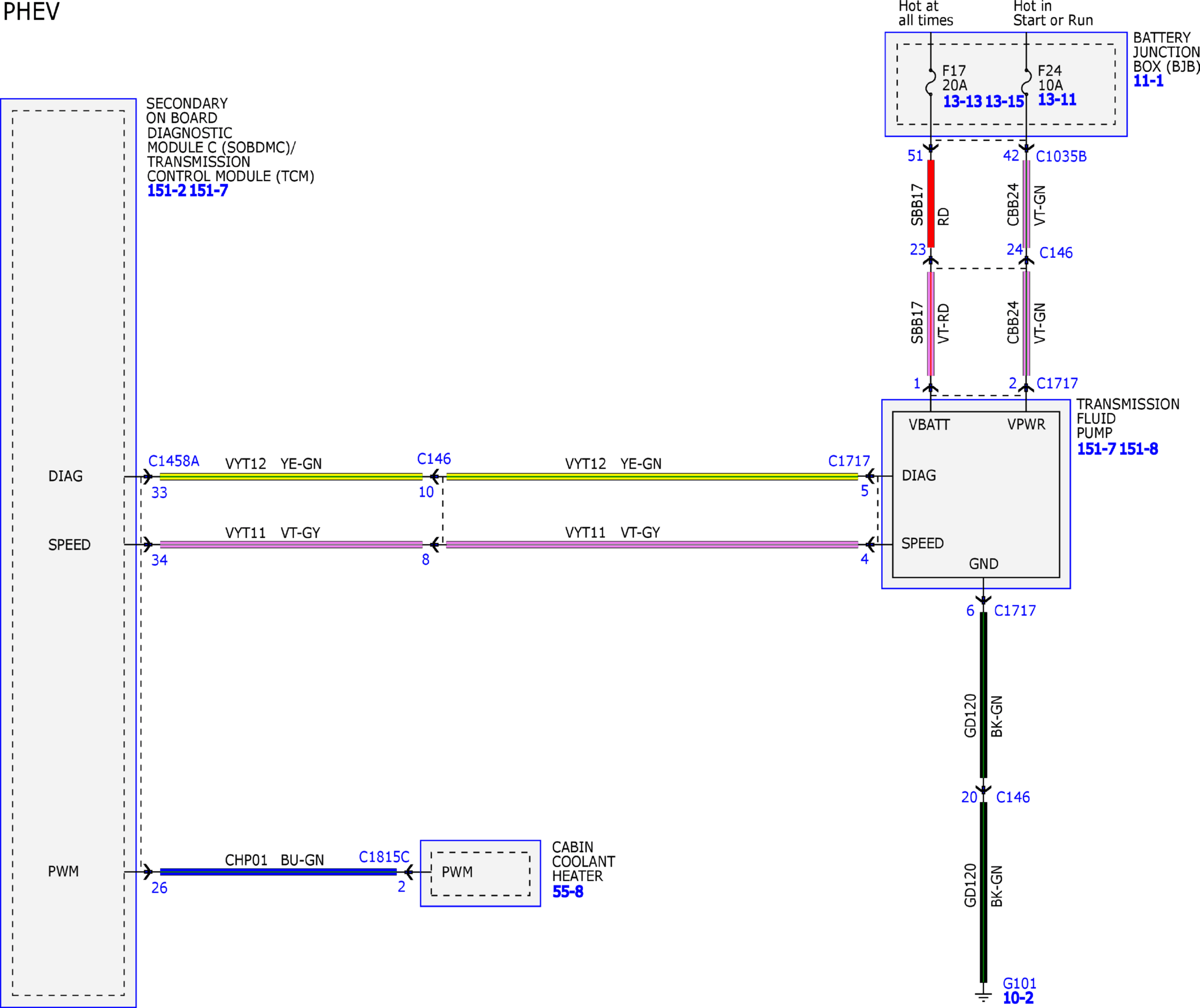

Fig 4: Transmission Controls (4 of 9)

Courtesy of FORD MOTOR COMPANY

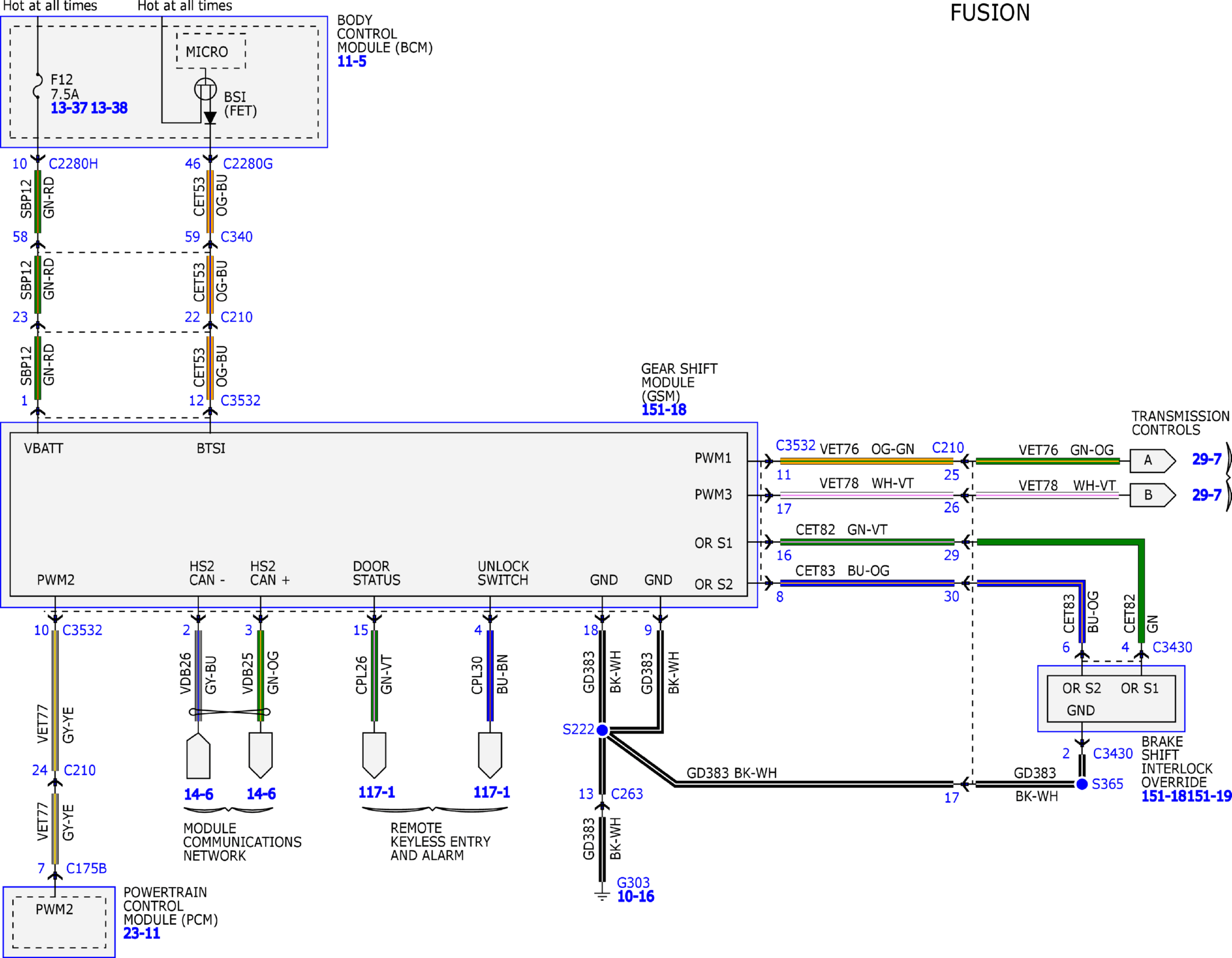

Fig 5: Transmission Controls (5 of 9)

Courtesy of FORD MOTOR COMPANY

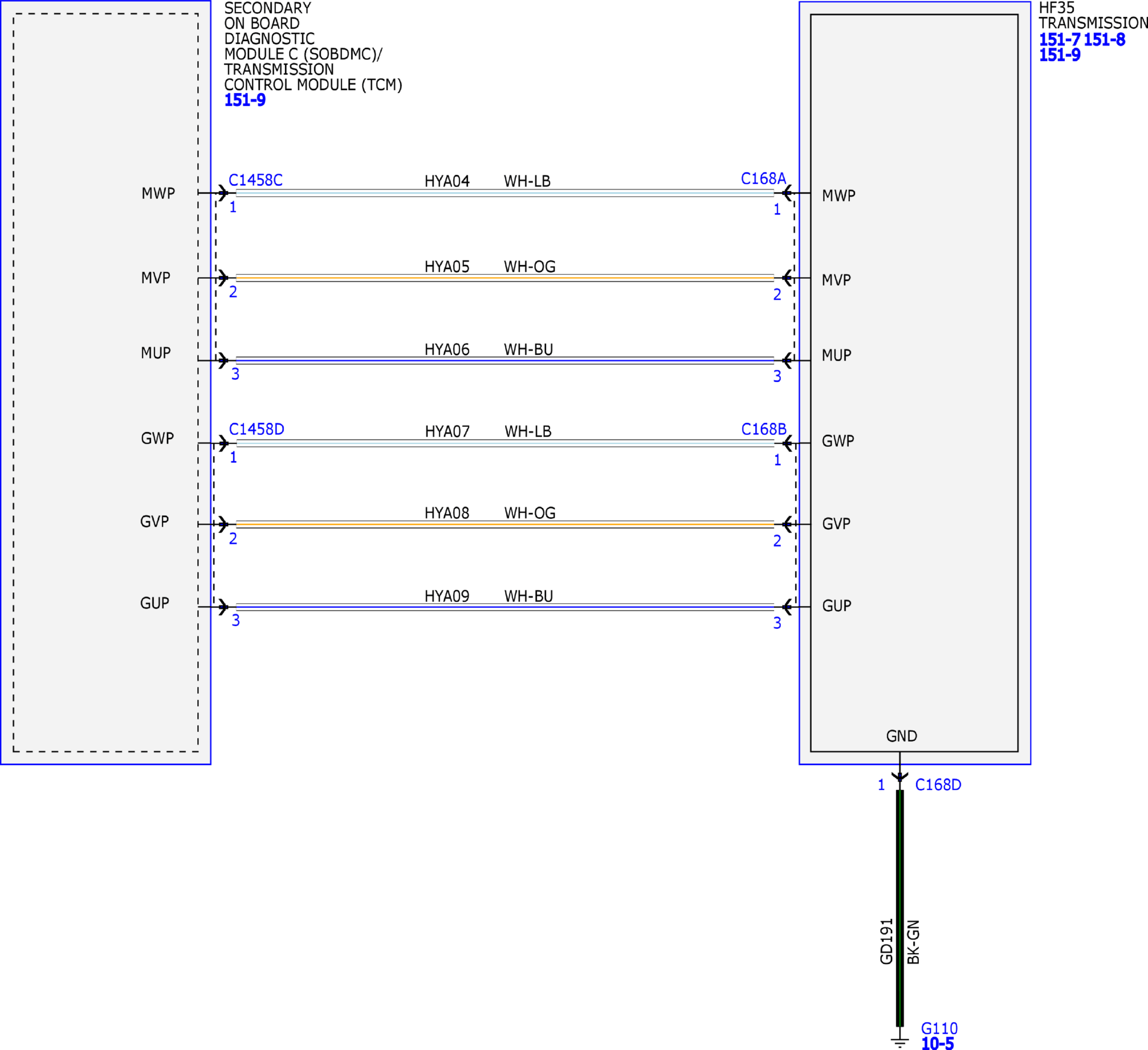

Fig 6: Transmission Controls (6 of 9)

Courtesy of FORD MOTOR COMPANY

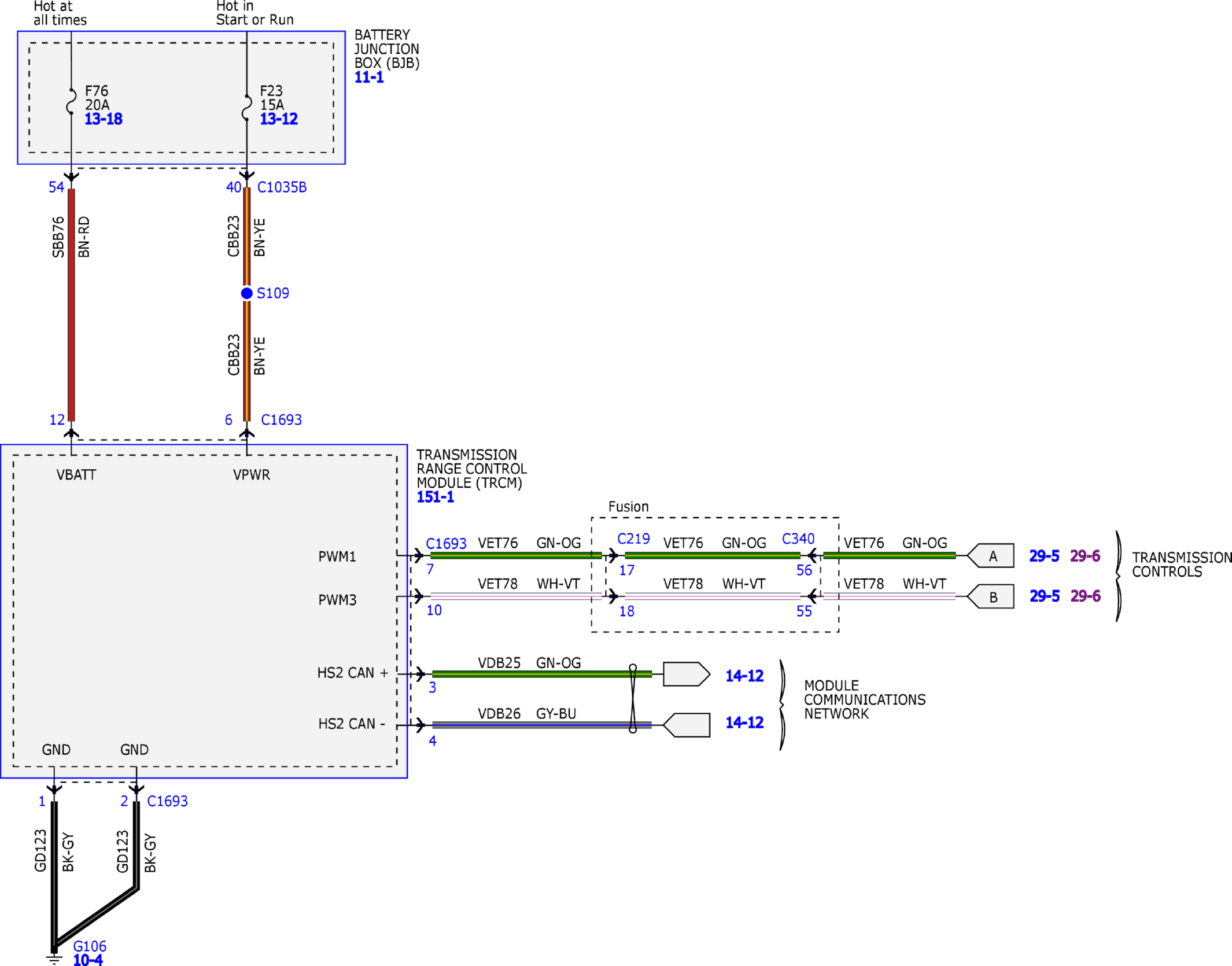

Fig 7: Transmission Controls (7 of 9)

Courtesy of FORD MOTOR COMPANY

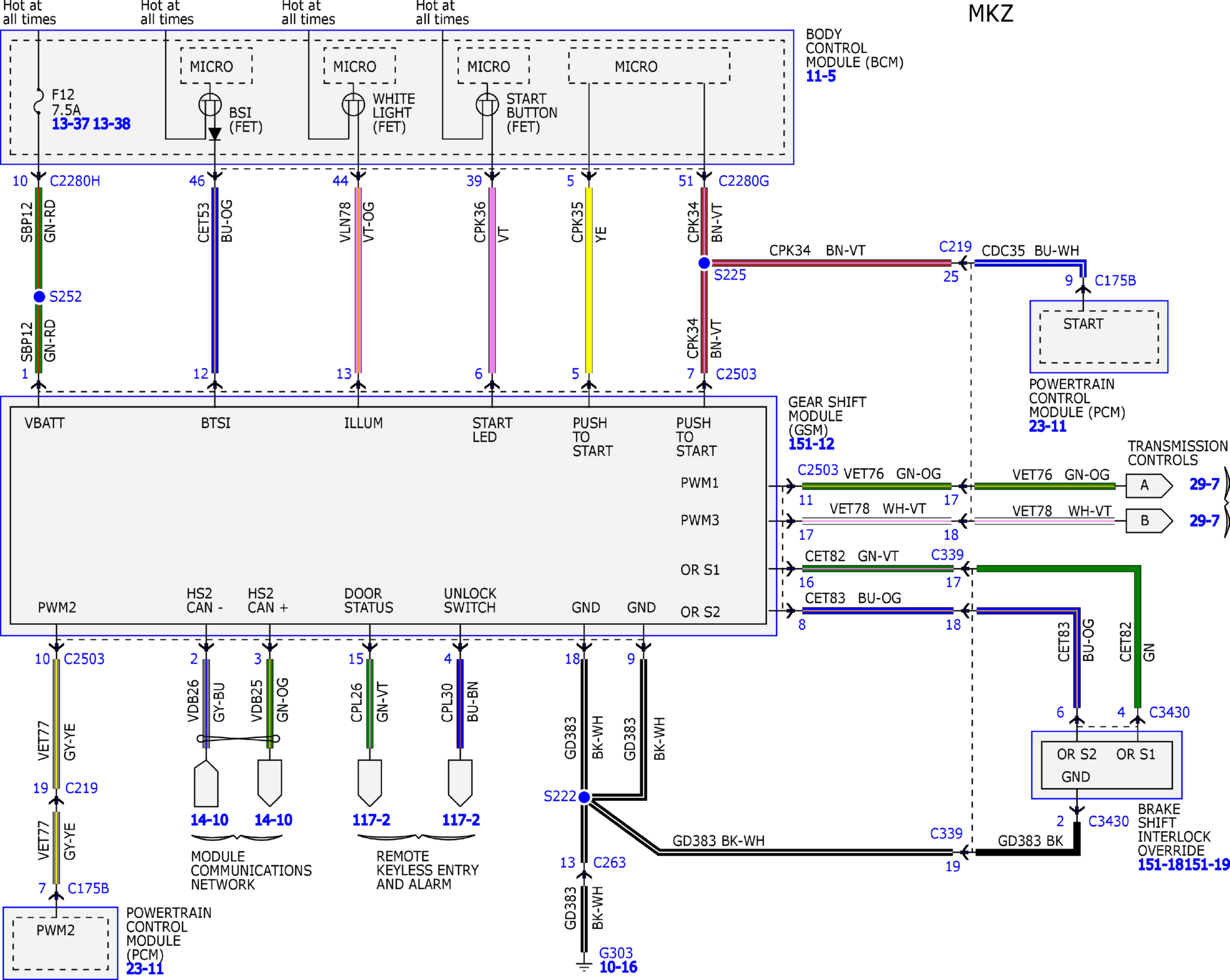

Fig 8: Transmission Controls (8 of 9)

Courtesy of FORD MOTOR COMPANY

Fig 9: Transmission Controls (9 of 9)

Courtesy of FORD MOTOR COMPANY
