Tire Pressure Monitor System
Tire Pressure Monitor System
WARNING:
This page is about a different car, the 2017 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

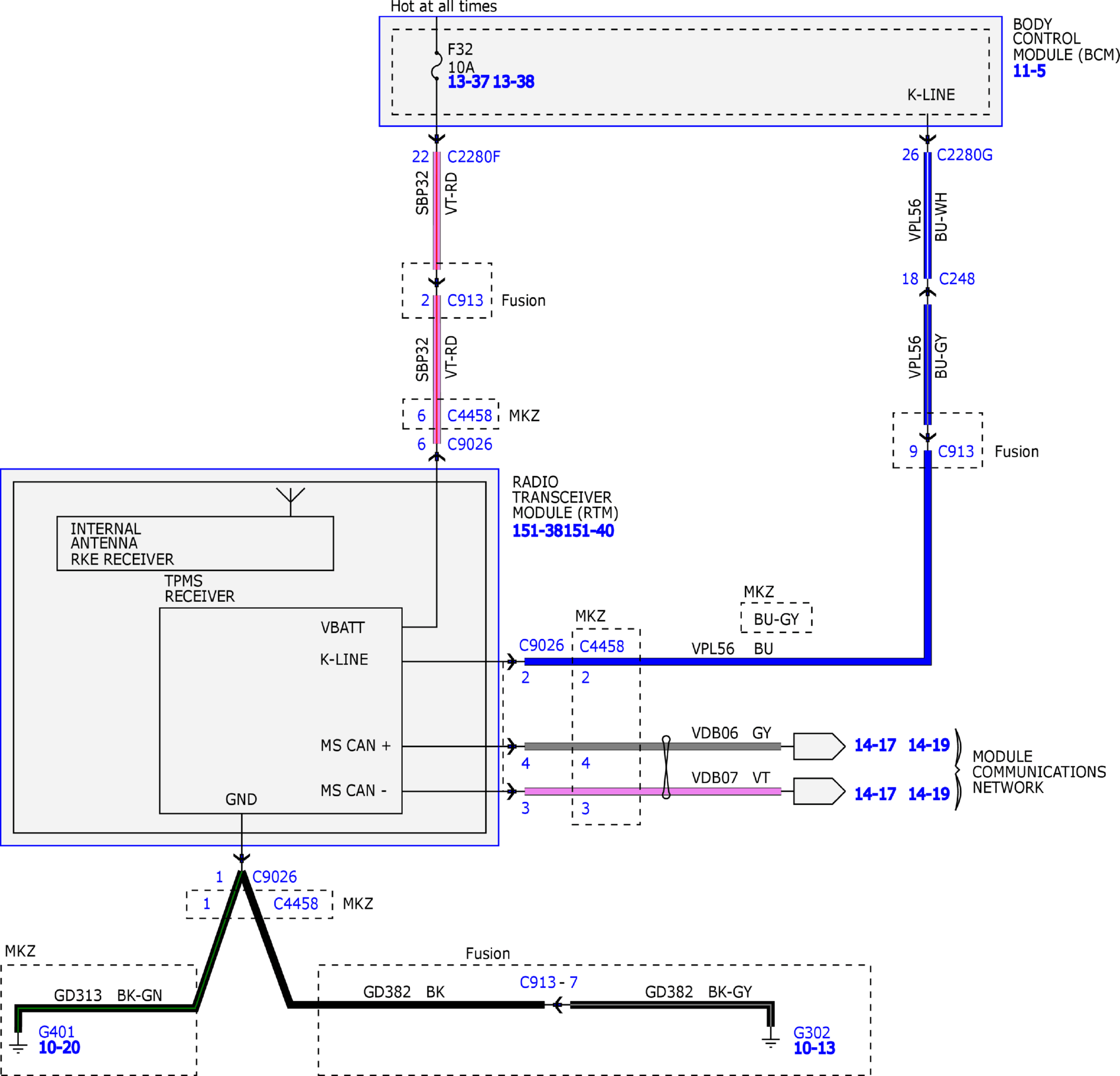

Fig 1: Tire Pressure Monitor System (1 of 1)
Courtesy of FORD MOTOR COMPANY
