Power Windows

WARNING: This page is about a different car, the 2017 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

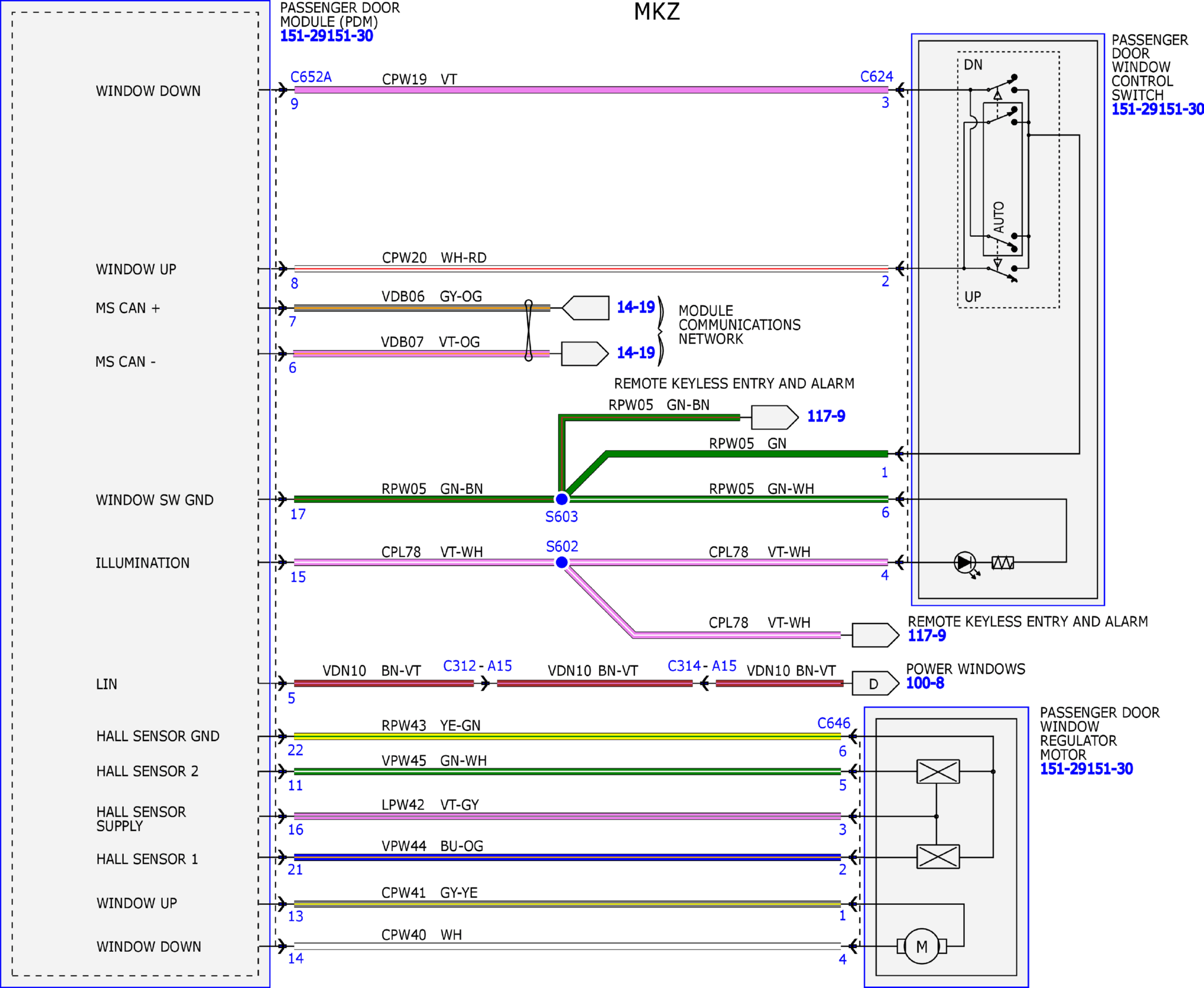

Fig 1: Power Windows (1 of 8)

Courtesy of FORD MOTOR COMPANY

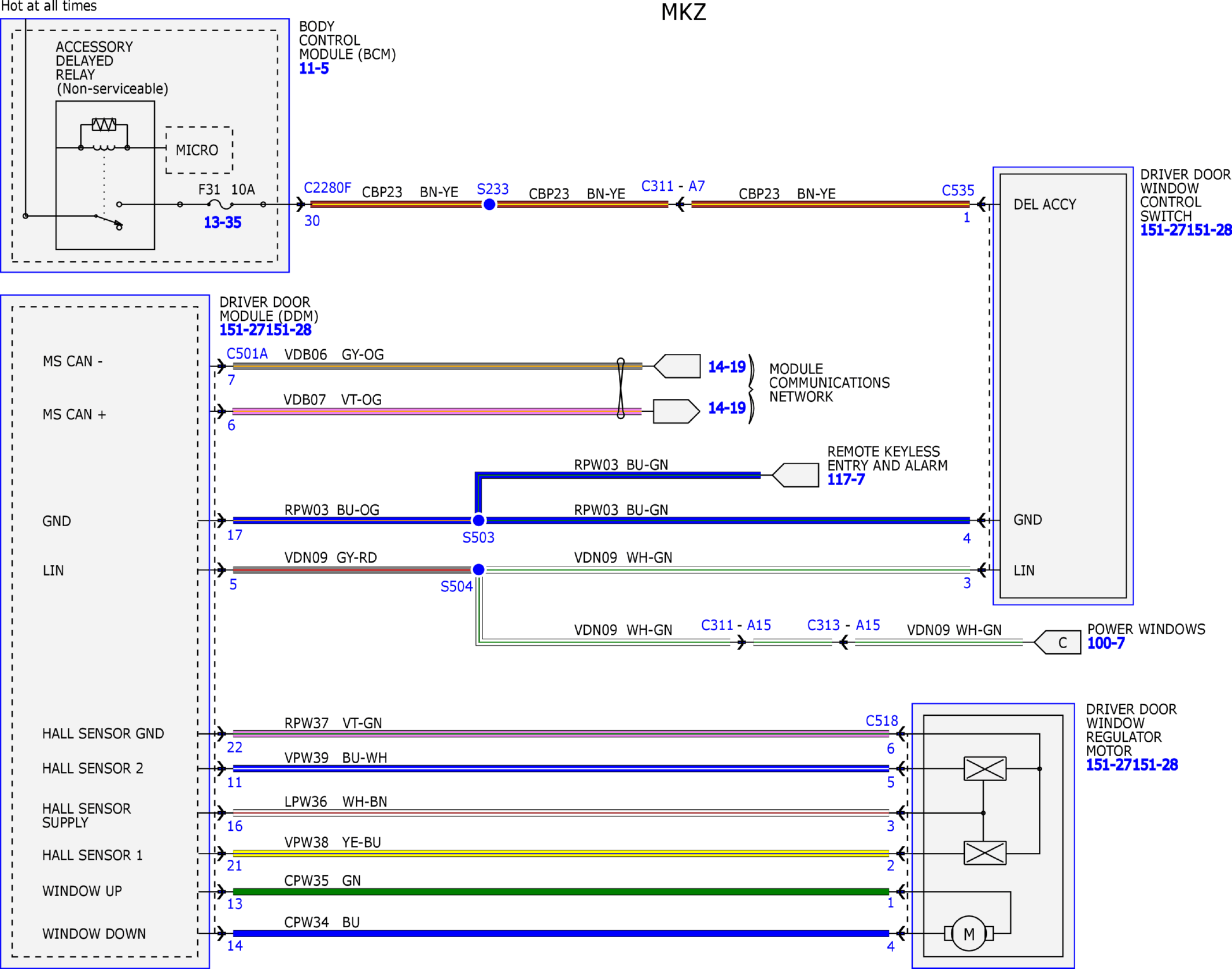

Fig 2: Power Windows (2 of 8)

Courtesy of FORD MOTOR COMPANY

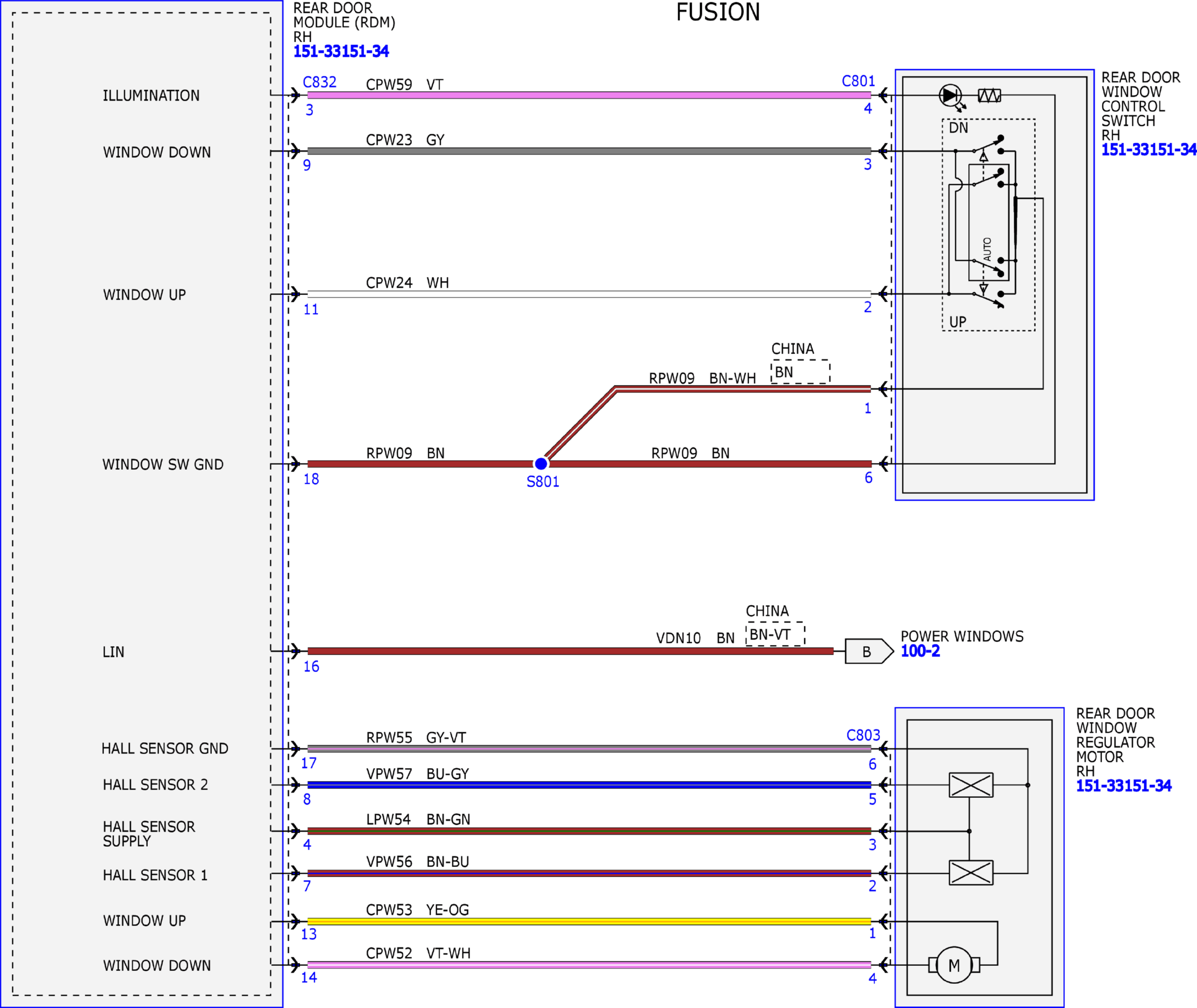

Fig 3: Power Windows (3 of 8)

Courtesy of FORD MOTOR COMPANY

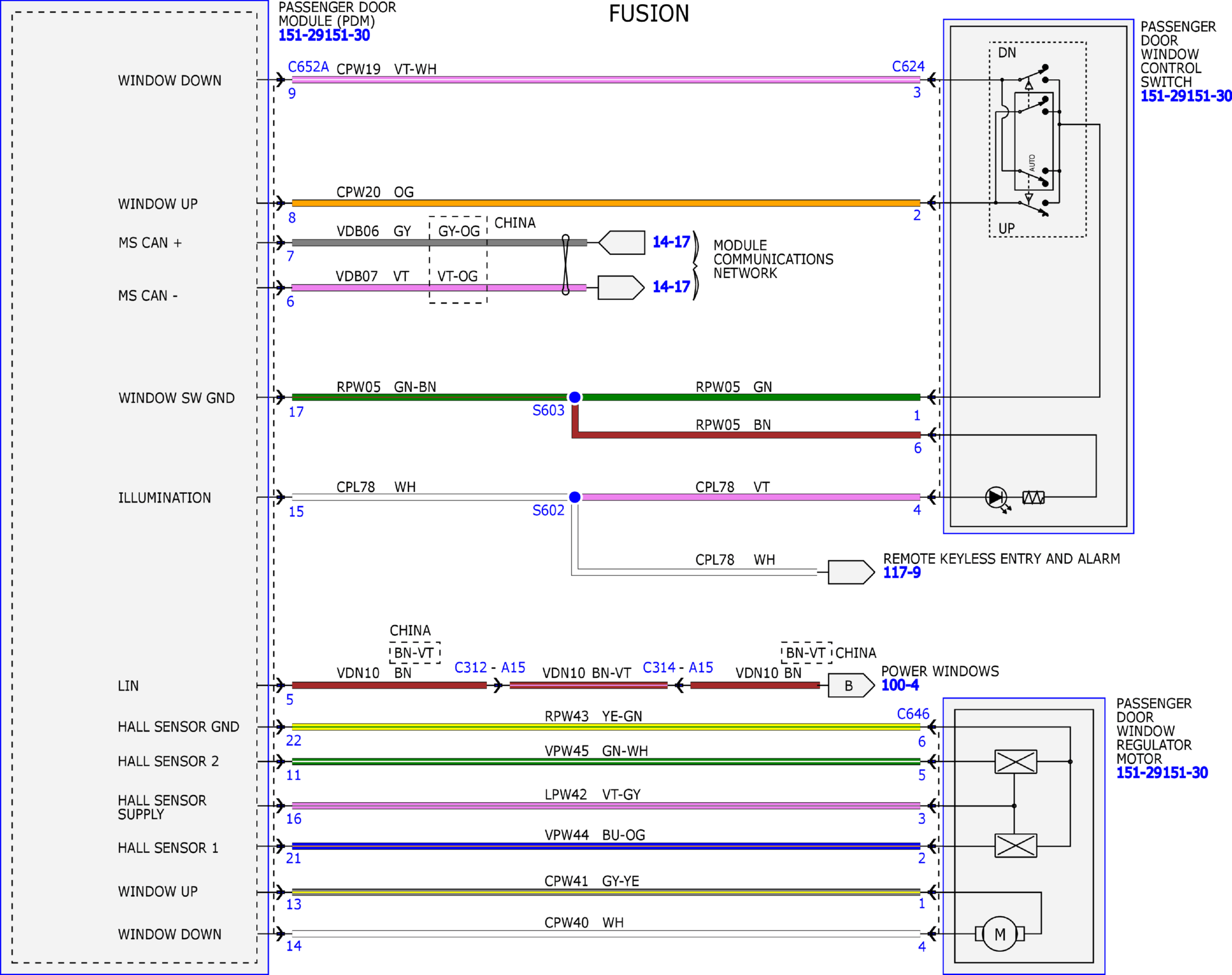

Fig 4: Power Windows (4 of 8)

Courtesy of FORD MOTOR COMPANY

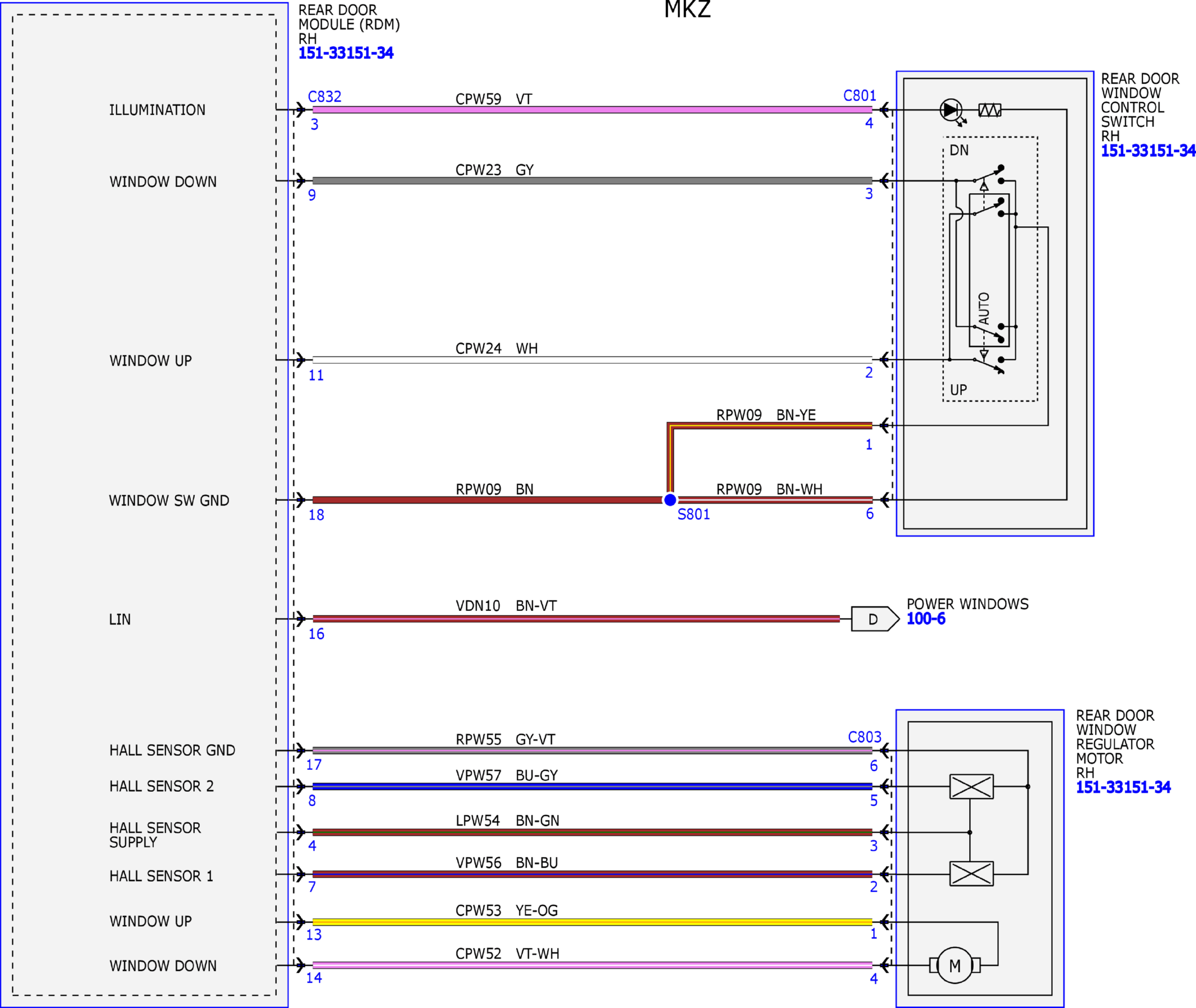

Fig 5: Power Windows (5 of 8)

Courtesy of FORD MOTOR COMPANY

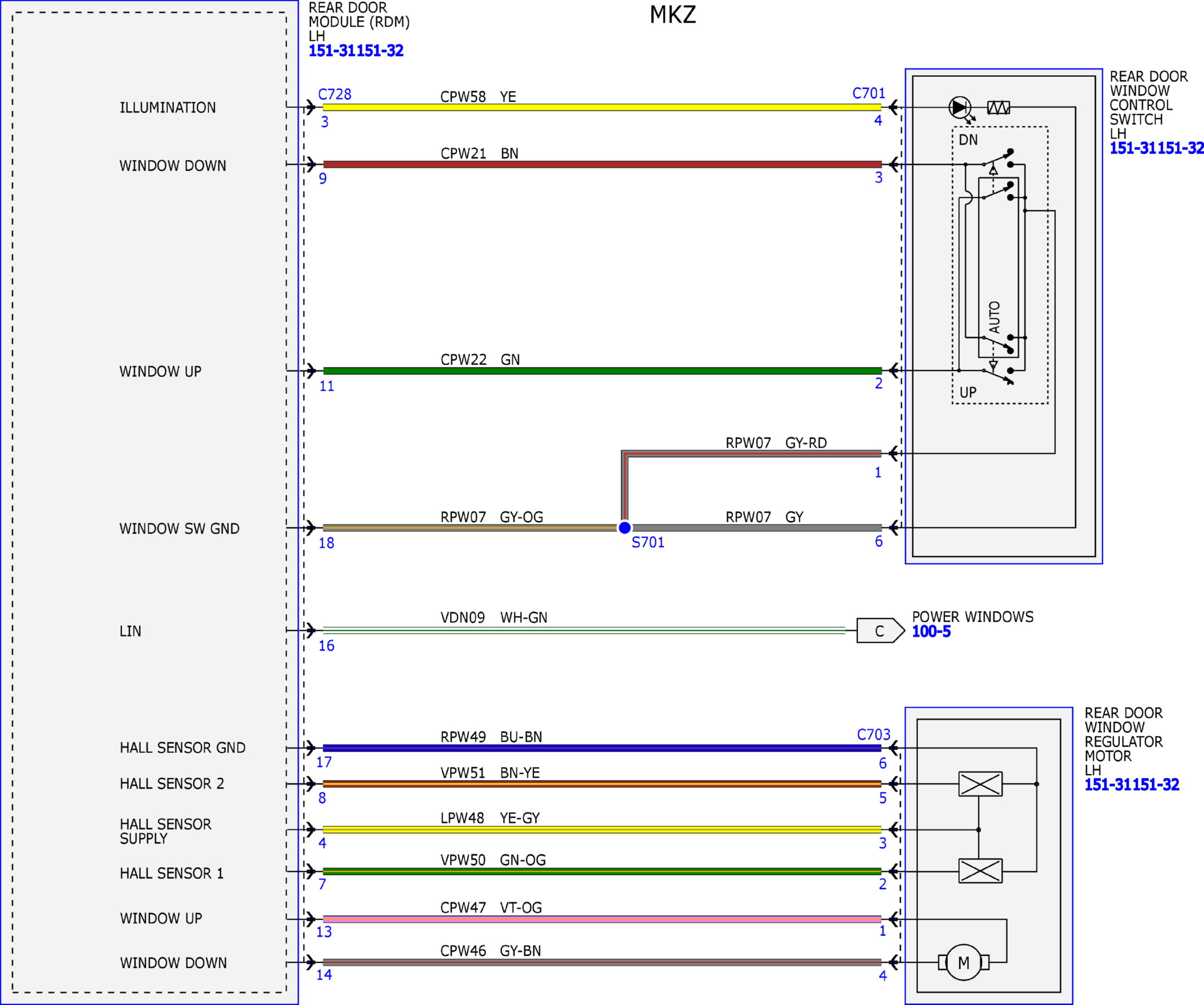

Fig 6: Power Windows (6 of 8)

Courtesy of FORD MOTOR COMPANY

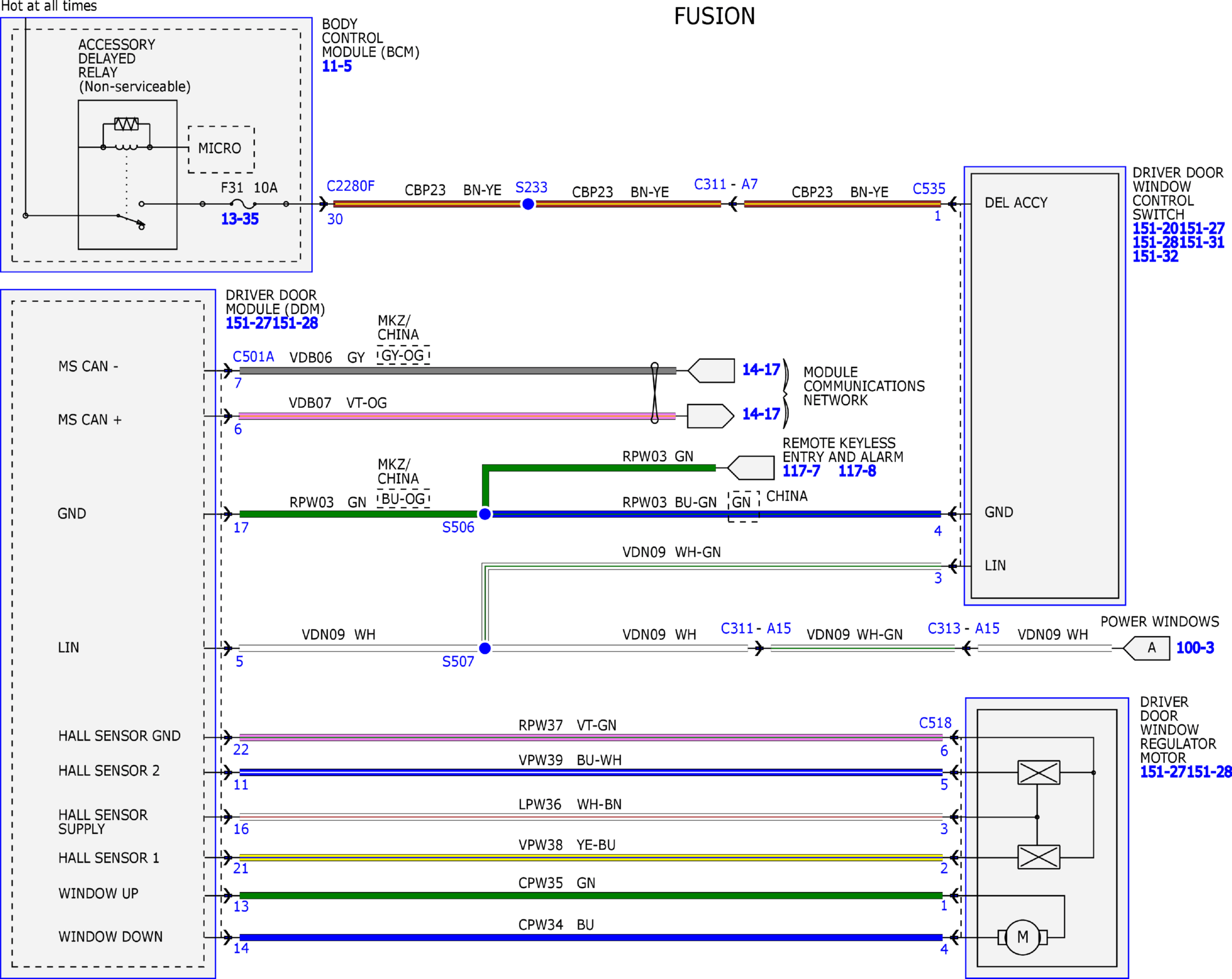

Fig 7: Power Windows (7 of 8)

Courtesy of FORD MOTOR COMPANY

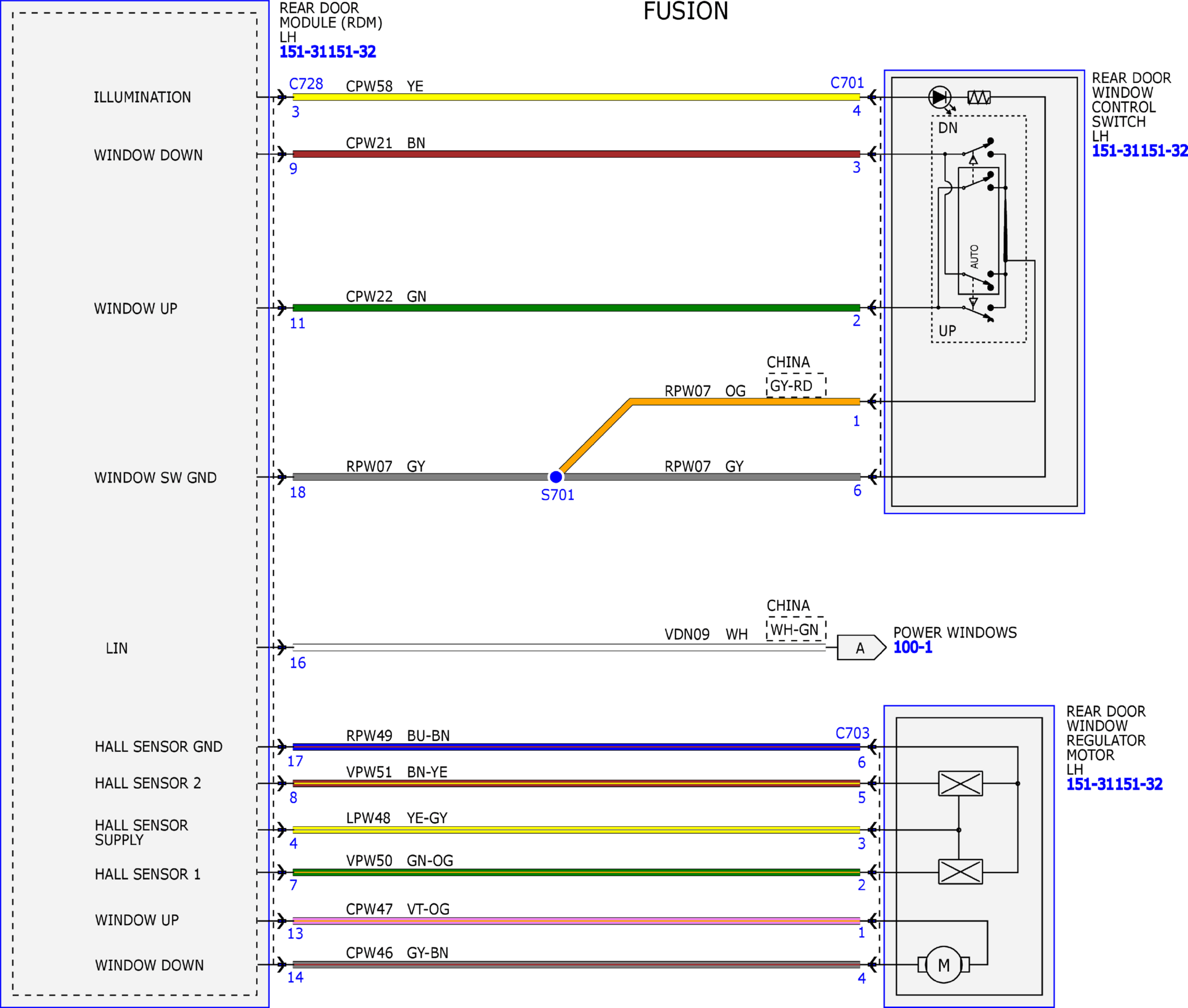

Fig 8: Power Windows (8 of 8)

Courtesy of FORD MOTOR COMPANY
