Luggage Compartment

WARNING: This page is about a different car, the 2017 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

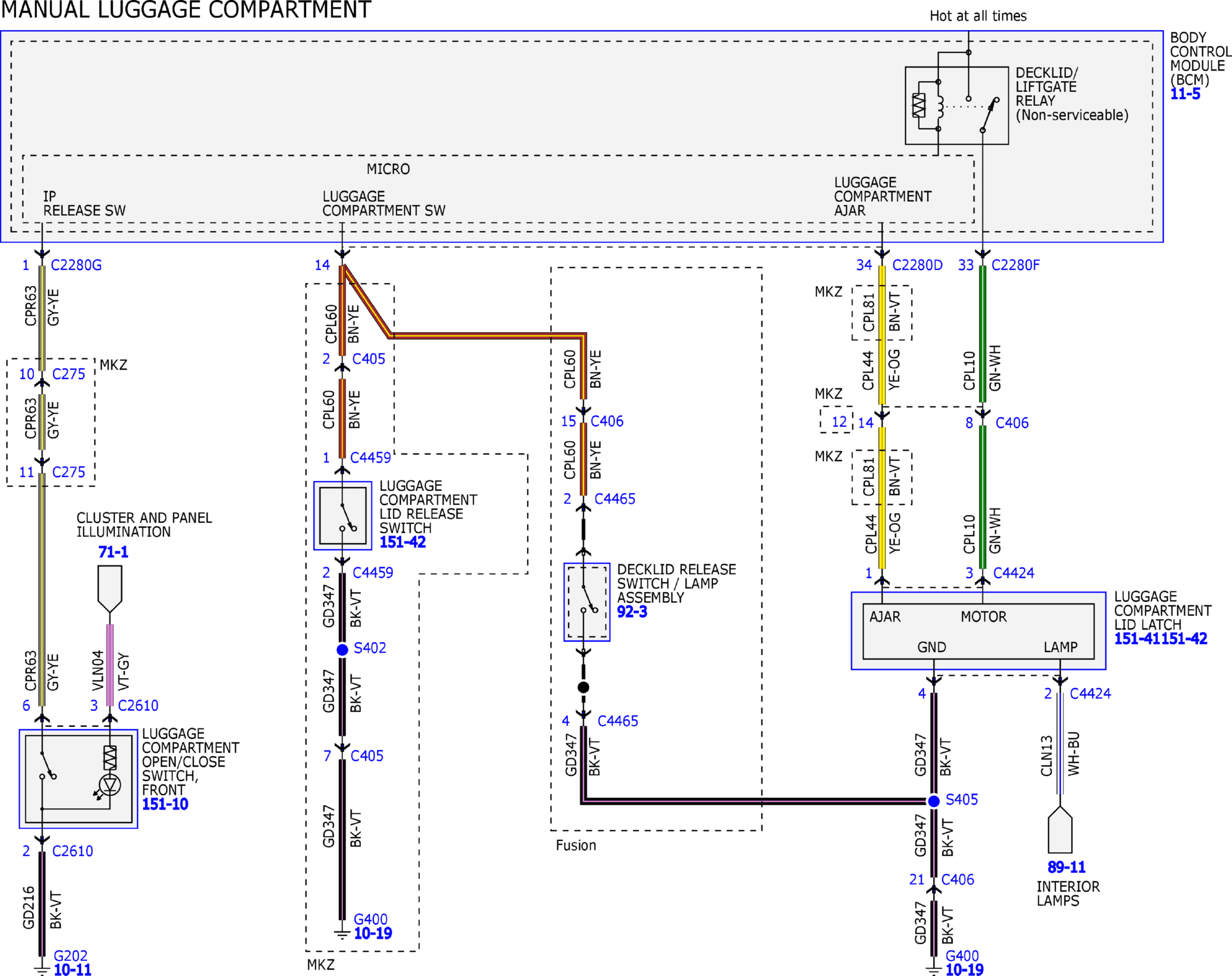

Fig 1: Luggage Compartment (1 of 5)

Courtesy of FORD MOTOR COMPANY

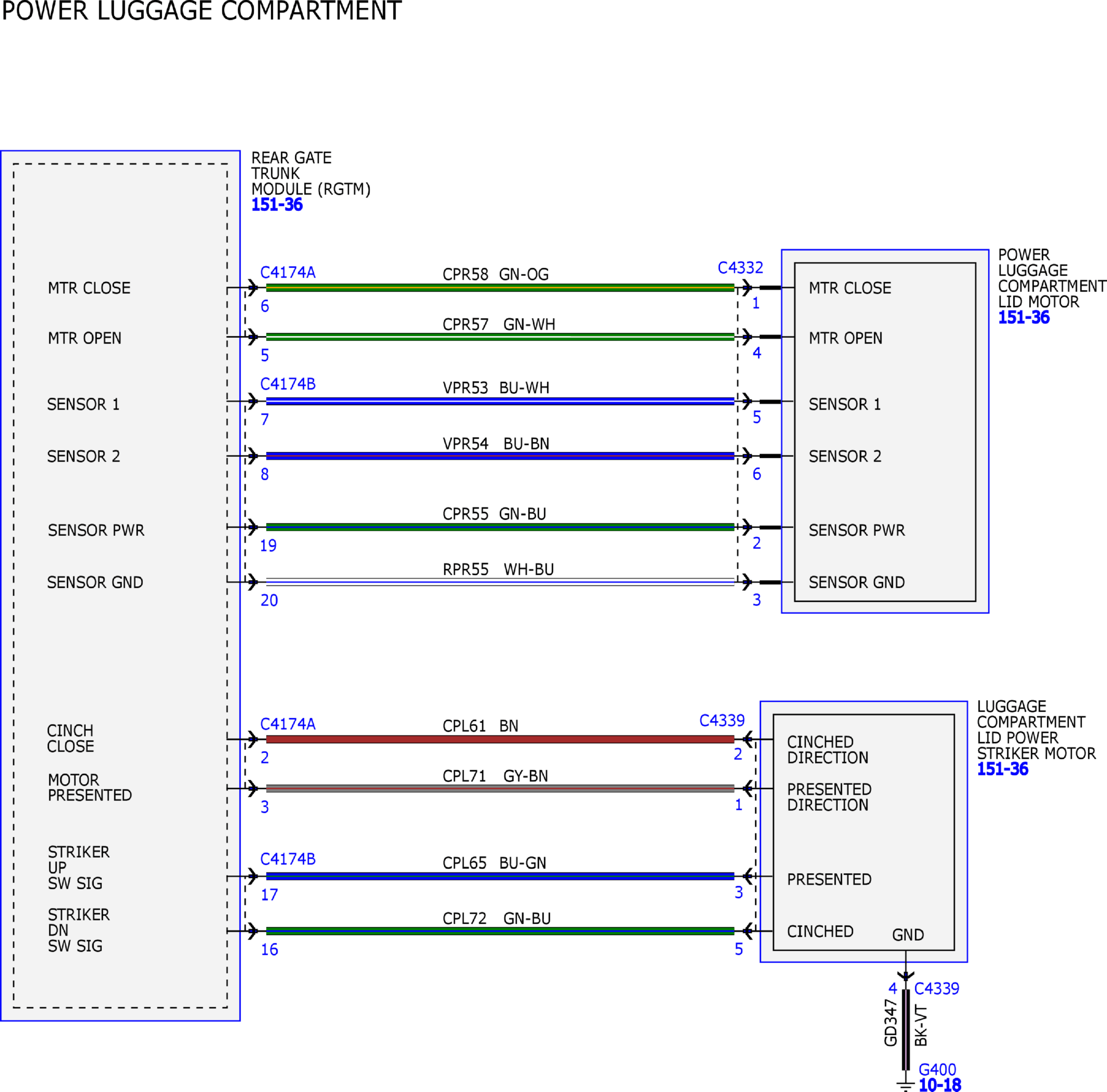

Fig 2: Luggage Compartment (2 of 5)

Courtesy of FORD MOTOR COMPANY

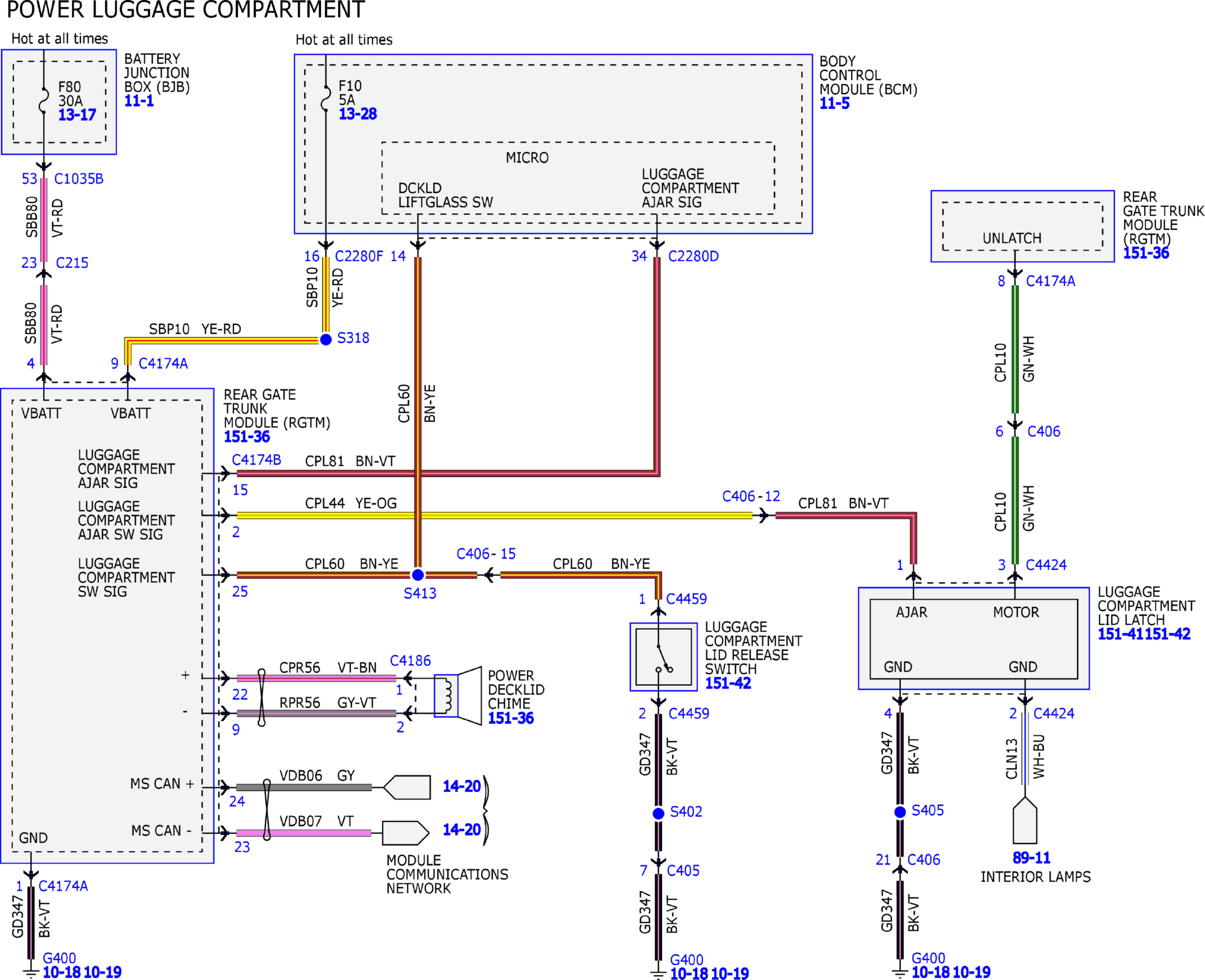

Fig 3: Luggage Compartment (3 of 5)

Courtesy of FORD MOTOR COMPANY

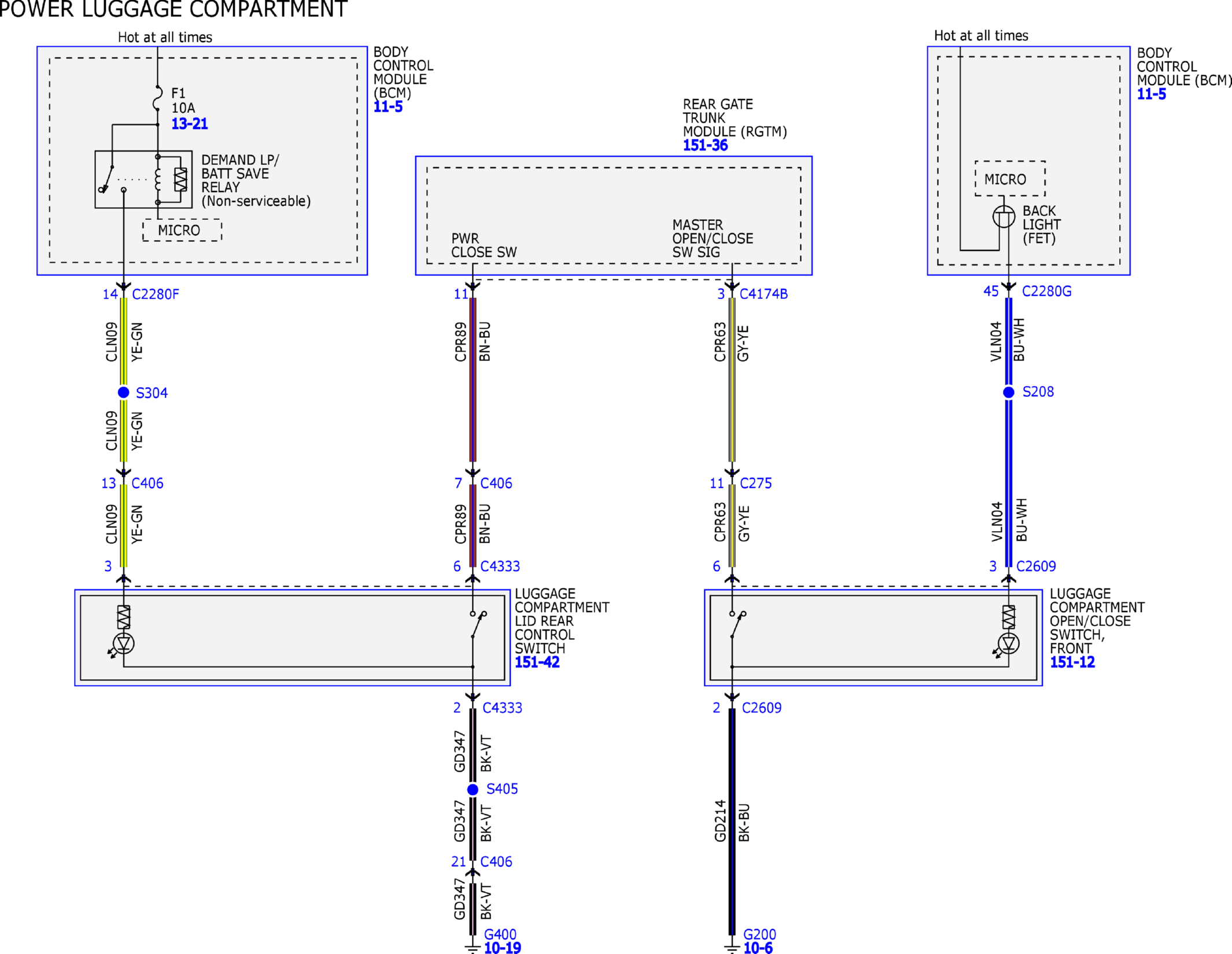

Fig 4: Luggage Compartment (4 of 5)

Courtesy of FORD MOTOR COMPANY

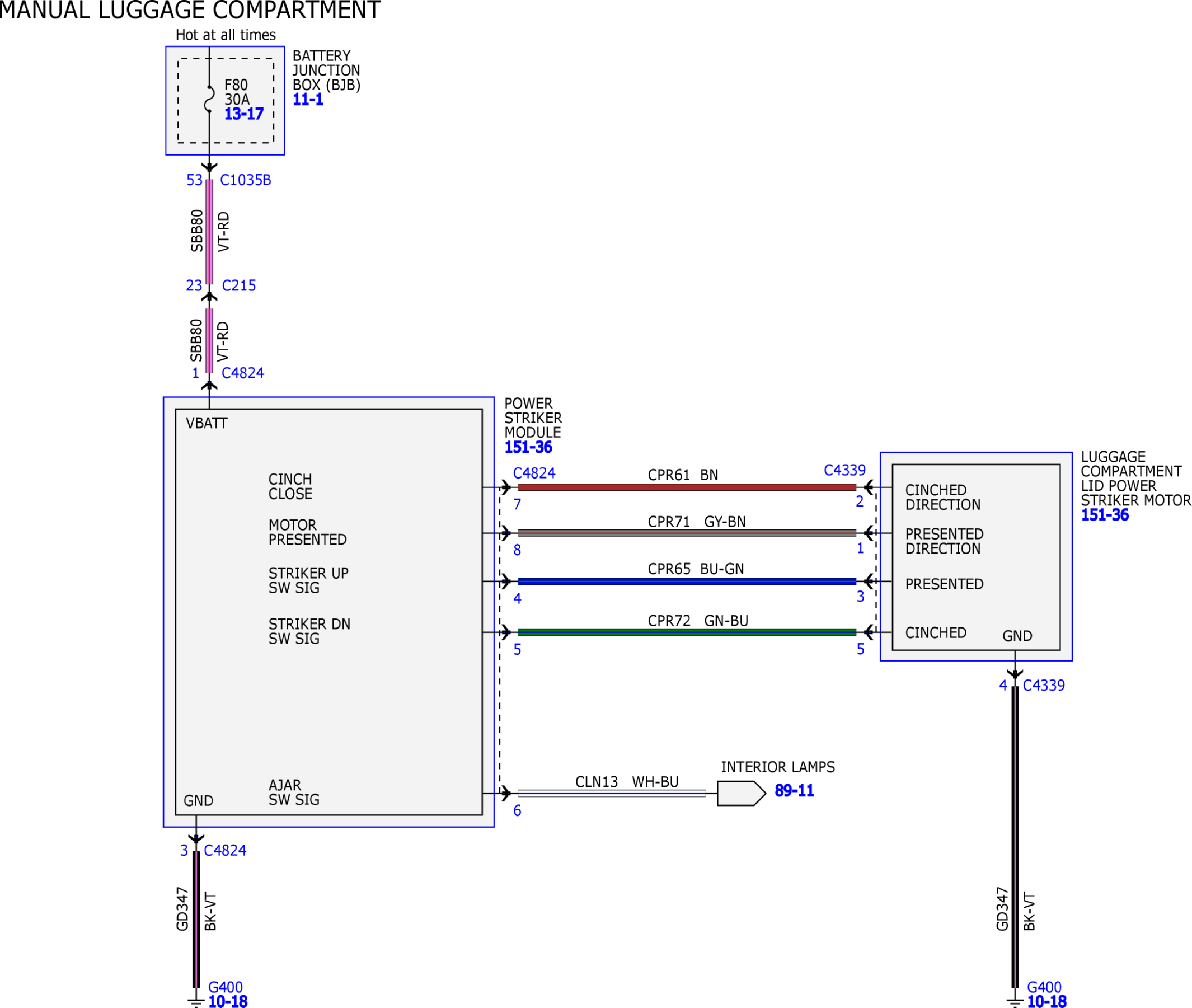

Fig 5: Luggage Compartment (5 of 5)

Courtesy of FORD MOTOR COMPANY
