Section 1091 (OEM Wiring Diagrams (Hybrid/ENERGI)): Headlamps/AUTOLAMPS

WARNING: This page is about a different car, the 2017 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

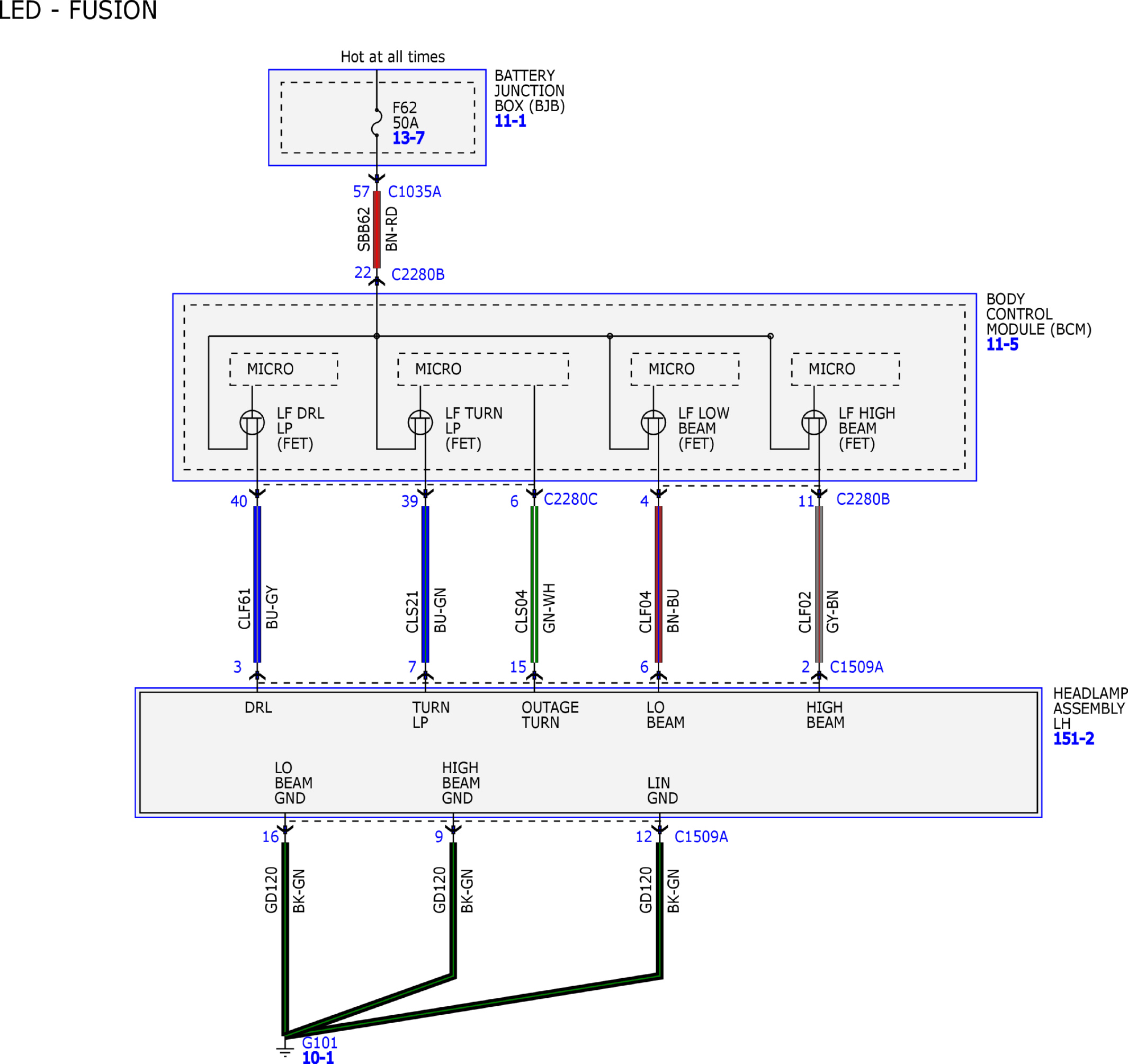

Fig 1: Headlamps/Autolamps (1 of 8)

Courtesy of FORD MOTOR COMPANY

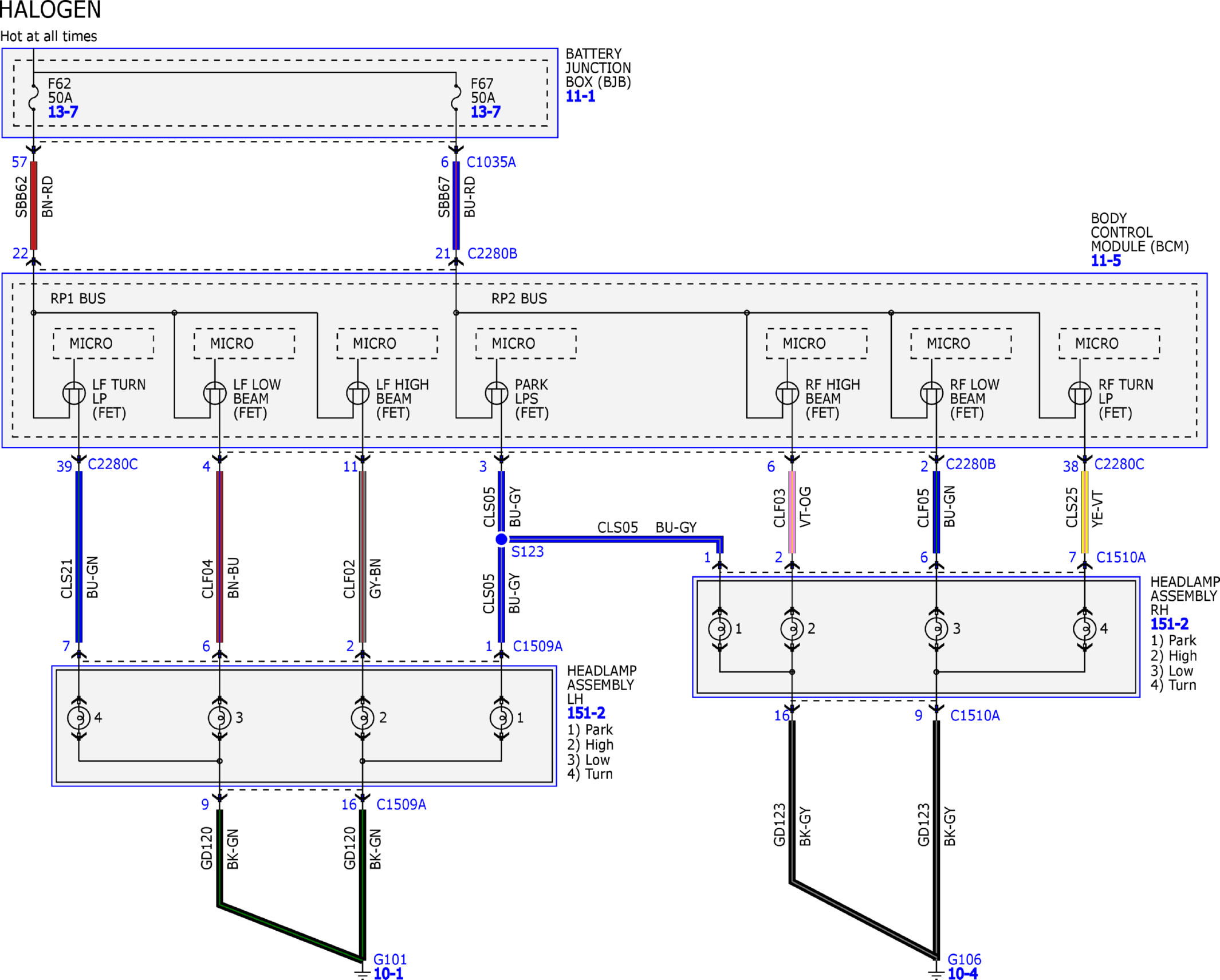

Fig 2: Headlamps/Autolamps (2 of 8)

Courtesy of FORD MOTOR COMPANY

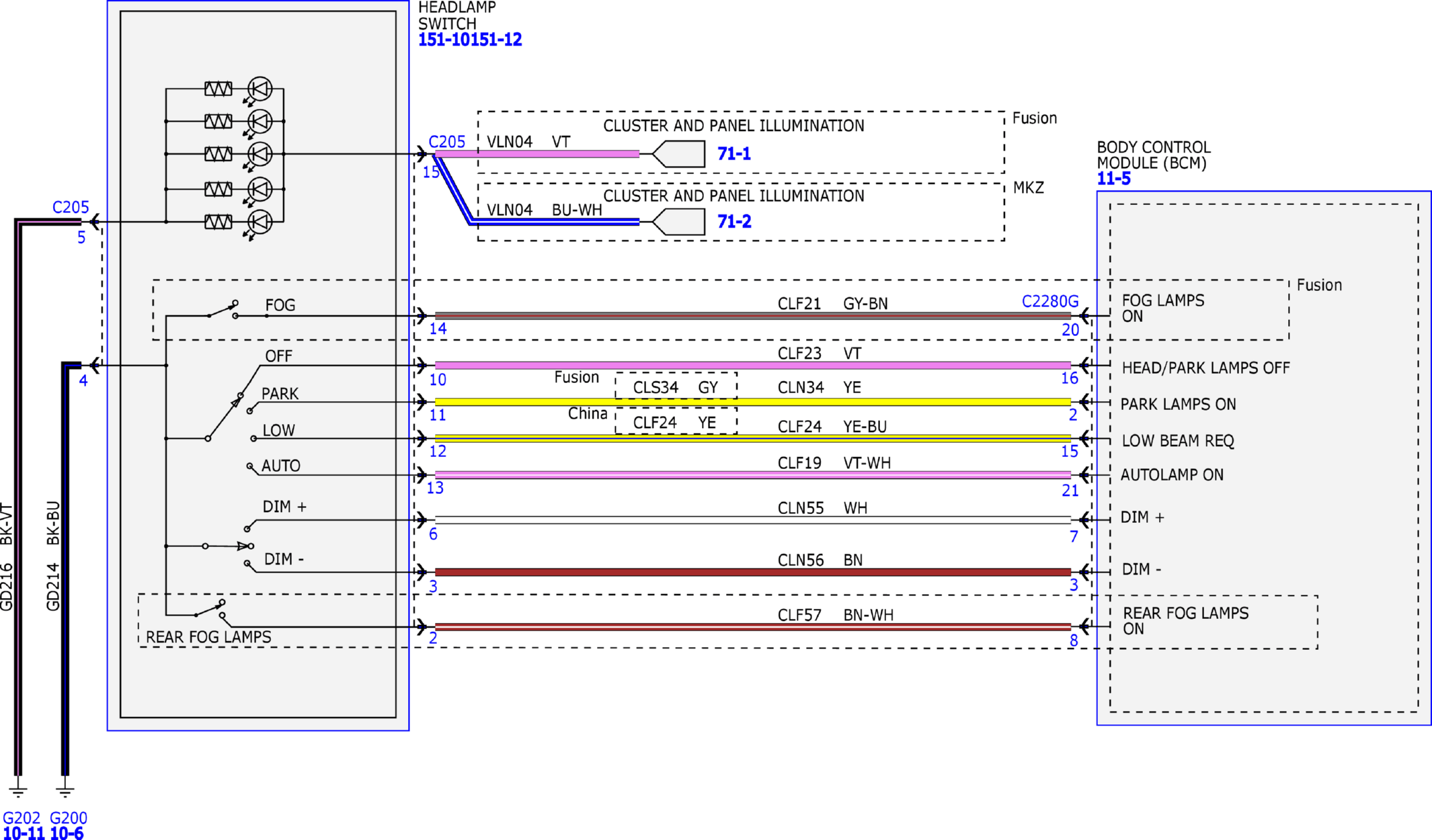

Fig 3: Headlamps/Autolamps (3 of 8)

Courtesy of FORD MOTOR COMPANY

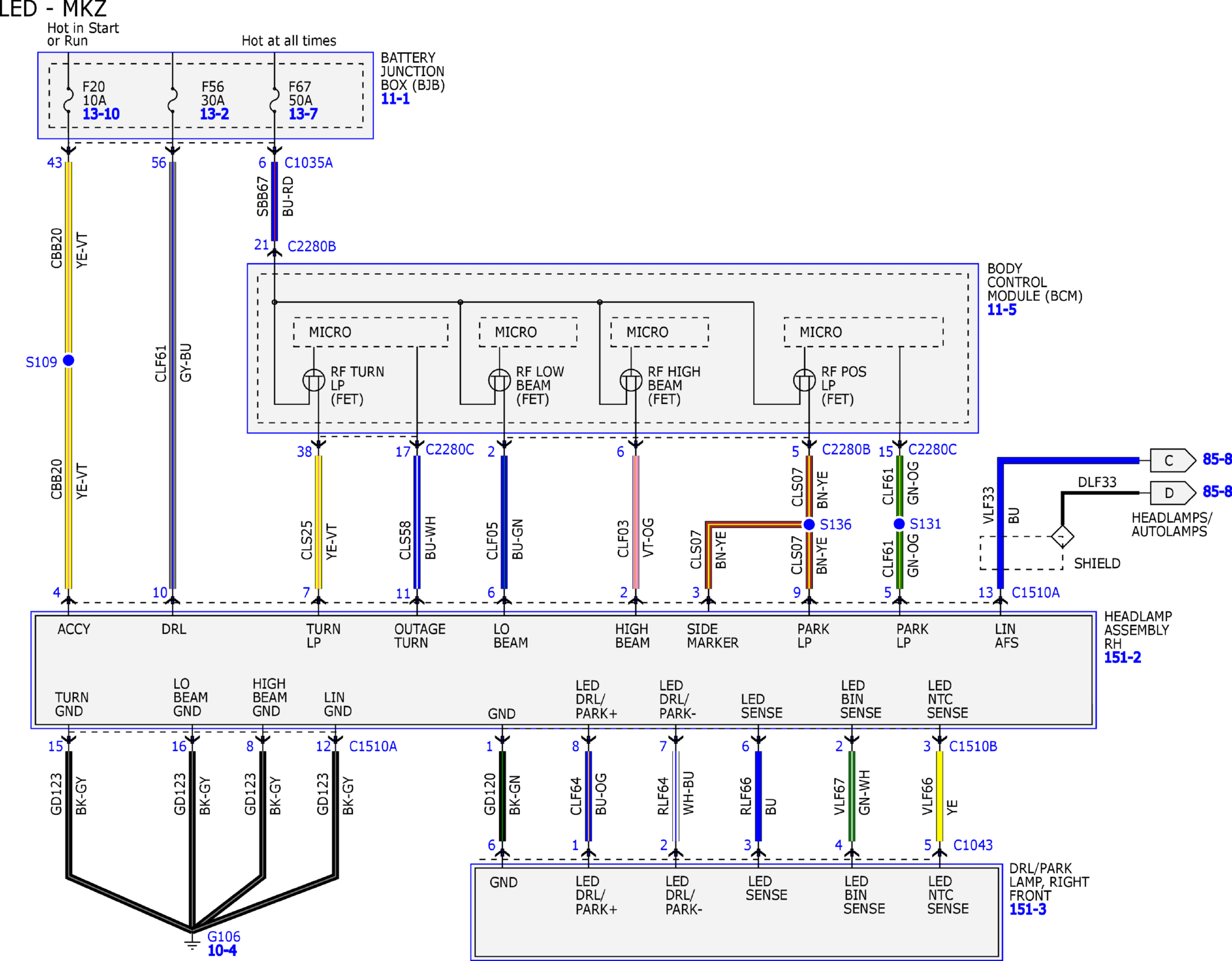

Fig 4: Headlamps/Autolamps (4 of 8)

Courtesy of FORD MOTOR COMPANY

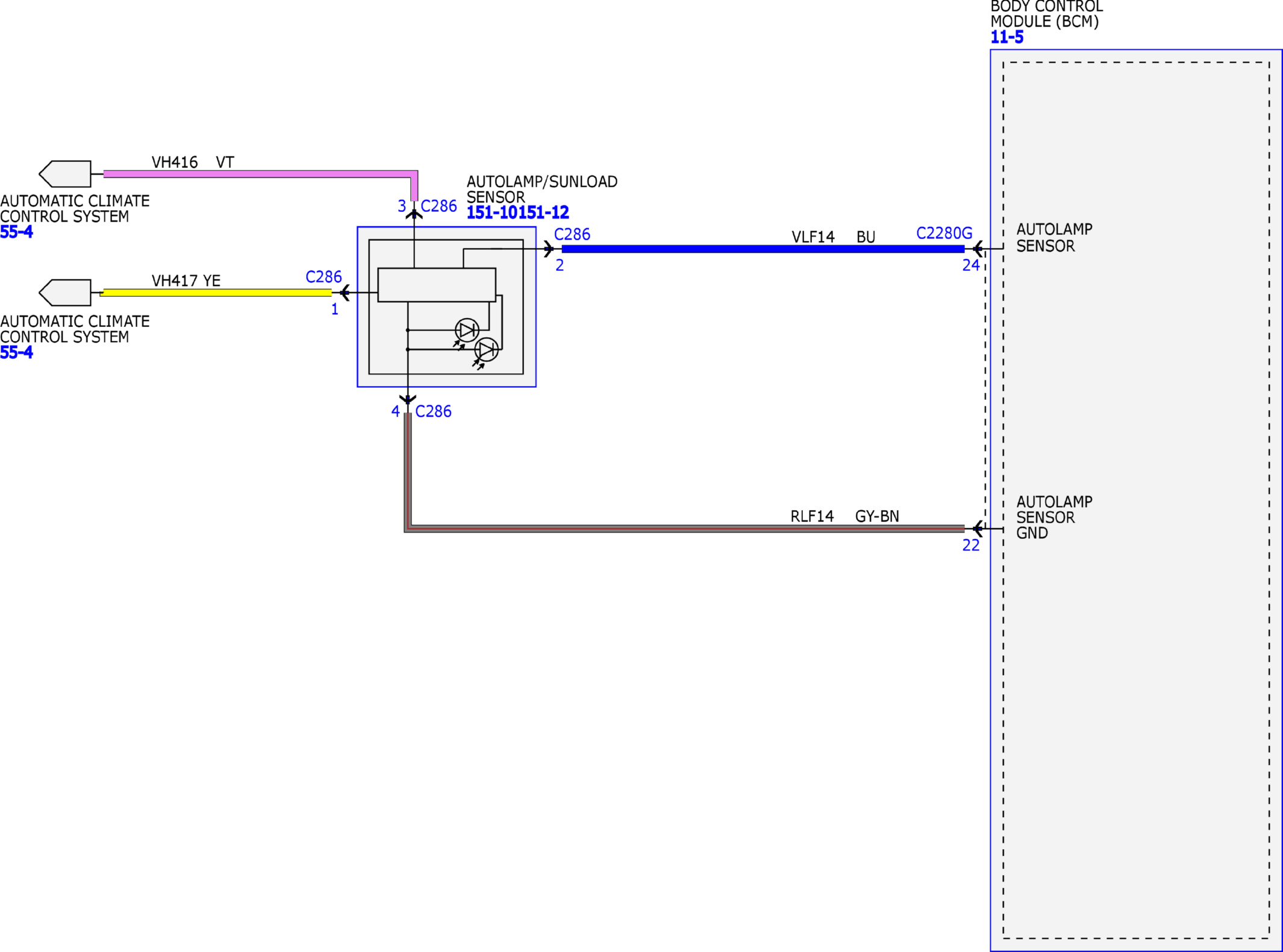

Fig 5: Headlamps/Autolamps (5 of 8)

Courtesy of FORD MOTOR COMPANY

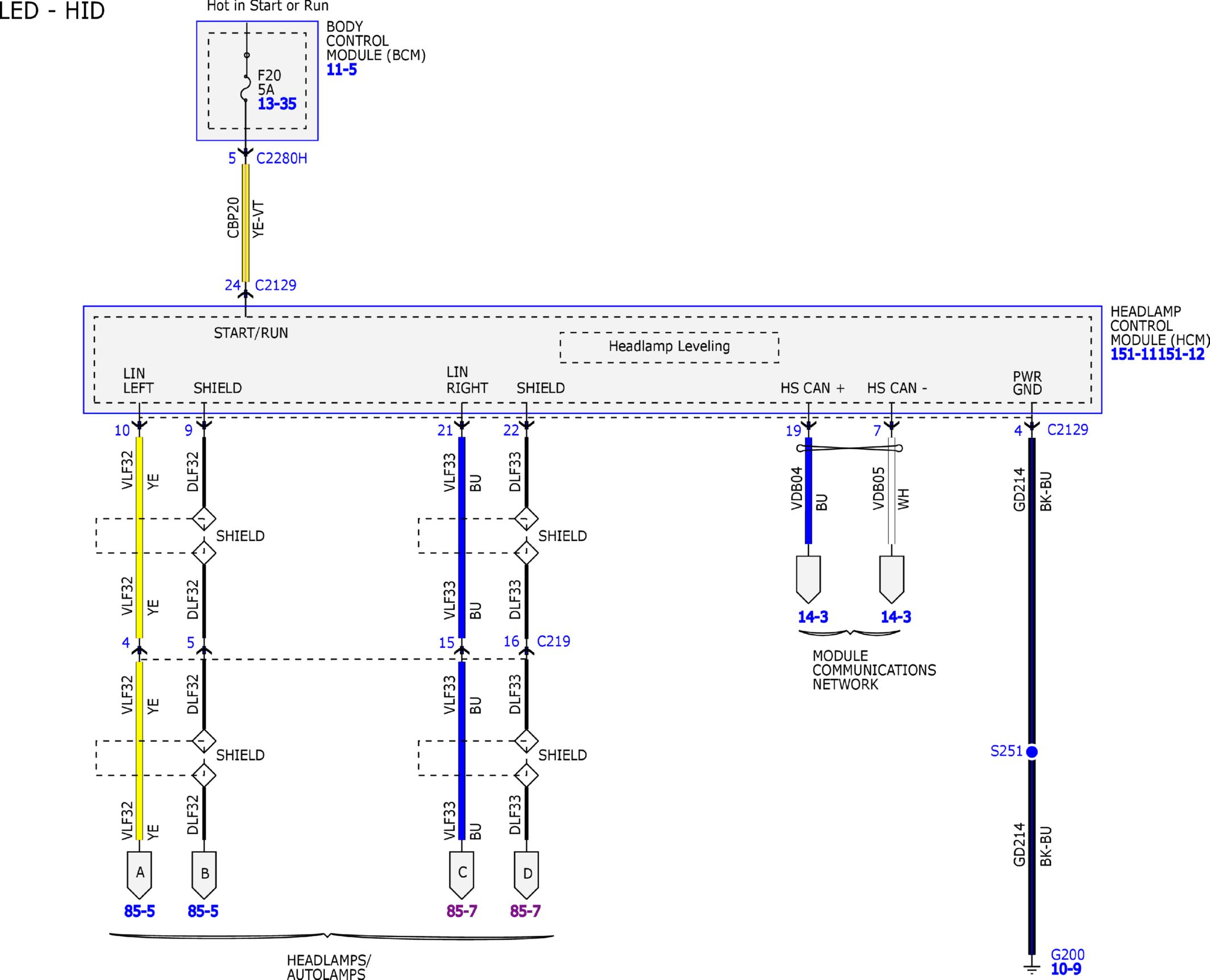

Fig 6: Headlamps/Autolamps (6 of 8)

Courtesy of FORD MOTOR COMPANY

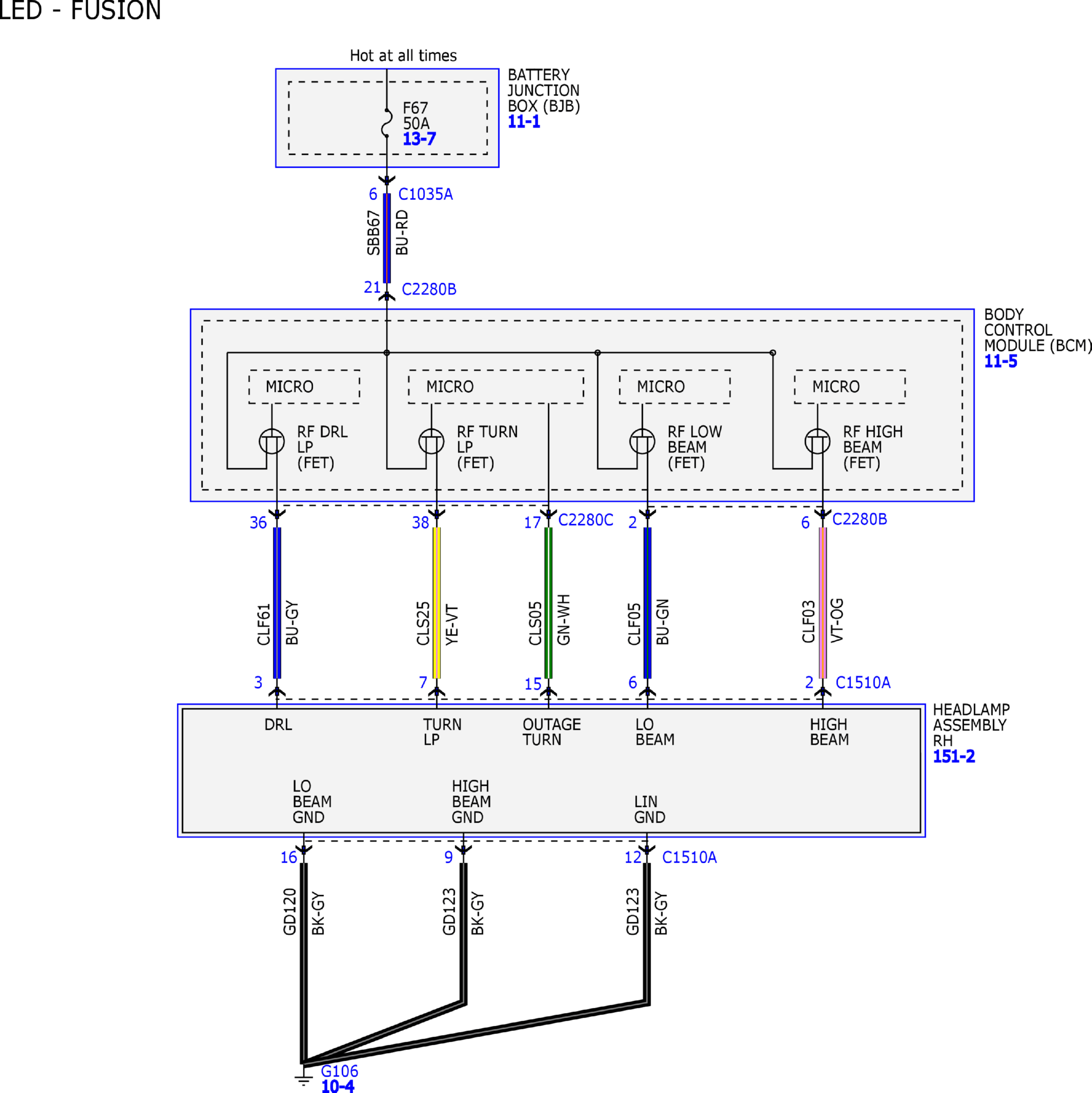

Fig 7: Headlamps/Autolamps (7 of 8)

Courtesy of FORD MOTOR COMPANY

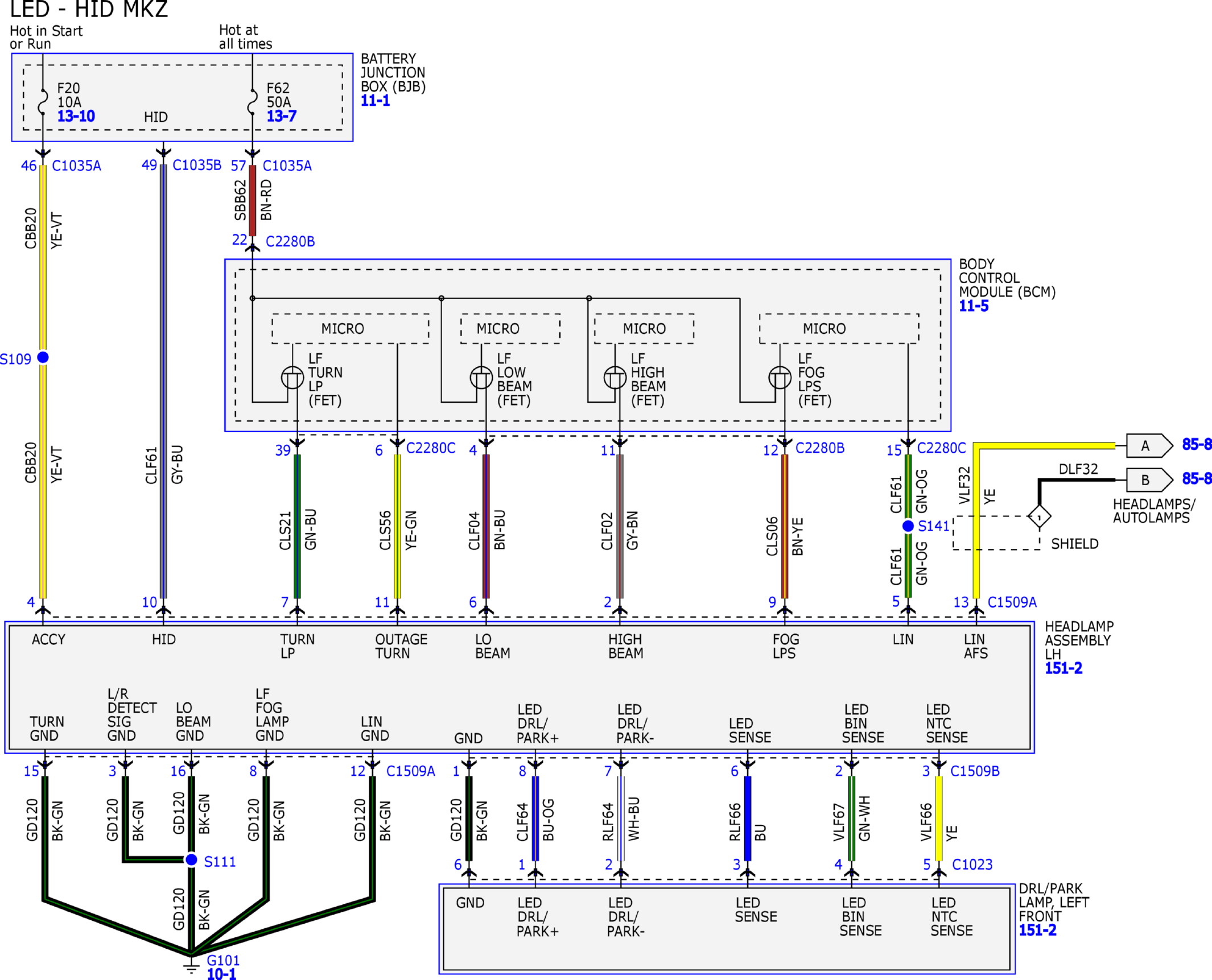

Fig 8: Headlamps/Autolamps (8 of 8)

Courtesy of FORD MOTOR COMPANY
