Electronic Engine Controls

WARNING: This page is about a different car, the 2017 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

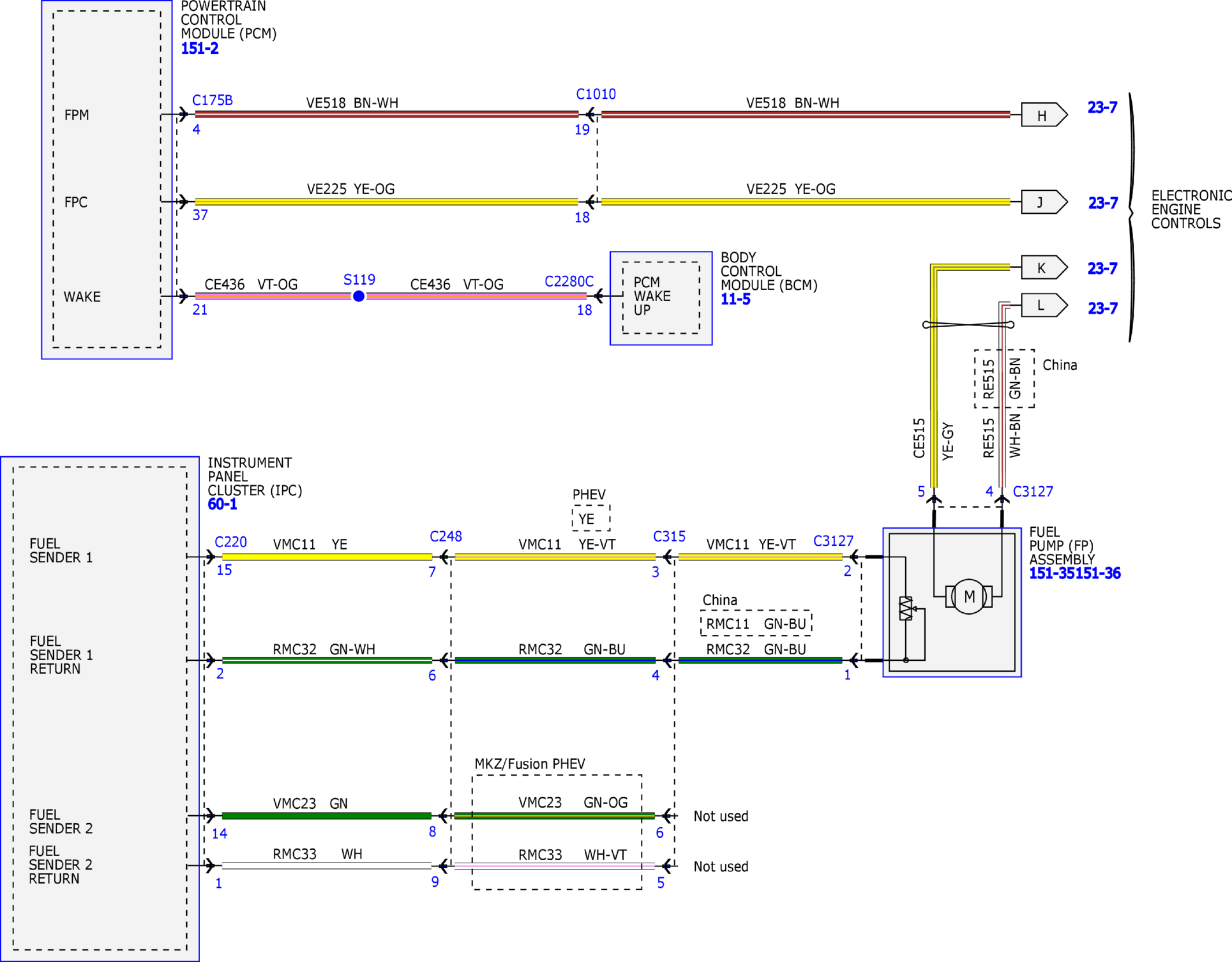

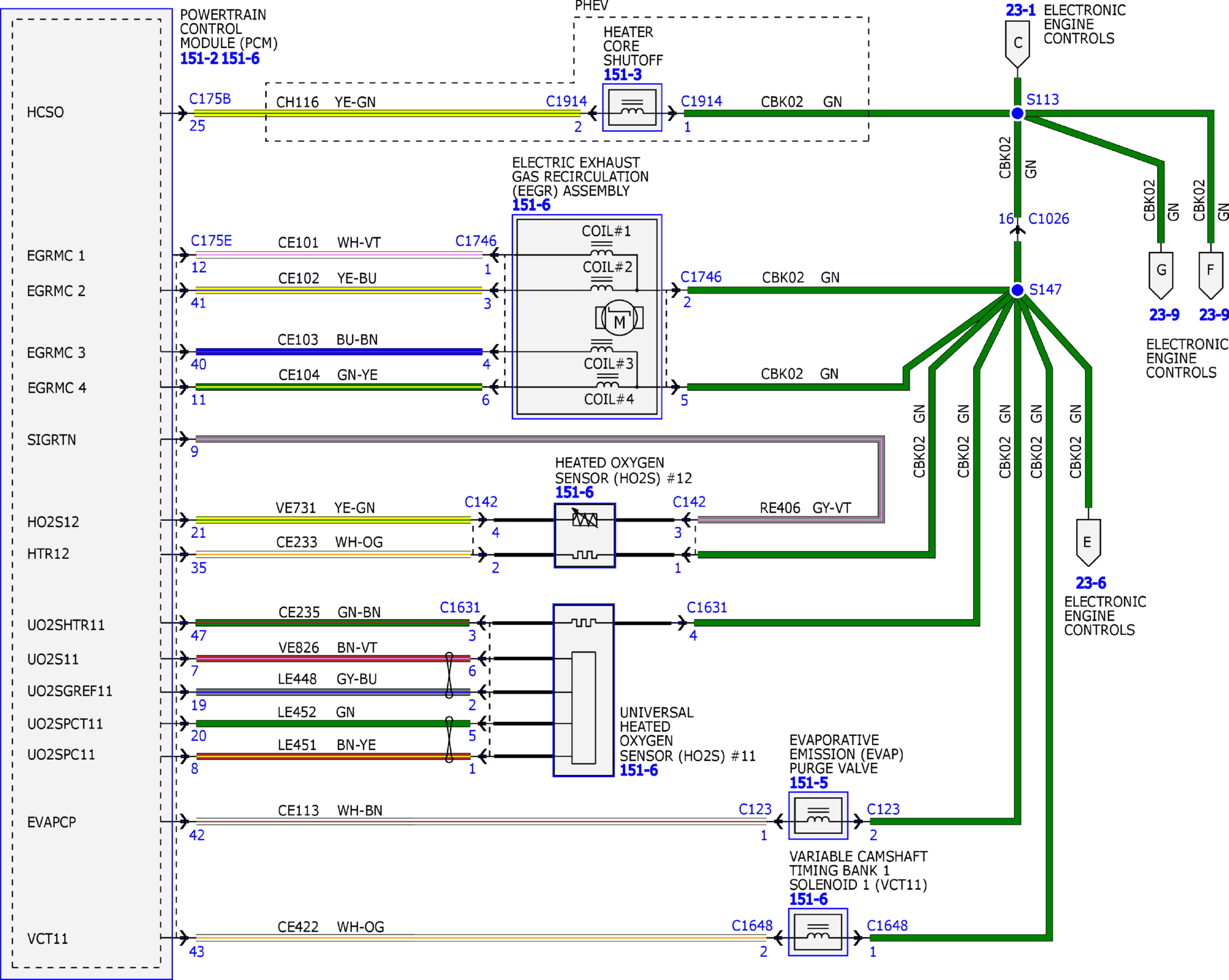

Fig 1: Electronic Engine Controls (1 of 11)

Courtesy of FORD MOTOR COMPANY

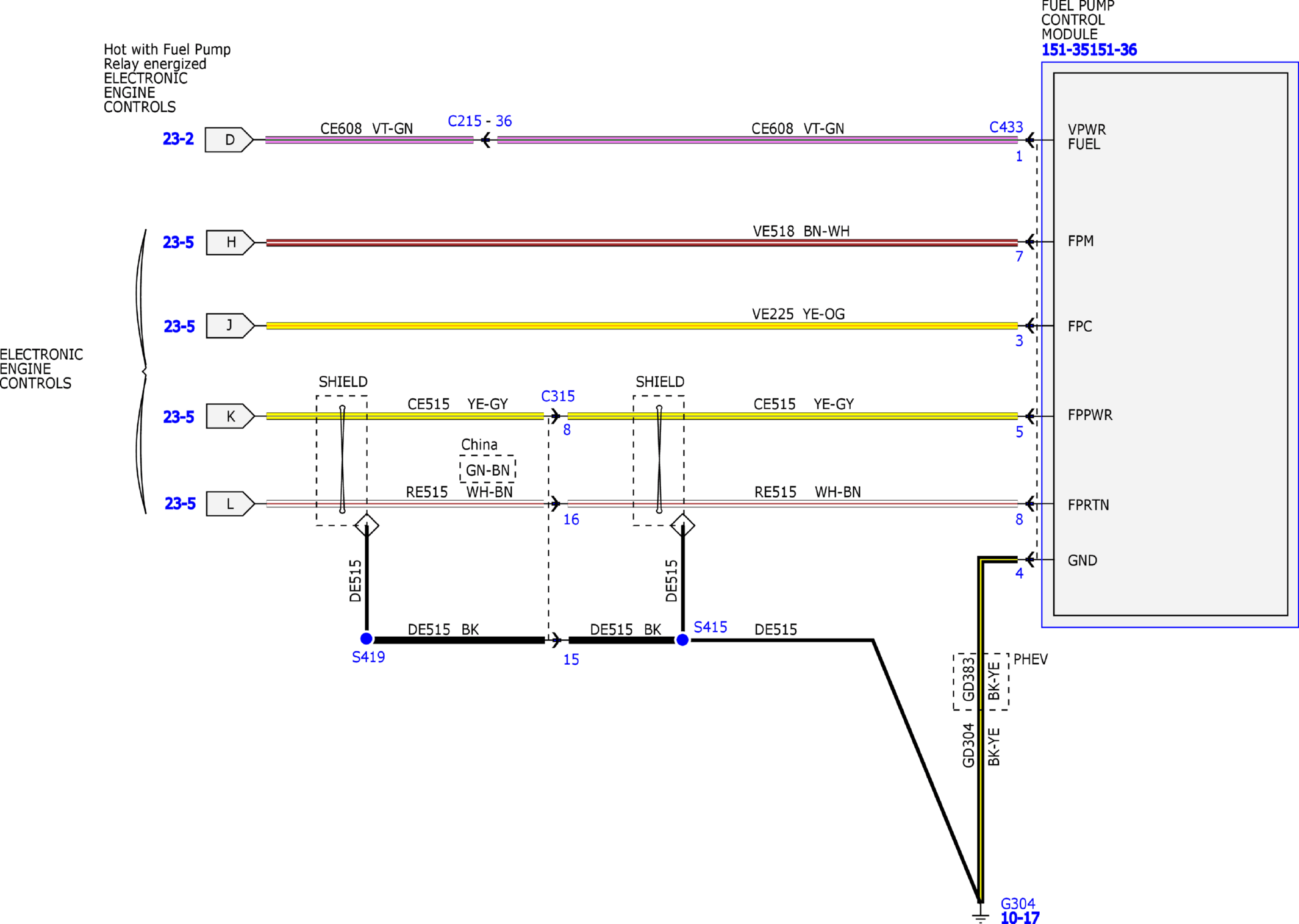

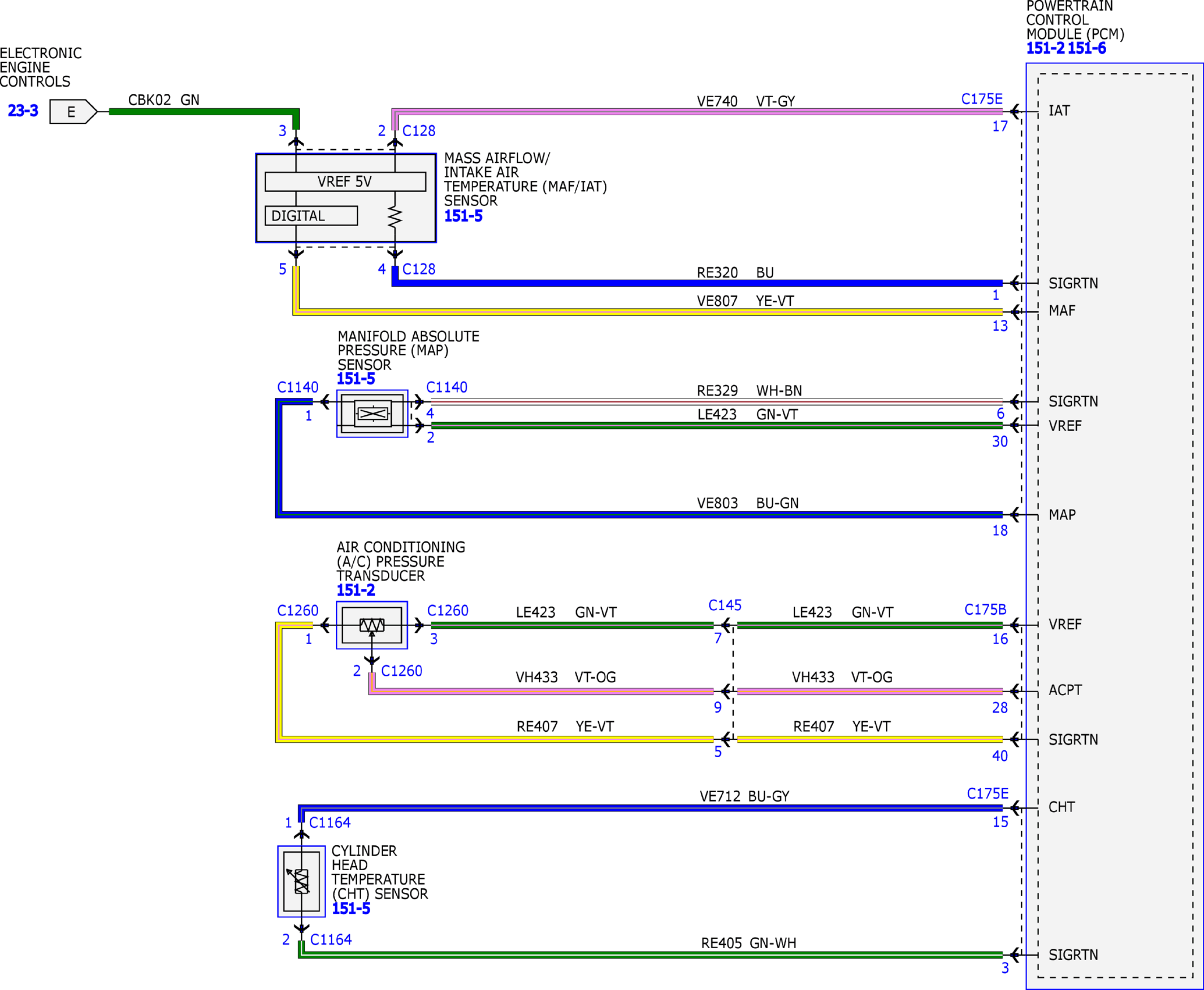

Fig 2: Electronic Engine Controls (2 of 11)

Courtesy of FORD MOTOR COMPANY

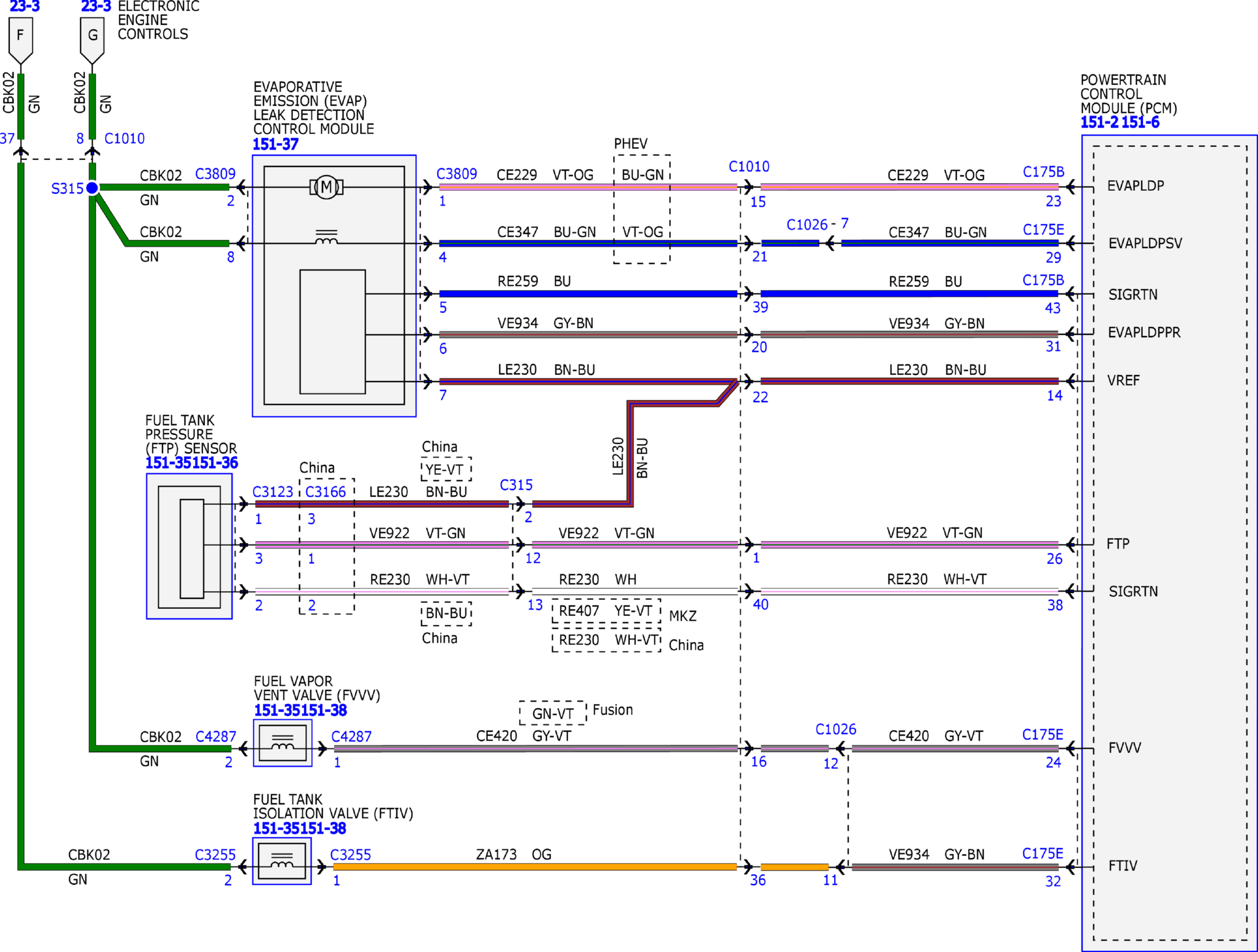

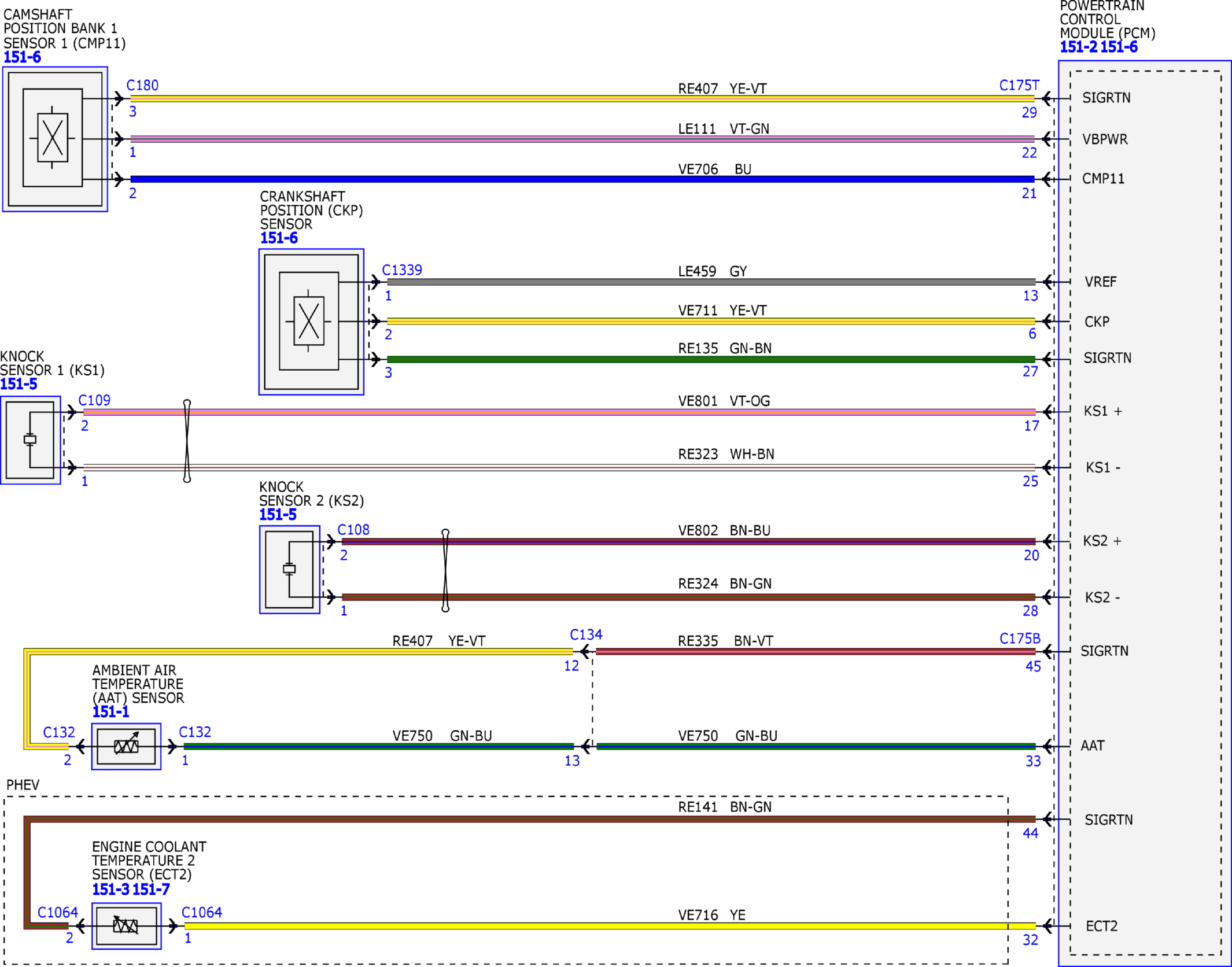

Fig 3: Electronic Engine Controls (3 of 11)

Courtesy of FORD MOTOR COMPANY

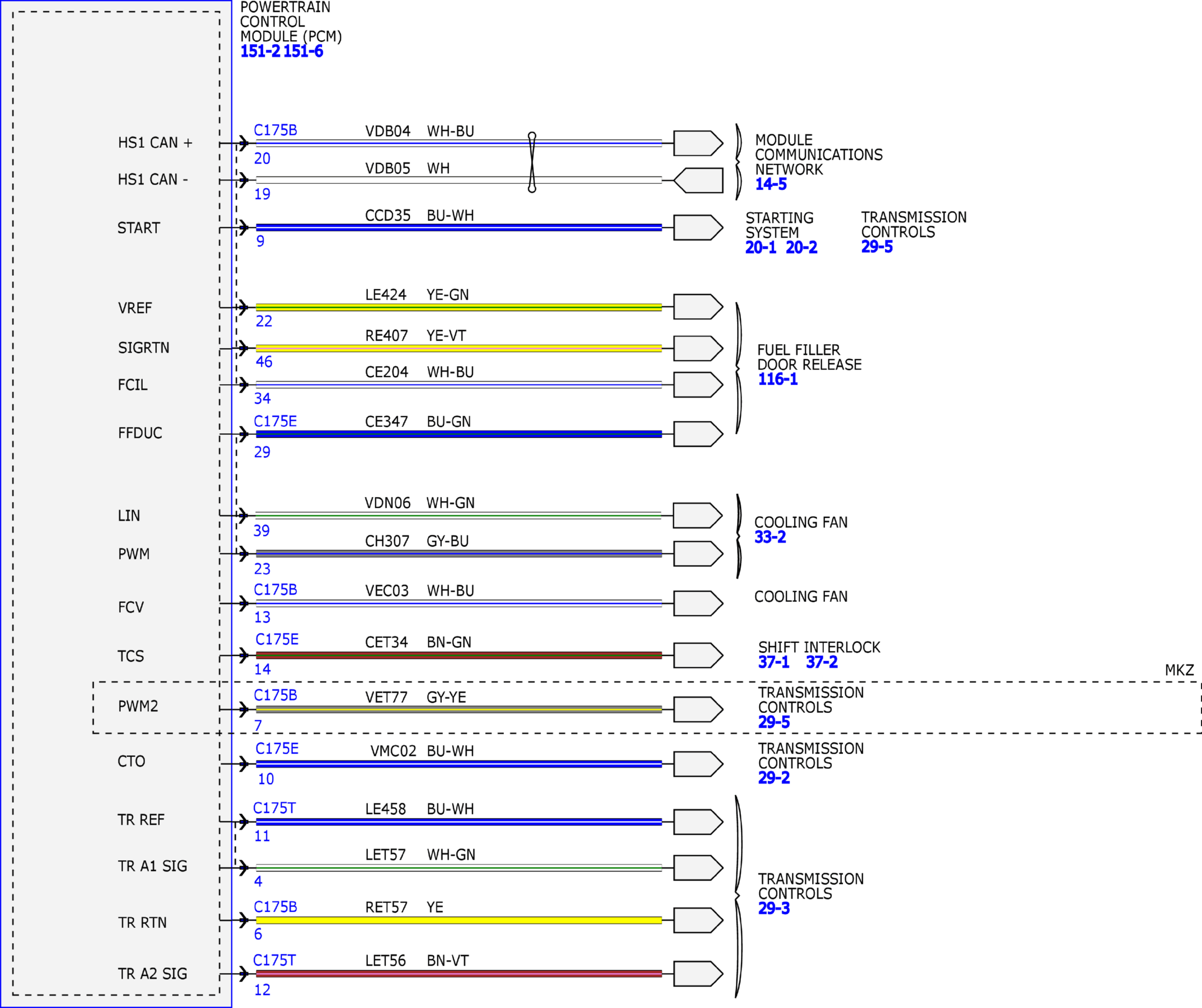

Fig 4: Electronic Engine Controls (4 of 11)

Courtesy of FORD MOTOR COMPANY

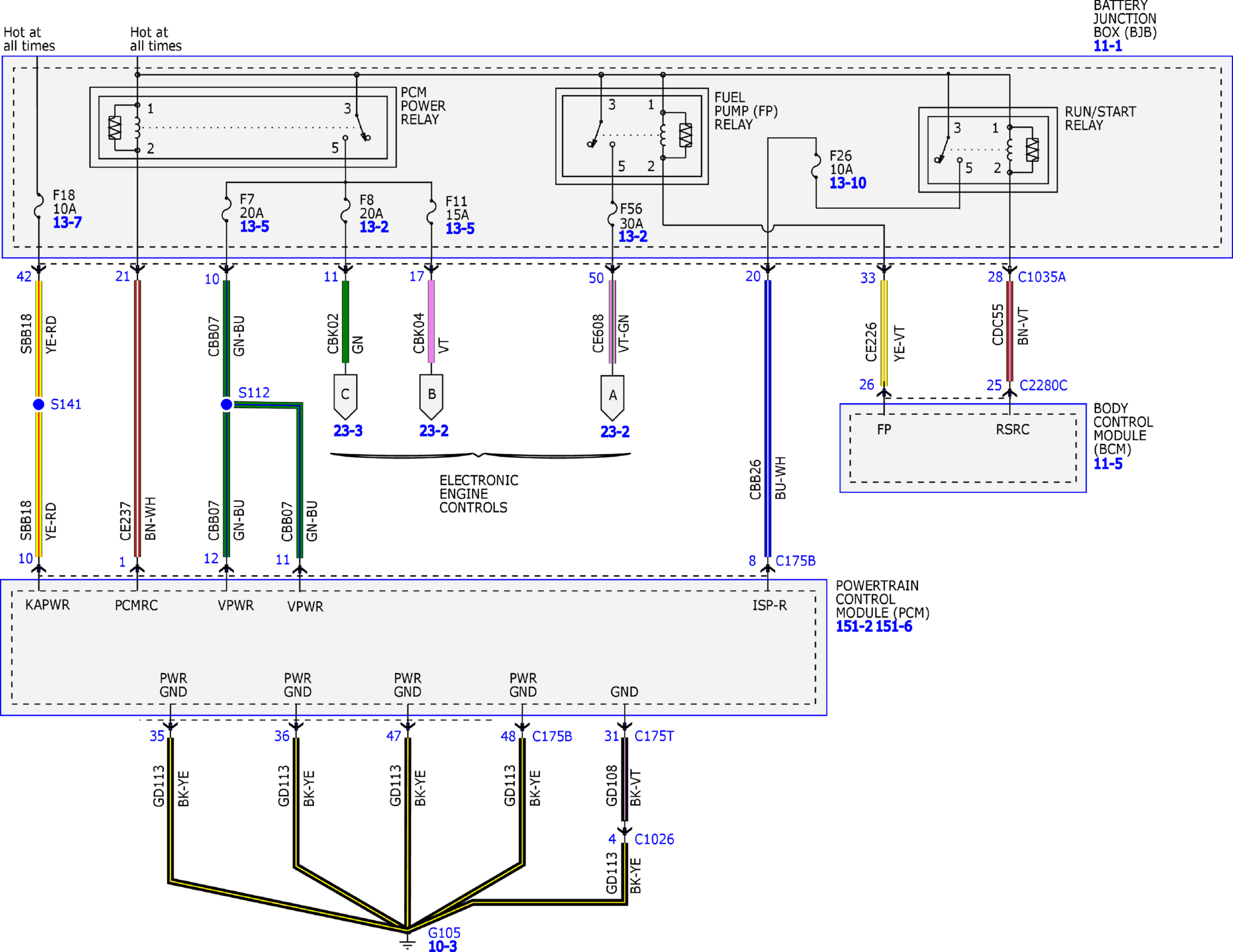

Fig 5: Electronic Engine Controls (5 of 11)

Courtesy of FORD MOTOR COMPANY

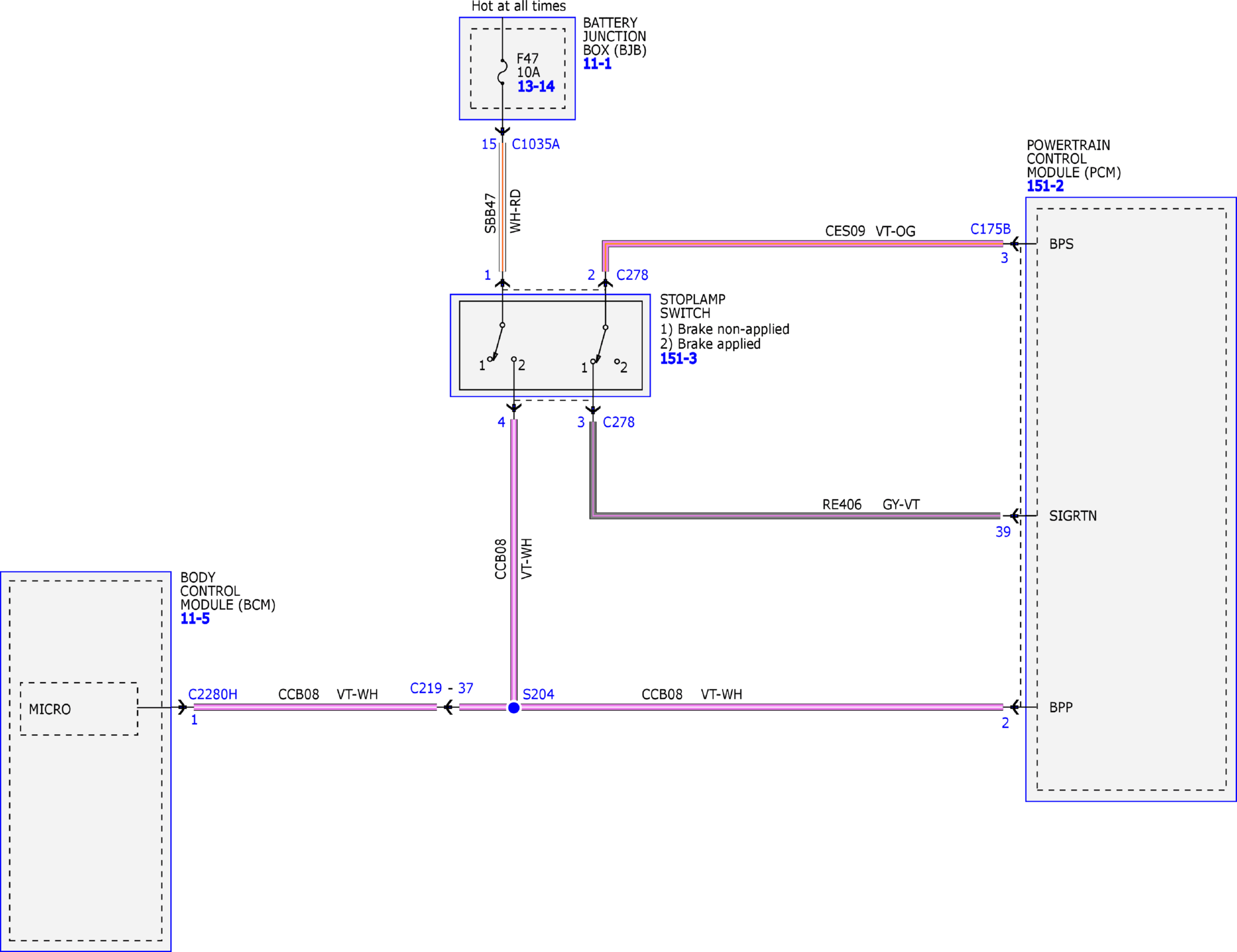

Fig 6: Electronic Engine Controls (6 of 11)

Courtesy of FORD MOTOR COMPANY

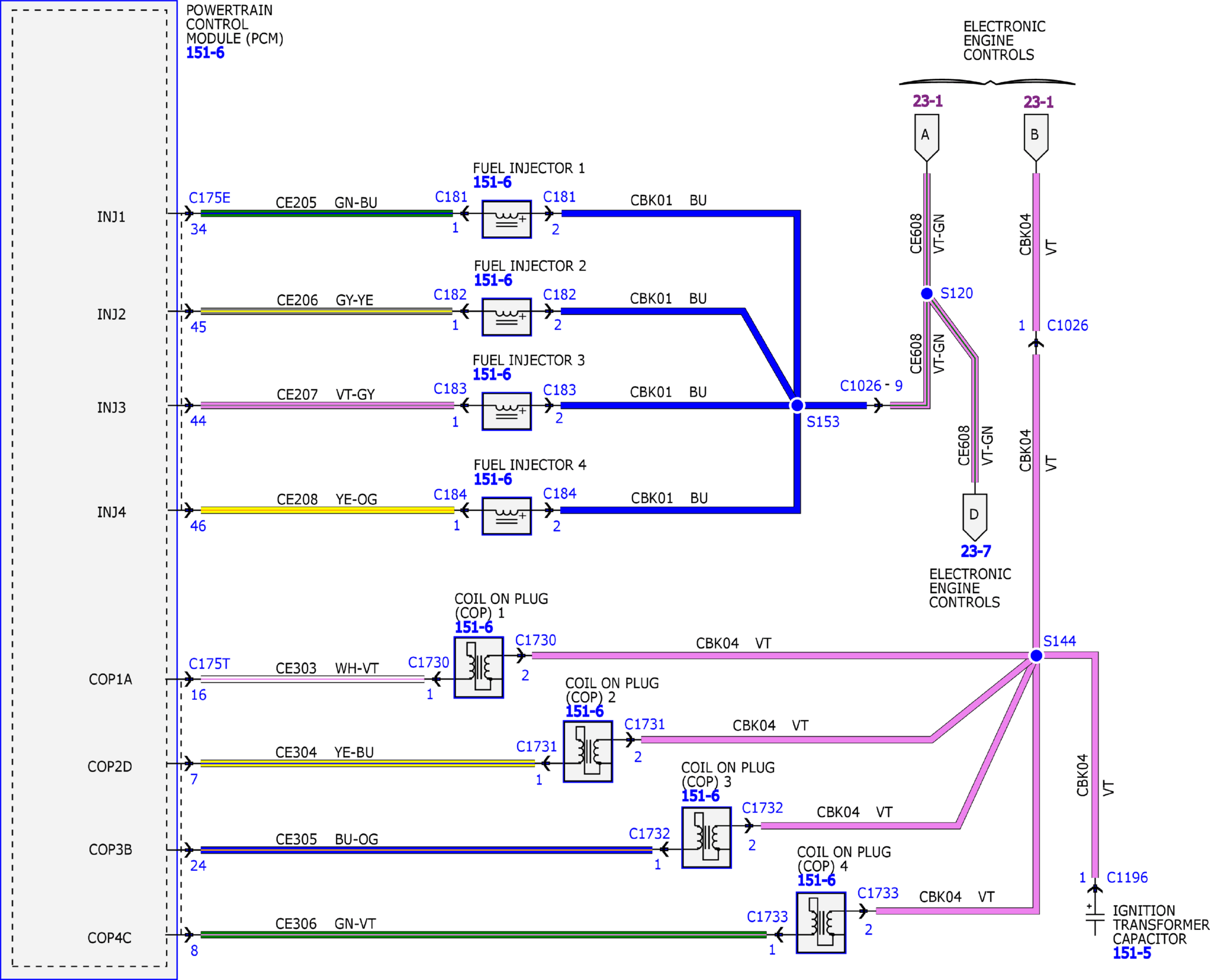

Fig 7: Electronic Engine Controls (7 of 11)

Courtesy of FORD MOTOR COMPANY

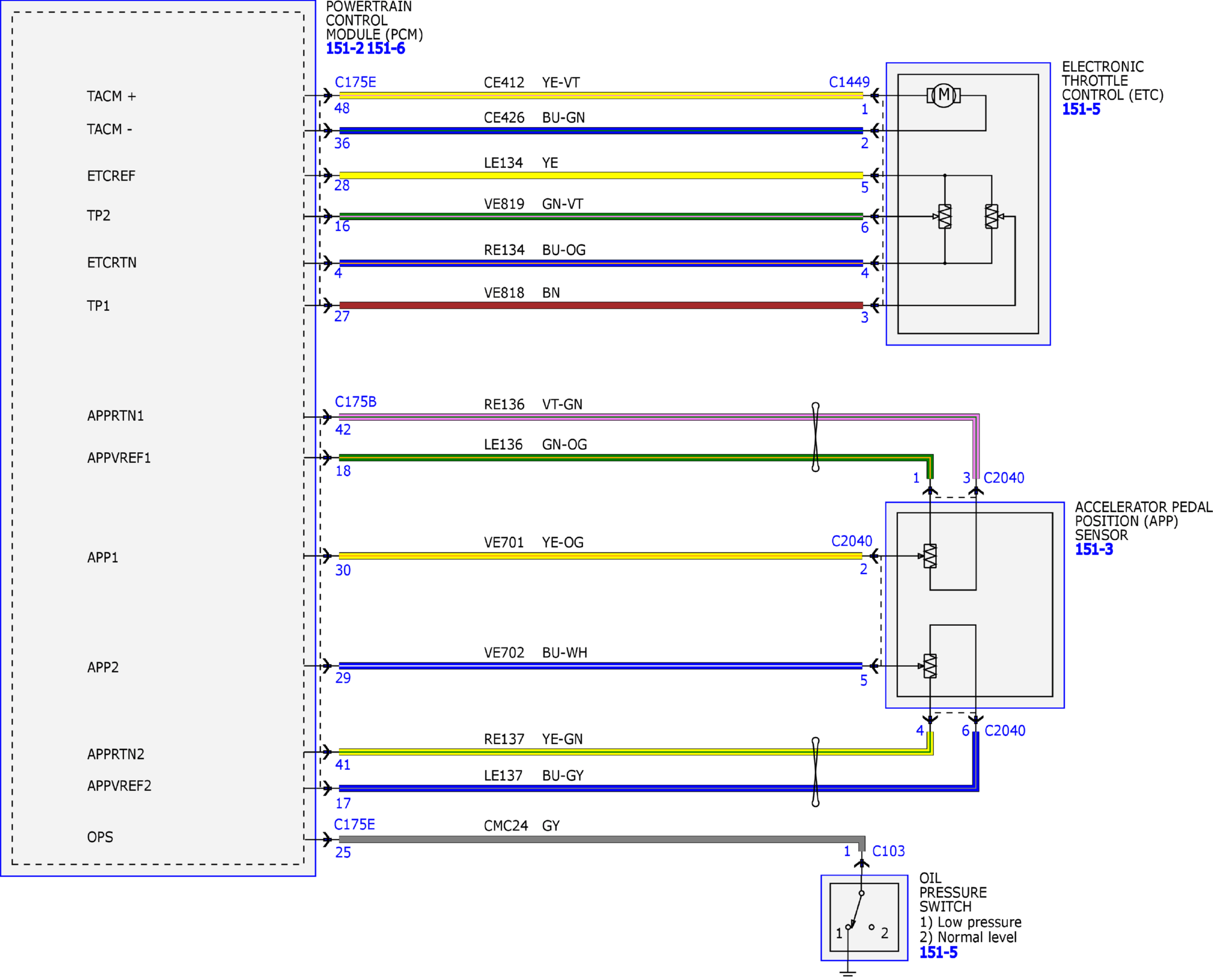

Fig 8: Electronic Engine Controls (8 of 11)

Courtesy of FORD MOTOR COMPANY

Fig 9: Electronic Engine Controls (9 of 11)

Courtesy of FORD MOTOR COMPANY

Fig 10: Electronic Engine Controls (10 of 11)

Courtesy of FORD MOTOR COMPANY

Fig 11: Electronic Engine Controls (11 of 11)

Courtesy of FORD MOTOR COMPANY
