Cruise Control

WARNING: This page is about a different car, the 2017 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

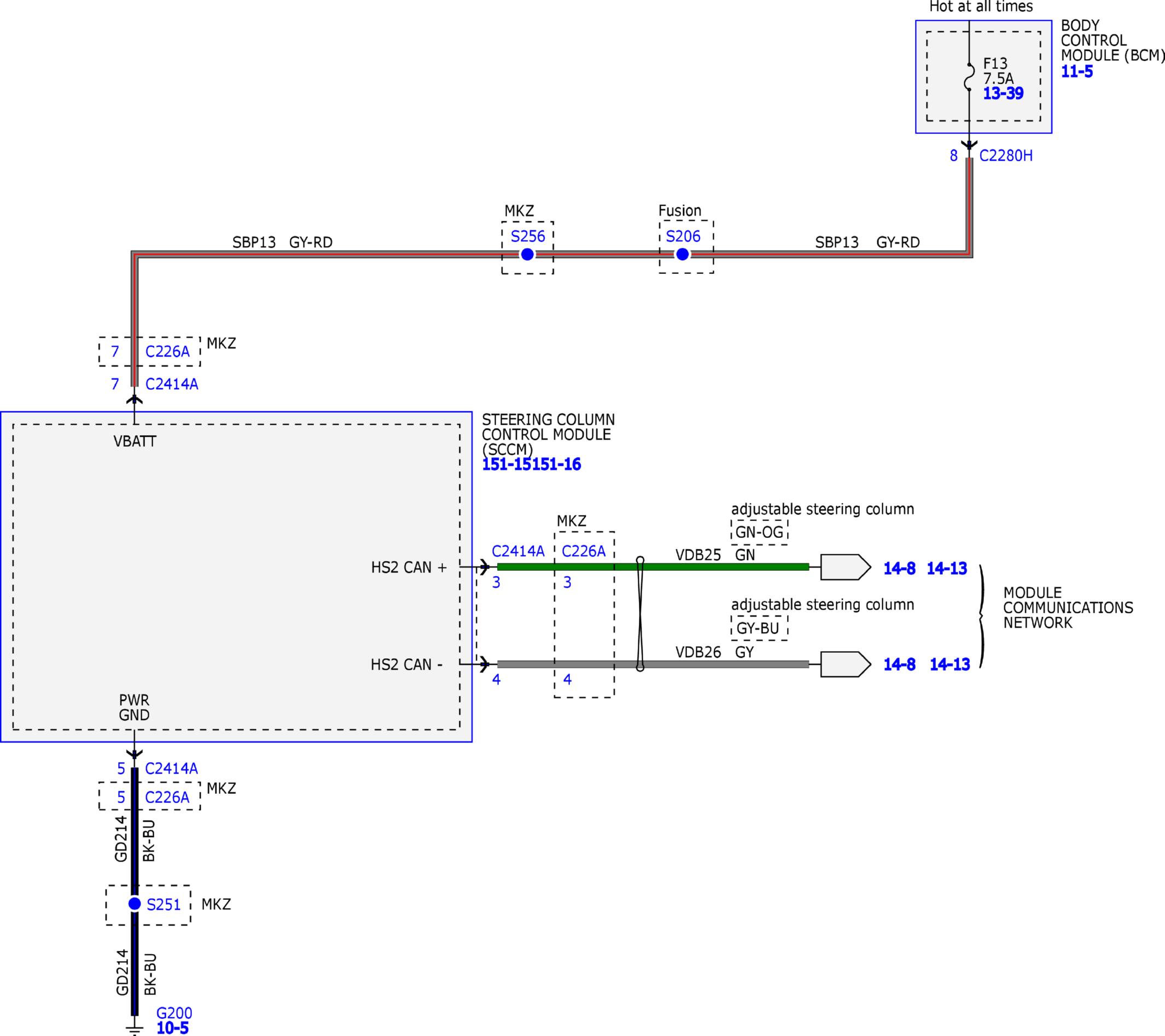

Fig 1: Cruise Control (1 of 8)

Courtesy of FORD MOTOR COMPANY

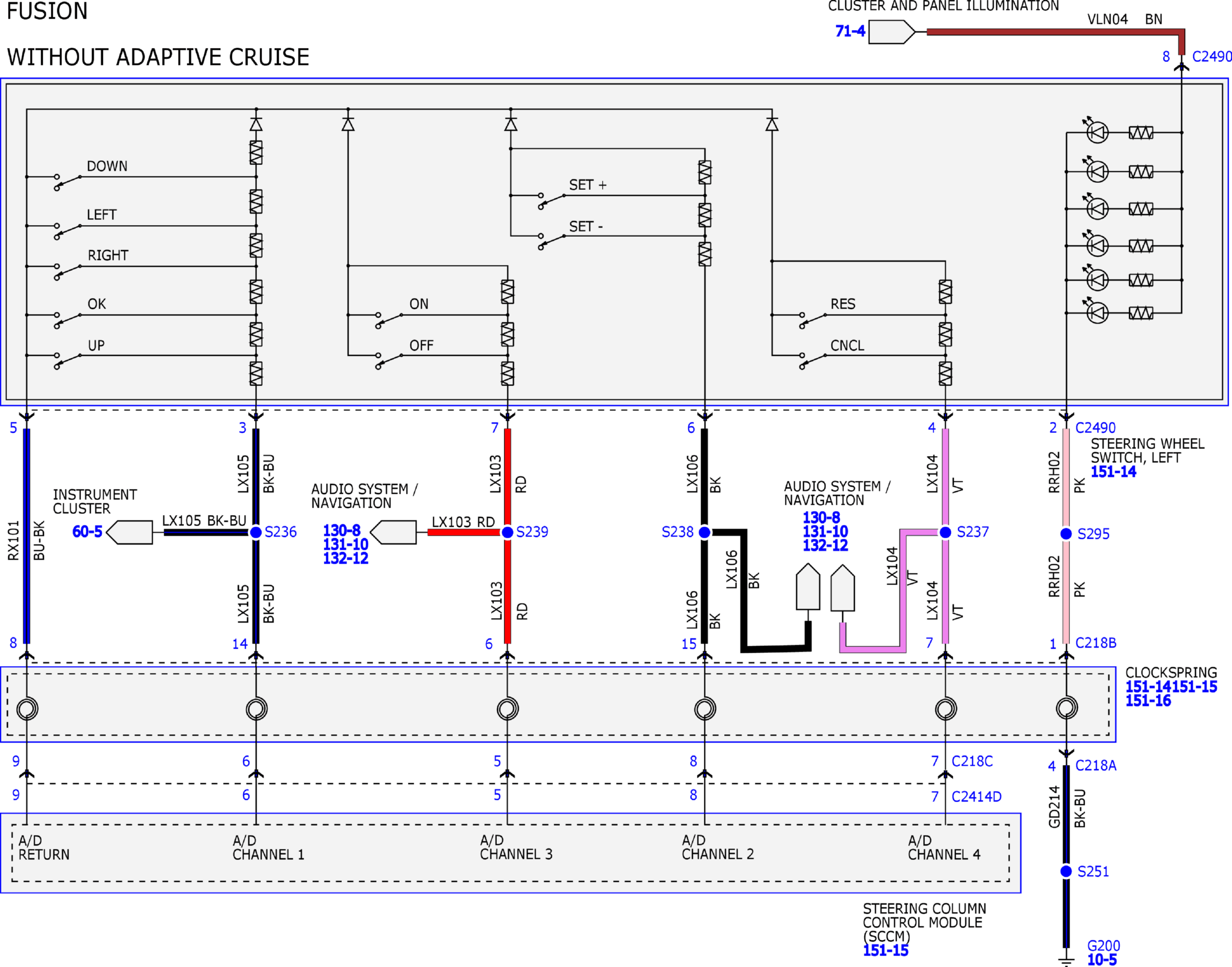

Fig 2: Cruise Control (2 of 8)

Courtesy of FORD MOTOR COMPANY

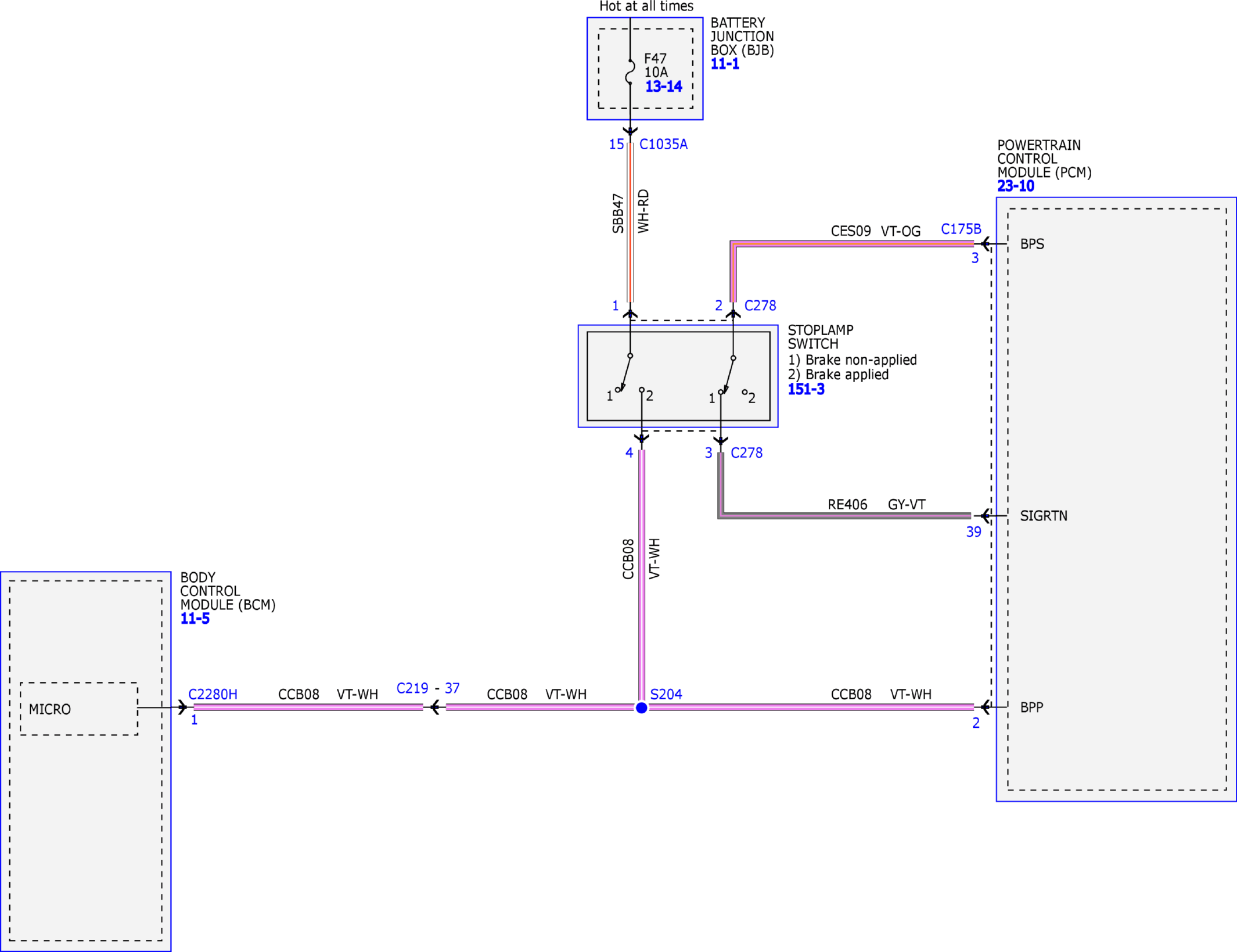

Fig 3: Cruise Control (3 of 8)

Courtesy of FORD MOTOR COMPANY

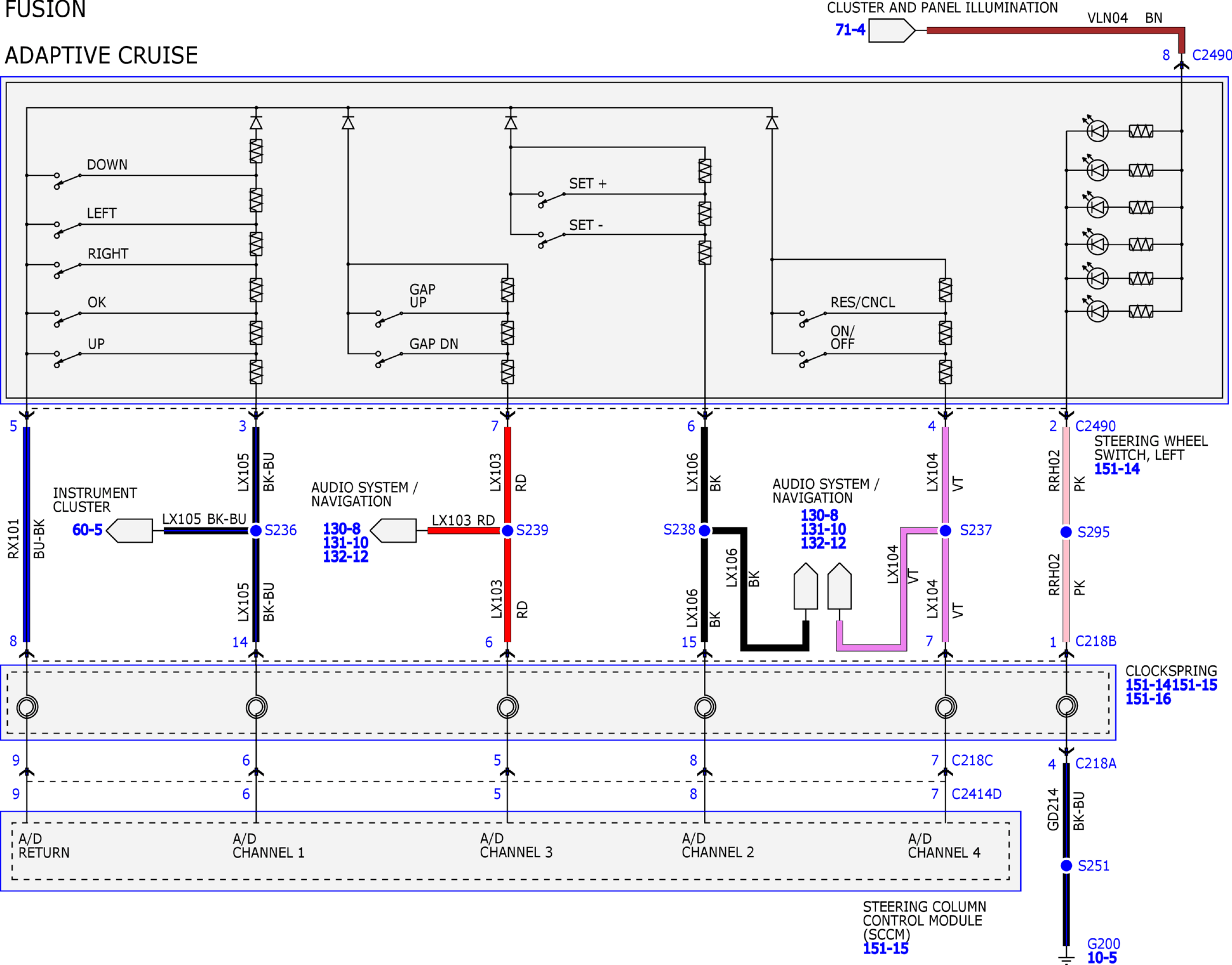

Fig 4: Cruise Control (4 of 8)

Courtesy of FORD MOTOR COMPANY

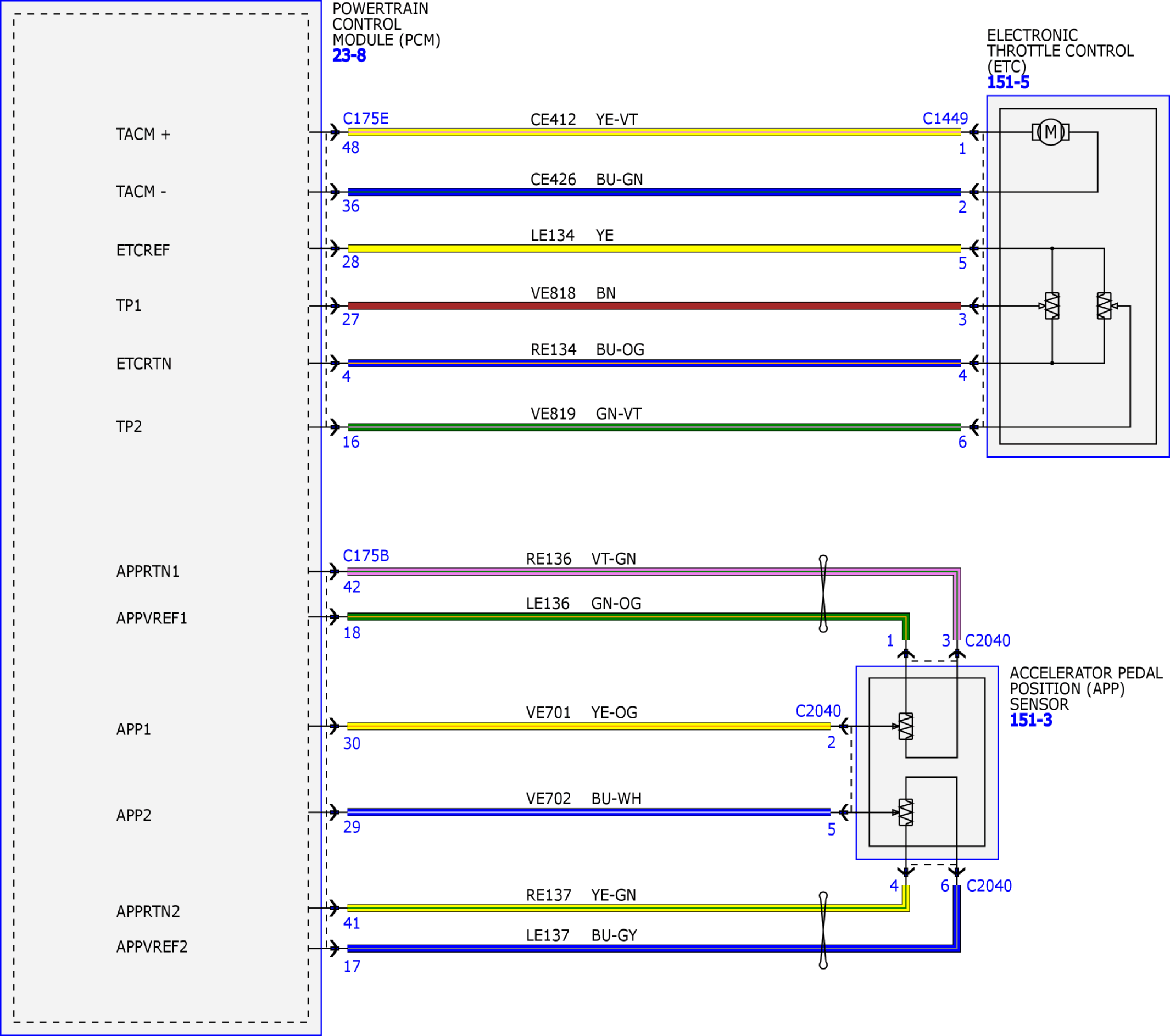

Fig 5: Cruise Control (5 of 8)

Courtesy of FORD MOTOR COMPANY

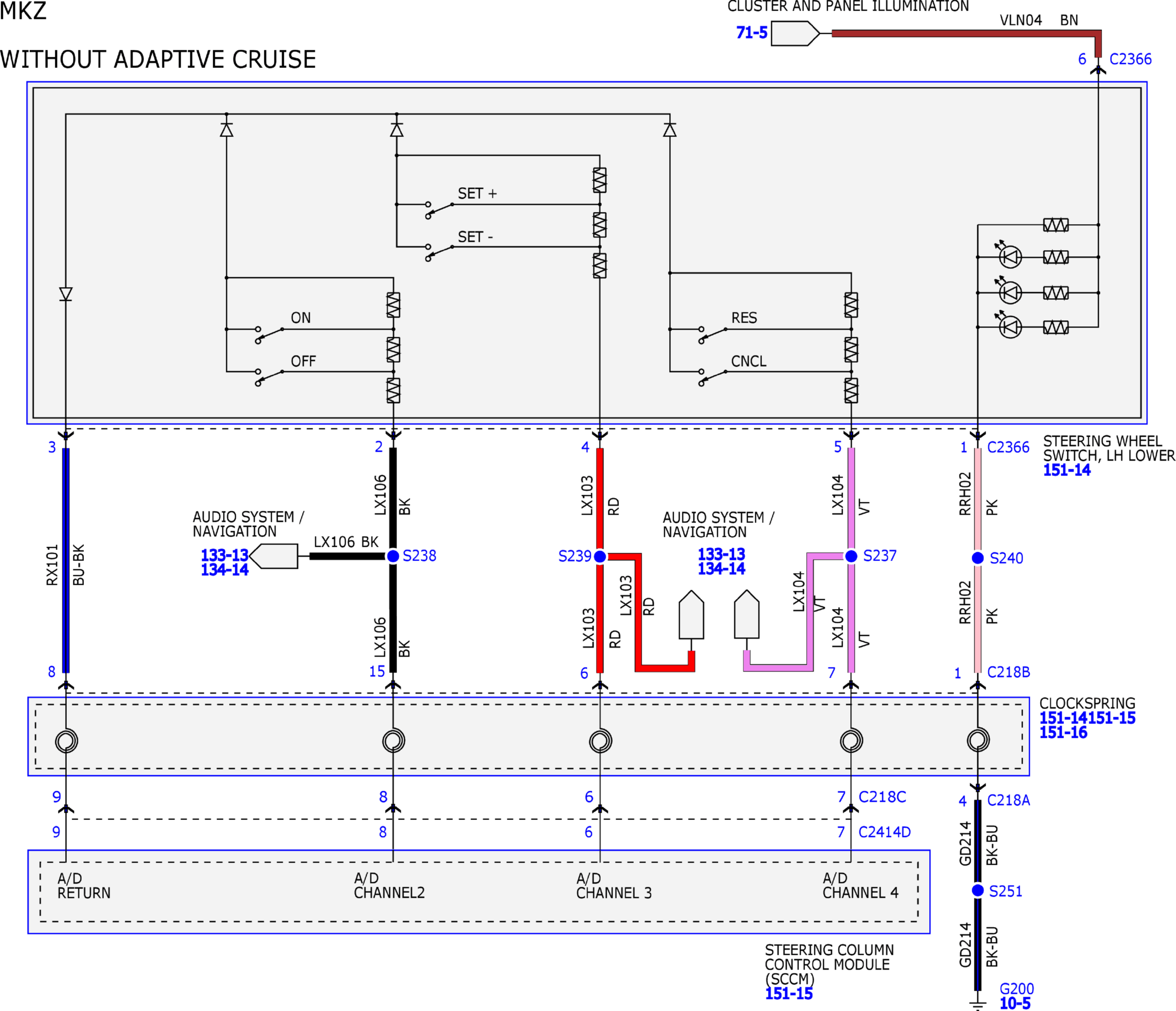

Fig 6: Cruise Control (6 of 8)

Courtesy of FORD MOTOR COMPANY

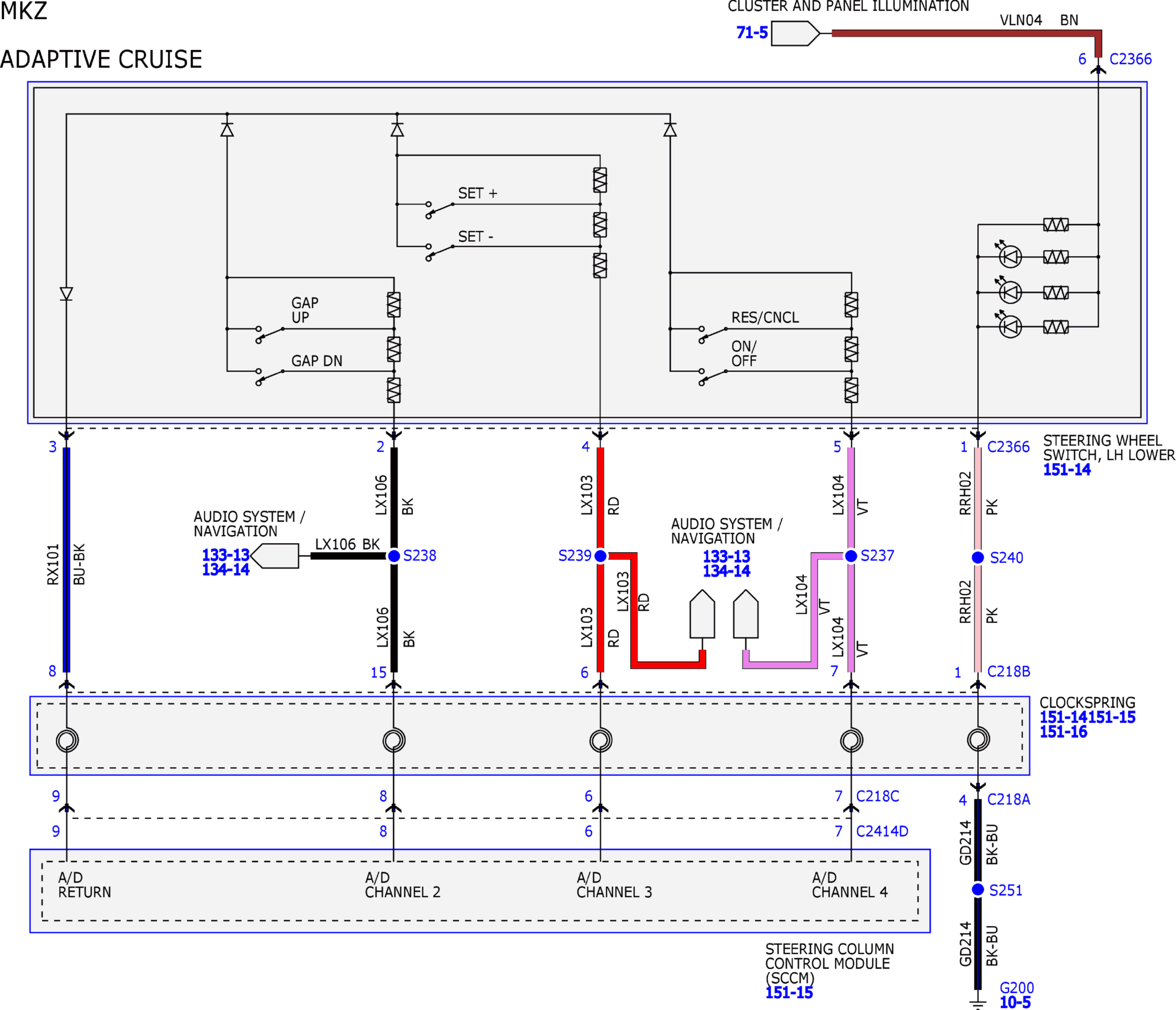

Fig 7: Cruise Control (7 of 8)

Courtesy of FORD MOTOR COMPANY

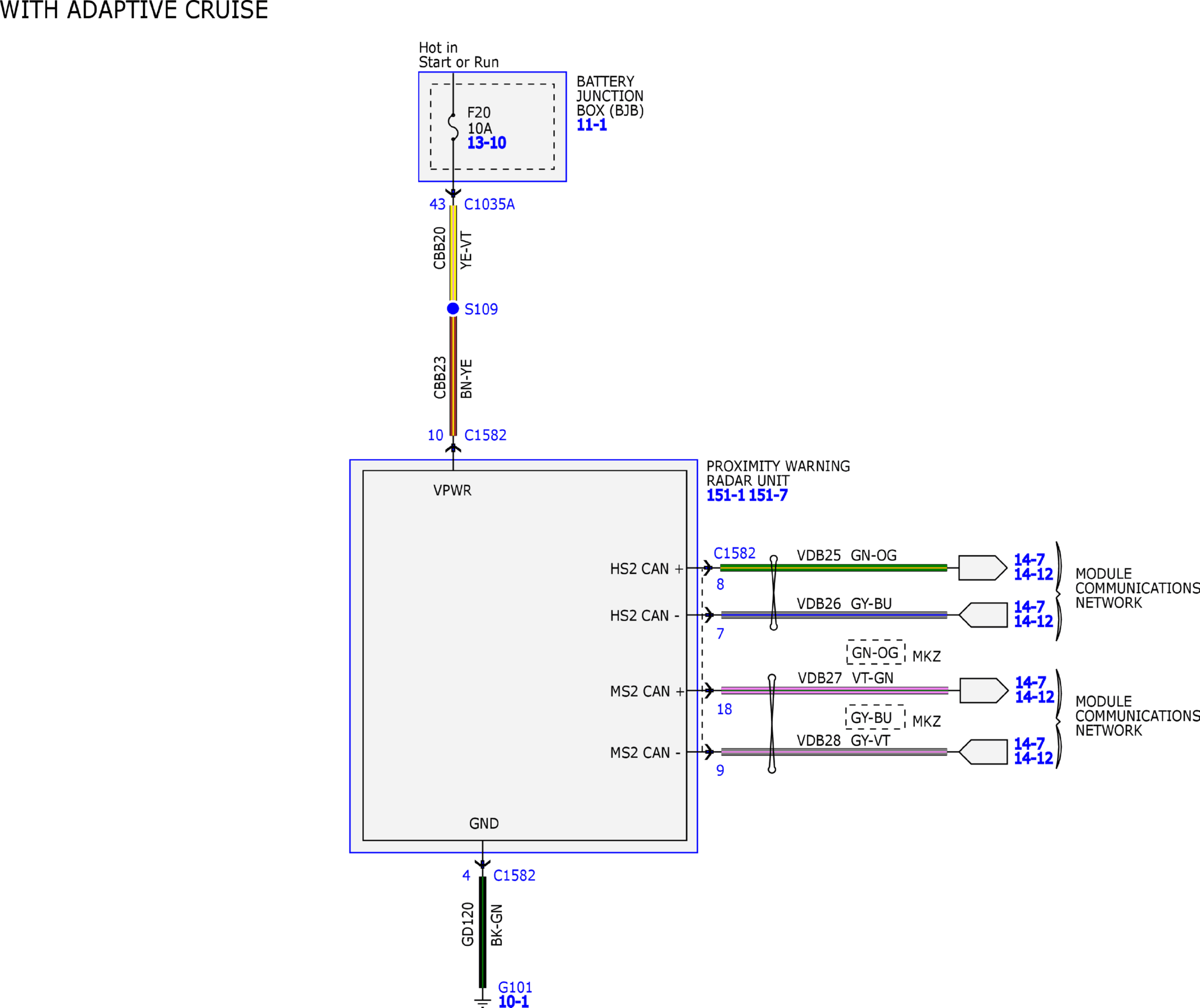

Fig 8: Cruise Control (8 of 8)

Courtesy of FORD MOTOR COMPANY
