Cooling Fan

WARNING: This page is about a different car, the 2017 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Cooling Fan (1 of 2)

Courtesy of FORD MOTOR COMPANY

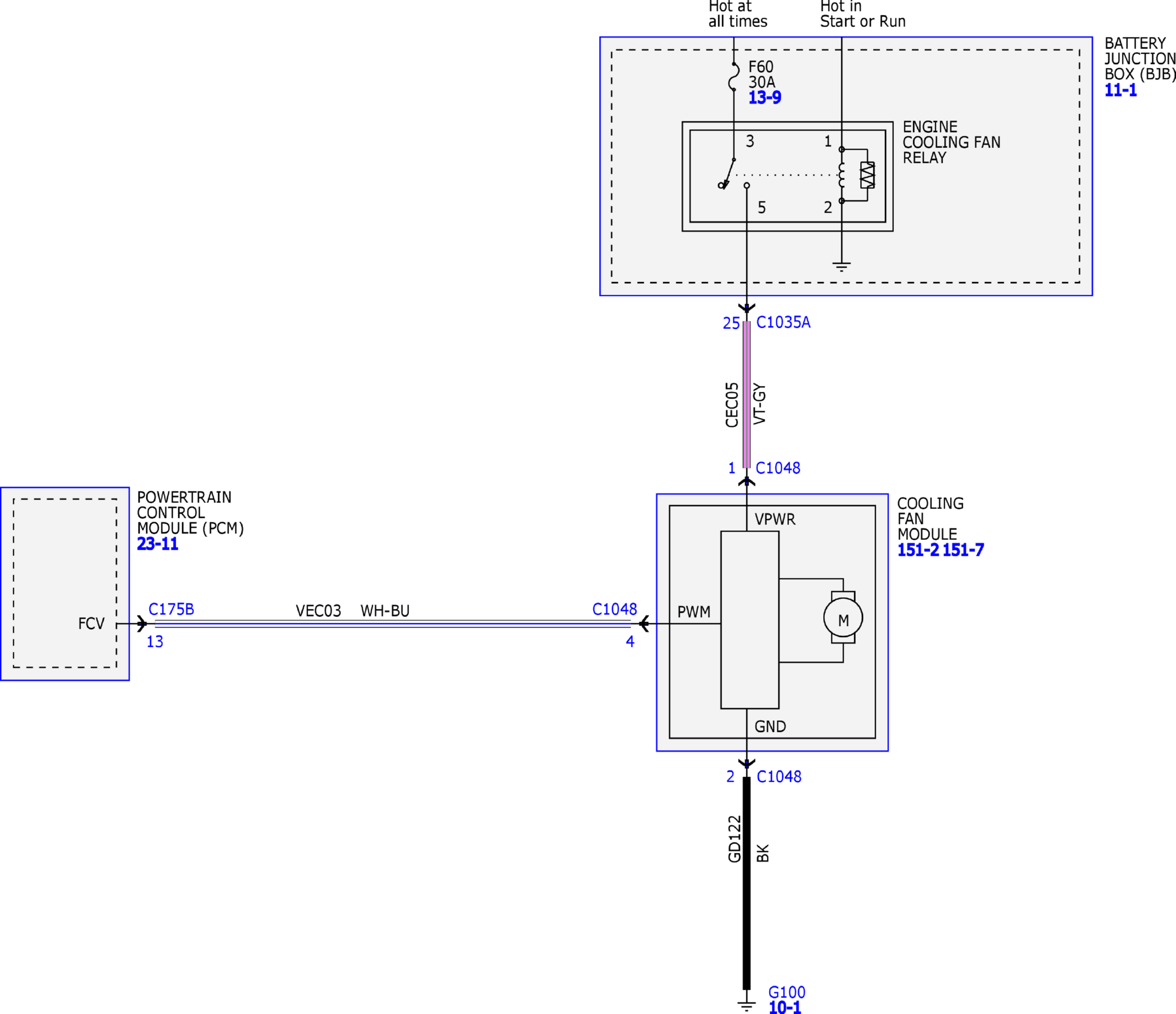

Fig 2: Cooling Fan (2 of 2)

Courtesy of FORD MOTOR COMPANY
