Cluster And Panel Illumination

WARNING: This page is about a different car, the 2017 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

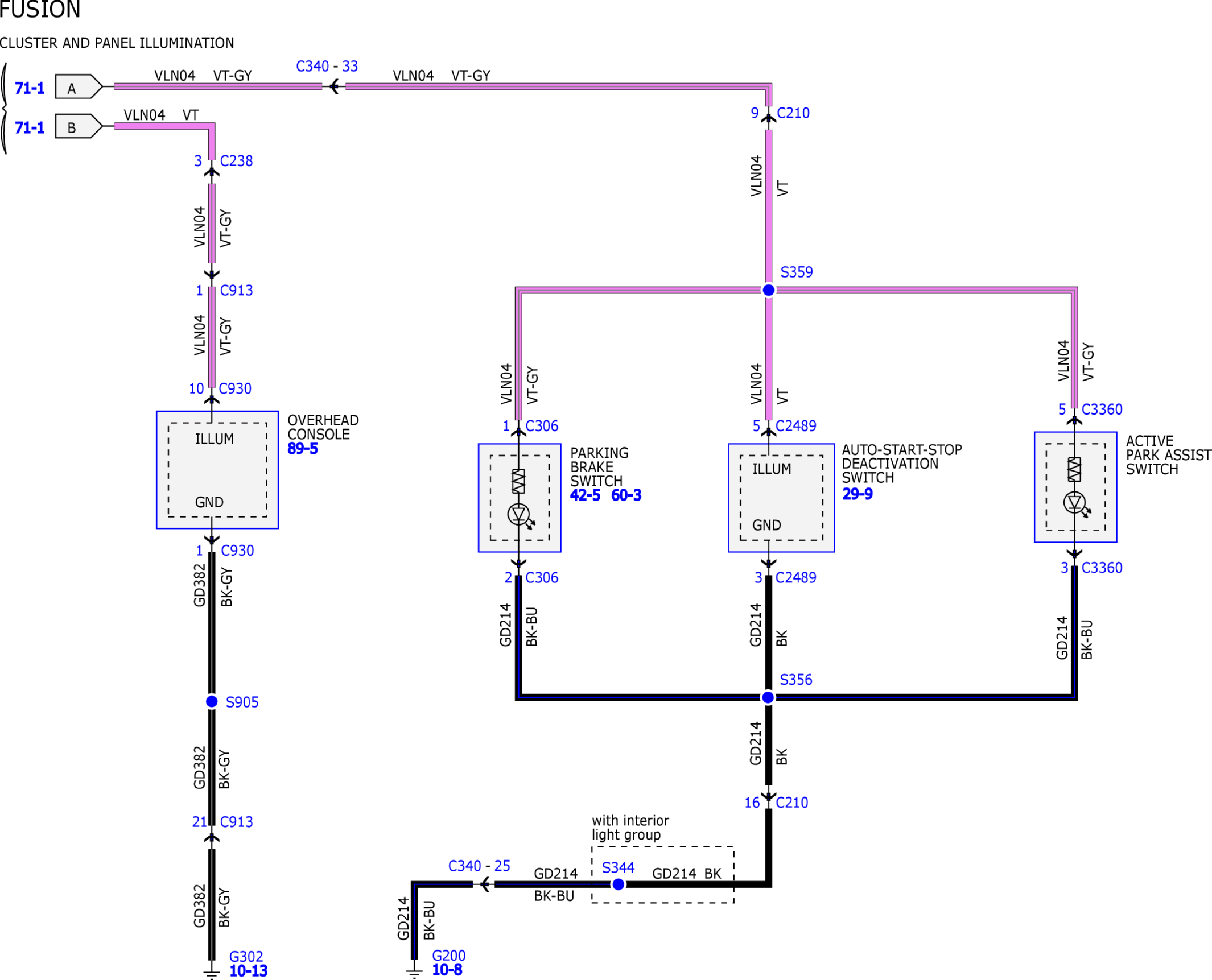

Fig 1: Cluster and Panel Illumination (1 of 6)

Courtesy of FORD MOTOR COMPANY

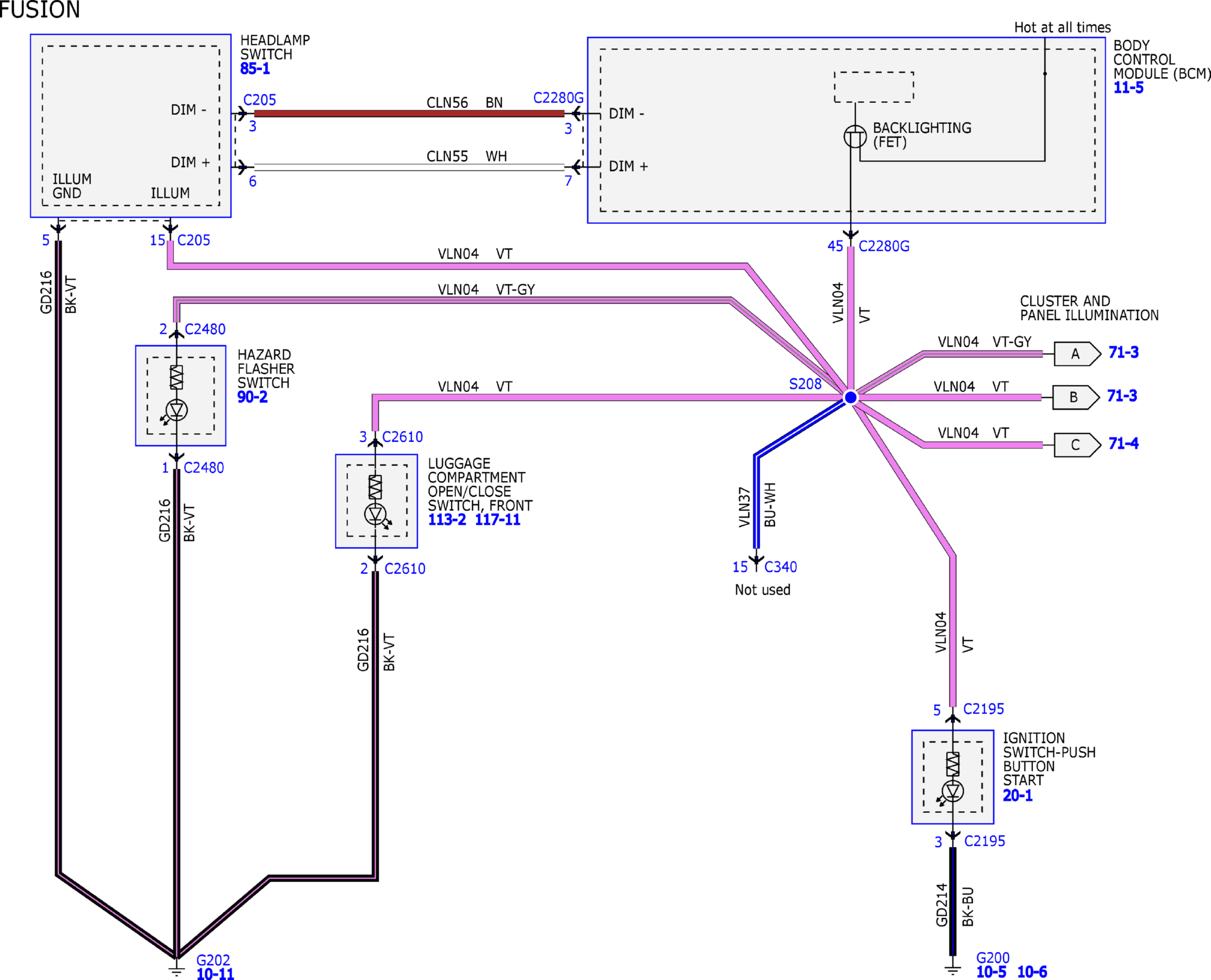

Fig 2: Cluster and Panel Illumination (2 of 6)

Courtesy of FORD MOTOR COMPANY

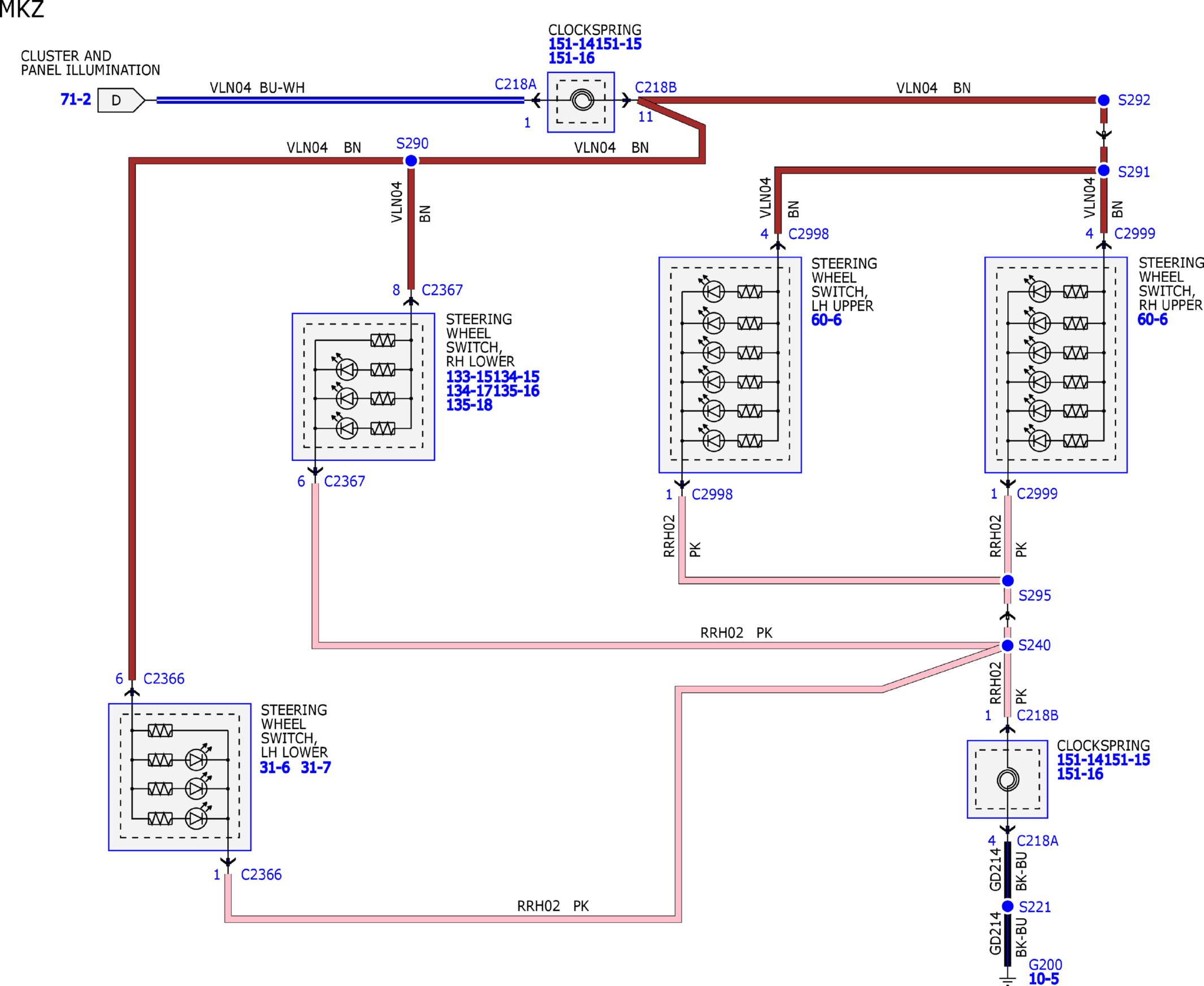

Fig 3: Cluster and Panel Illumination (3 of 6)

Courtesy of FORD MOTOR COMPANY

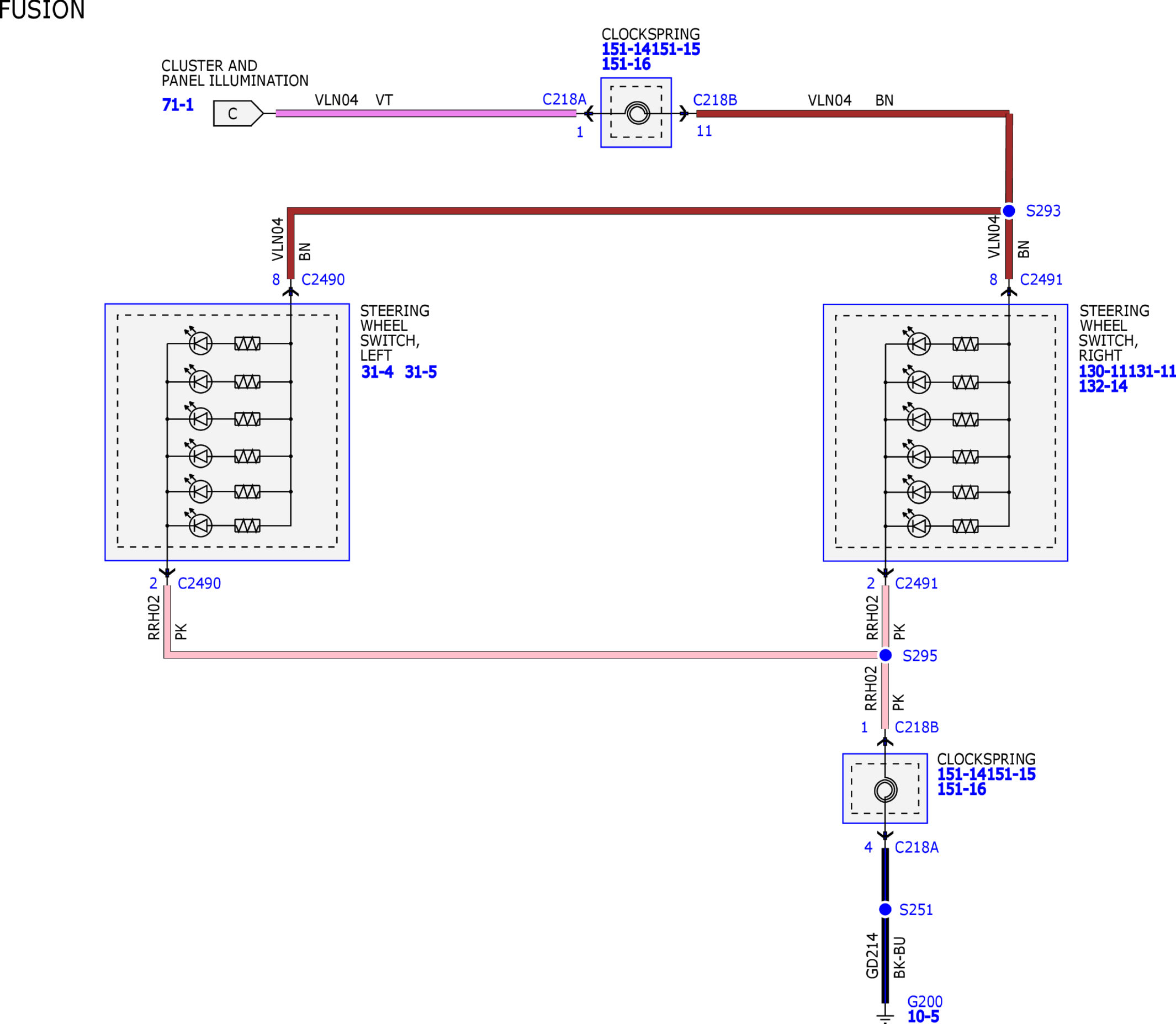

Fig 4: Cluster and Panel Illumination (4 of 6)

Courtesy of FORD MOTOR COMPANY

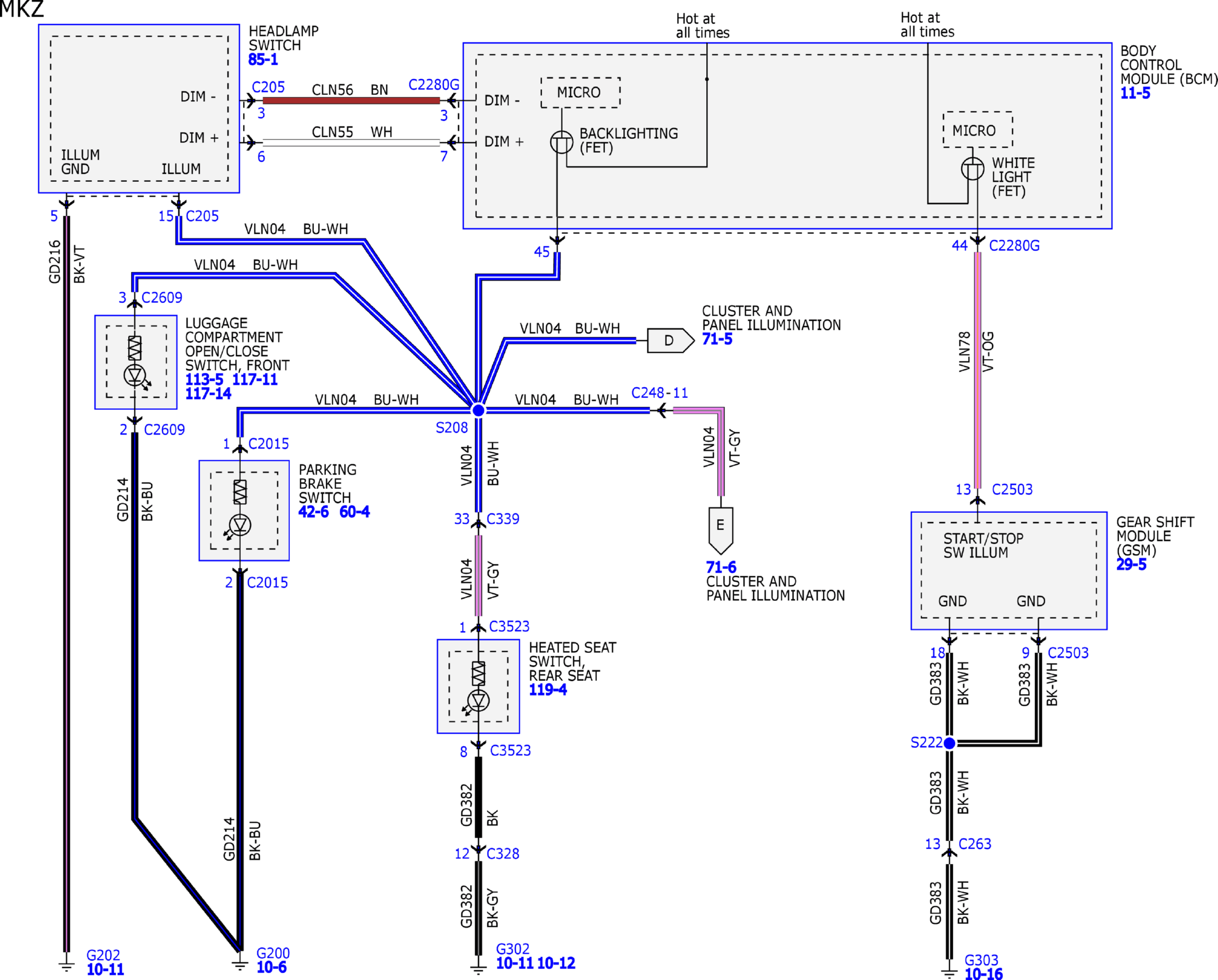

Fig 5: Cluster and Panel Illumination (5 of 6)

Courtesy of FORD MOTOR COMPANY

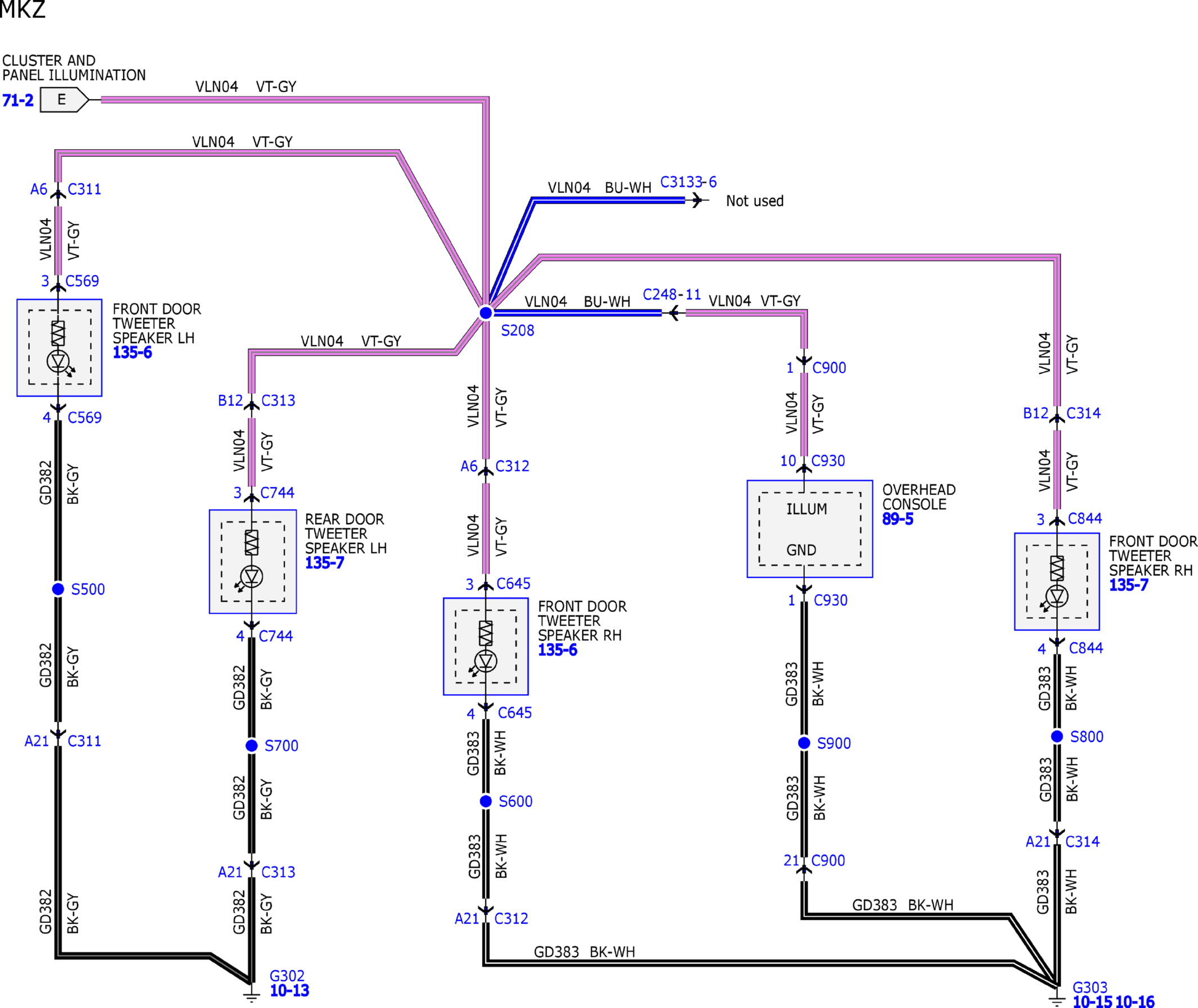

Fig 6: Cluster and Panel Illumination (6 of 6)

Courtesy of FORD MOTOR COMPANY
