Charging System

WARNING: This page is about a different car, the 2017 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

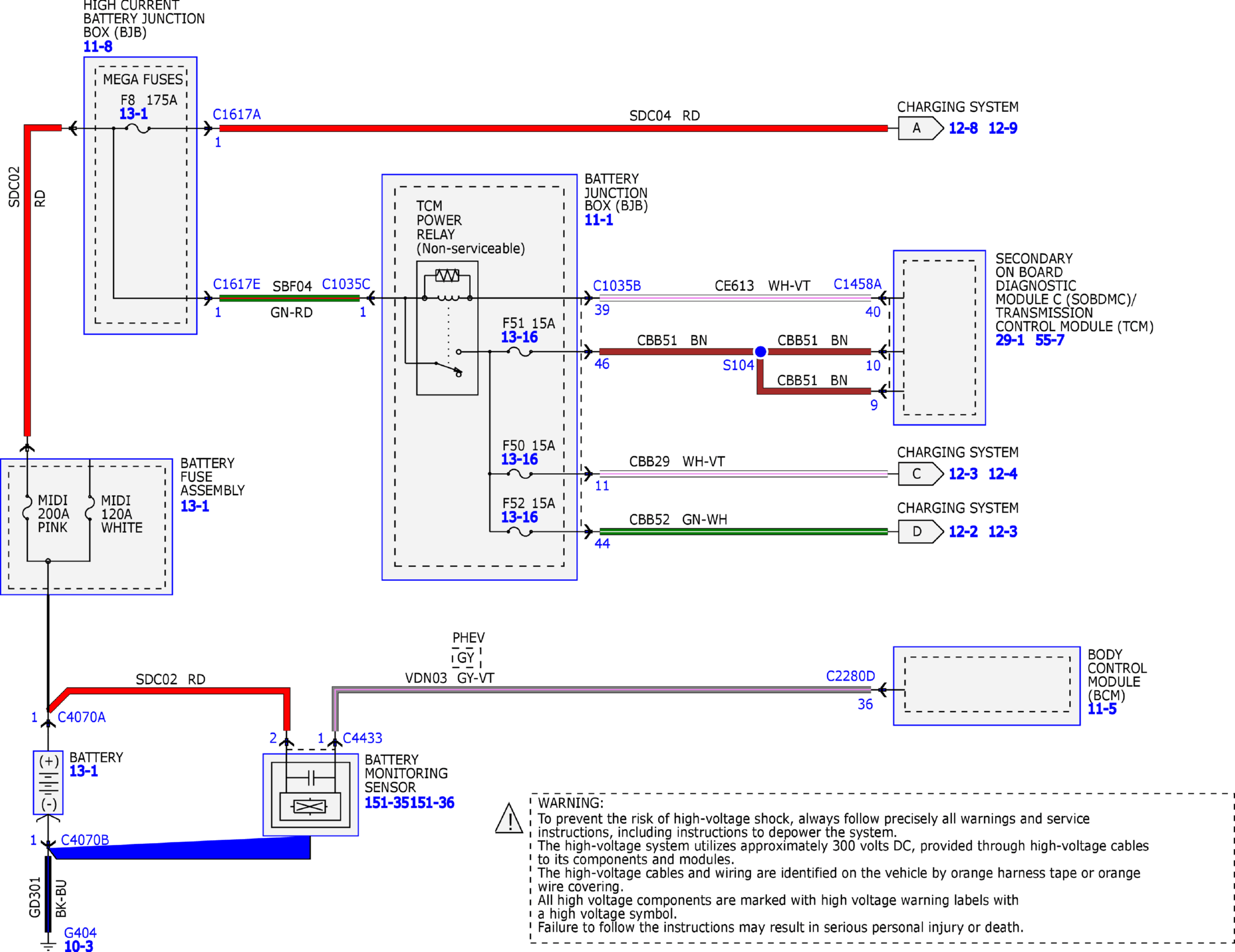

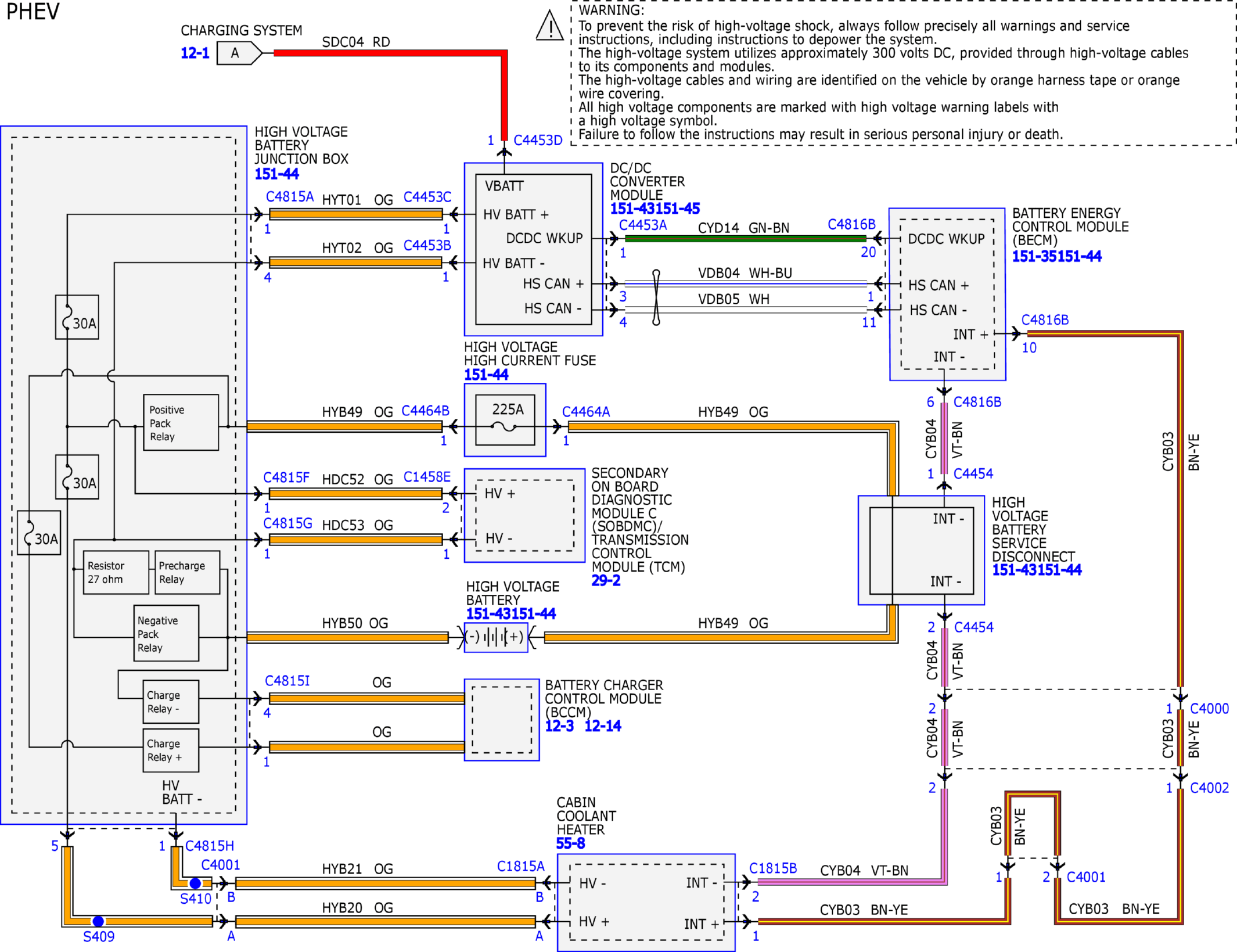

Fig 1: Charging System (1 of 14)

Courtesy of FORD MOTOR COMPANY

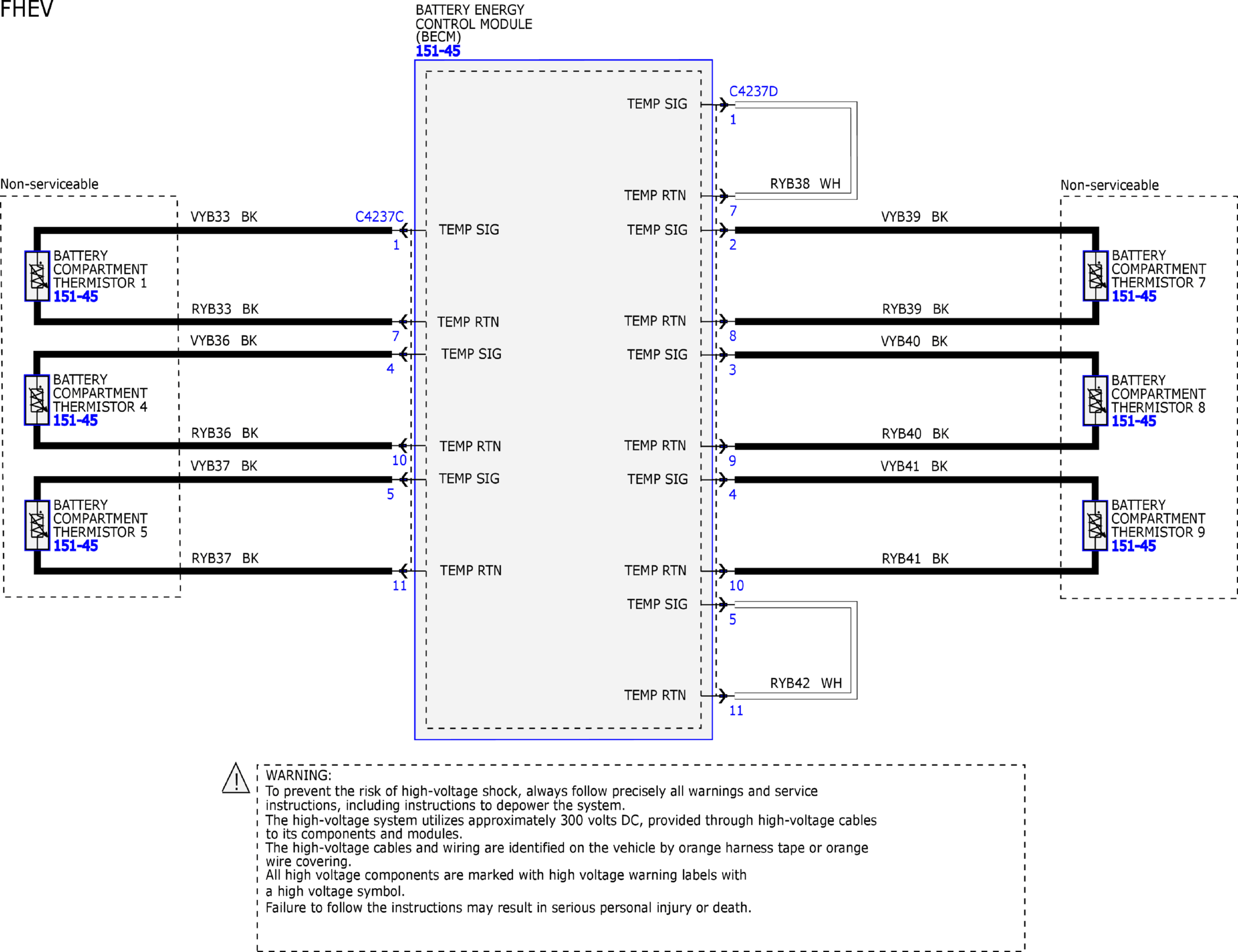

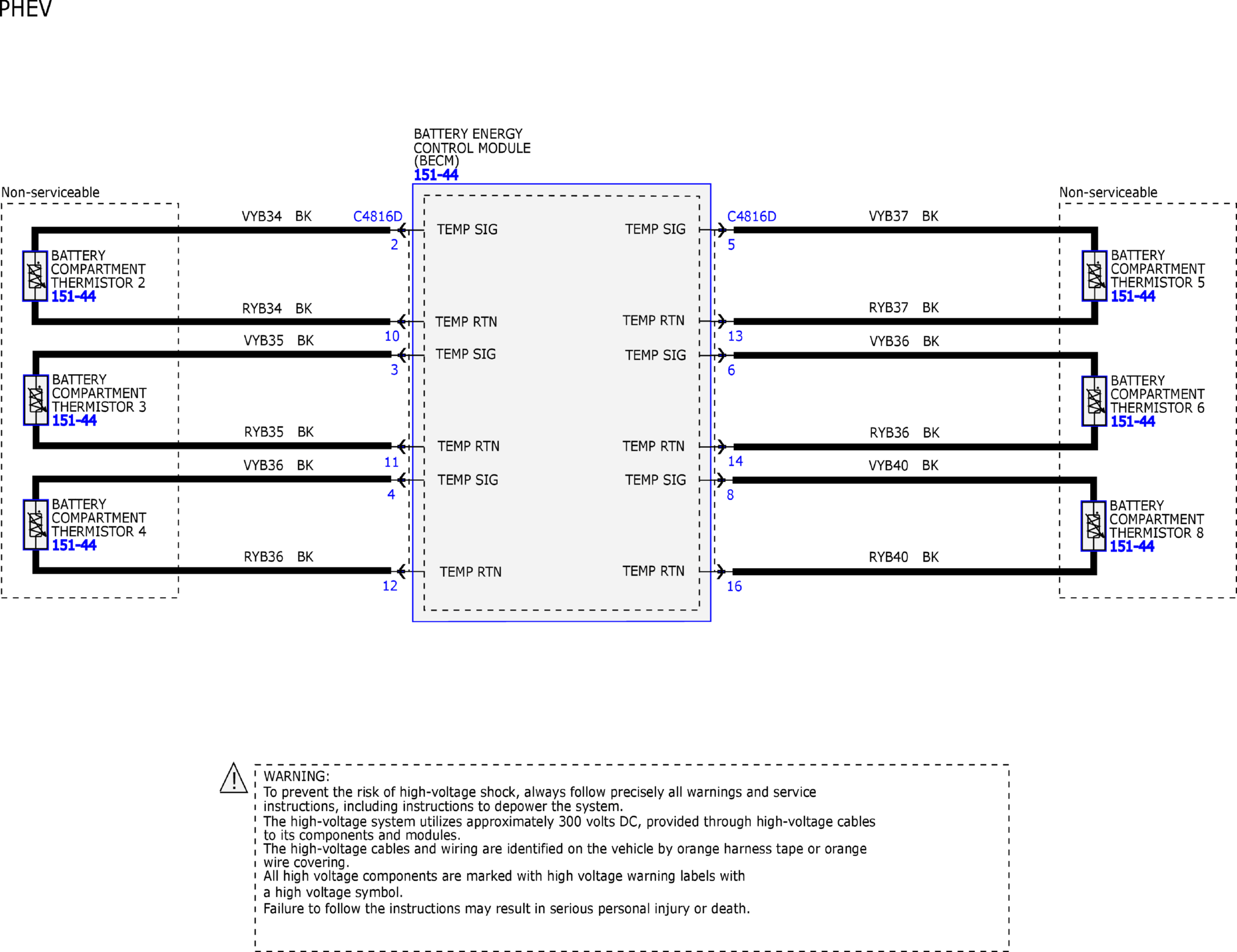

Fig 2: Charging System (2 of 14)

Courtesy of FORD MOTOR COMPANY

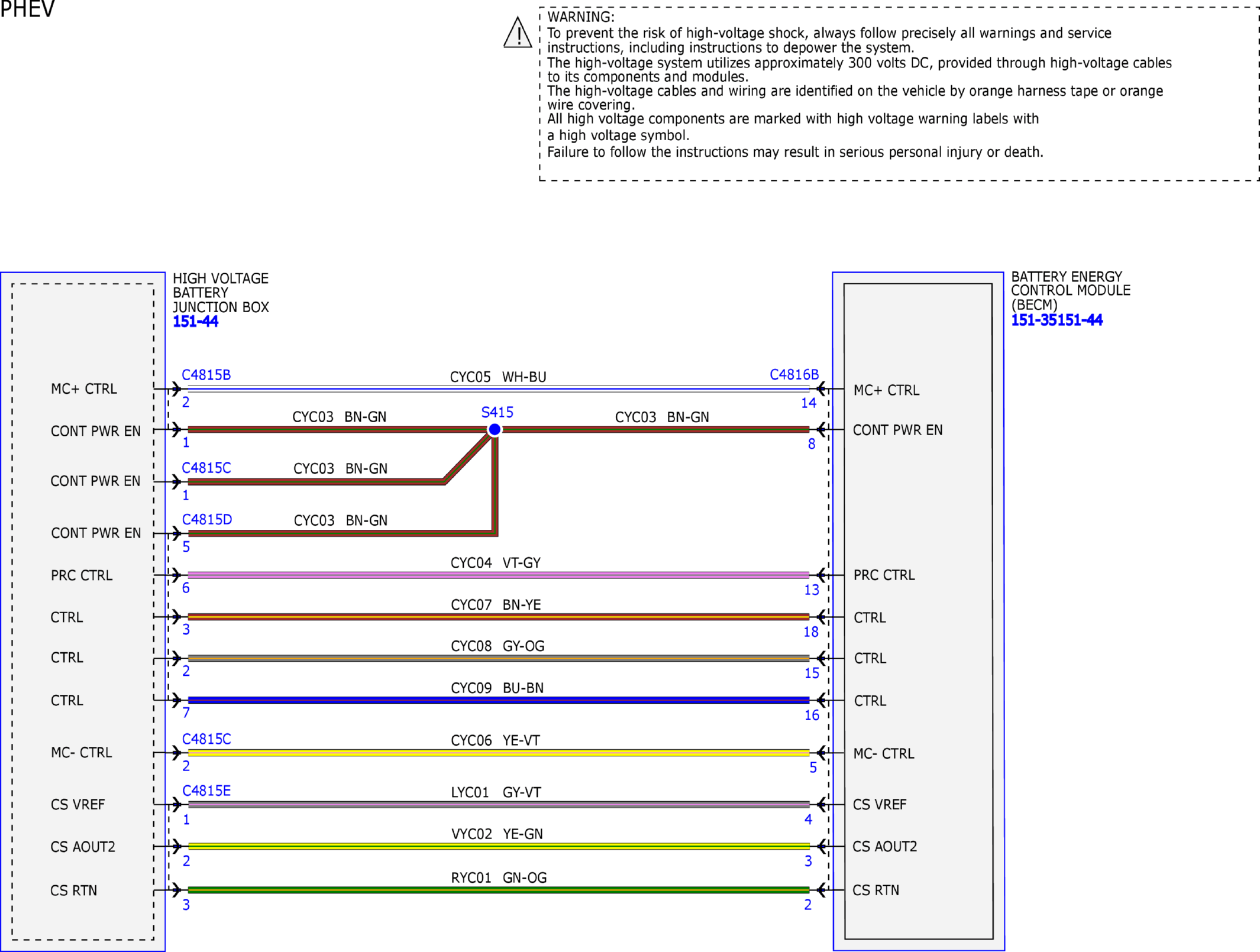

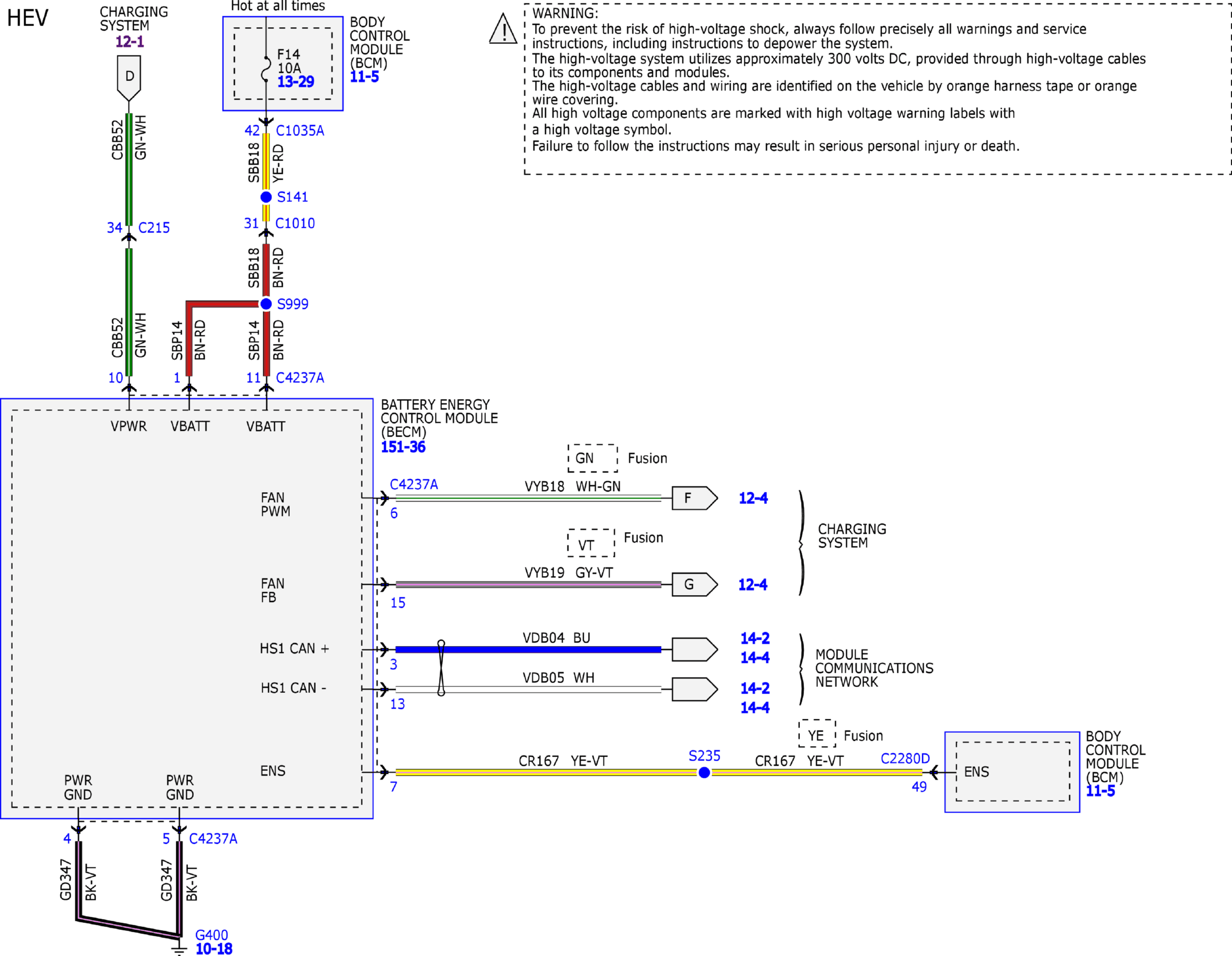

Fig 3: Charging System (3 of 14)

Courtesy of FORD MOTOR COMPANY

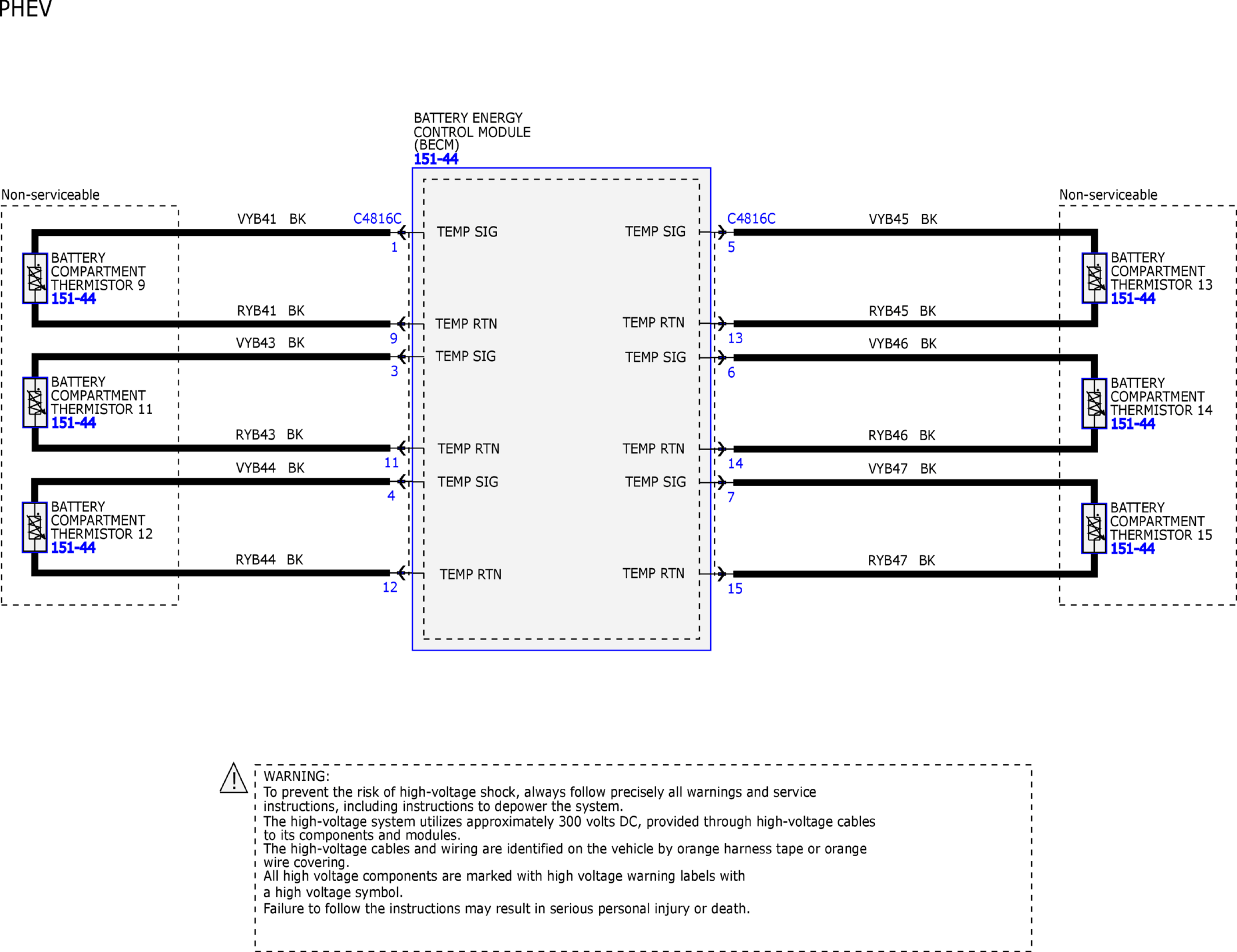

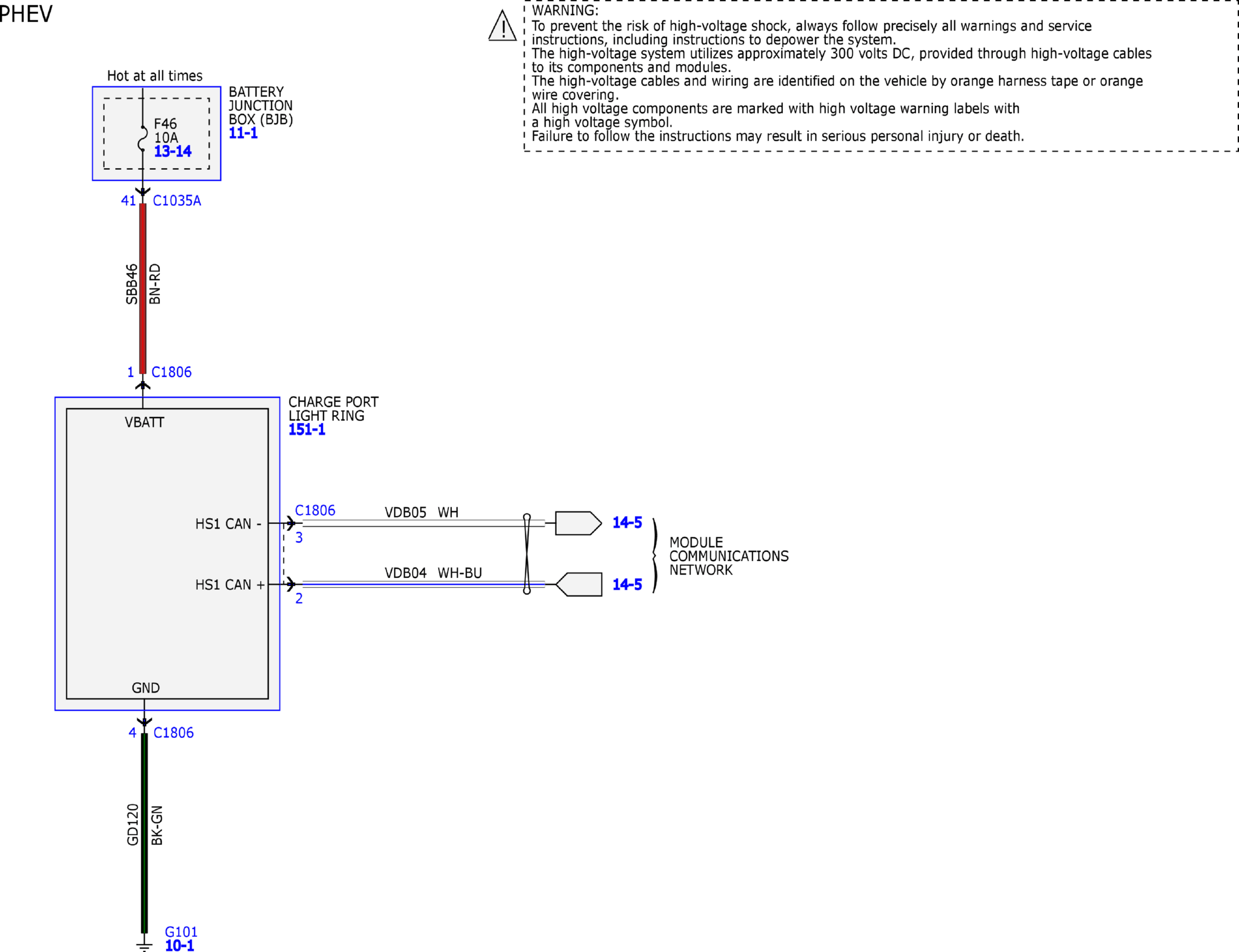

Fig 4: Charging System (4 of 14)

Courtesy of FORD MOTOR COMPANY

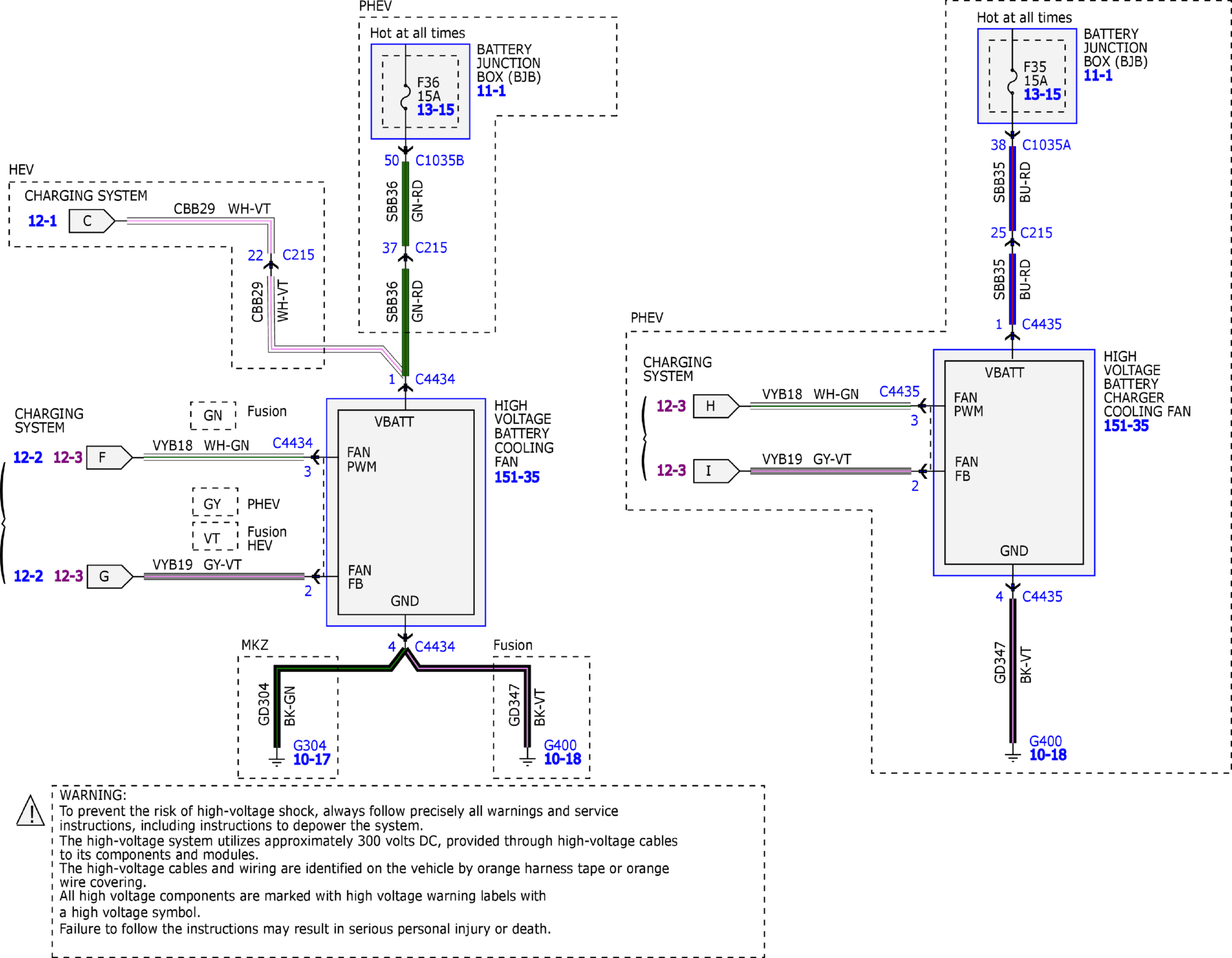

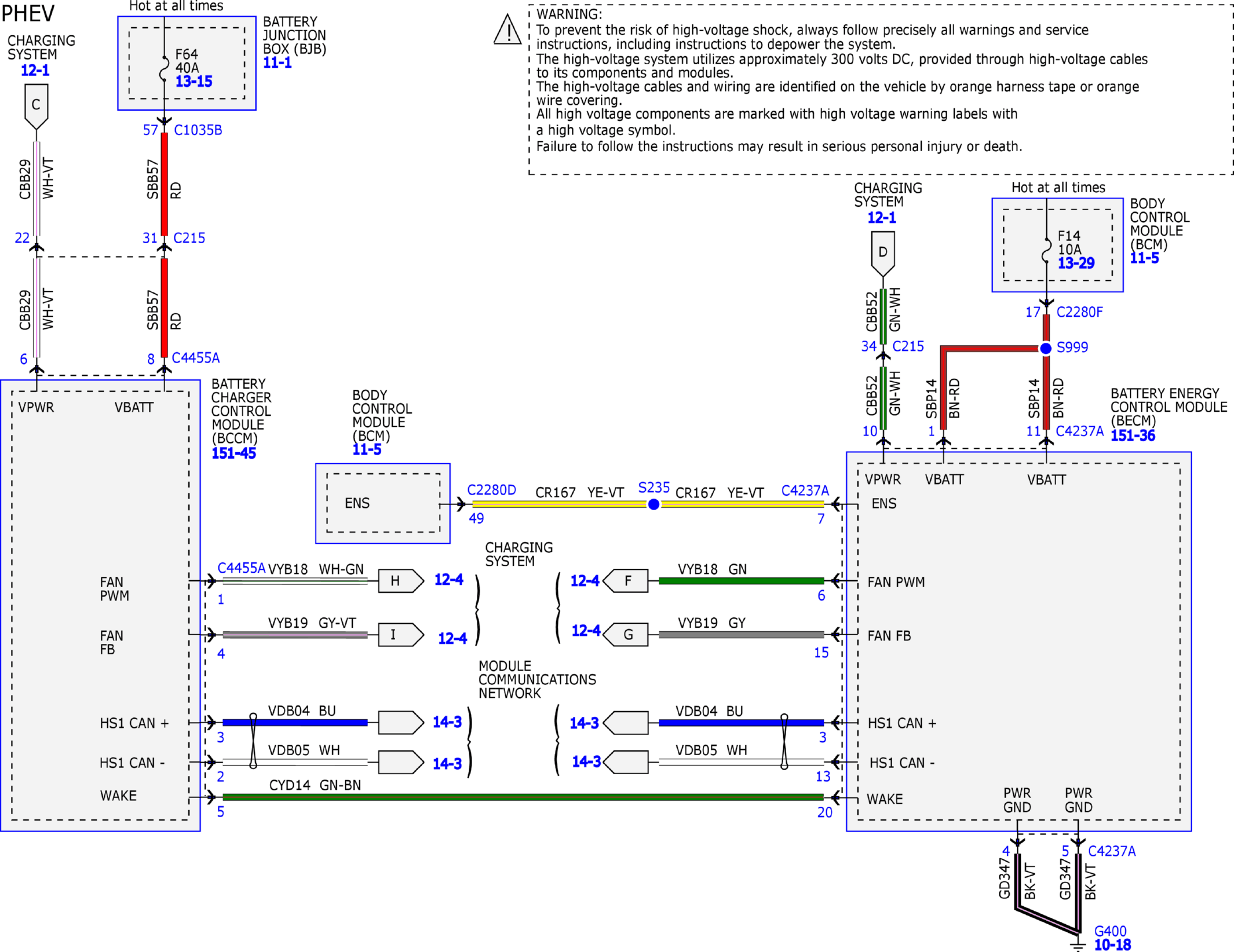

Fig 5: Charging System (5 of 14)

Courtesy of FORD MOTOR COMPANY

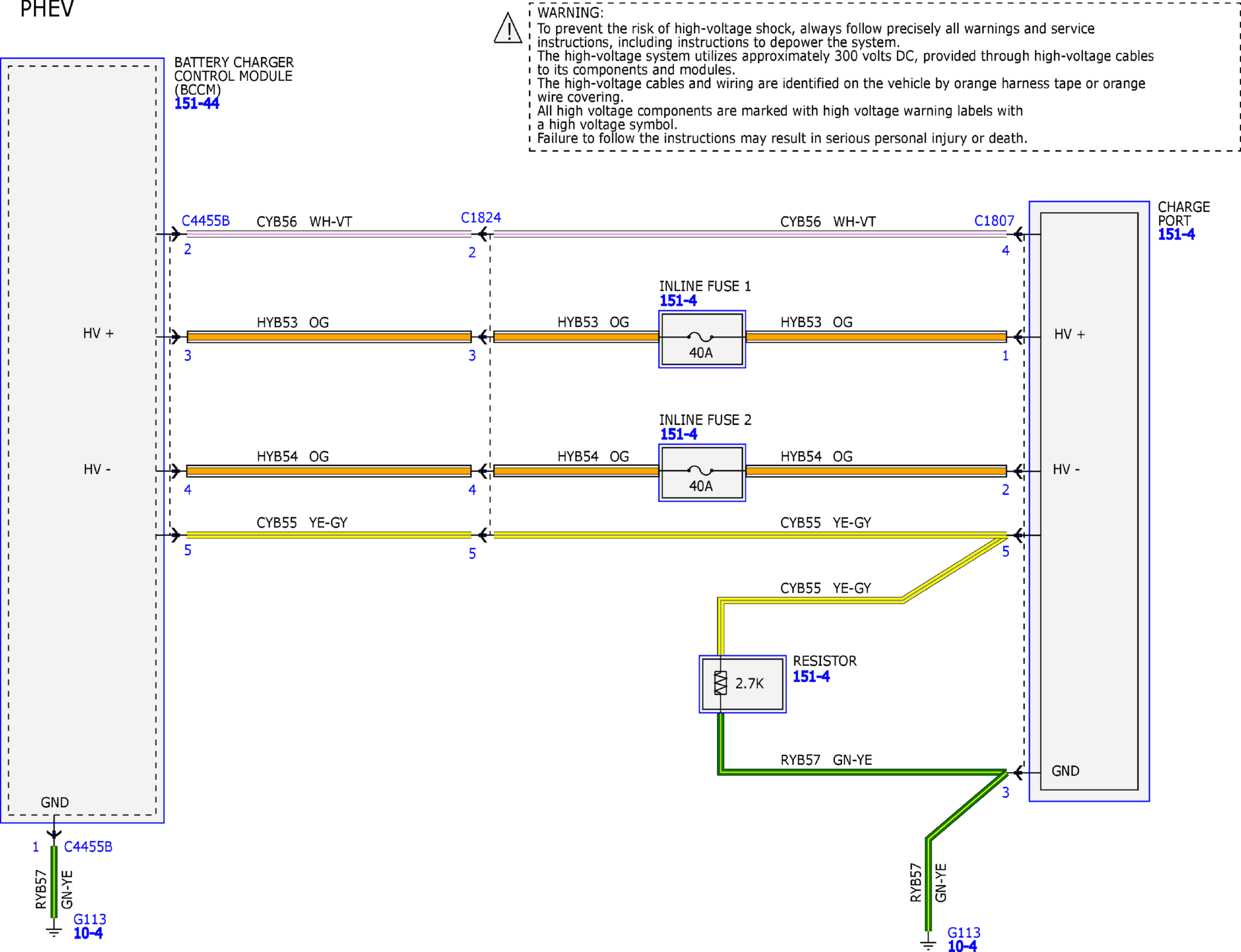

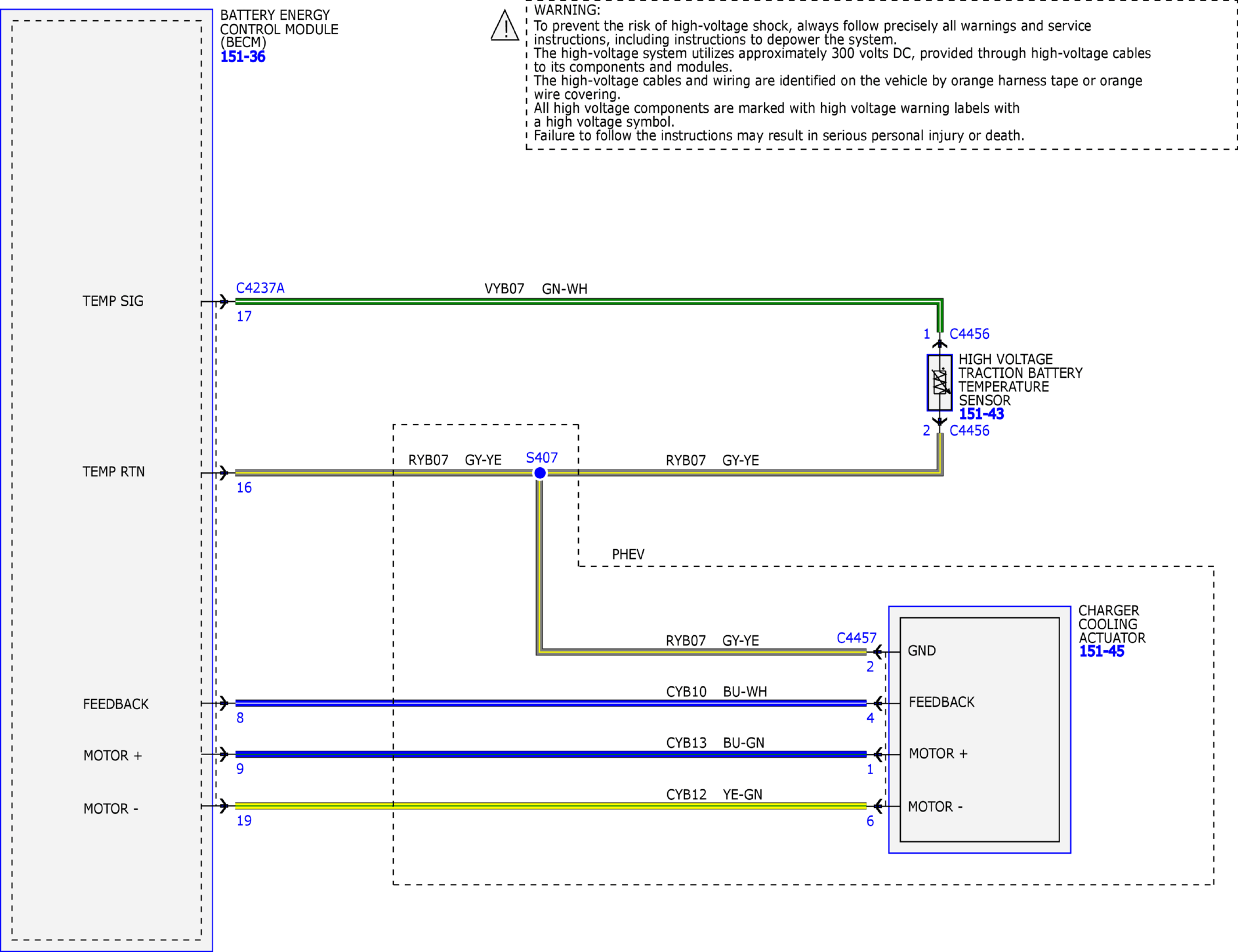

Fig 6: Charging System (6 of 14)

Courtesy of FORD MOTOR COMPANY

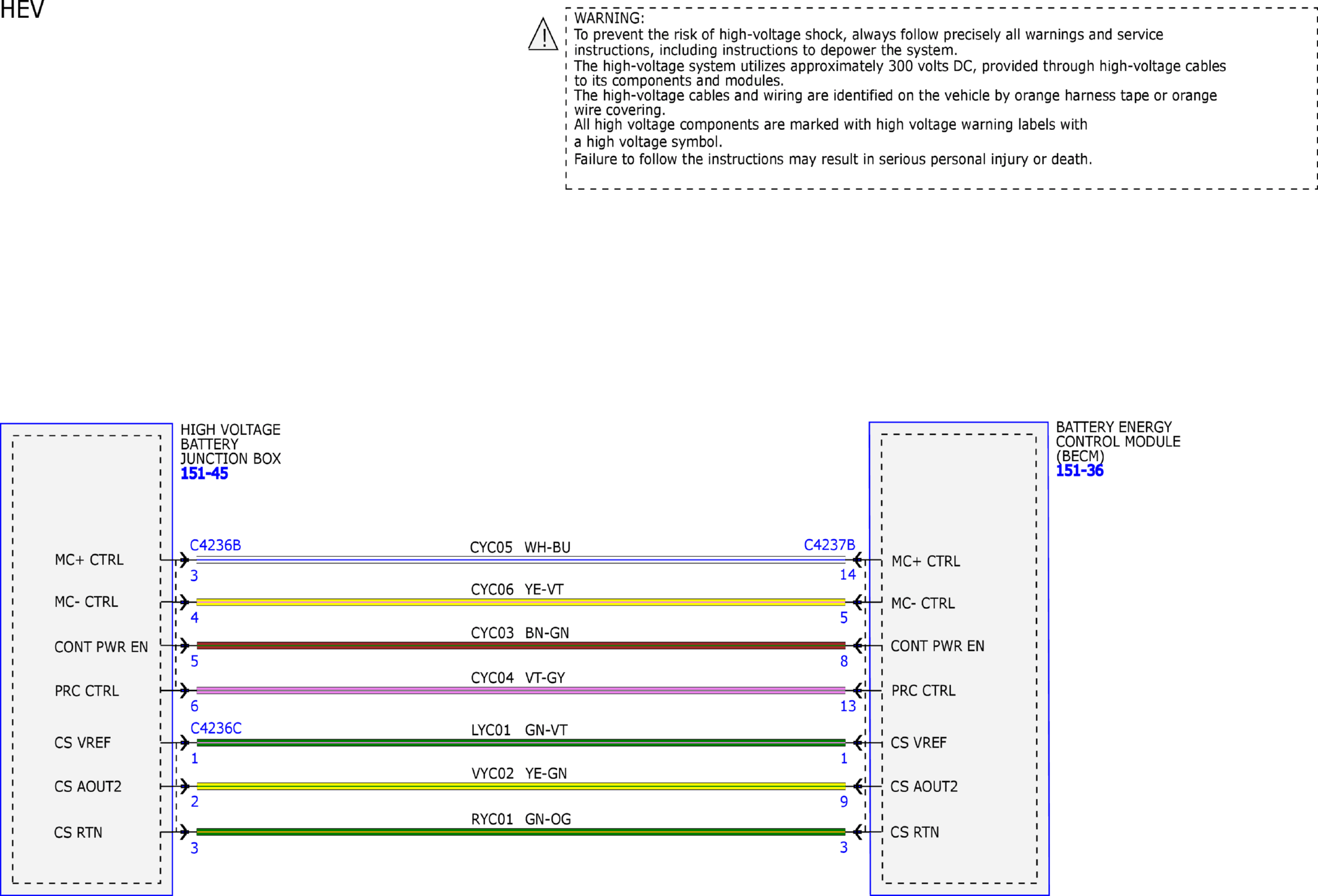

Fig 7: Charging System (7 of 14)

Courtesy of FORD MOTOR COMPANY

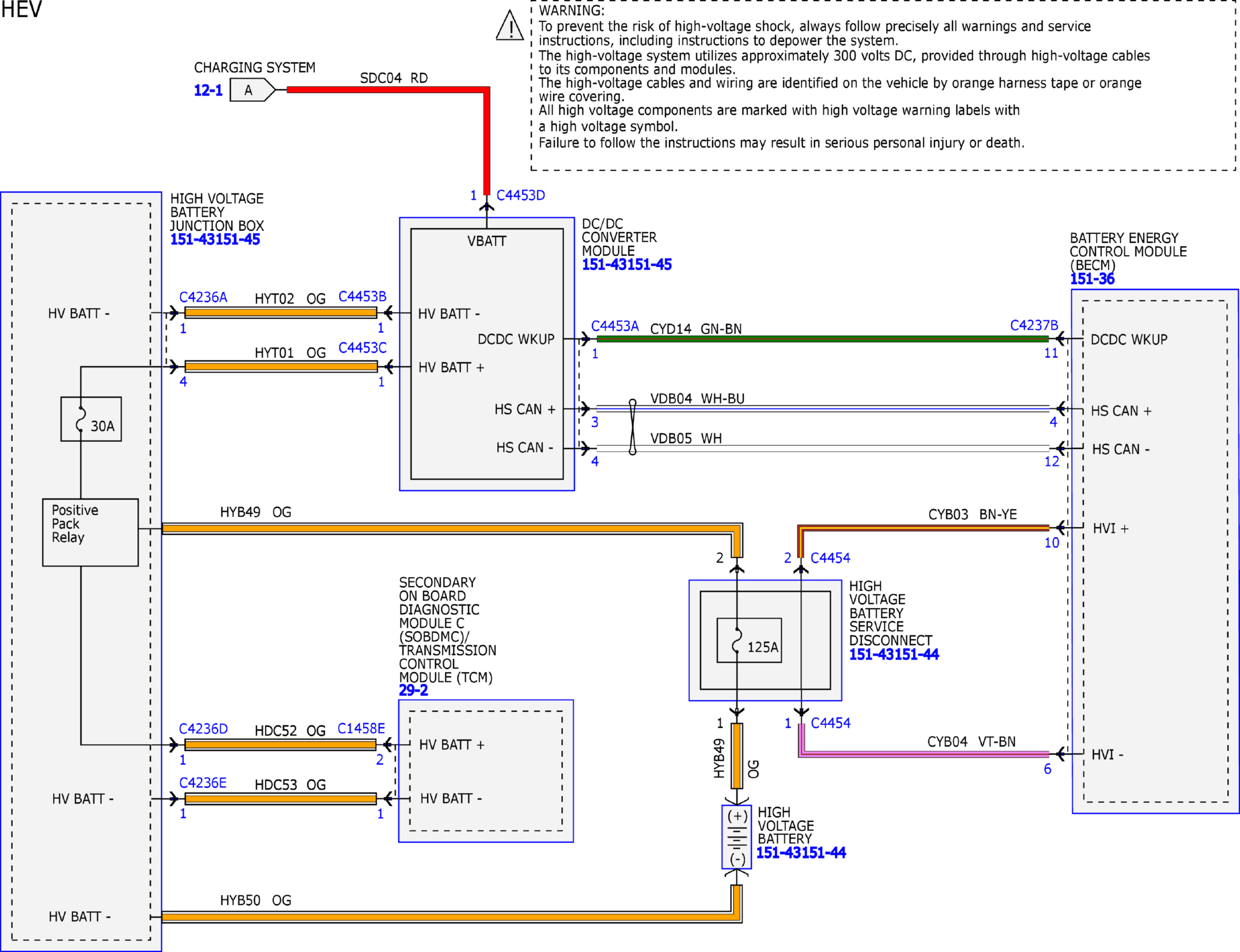

Fig 8: Charging System (8 of 14)

Courtesy of FORD MOTOR COMPANY

Fig 9: Charging System (9 of 14)

Courtesy of FORD MOTOR COMPANY

Fig 10: Charging System (10 of 14)

Courtesy of FORD MOTOR COMPANY

Fig 11: Charging System (11 of 14)

Courtesy of FORD MOTOR COMPANY

Fig 12: Charging System (12 of 14)

Courtesy of FORD MOTOR COMPANY

Fig 13: Charging System (13 of 14)

Courtesy of FORD MOTOR COMPANY

Fig 14: Charging System (14 of 14)

Courtesy of FORD MOTOR COMPANY
