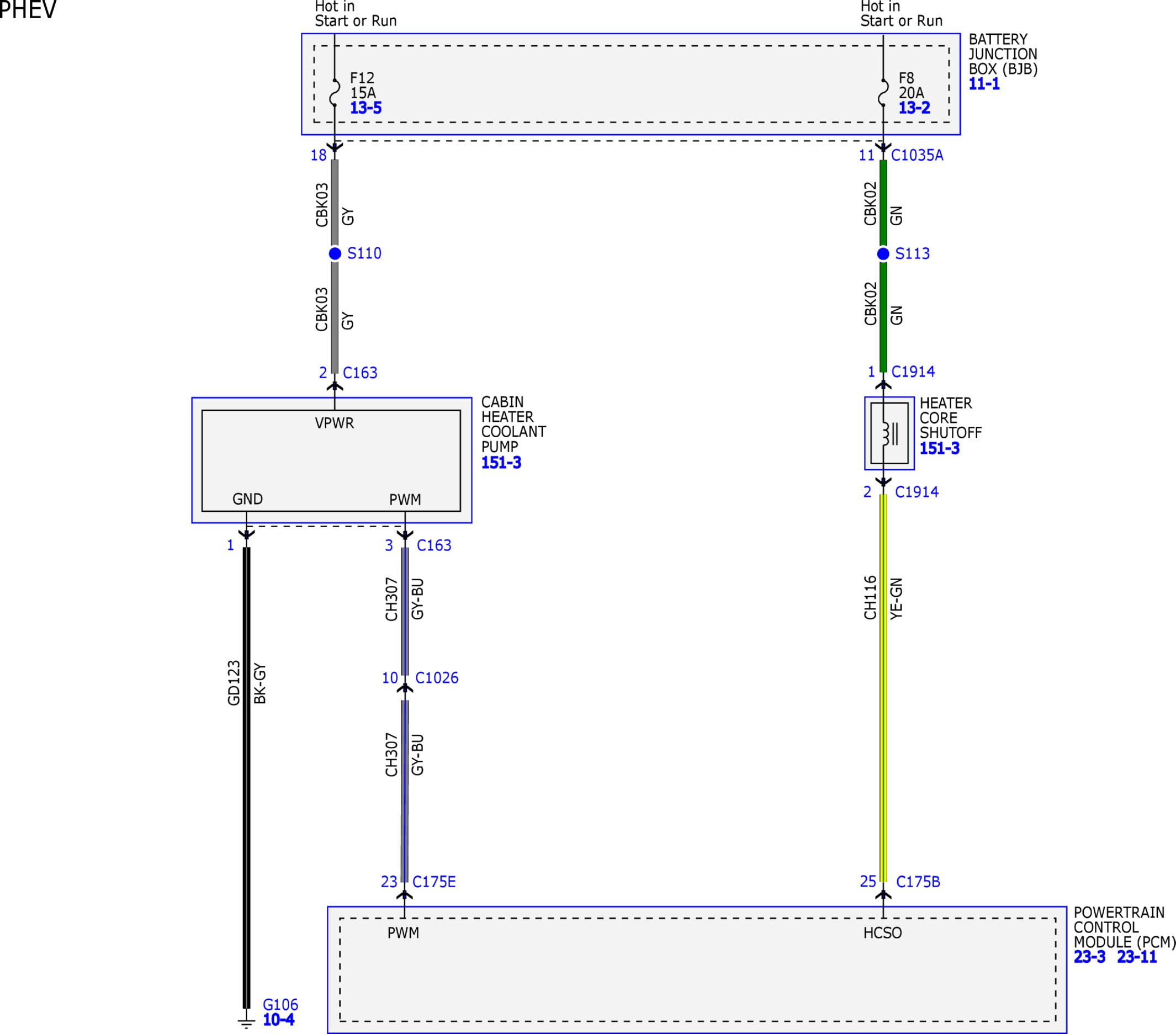

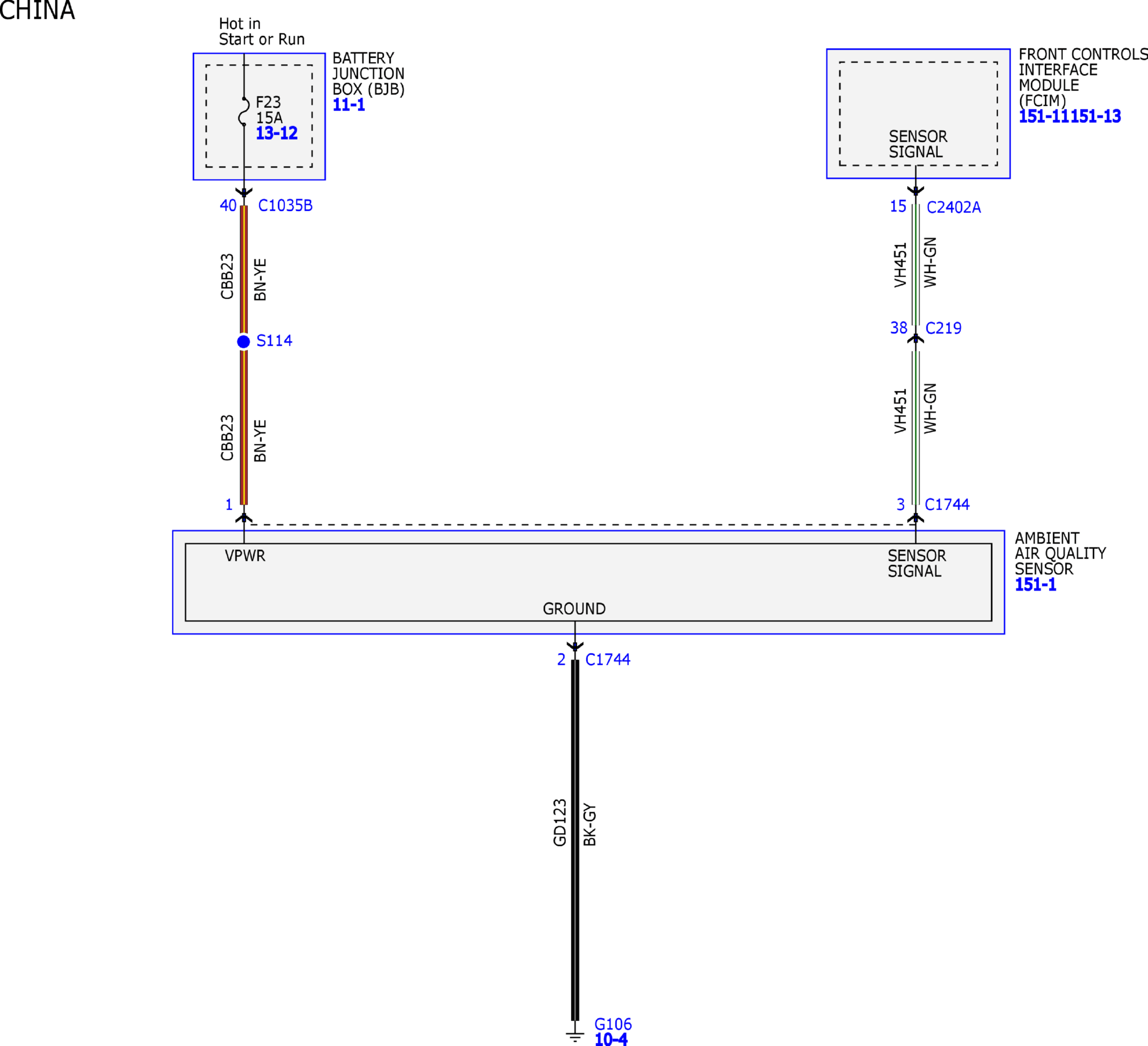

Fig 1: Automatic Climate Control System (1 of 10)
Courtesy of FORD MOTOR COMPANY

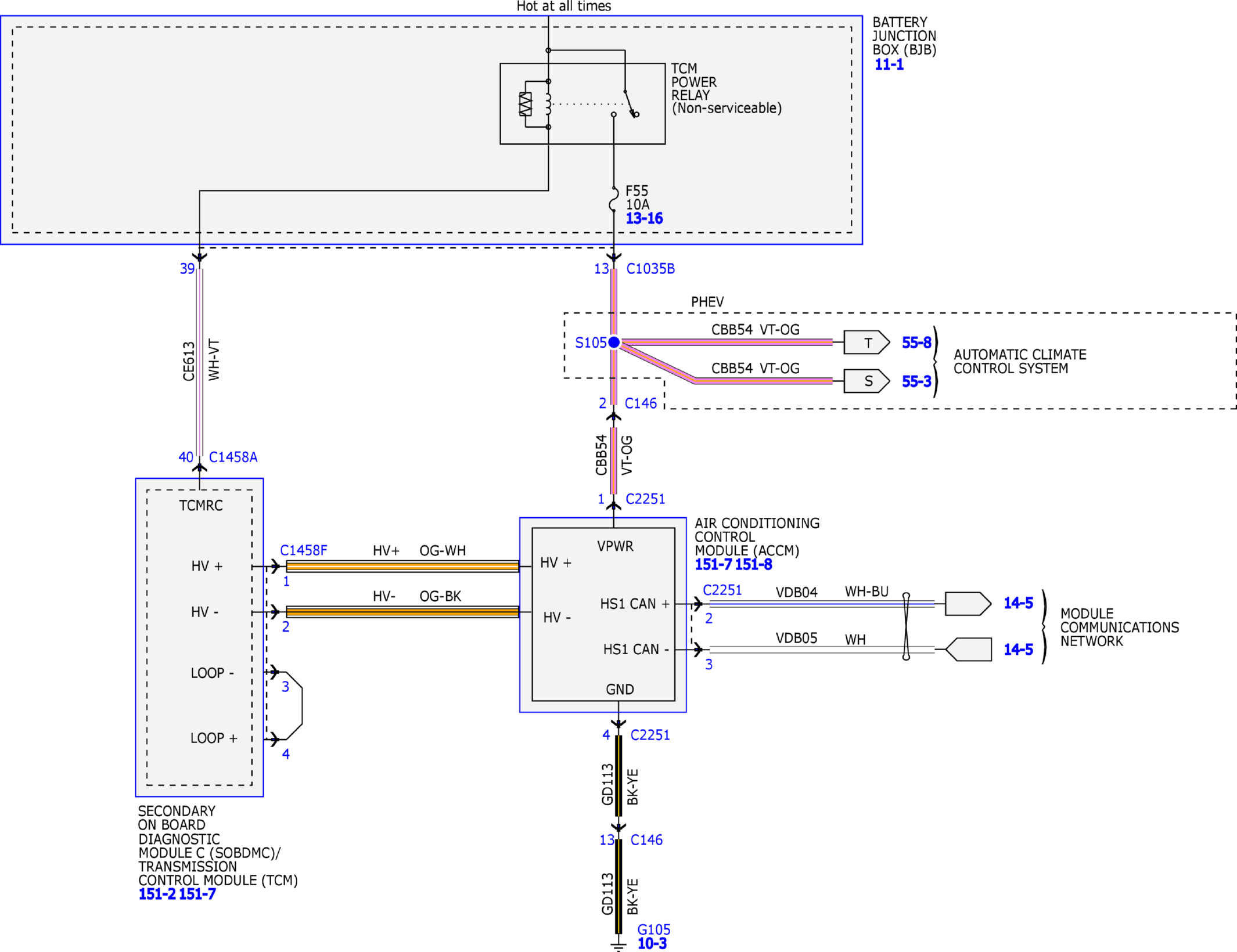

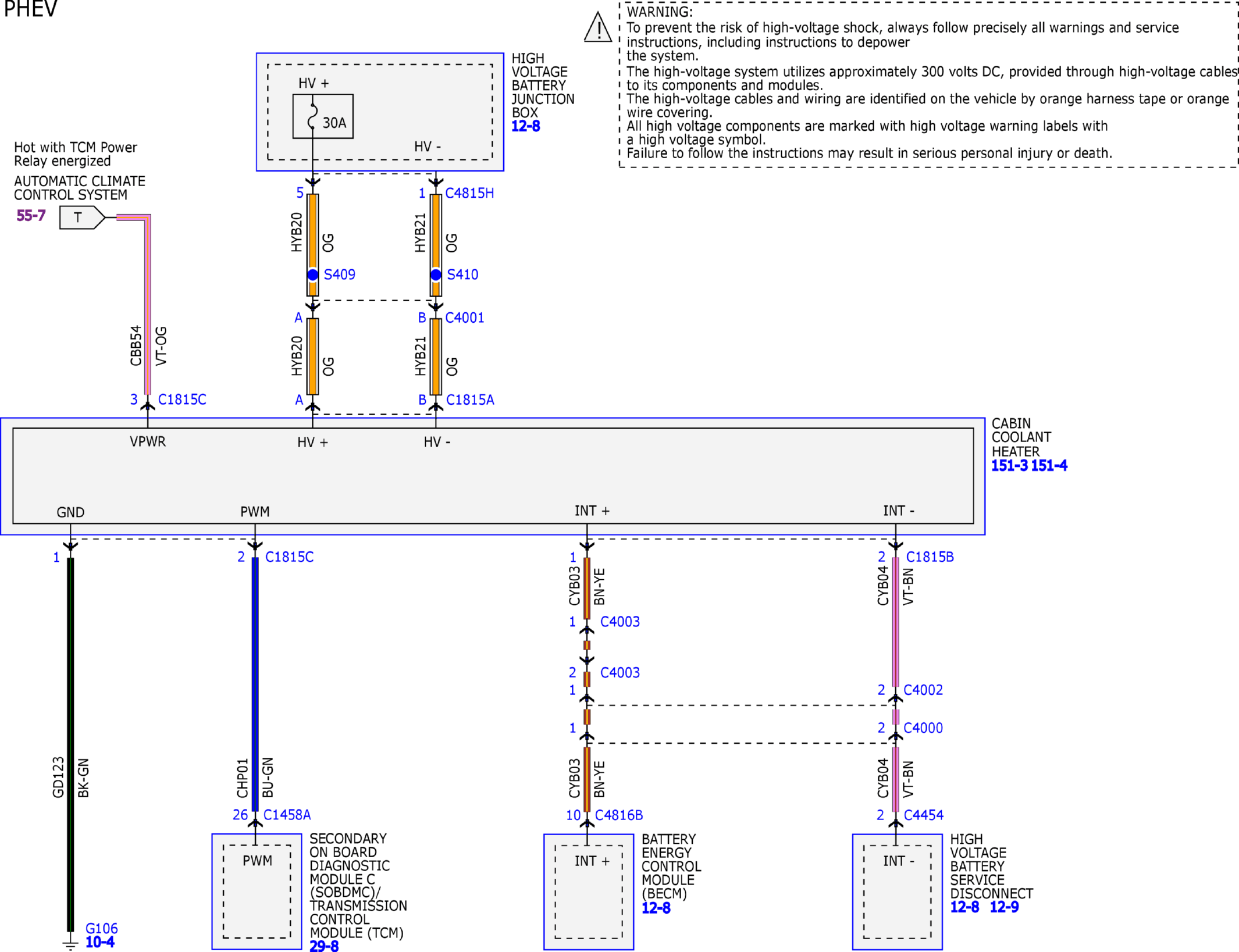

Fig 2: Automatic Climate Control System (2 of 10)
Courtesy of FORD MOTOR COMPANY

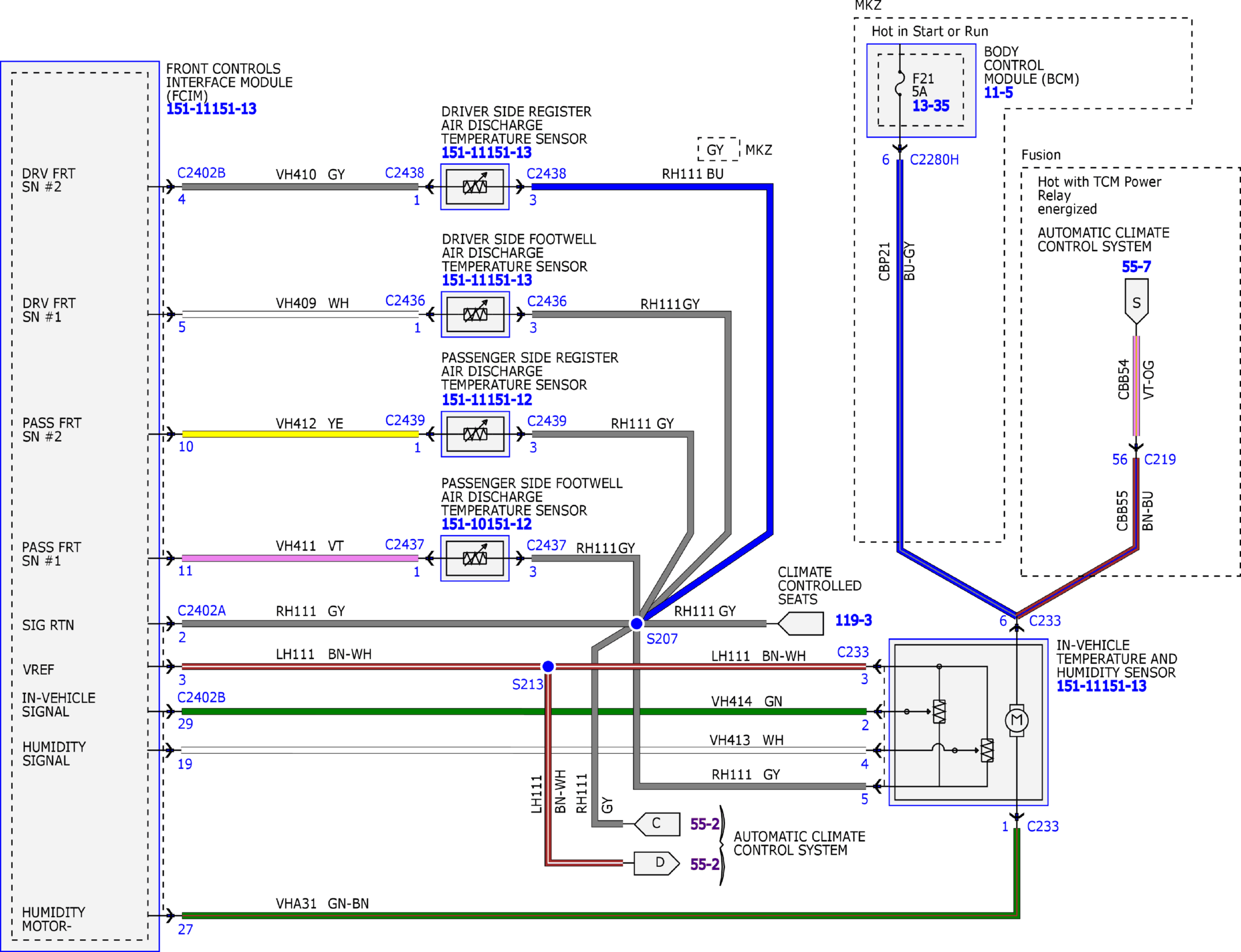

Fig 3: Automatic Climate Control System (3 of 10)
Courtesy of FORD MOTOR COMPANY

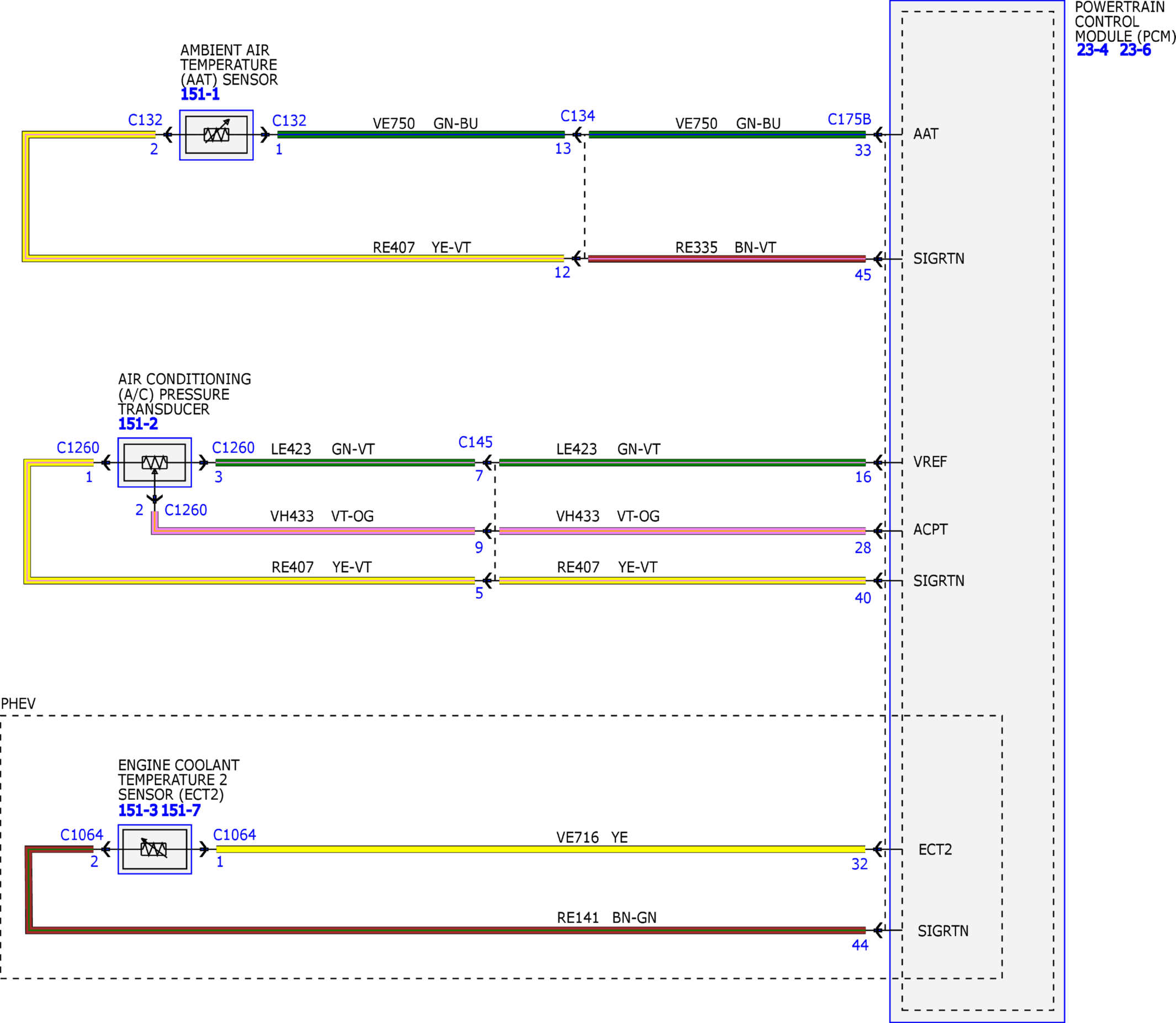

Fig 4: Automatic Climate Control System (4 of 10)
Courtesy of FORD MOTOR COMPANY

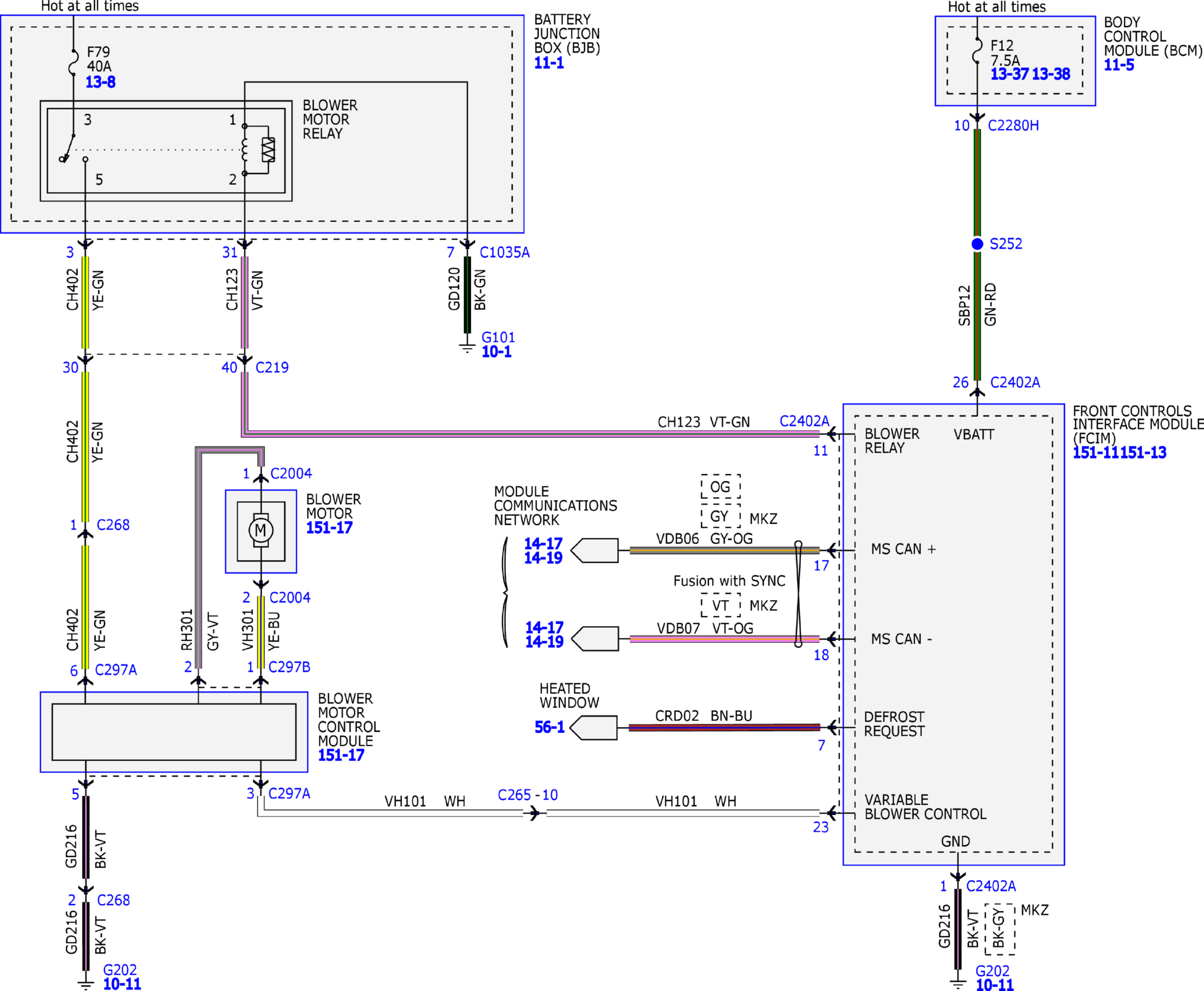

Fig 5: Automatic Climate Control System (5 of 10)
Courtesy of FORD MOTOR COMPANY

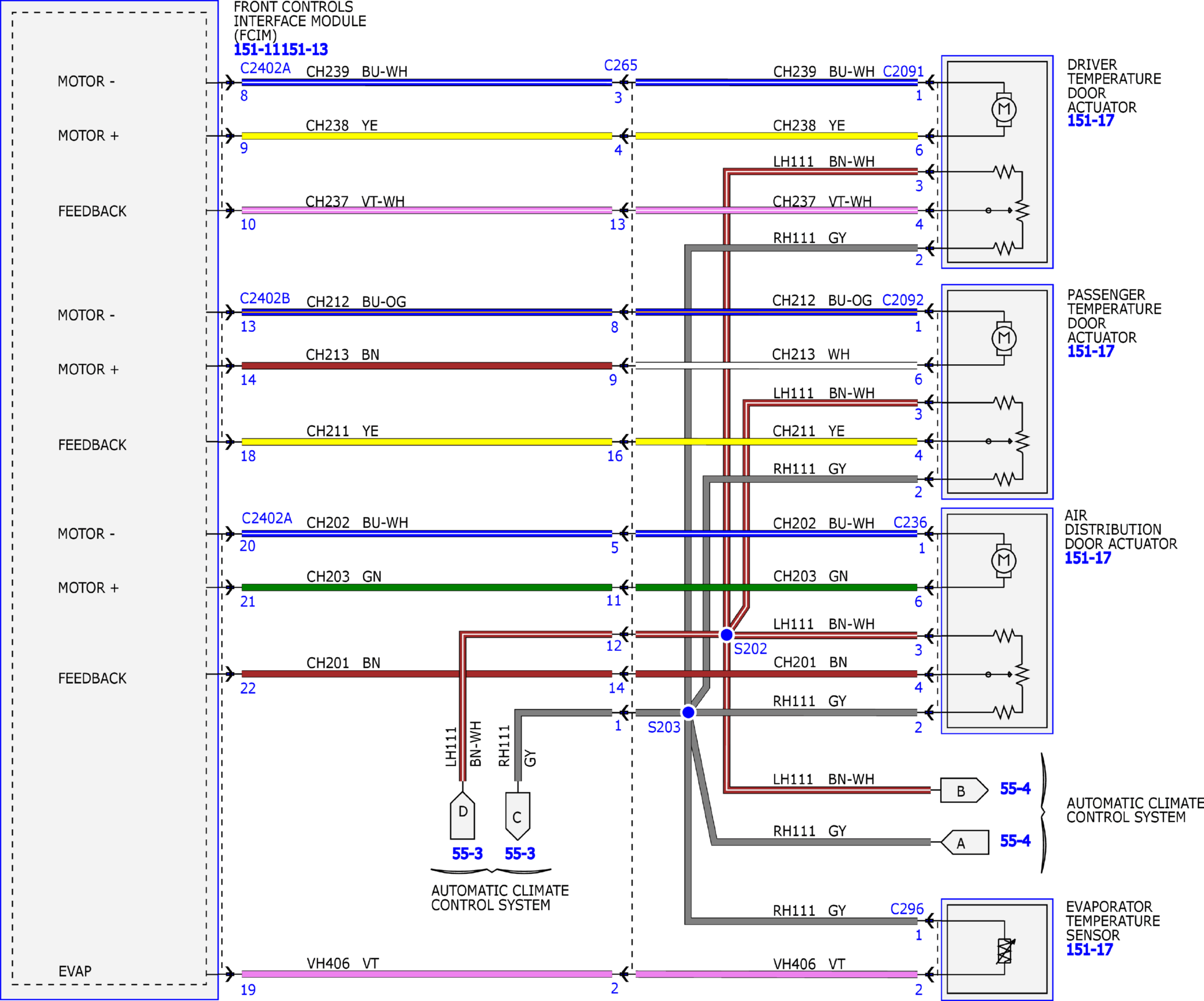

Fig 6: Automatic Climate Control System (6 of 10)
Courtesy of FORD MOTOR COMPANY

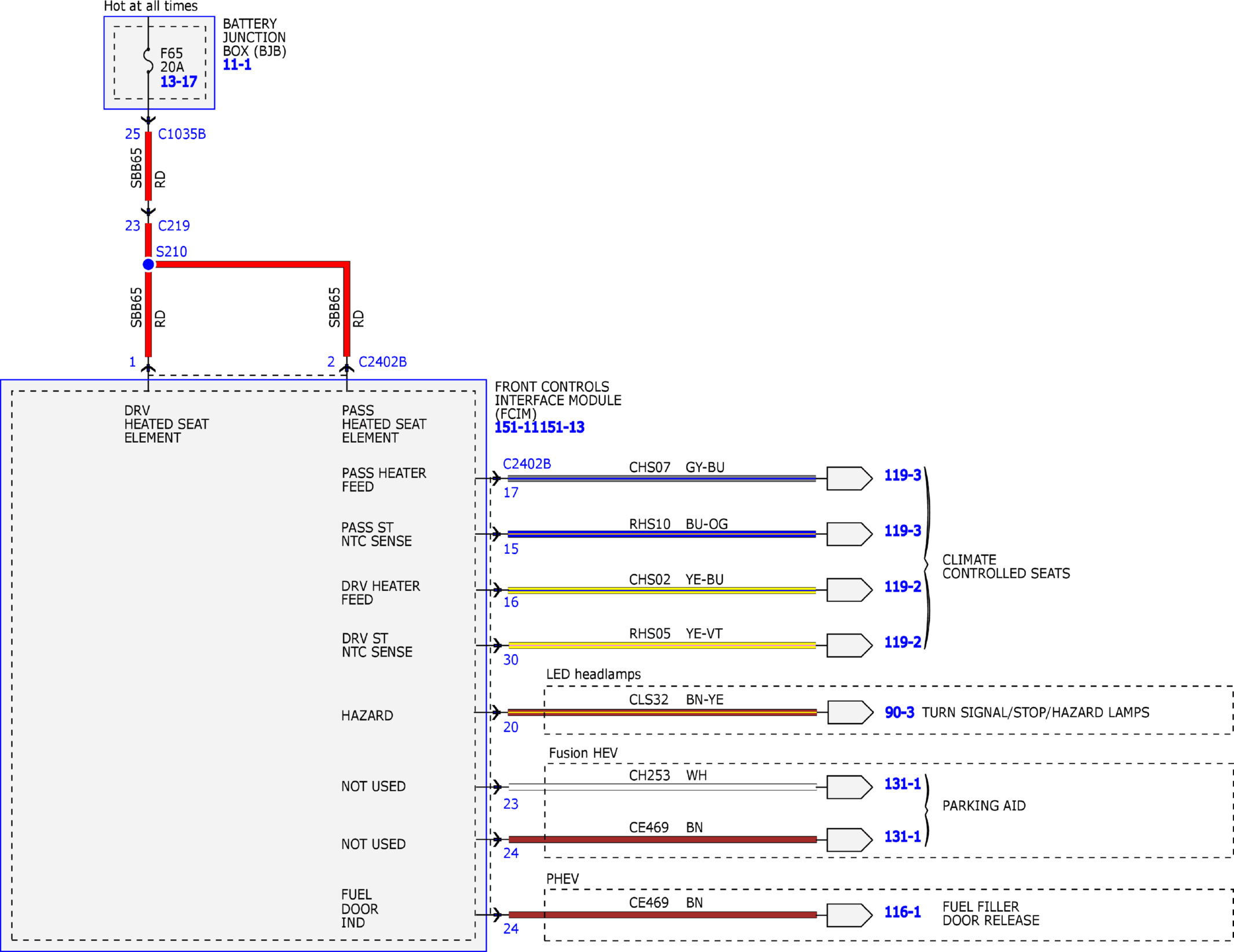

Fig 7: Automatic Climate Control System (7 of 10)
Courtesy of FORD MOTOR COMPANY

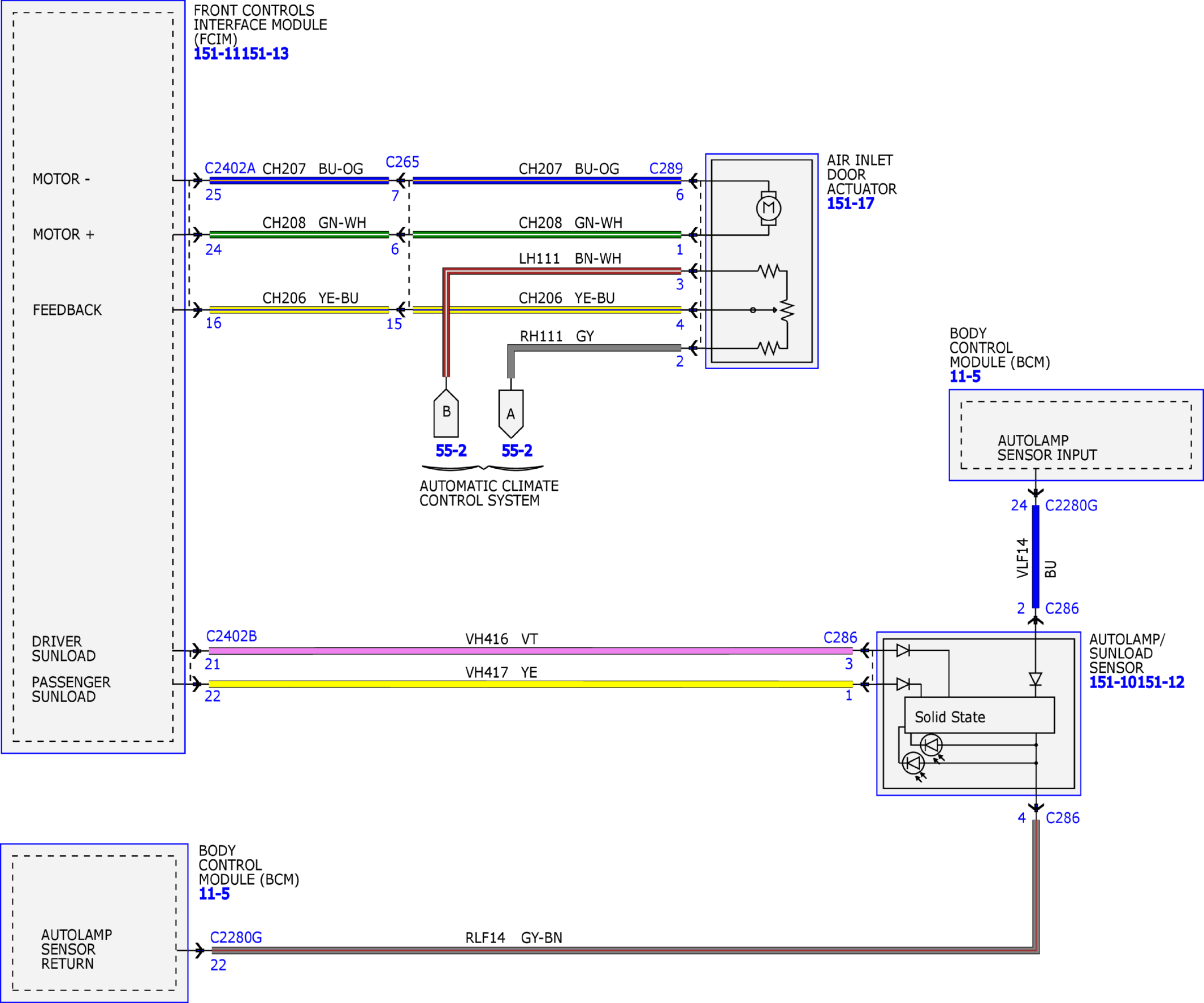

Fig 8: Automatic Climate Control System (8 of 10)
Courtesy of FORD MOTOR COMPANY
Fig 9: Automatic Climate Control System (9 of 10)
Courtesy of FORD MOTOR COMPANY
Fig 10: Automatic Climate Control System (10 of 10)
