Audio System/Navigation - HARMAN Revel Ultima Audio System
WARNING: This page is about a different car, the 2017 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

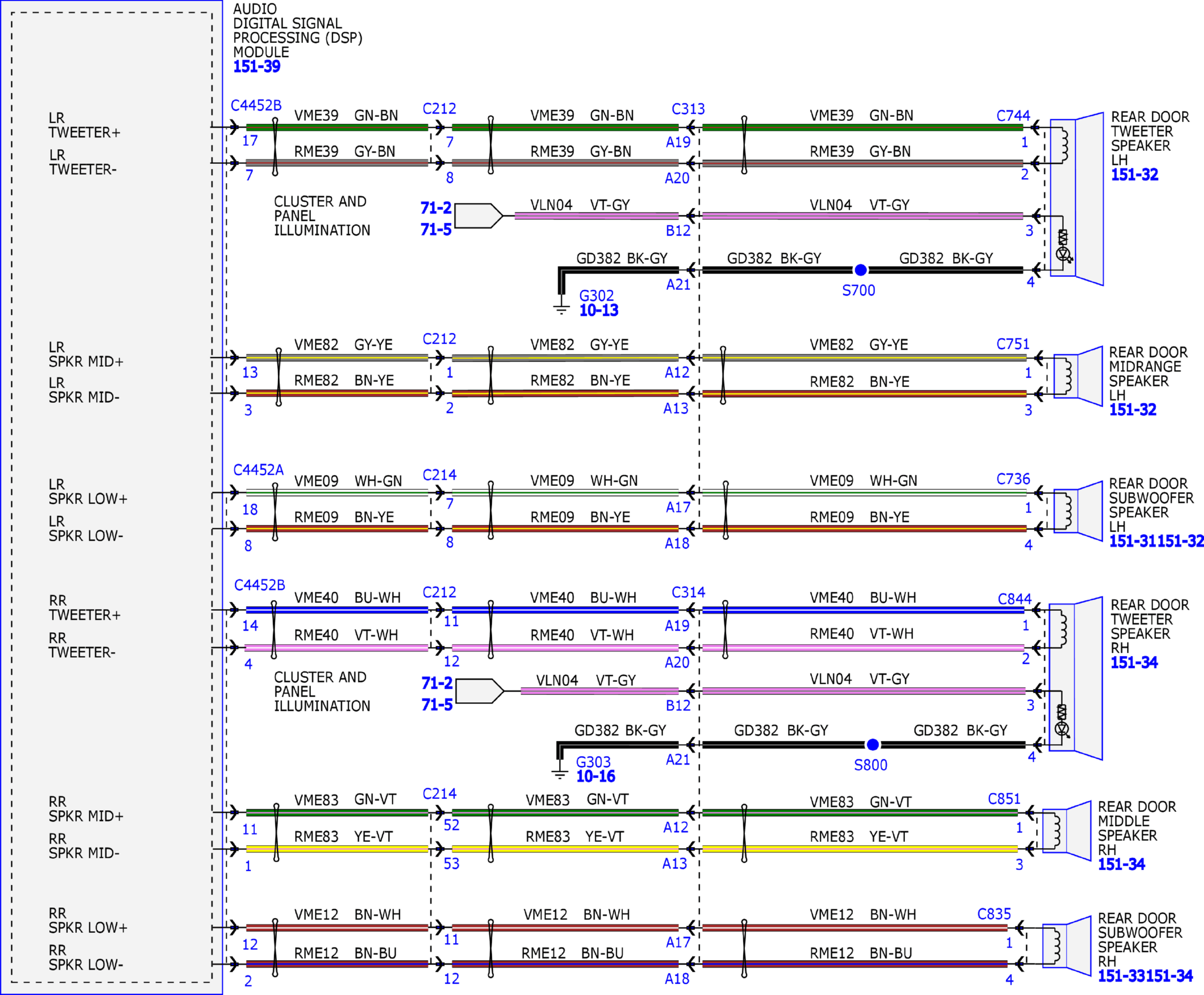

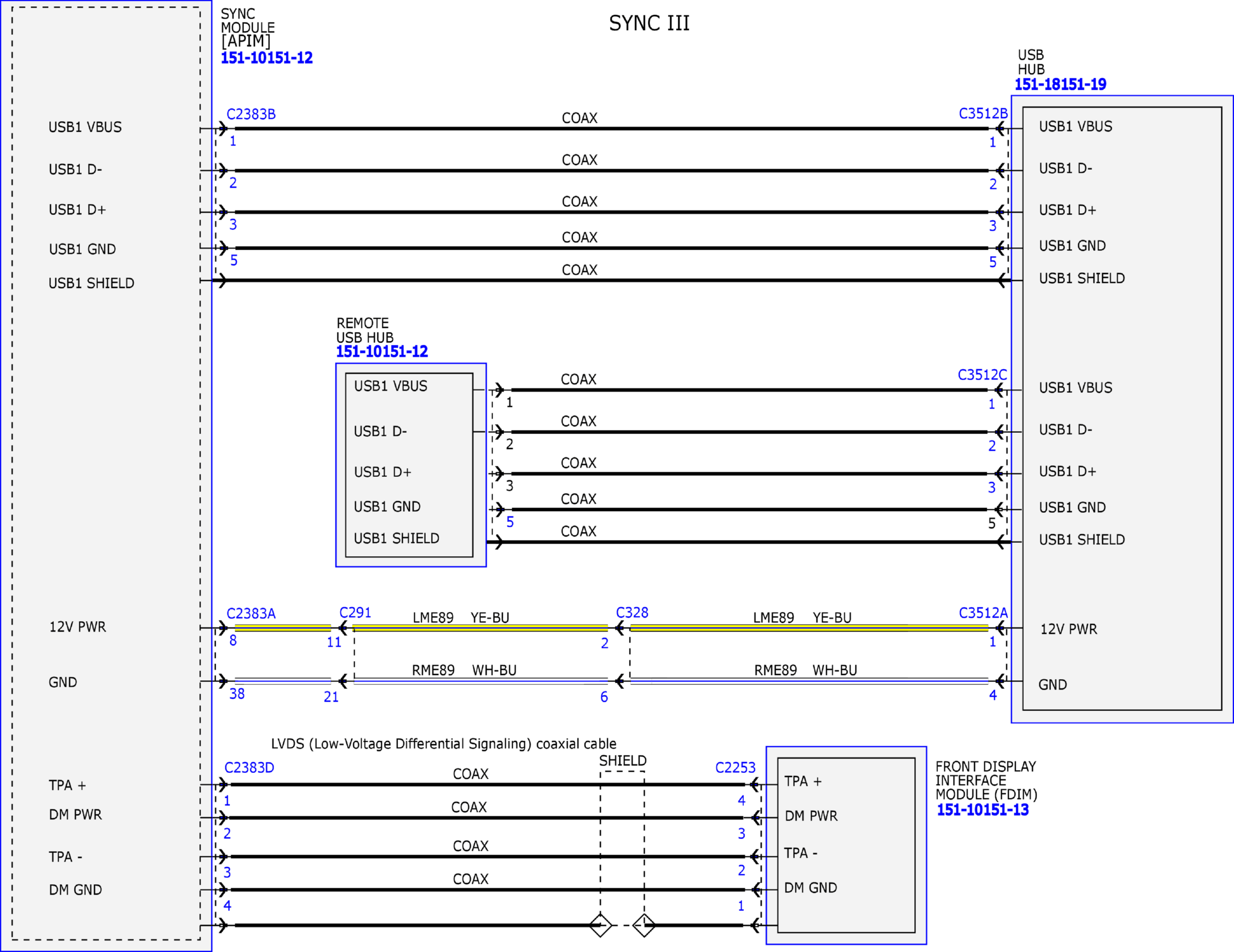

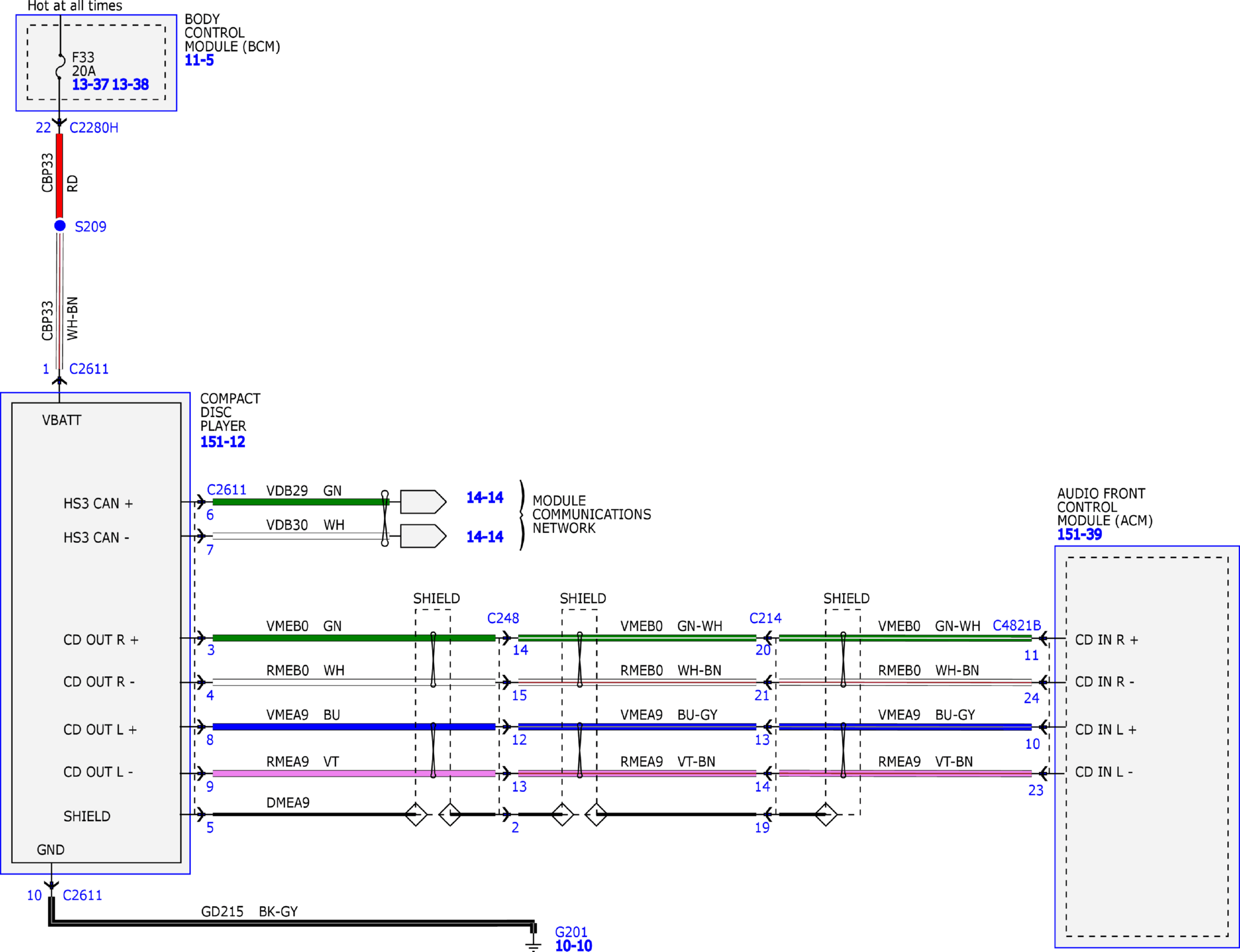

Fig 1: Audio System/Navigation - Harman Revel Ultima Audio System (1 of 11)
Courtesy of FORD MOTOR COMPANY

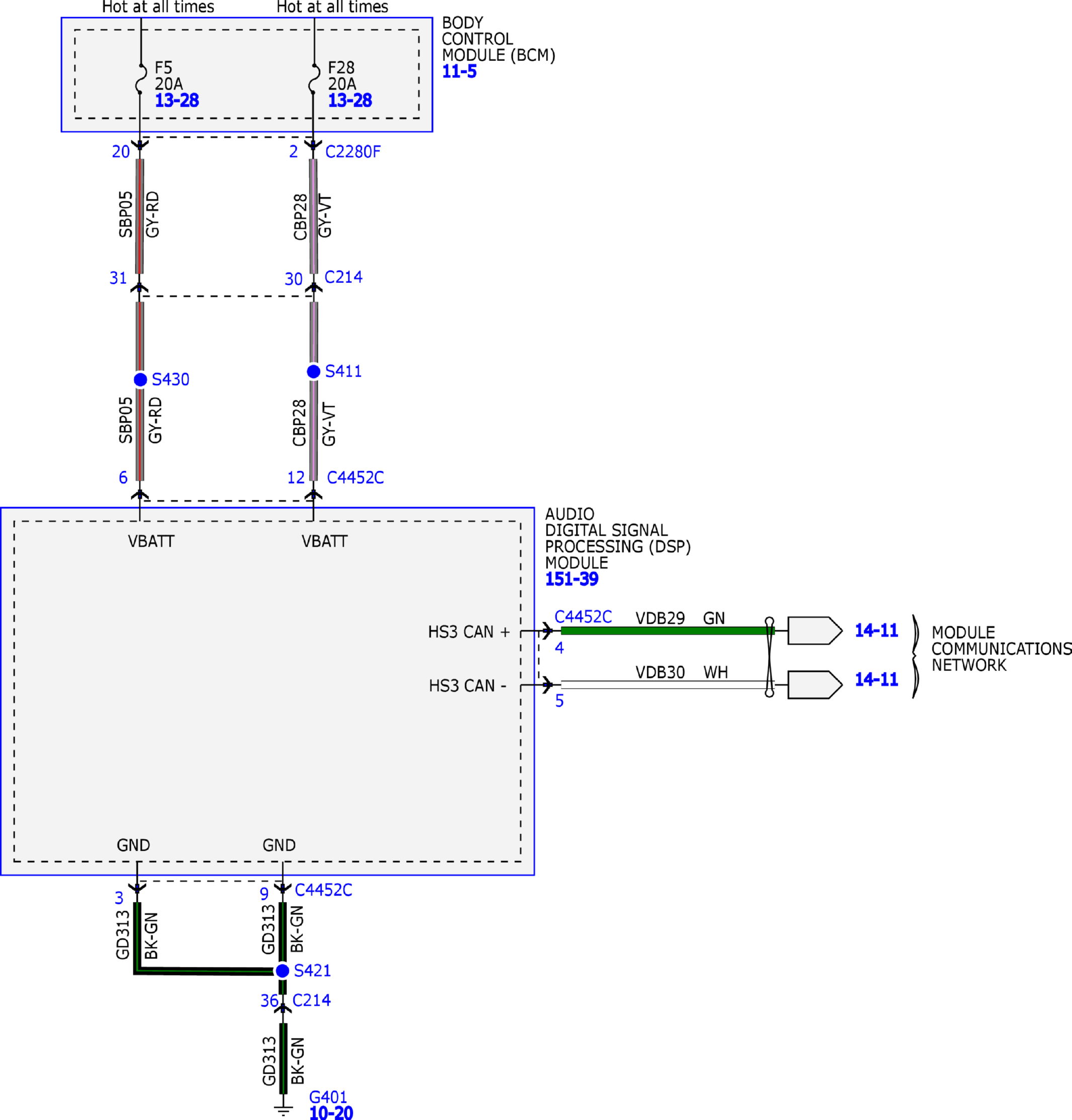

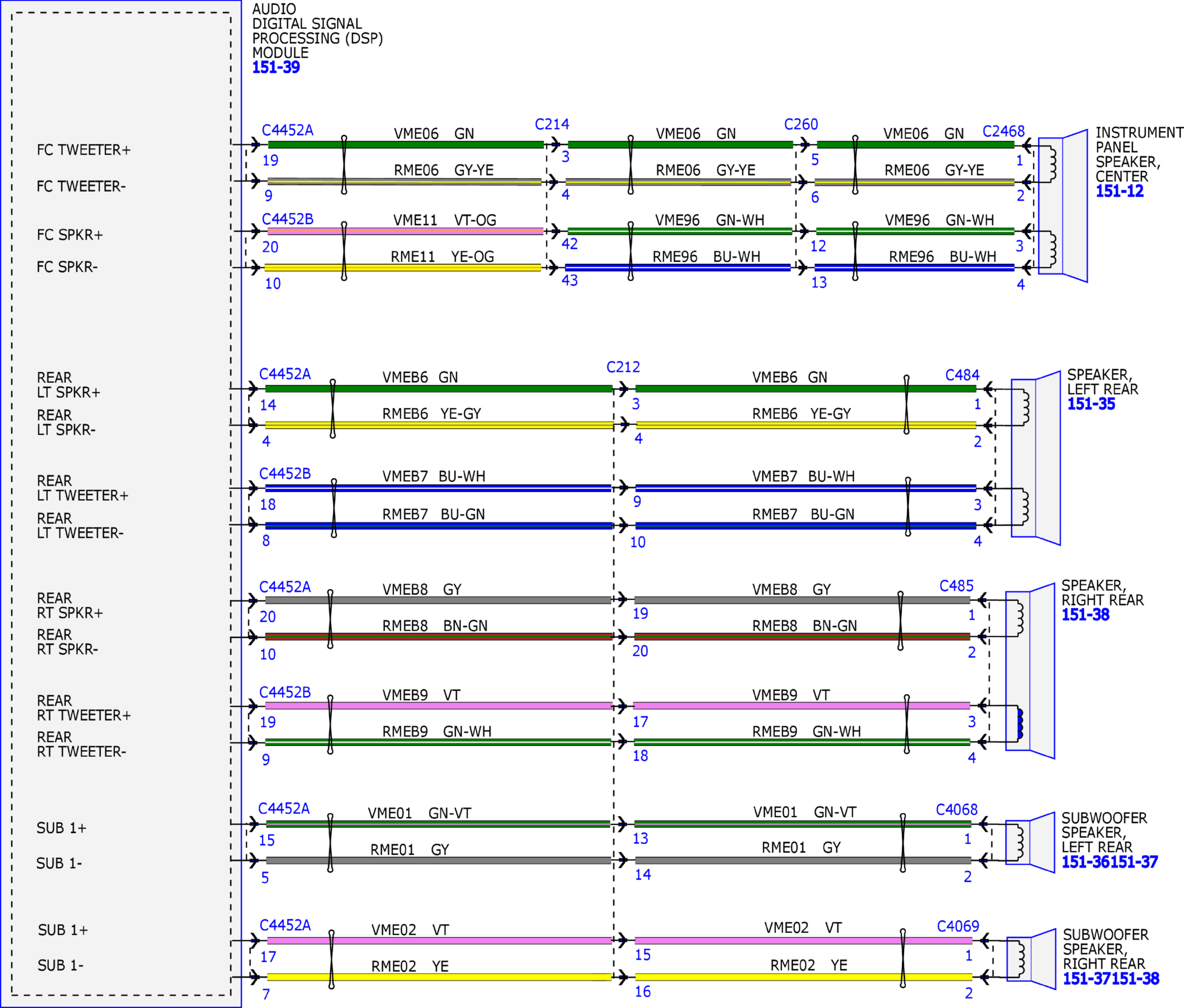

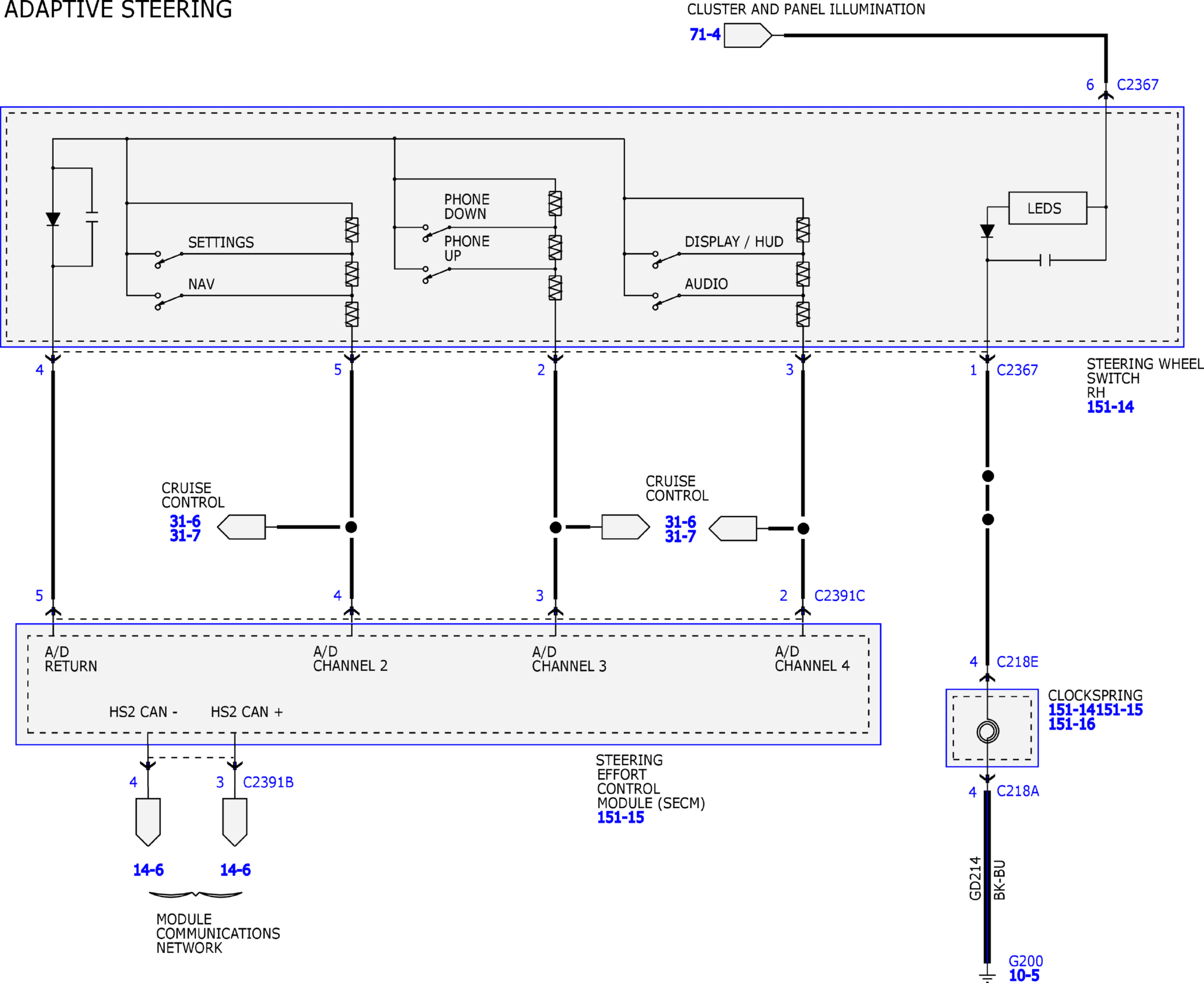

Fig 2: Audio System/Navigation - Harman Revel Ultima Audio System (2 of 11)
Courtesy of FORD MOTOR COMPANY

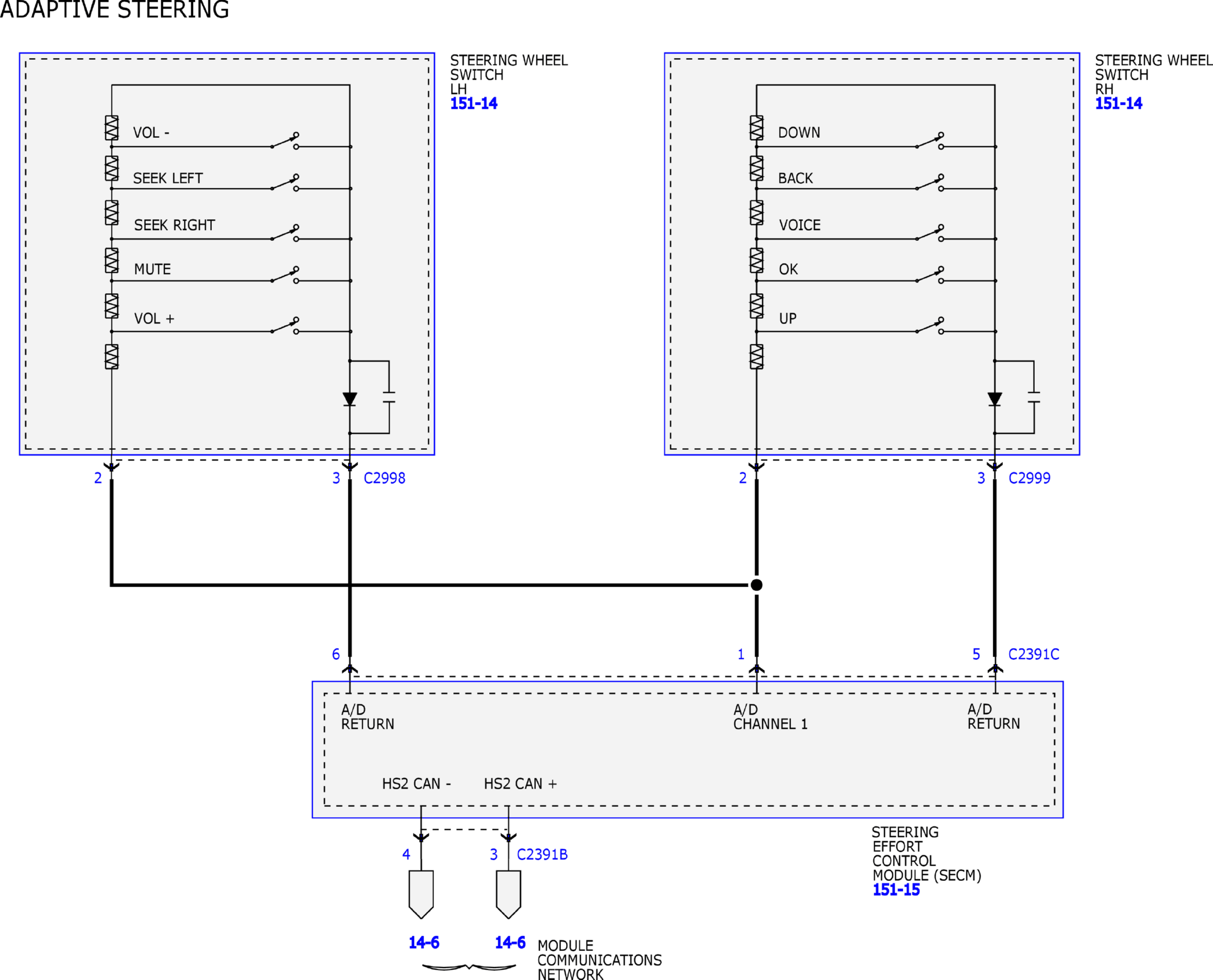

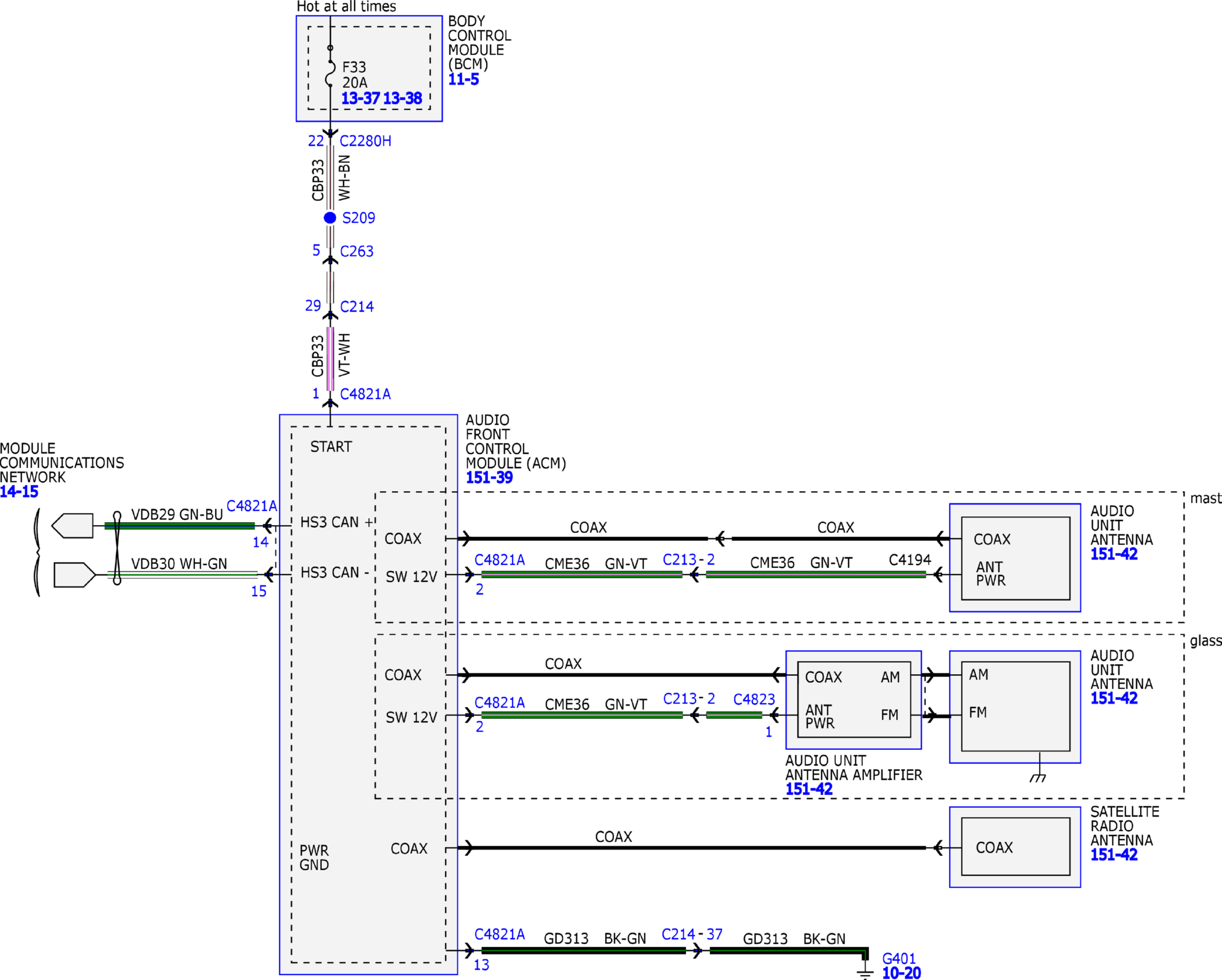

Fig 3: Audio System/Navigation - Harman Revel Ultima Audio System (3 of 11)
Courtesy of FORD MOTOR COMPANY

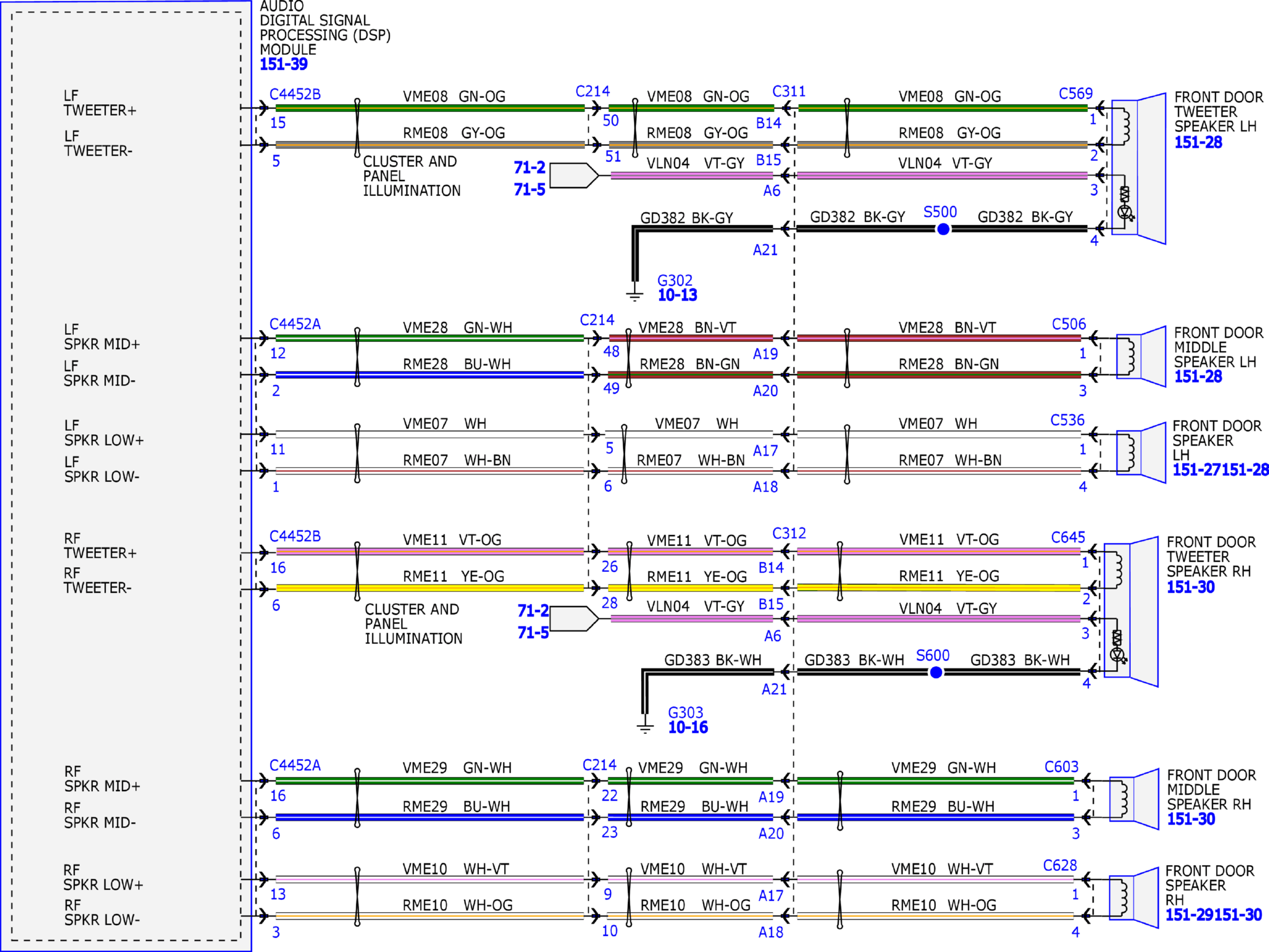

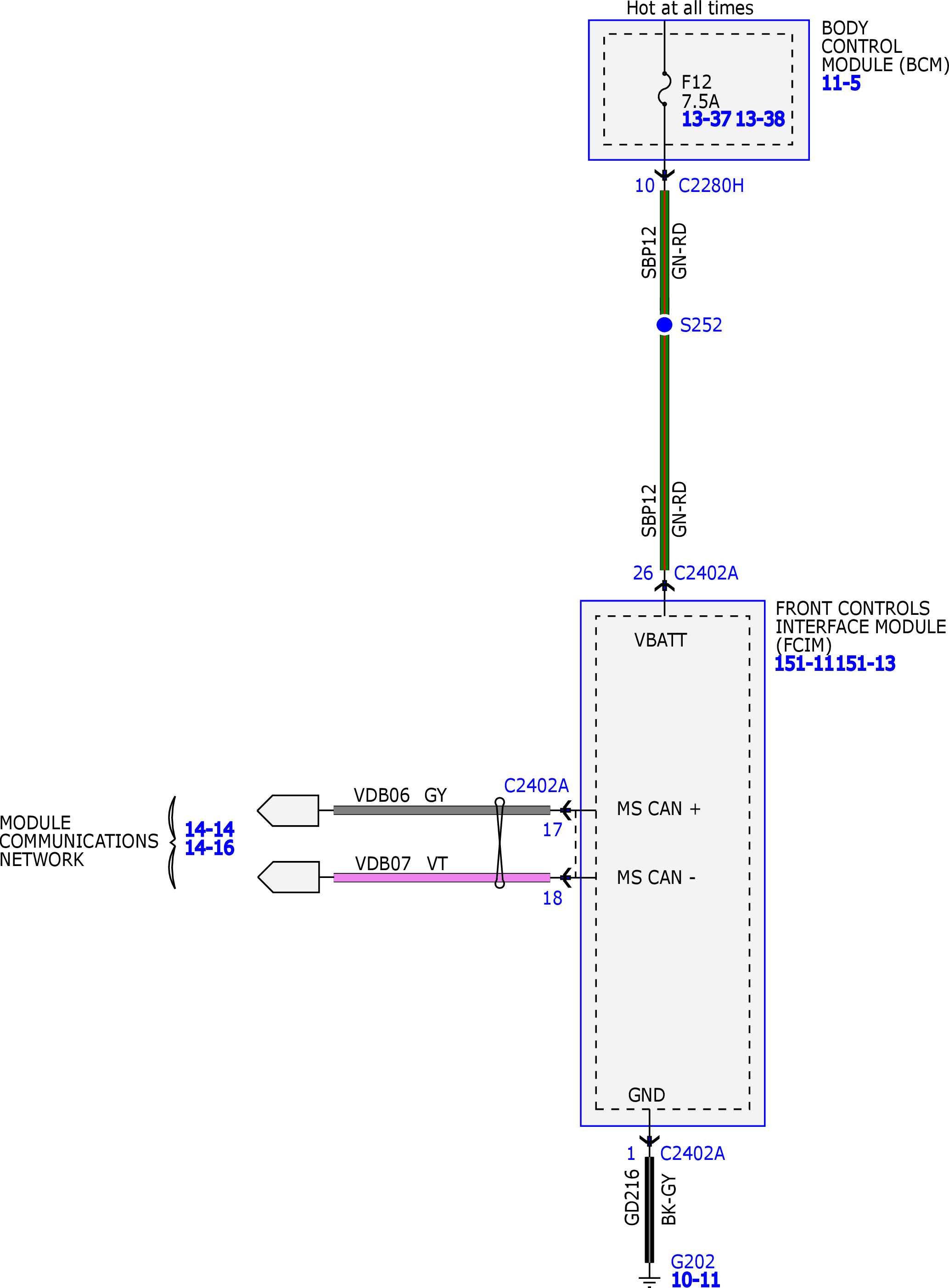

Fig 4: Audio System/Navigation - Harman Revel Ultima Audio System (4 of 18)
Courtesy of FORD MOTOR COMPANY

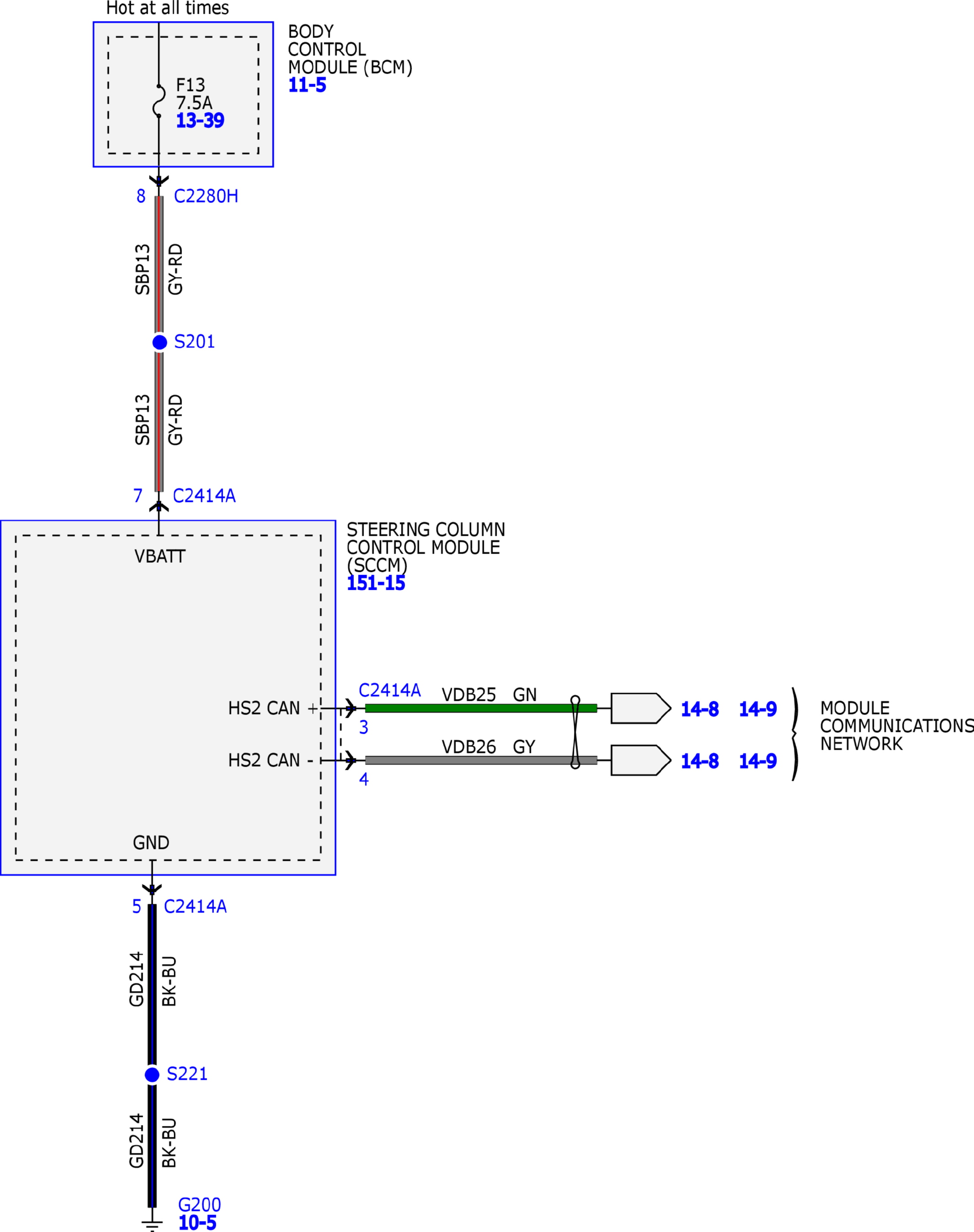

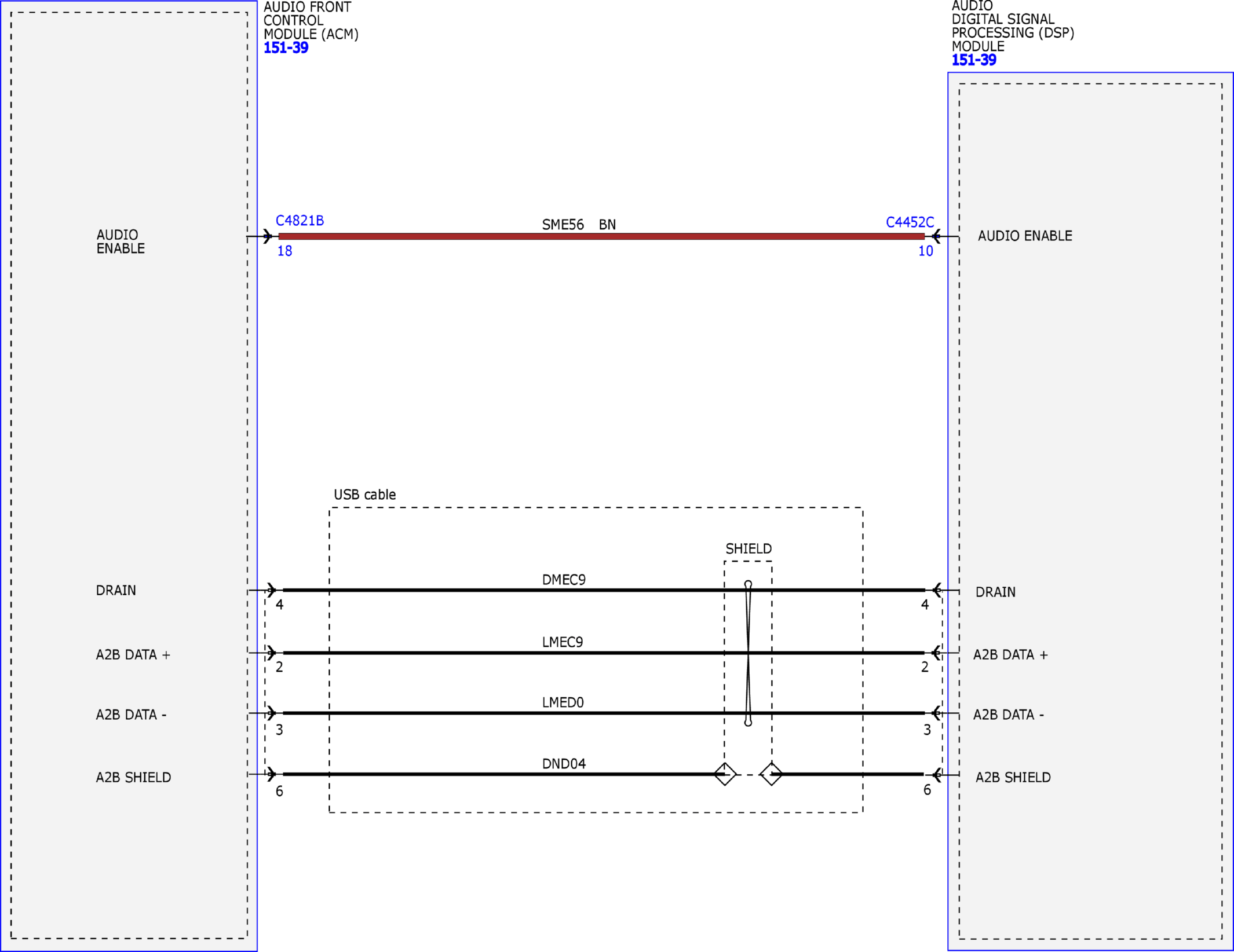

Fig 5: Audio System/Navigation - Harman Revel Ultima Audio System (5 of 18)
Courtesy of FORD MOTOR COMPANY

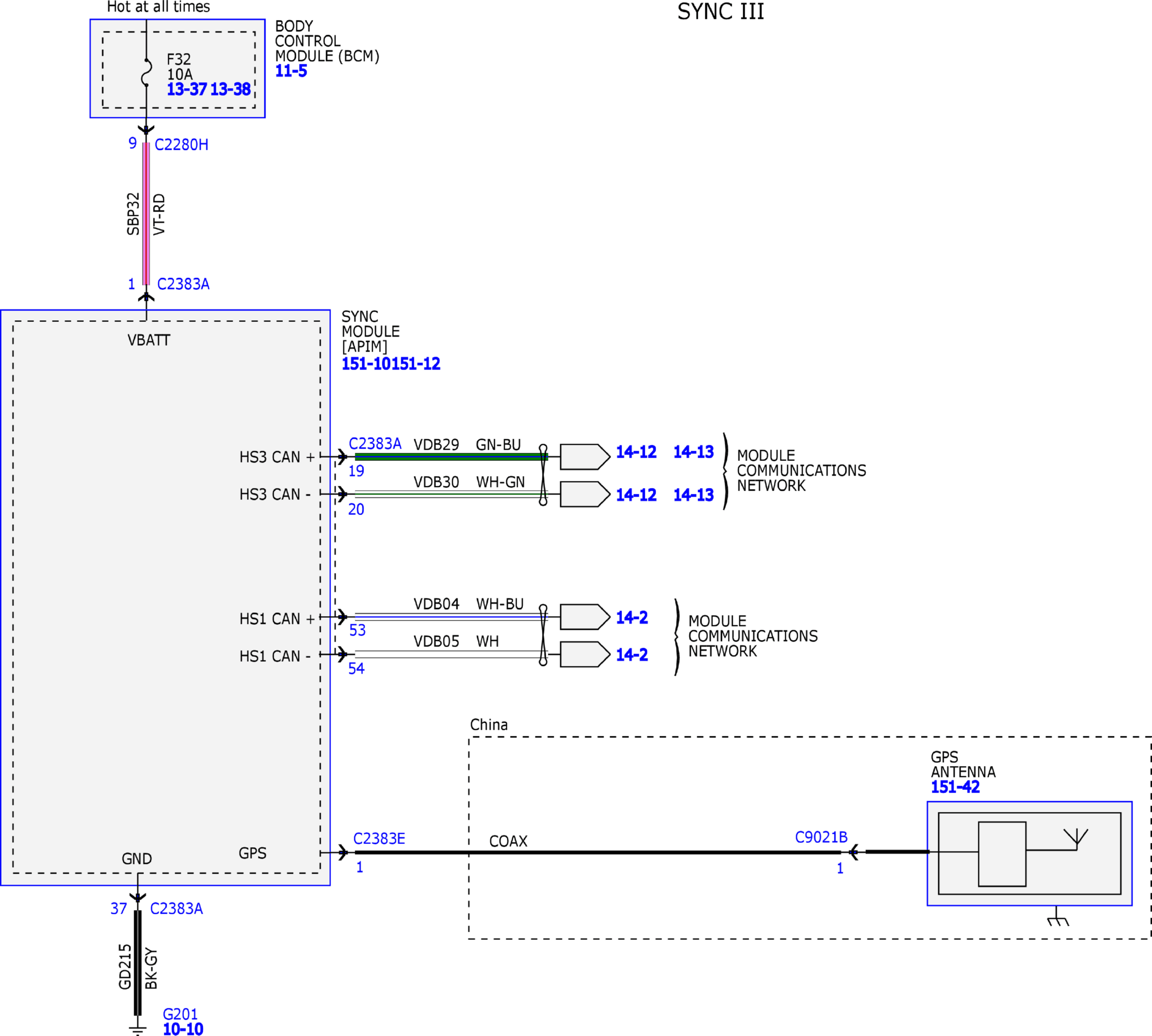

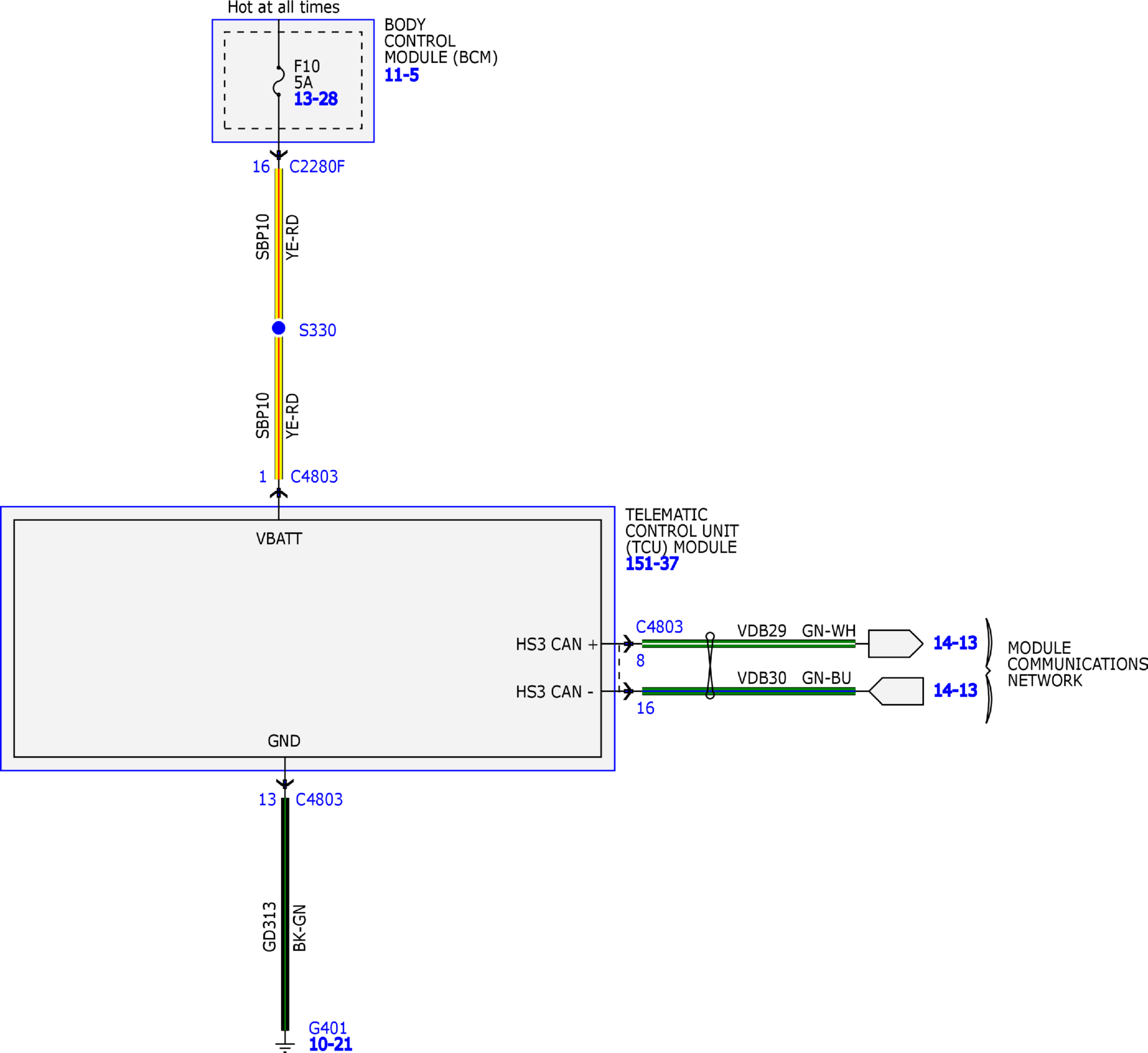

Fig 6: Audio System/Navigation - Harman Revel Ultima Audio System (6 of 18)
Courtesy of FORD MOTOR COMPANY

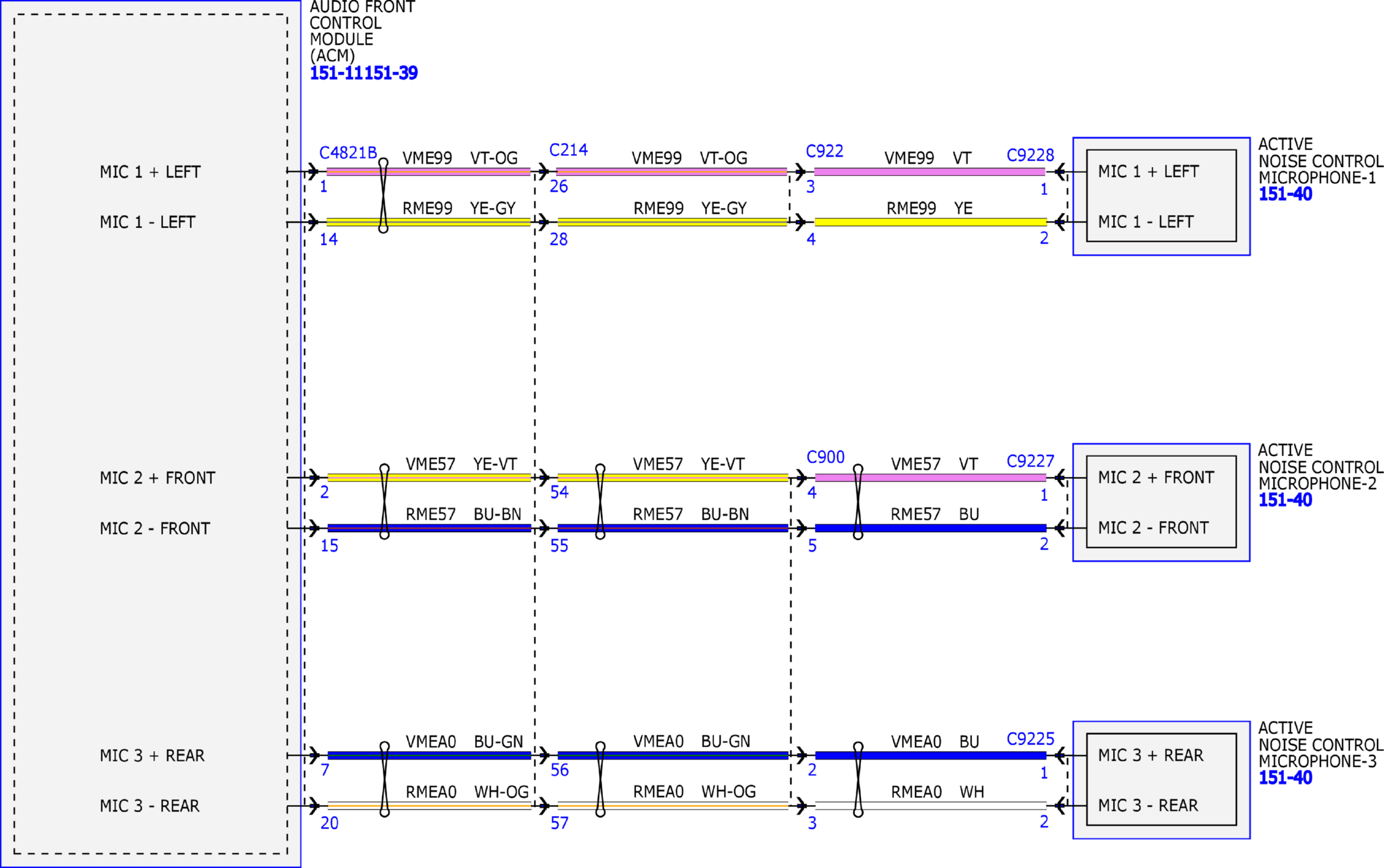

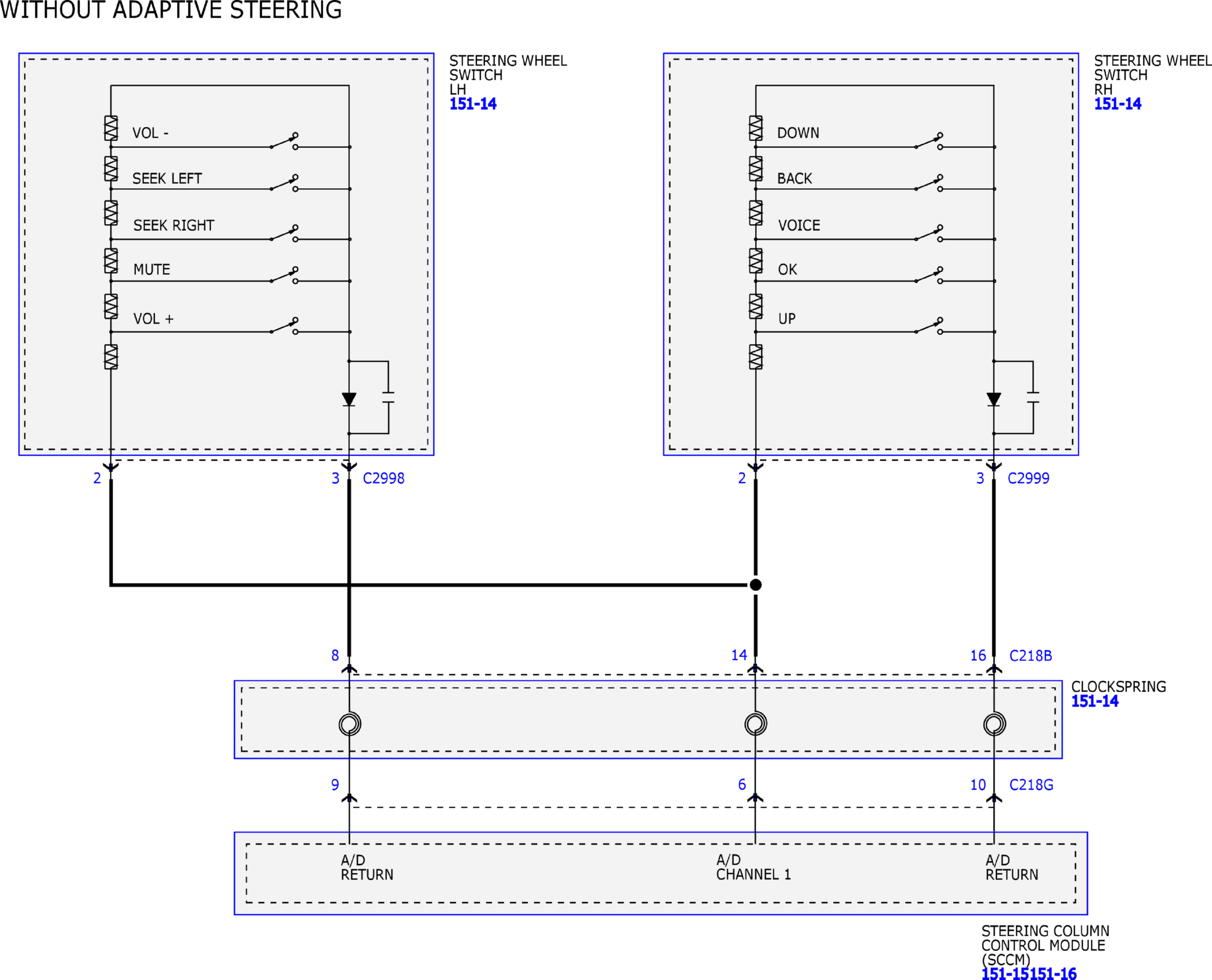

Fig 7: Audio System/Navigation - Harman Revel Ultima Audio System (7 of 18)
Courtesy of FORD MOTOR COMPANY

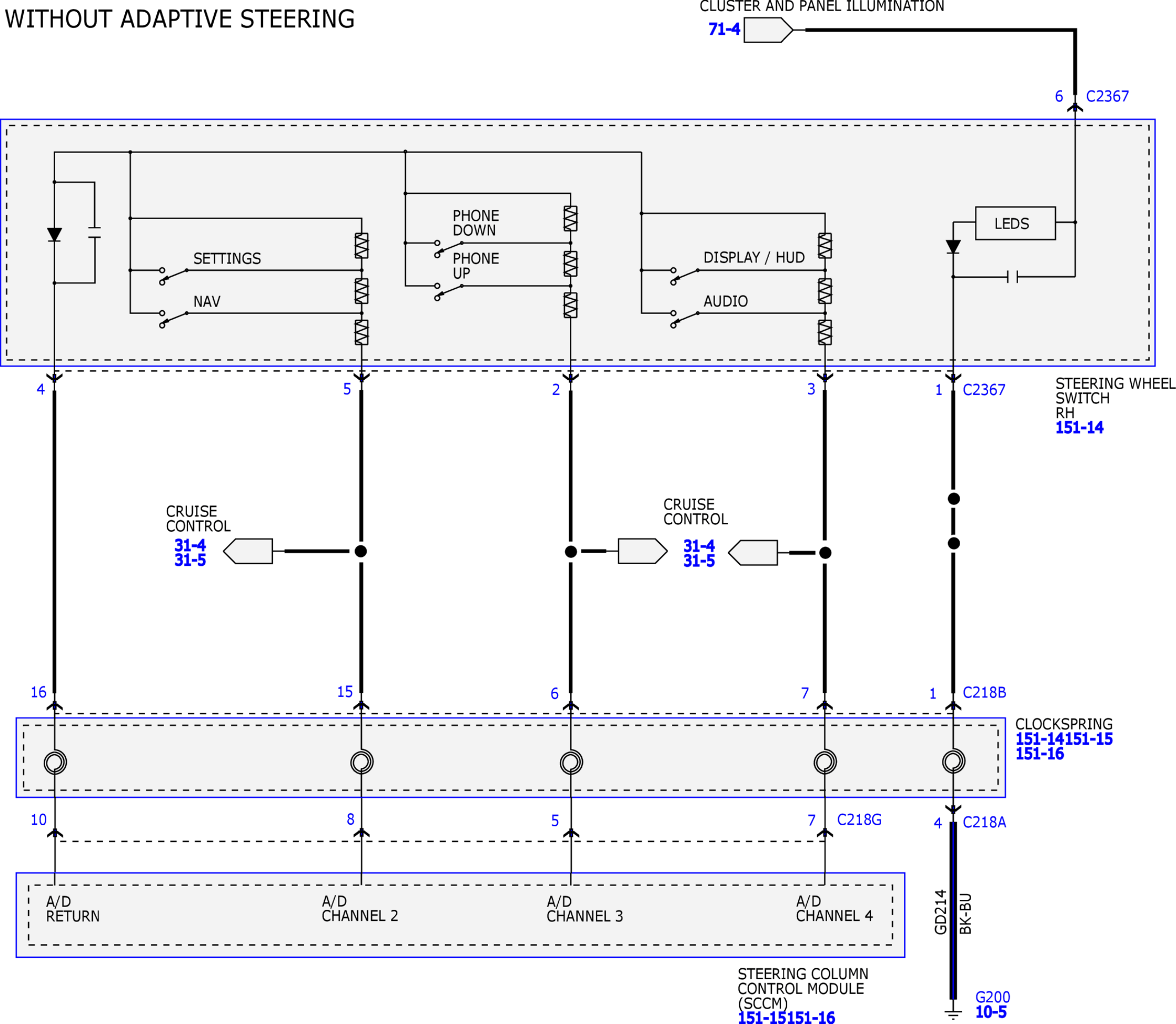

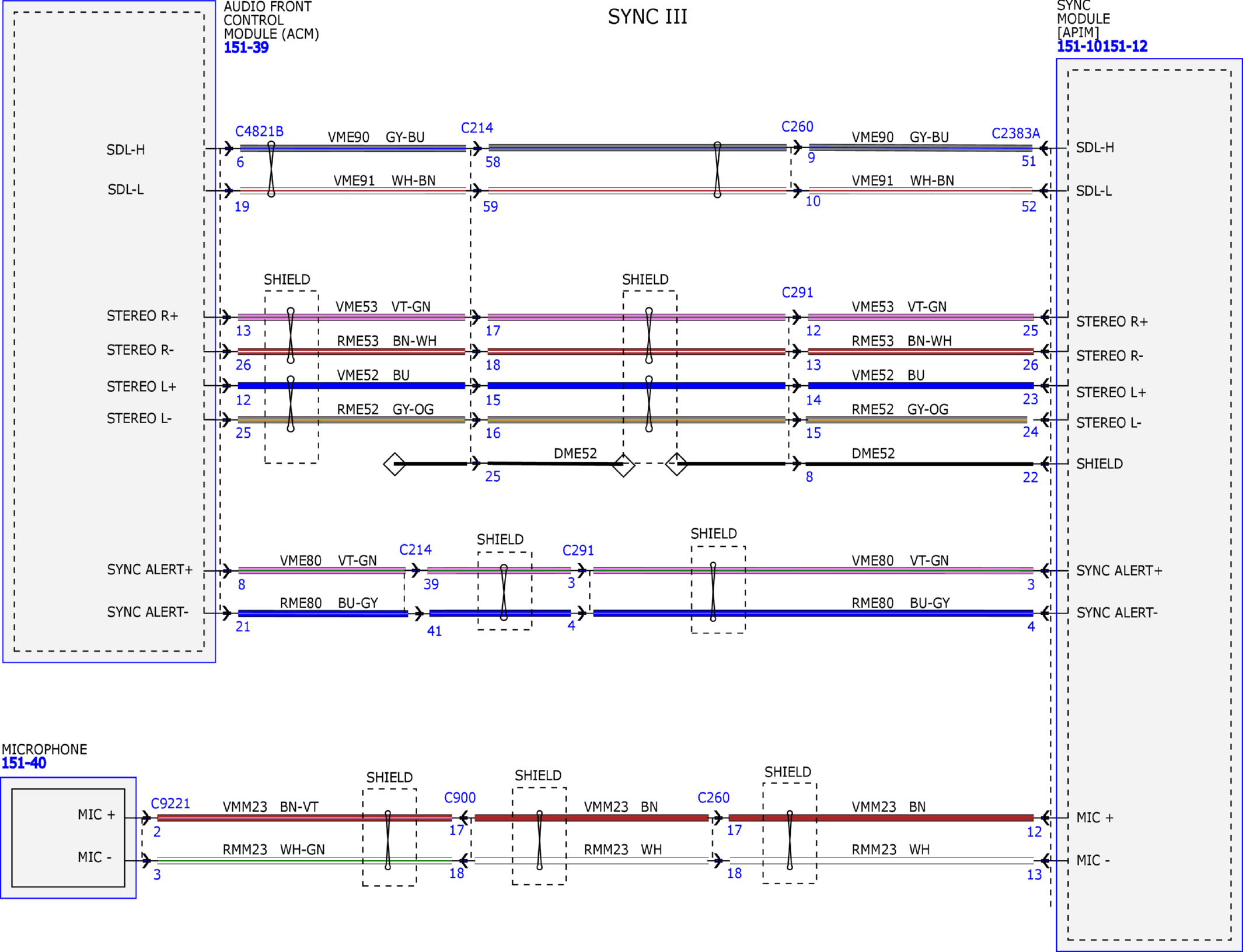

Fig 8: Audio System/Navigation - Harman Revel Ultima Audio System (8 of 18)
Courtesy of FORD MOTOR COMPANY
Fig 9: Audio System/Navigation - Harman Revel Ultima Audio System (9 of 18)
Courtesy of FORD MOTOR COMPANY
Fig 10: Audio System/Navigation - Harman Revel Ultima Audio System (10 of 18)
Courtesy of FORD MOTOR COMPANY
Fig 11: Audio System/Navigation - Harman Revel Ultima Audio System (11 of 18)
Courtesy of FORD MOTOR COMPANY
Fig 12: Audio System/Navigation - Harman Revel Ultima Audio System (12 of 18)
Courtesy of FORD MOTOR COMPANY
Fig 13: Audio System/Navigation - Harman Revel Ultima Audio System (13 of 18)
Courtesy of FORD MOTOR COMPANY
Fig 14: Audio System/Navigation - Harman Revel Ultima Audio System (14 of 18)
Courtesy of FORD MOTOR COMPANY
Fig 15: Audio System/Navigation - Harman Revel Ultima Audio System (15 of 18)
Courtesy of FORD MOTOR COMPANY
Fig 16: Audio System/Navigation - Harman Revel Ultima Audio System (16 of 18)
Courtesy of FORD MOTOR COMPANY
Fig 17: Audio System/Navigation - Harman Revel Ultima Audio System (17 of 18)
Courtesy of FORD MOTOR COMPANY
Fig 18: Audio System/Navigation - Harman Revel Ultima Audio System (18 of 18)
