Audio System/Navigation - Fusion With Touchscreen/Without SONY
WARNING: This page is about a different car, the 2017 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

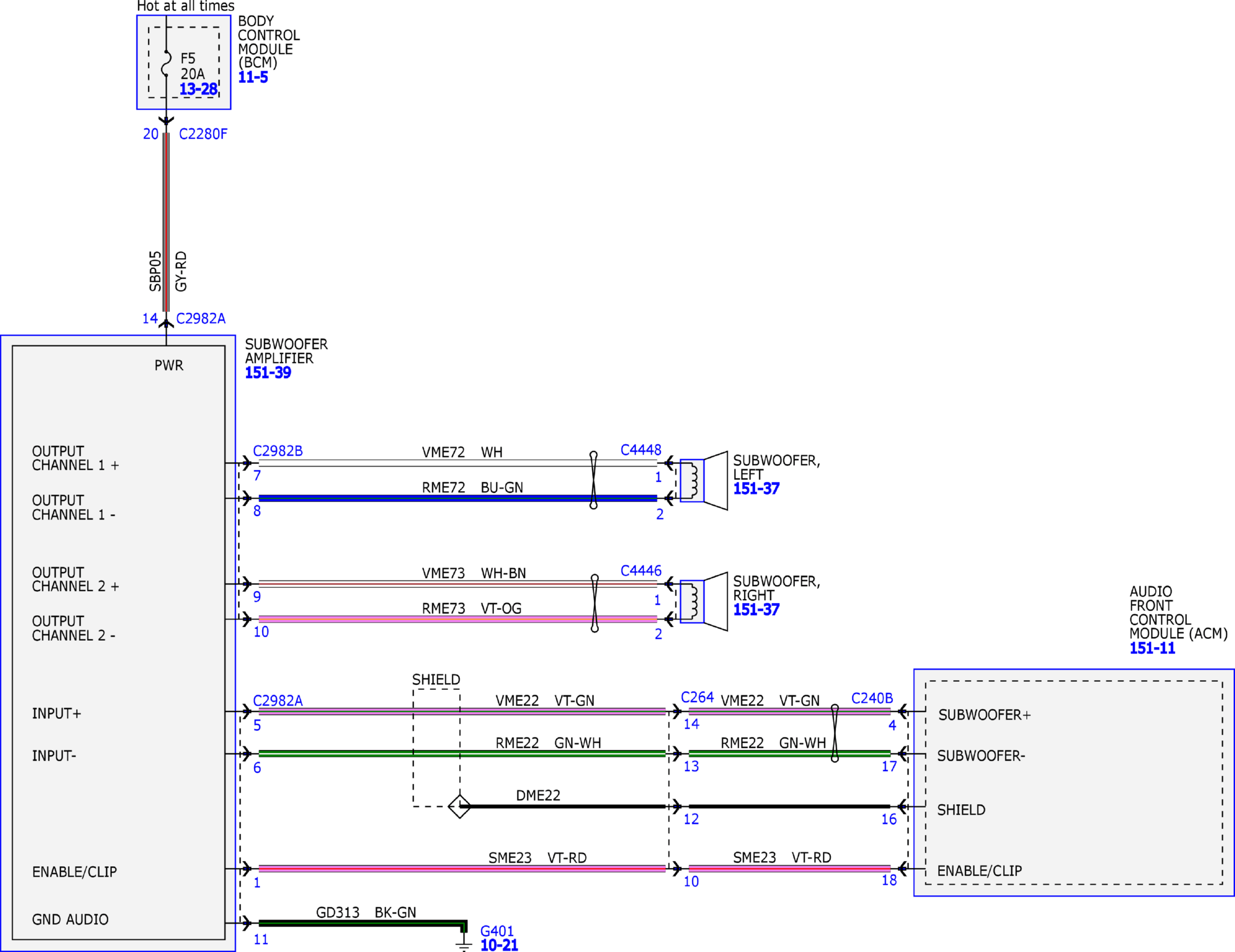

Fig 1: Audio System/Navigation - Fusion With Touchscreen/Without Sony (1 of 11)
Courtesy of FORD MOTOR COMPANY

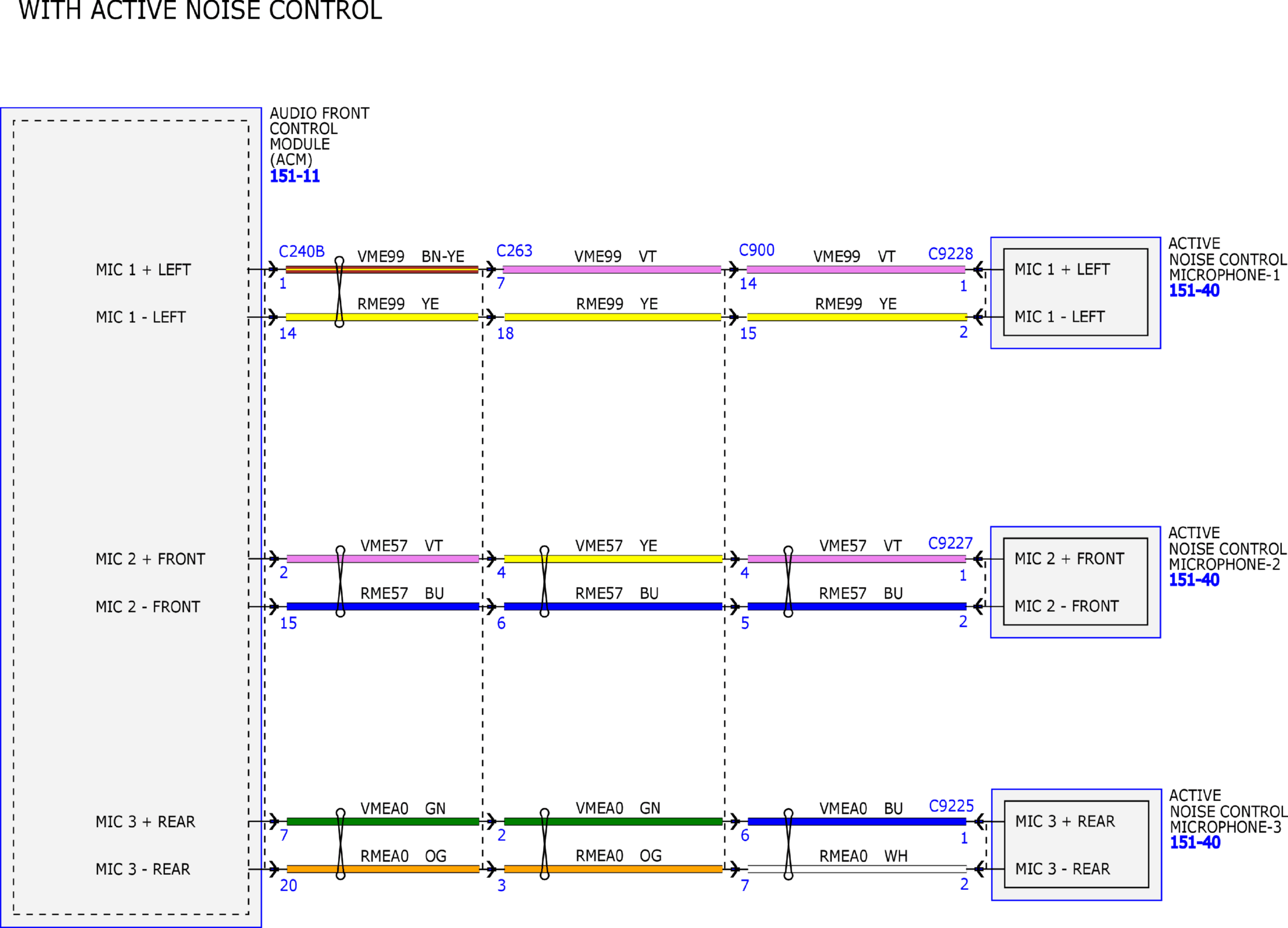

Fig 2: Audio System/Navigation - Fusion With Touchscreen/Without Sony (2 of 11)
Courtesy of FORD MOTOR COMPANY

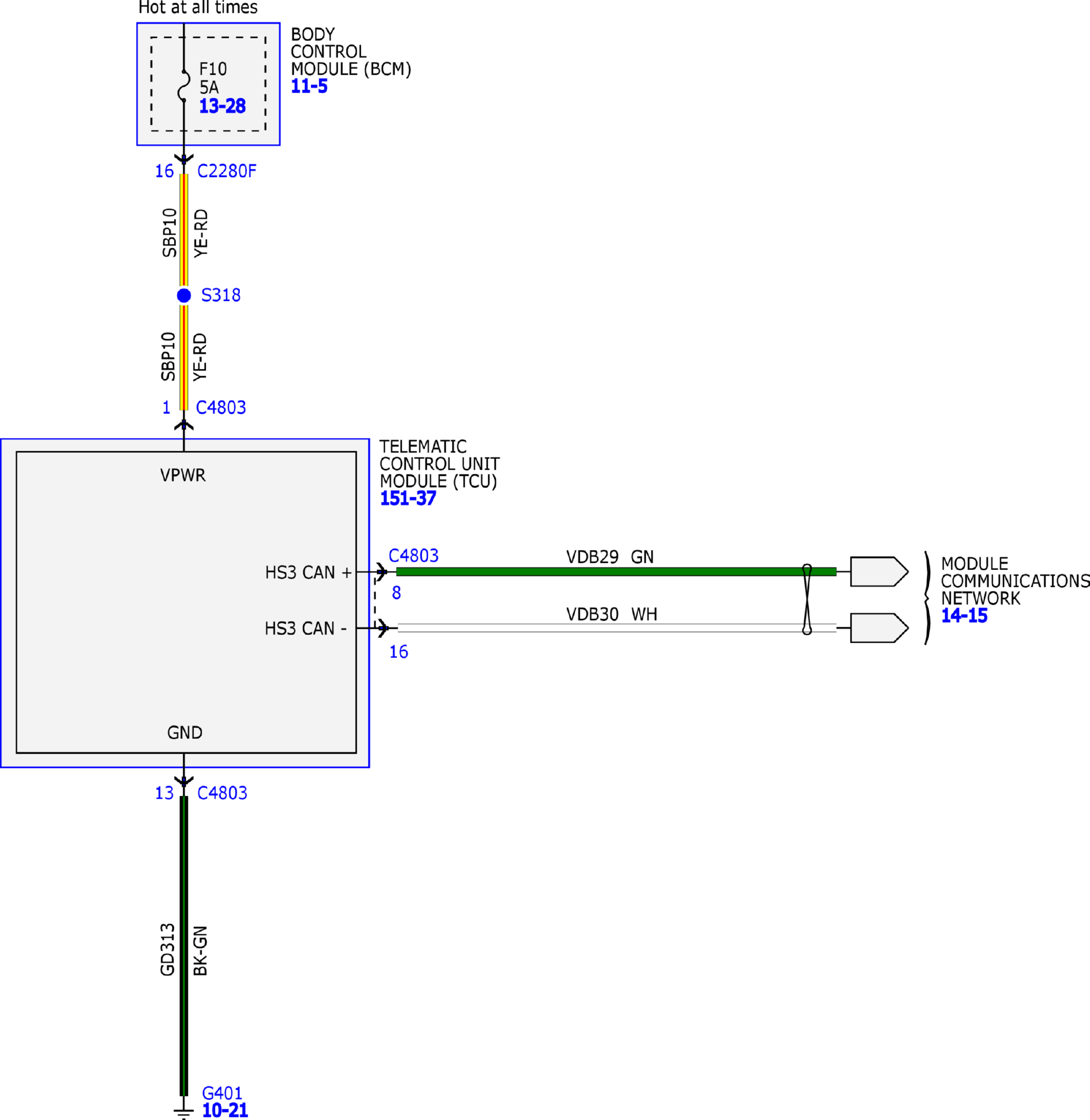

Fig 3: Audio System/Navigation - Fusion With Touchscreen/Without Sony (3 of 11)
Courtesy of FORD MOTOR COMPANY

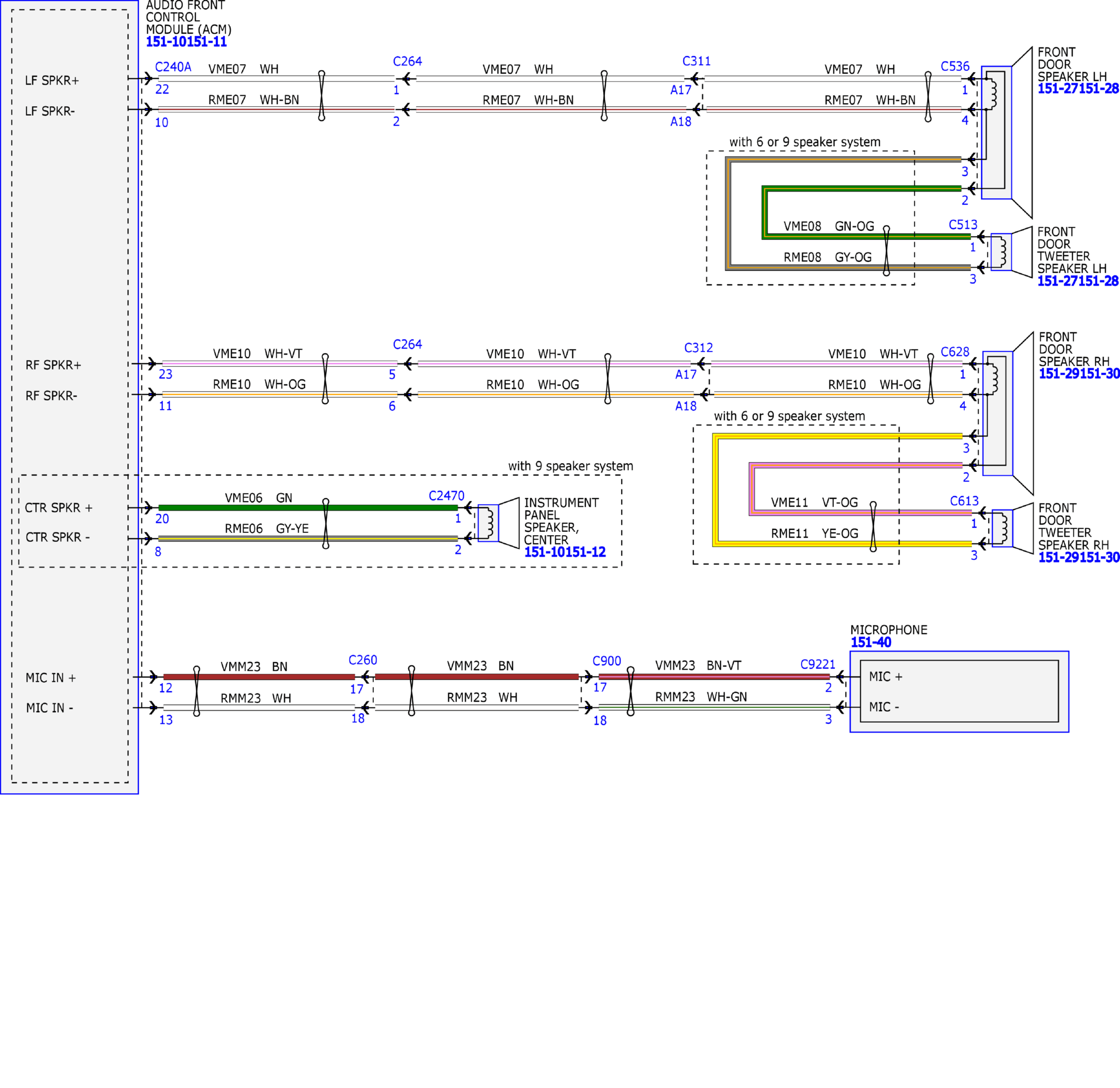

Fig 4: Audio System/Navigation - Fusion With Touchscreen/Without Sony (4 of 11)
Courtesy of FORD MOTOR COMPANY

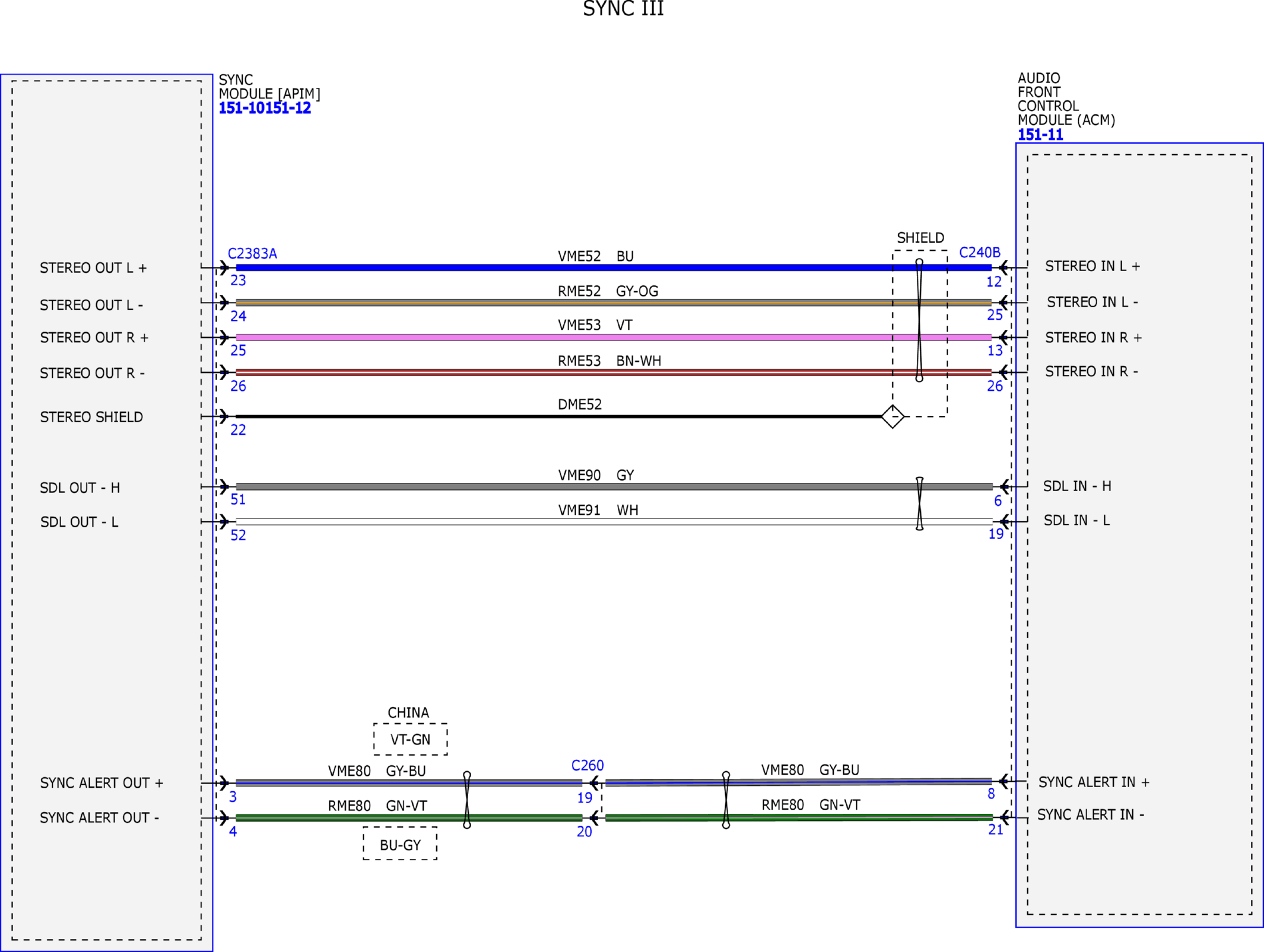

Fig 5: Audio System/Navigation - Fusion With Touchscreen/Without Sony (5 of 11)
Courtesy of FORD MOTOR COMPANY

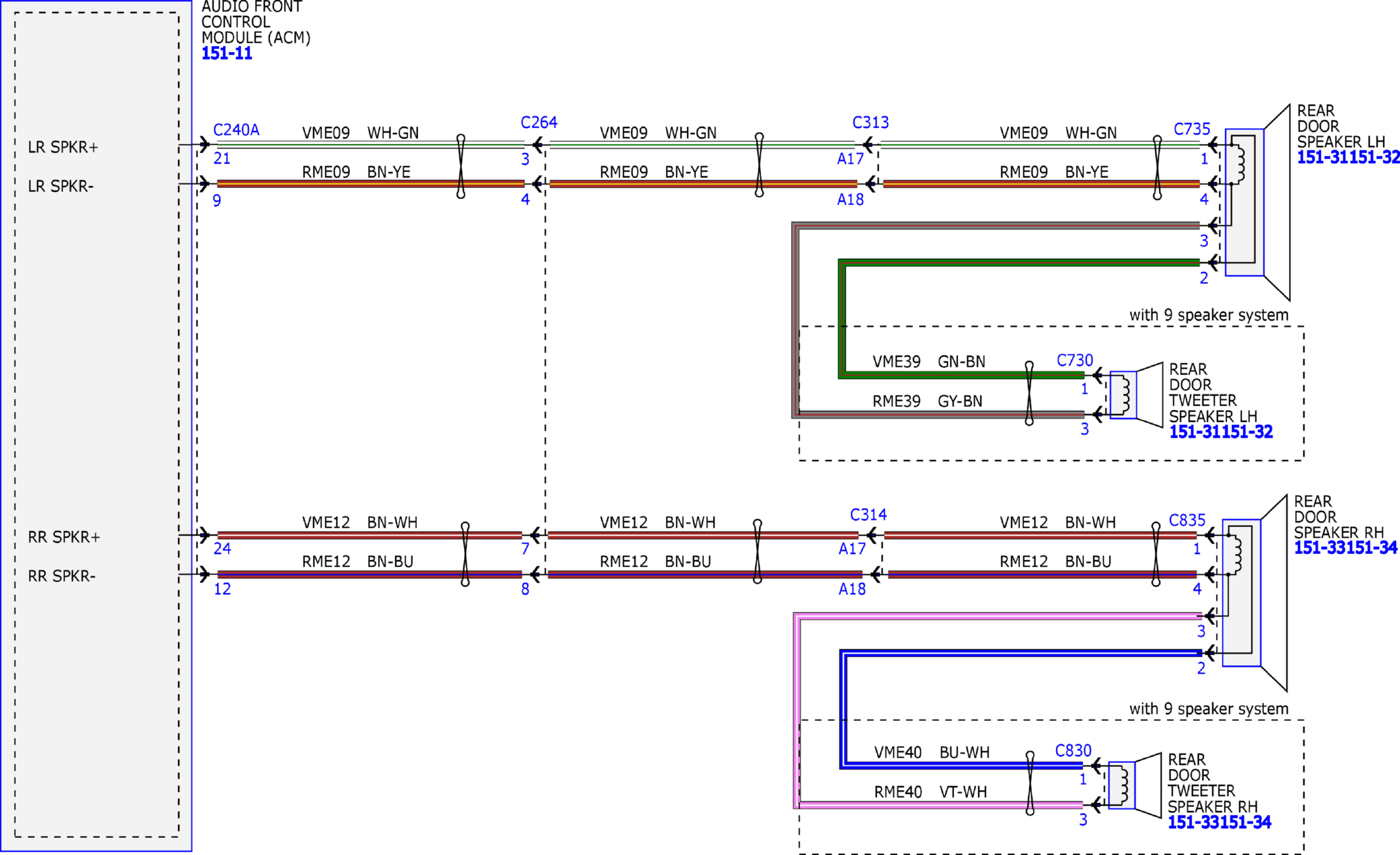

Fig 6: Audio System/Navigation - Fusion With Touchscreen/Without Sony (6 of 11
Courtesy of FORD MOTOR COMPANY

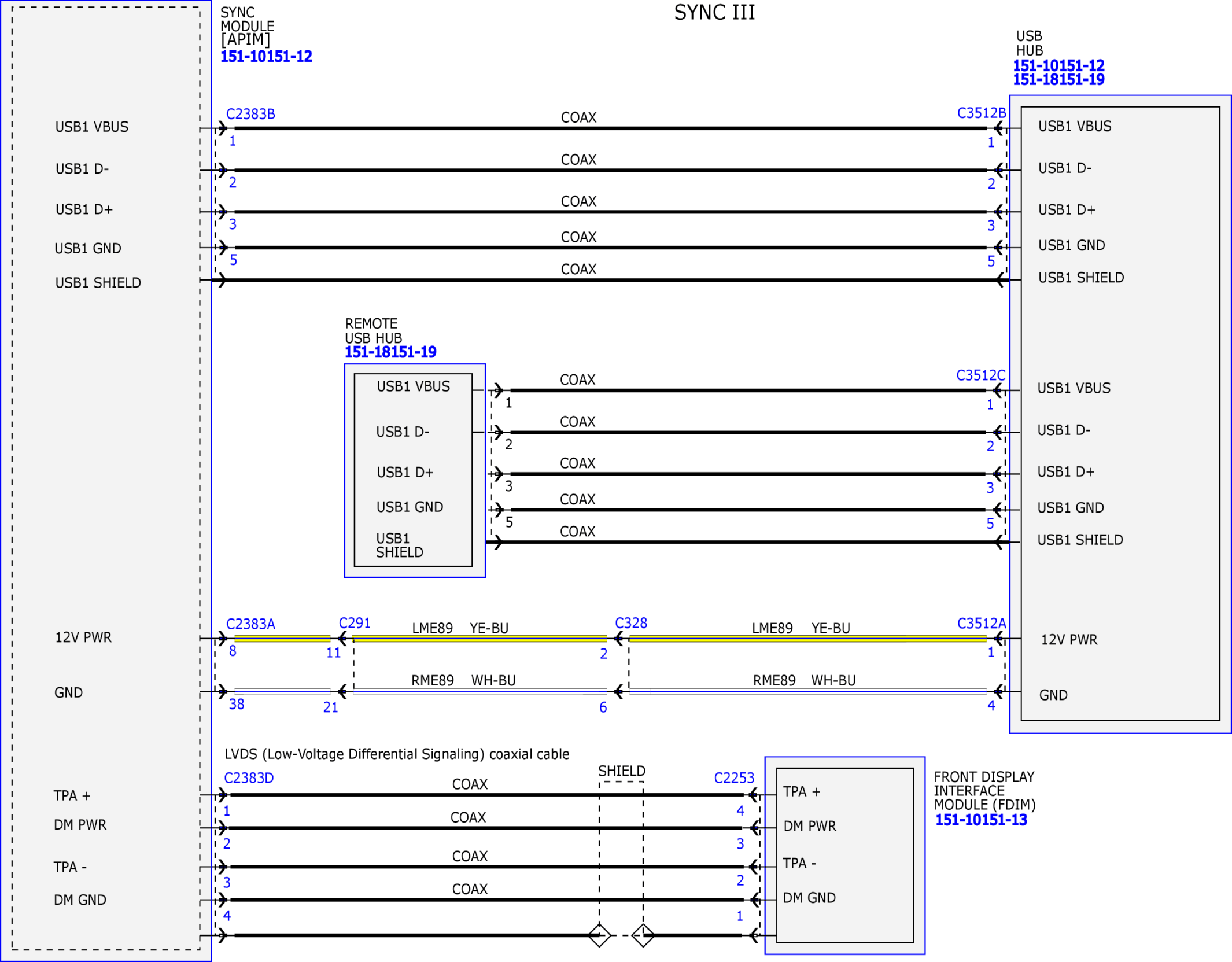

Fig 7: Audio System/Navigation - Fusion With Touchscreen/Without Sony (7 of 11)
Courtesy of FORD MOTOR COMPANY

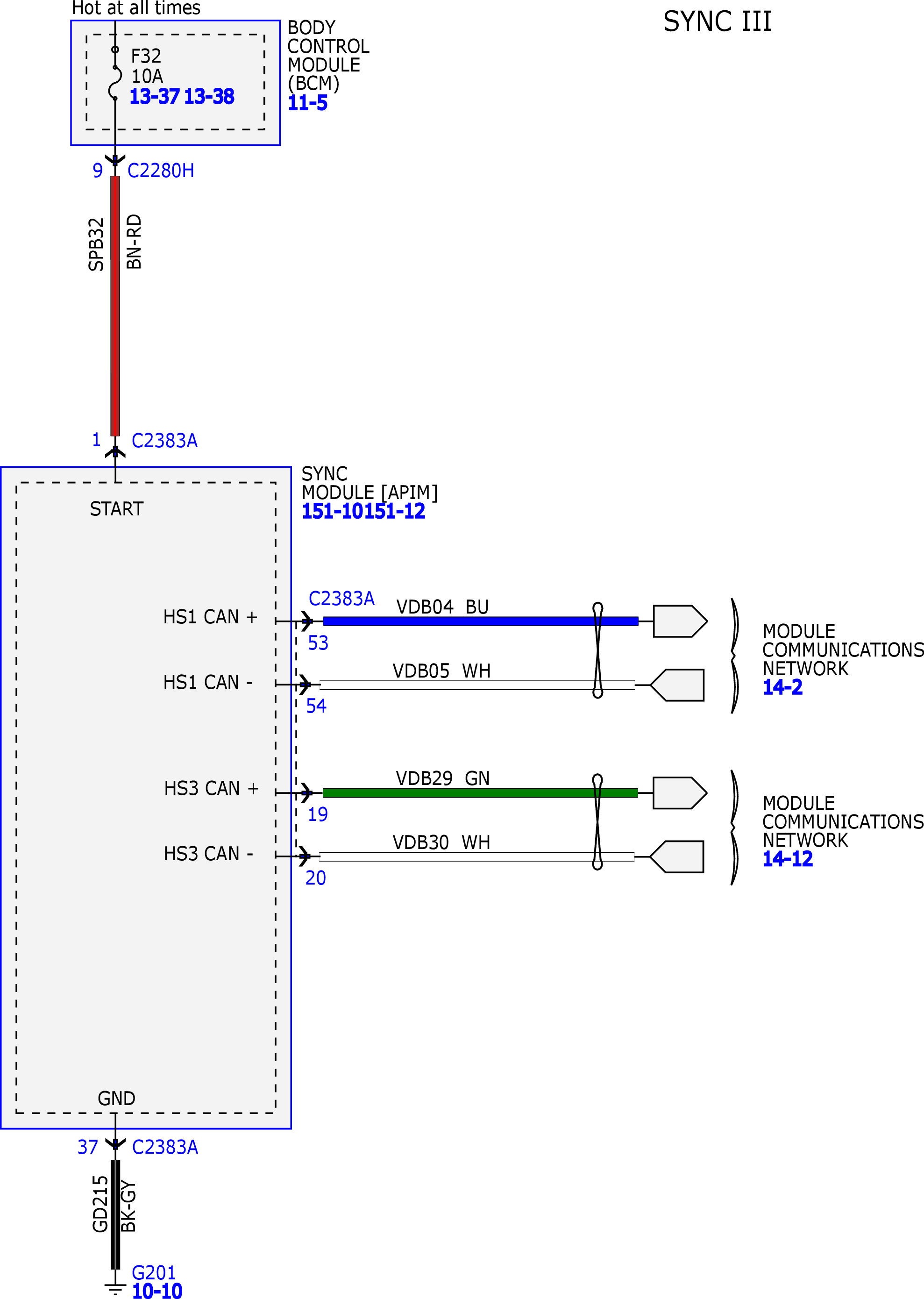

Fig 8: Audio System/Navigation - Fusion With Touchscreen/Without Sony (8 of 11)
Courtesy of FORD MOTOR COMPANY
Fig 9: Audio System/Navigation - Fusion With Touchscreen/Without Sony (9 of 11)
Courtesy of FORD MOTOR COMPANY
Fig 10: Audio System/Navigation - Fusion With Touchscreen/Without Sony (10 of 11)
Courtesy of FORD MOTOR COMPANY
Fig 11: Audio System/Navigation - Fusion With Touchscreen/Without Sony (11 of 11)
