OEM Electrical Wiring Diagram Introduction (Hybrid/ENERGI): Introduction

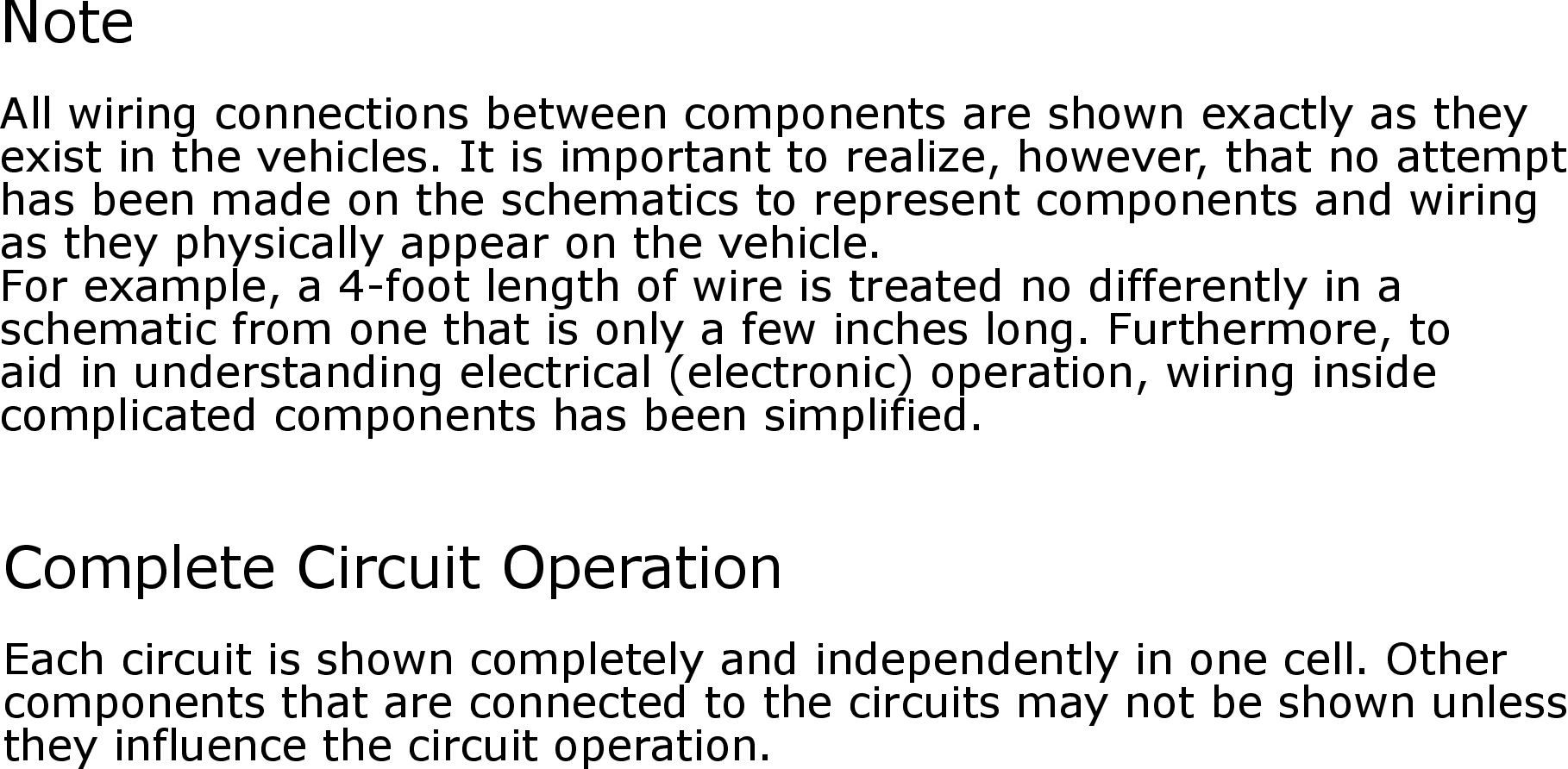

GFDW51179Courtesy of FORD MOTOR COMPANY

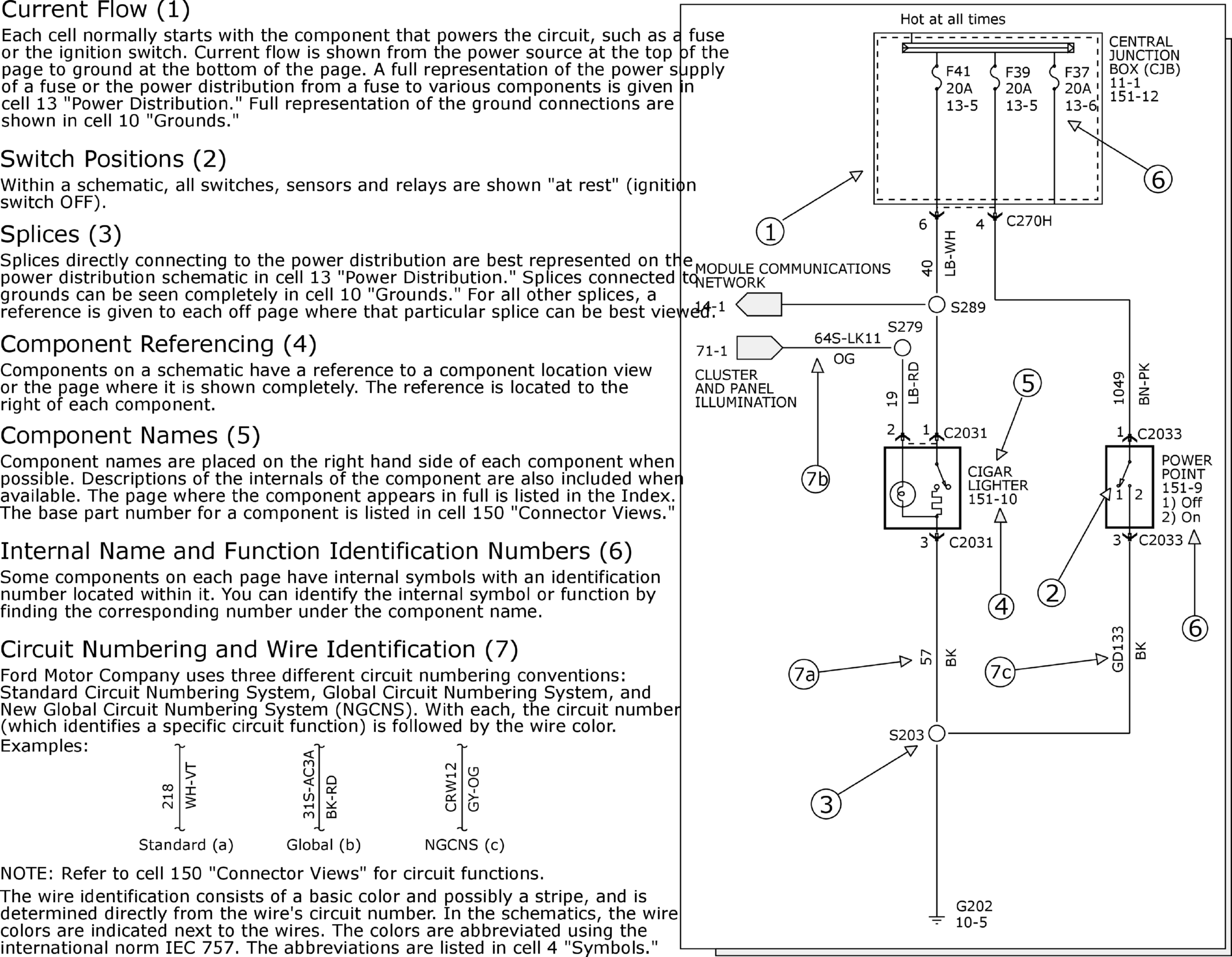

GFDW51180Courtesy of FORD MOTOR COMPANY

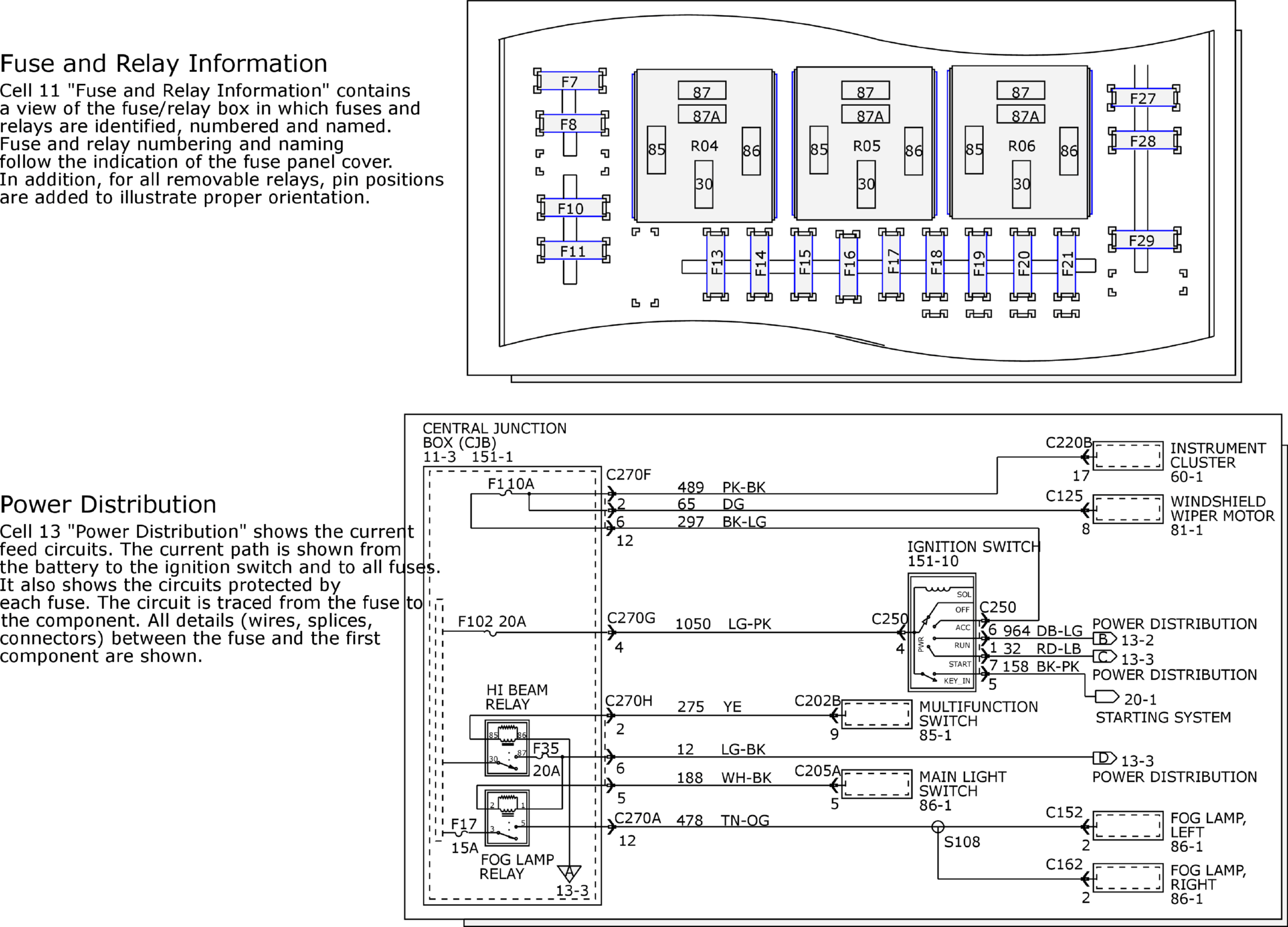

GFDW51181Courtesy of FORD MOTOR COMPANY

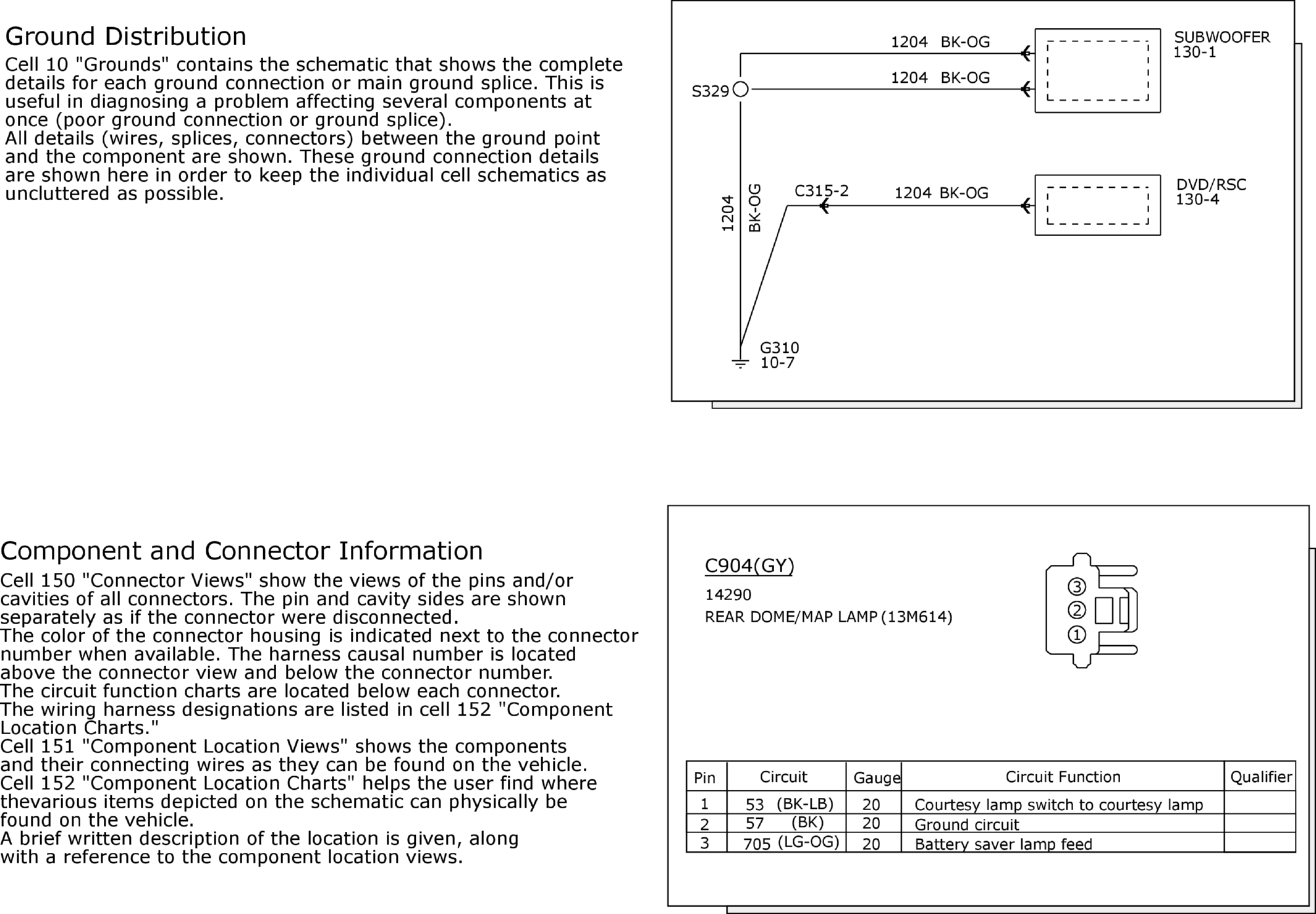

GFDW51182Courtesy of FORD MOTOR COMPANY

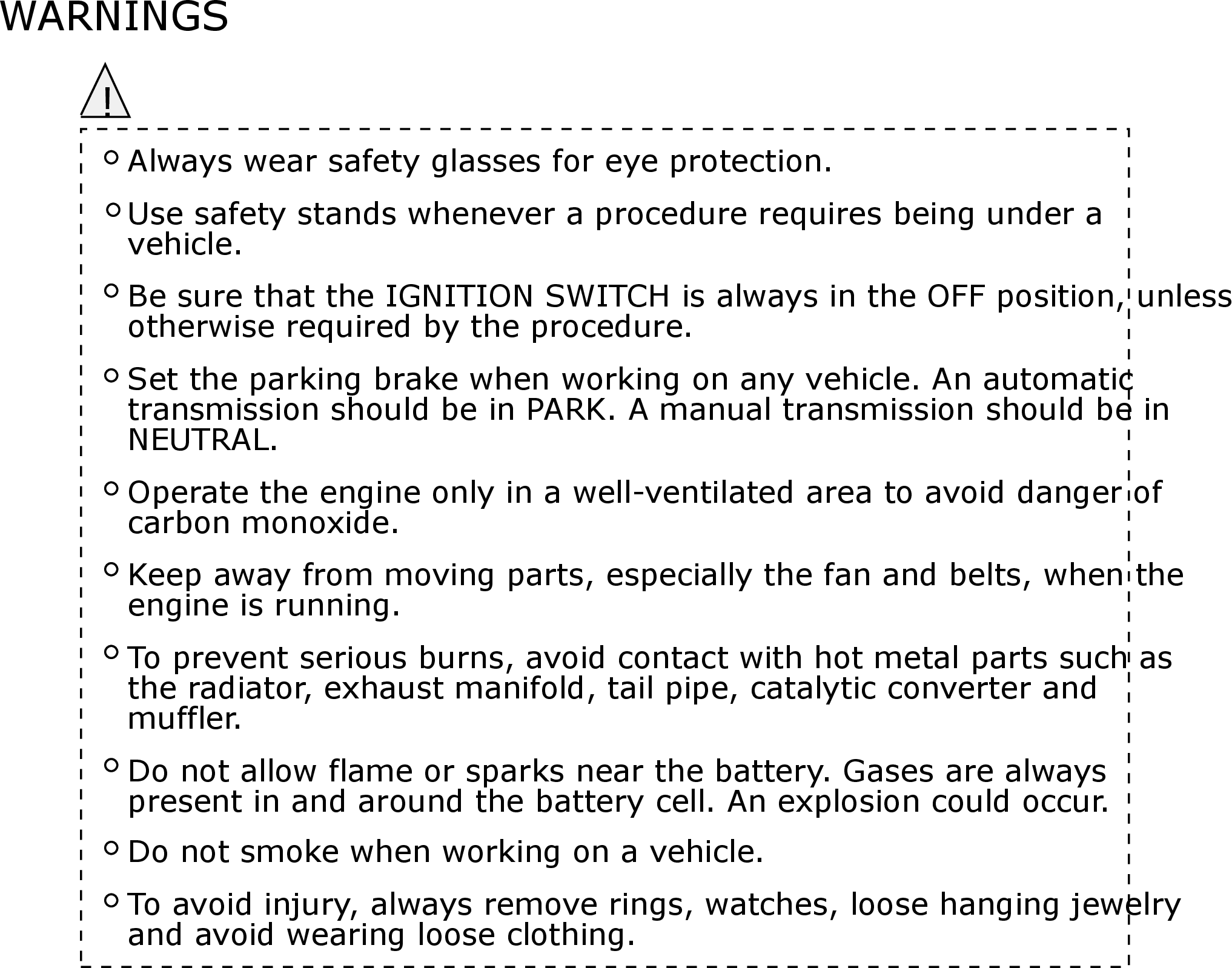

GFDW51183Courtesy of FORD MOTOR COMPANY
