Connector Repair Procedures

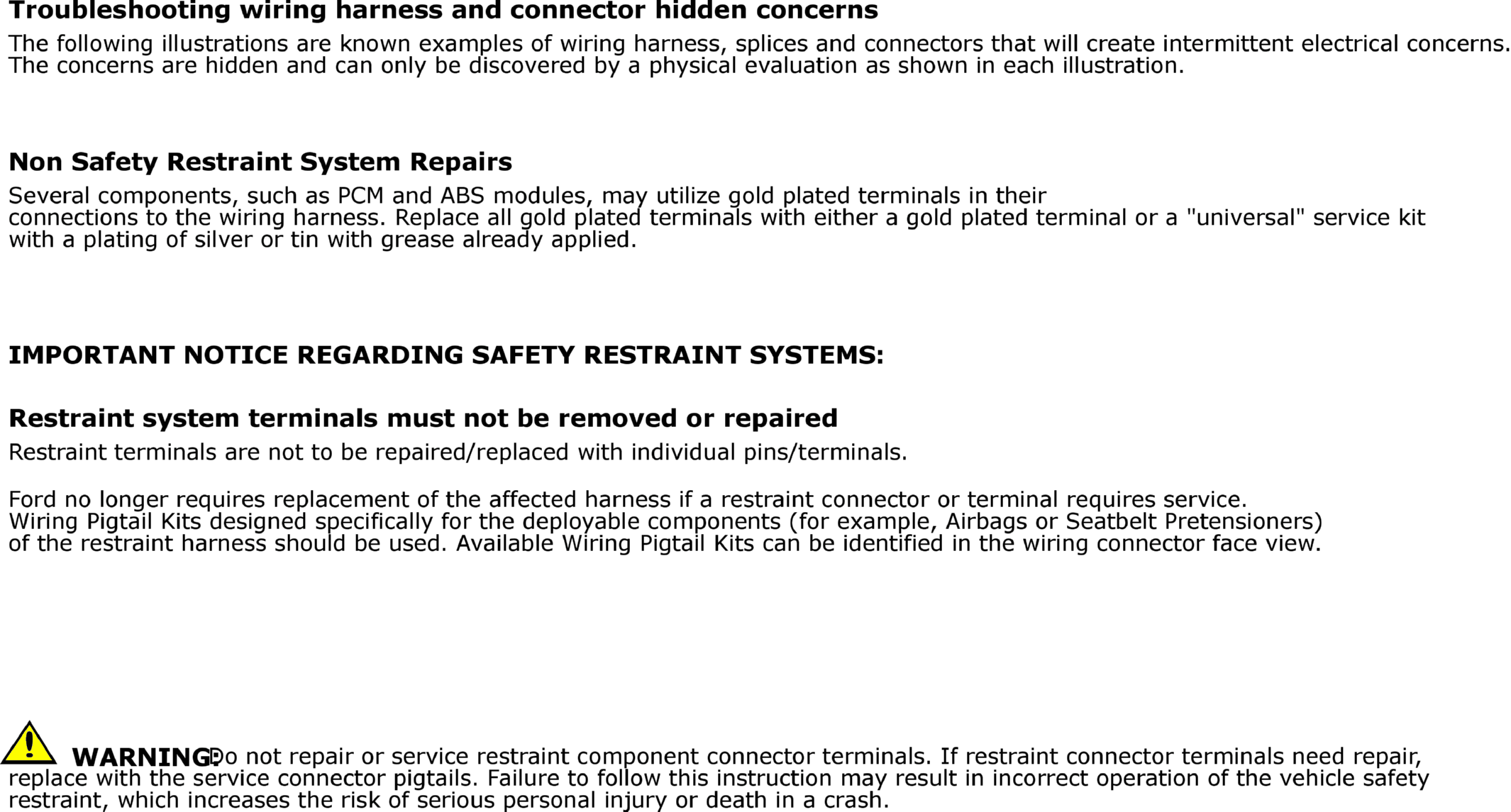

GFDW51170Courtesy of FORD MOTOR COMPANY

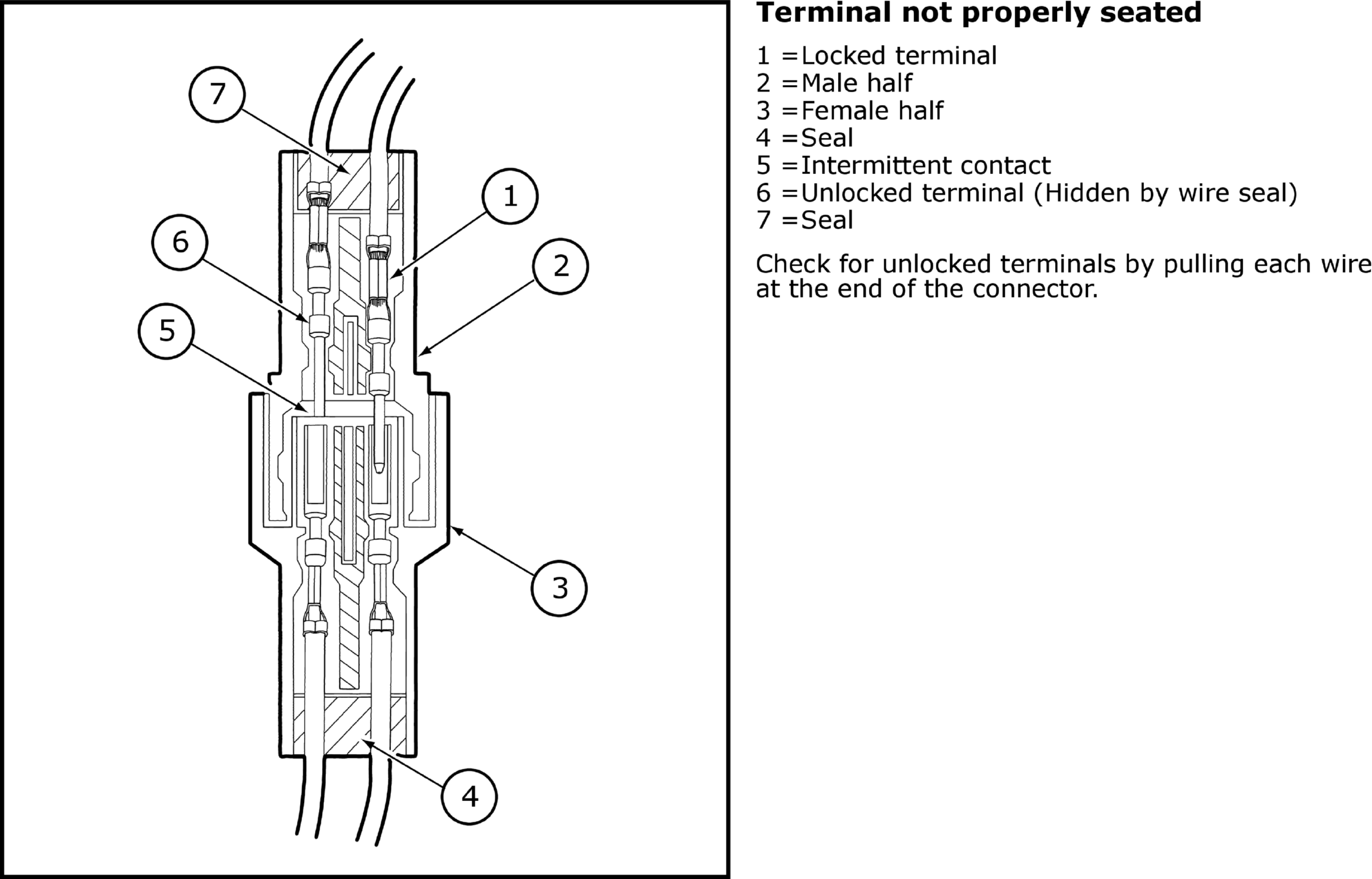

GFDW51171Courtesy of FORD MOTOR COMPANY

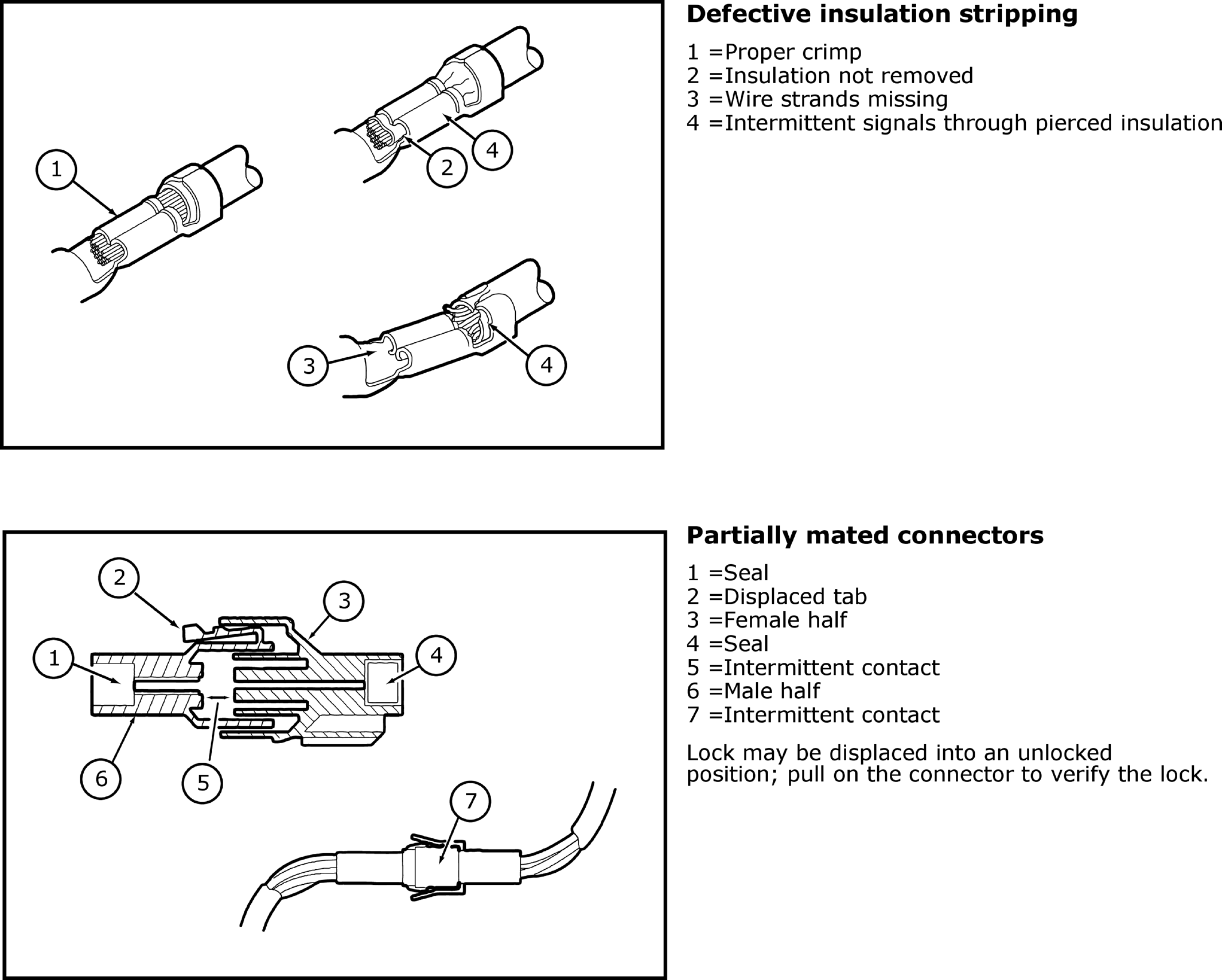

GFDW51172Courtesy of FORD MOTOR COMPANY

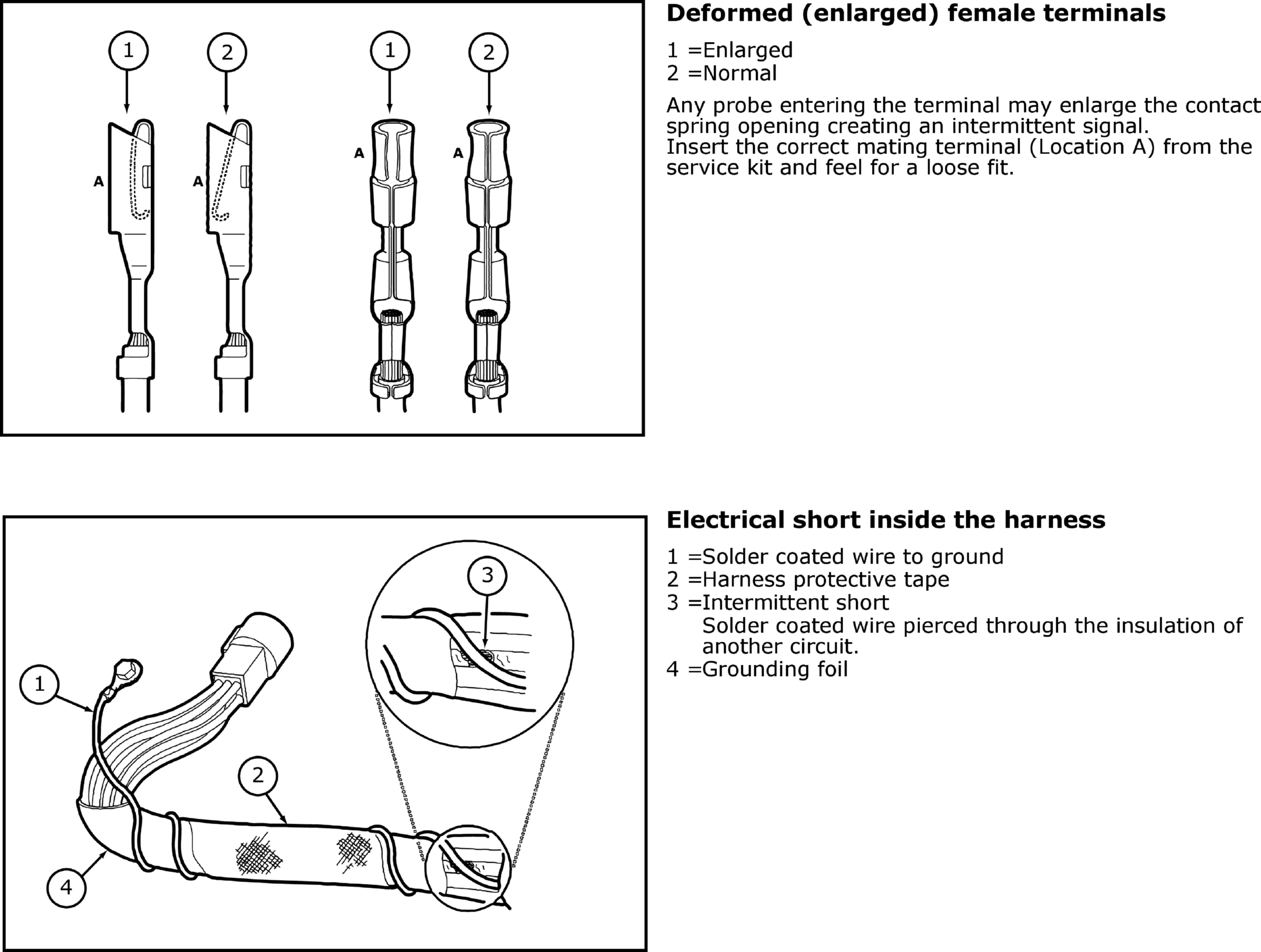

GFDW51173Courtesy of FORD MOTOR COMPANY

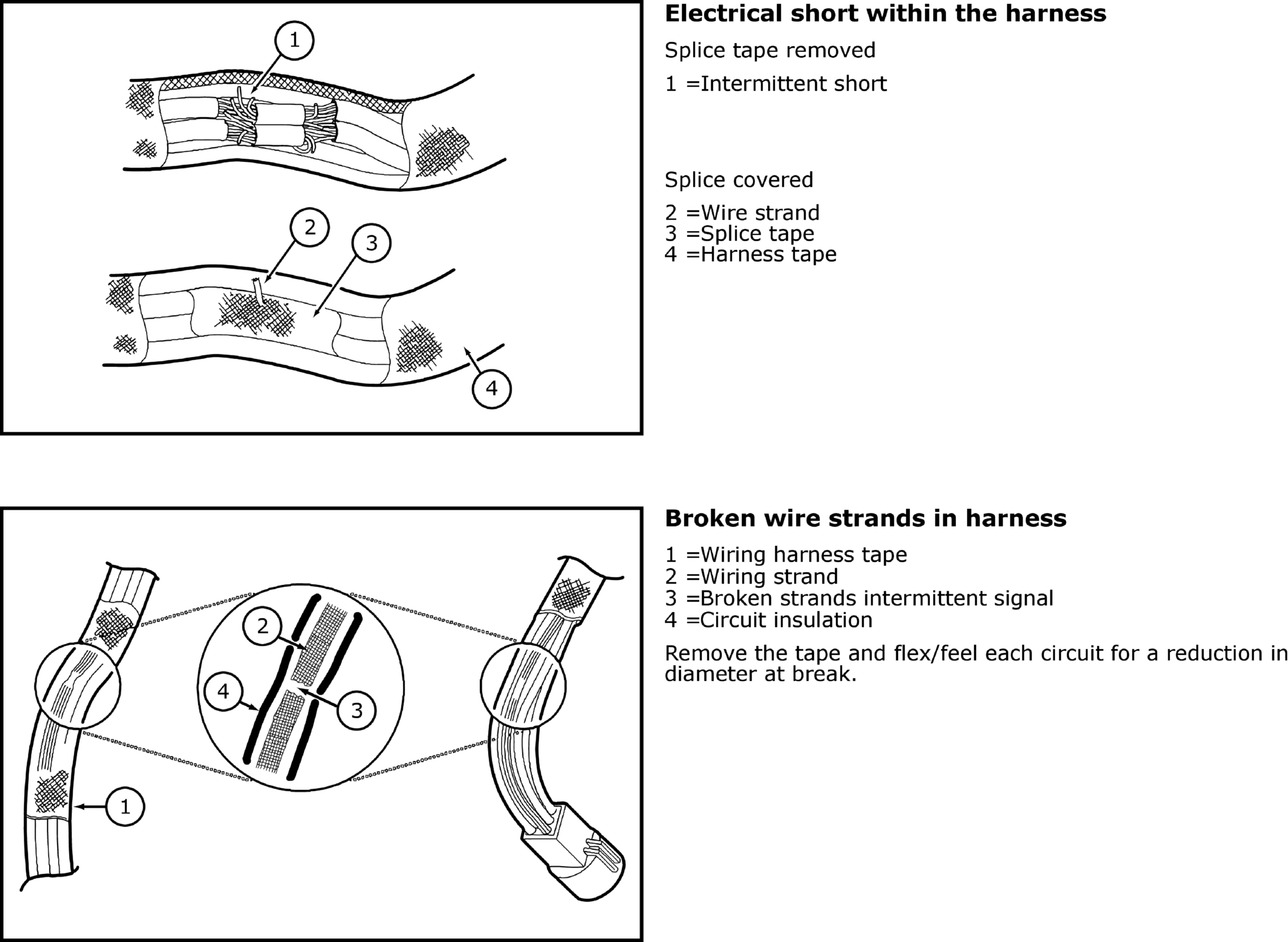

GFDW51174Courtesy of FORD MOTOR COMPANY

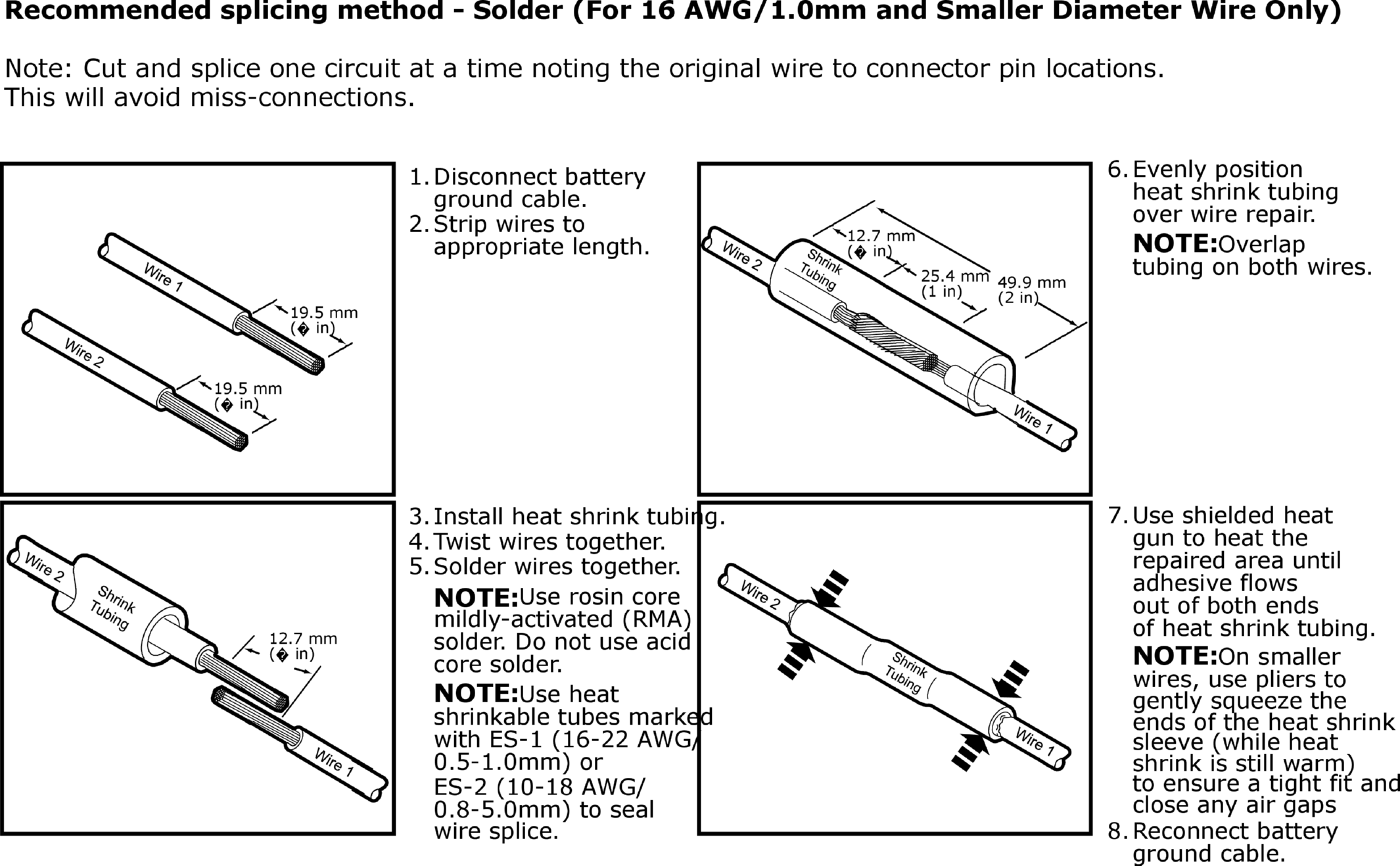

GFDW51175Courtesy of FORD MOTOR COMPANY

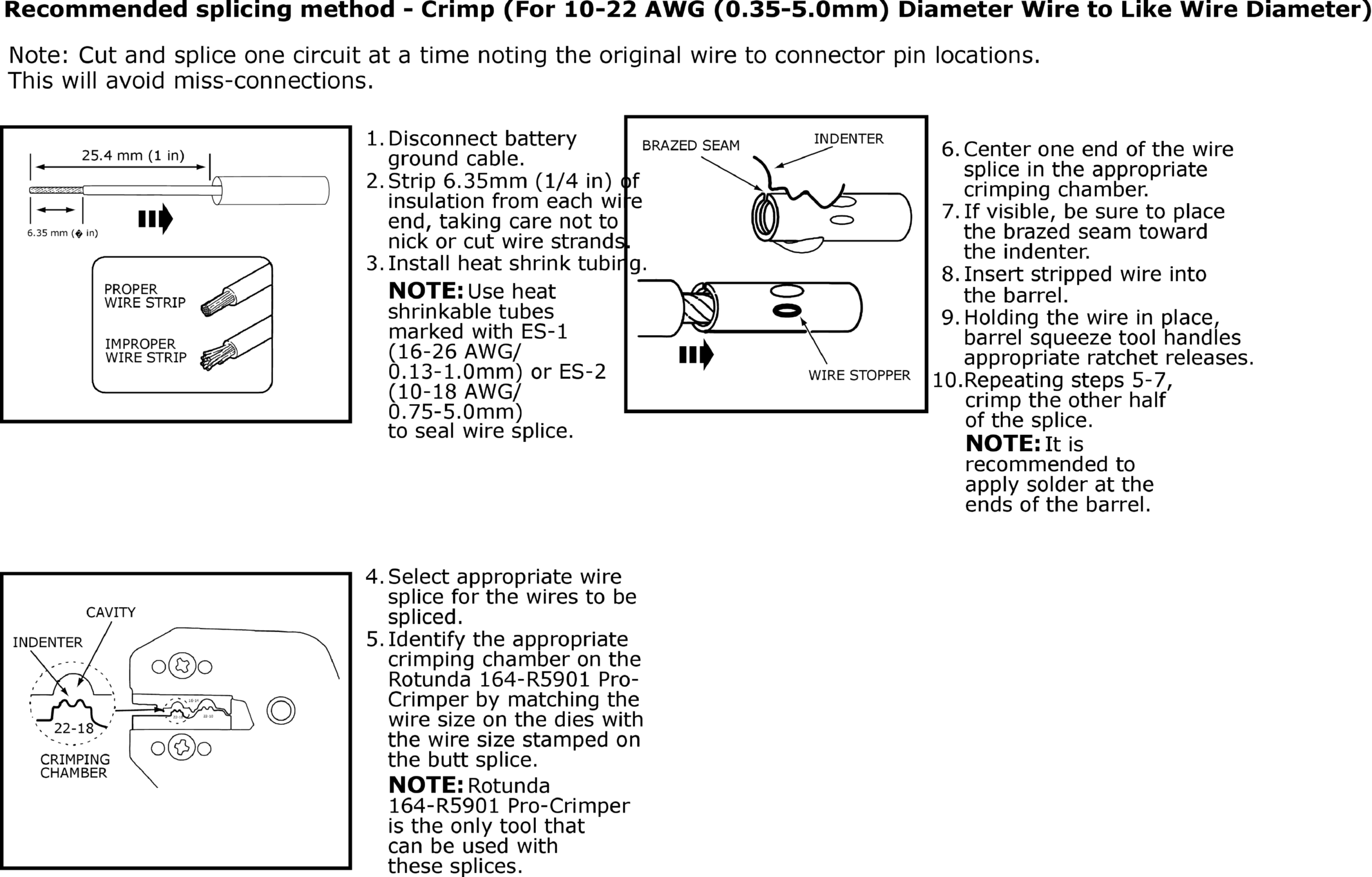

GFDW51176Courtesy of FORD MOTOR COMPANY

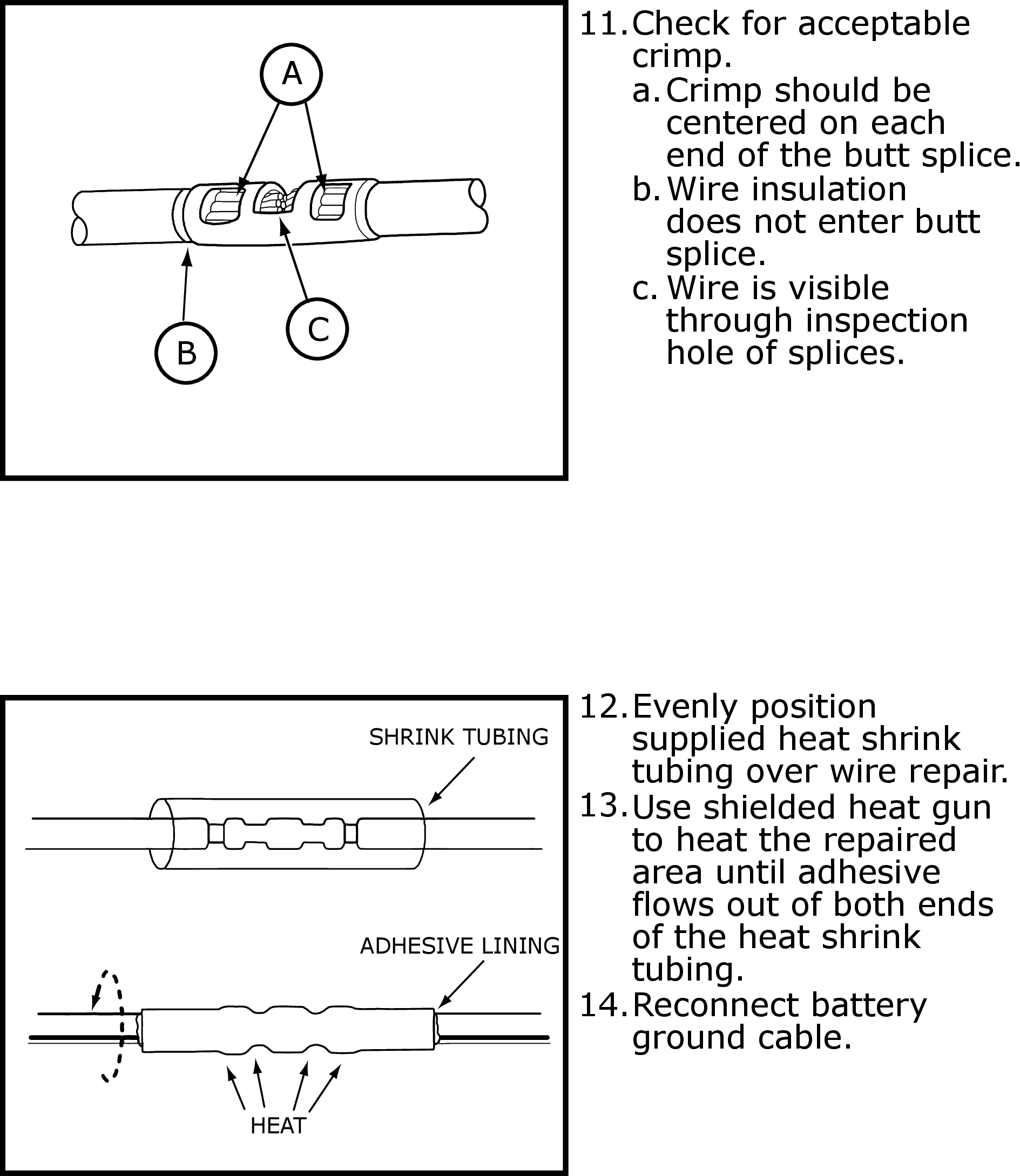

GFDW51177Courtesy of FORD MOTOR COMPANY

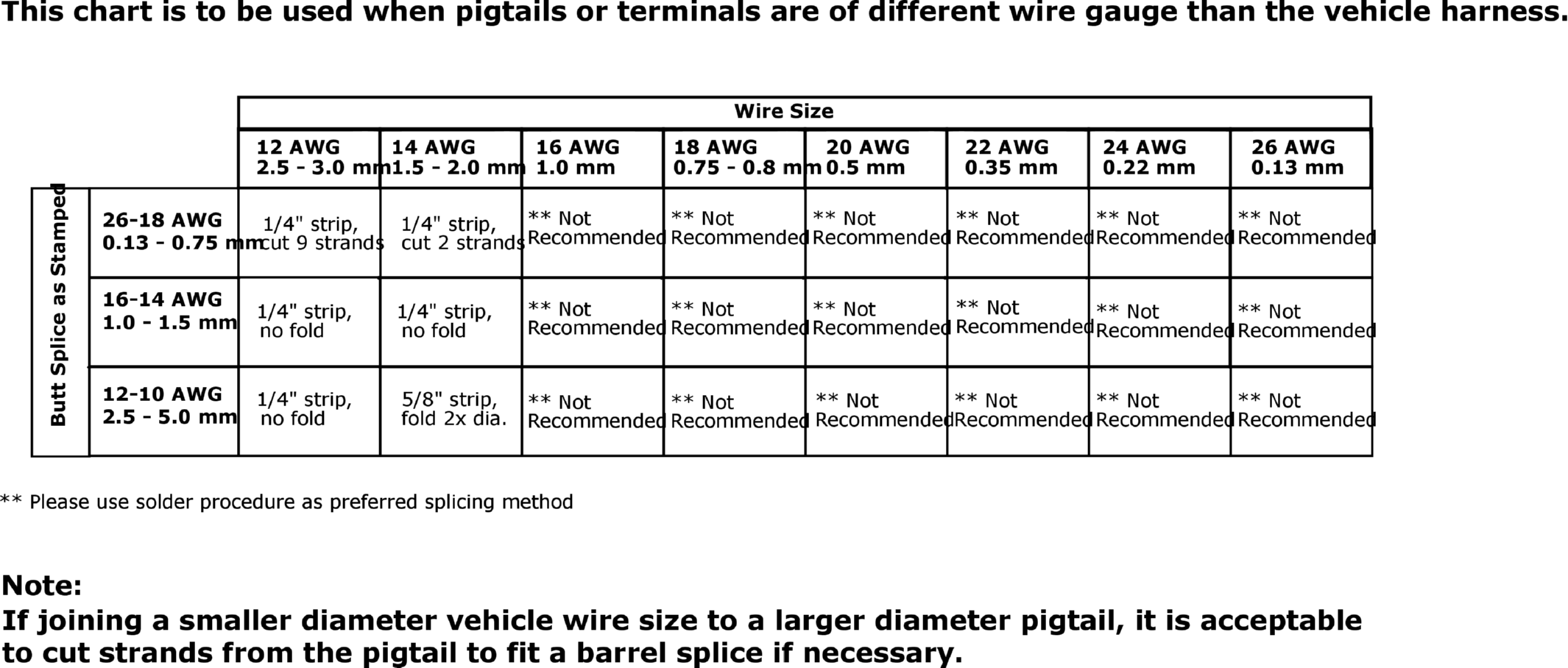

GFDW51178Courtesy of FORD MOTOR COMPANY
