Connector End View (C340) - INLINE
InlineC340
Description
INLINE
Color
Base Part #
Service Pigtail
Not Available

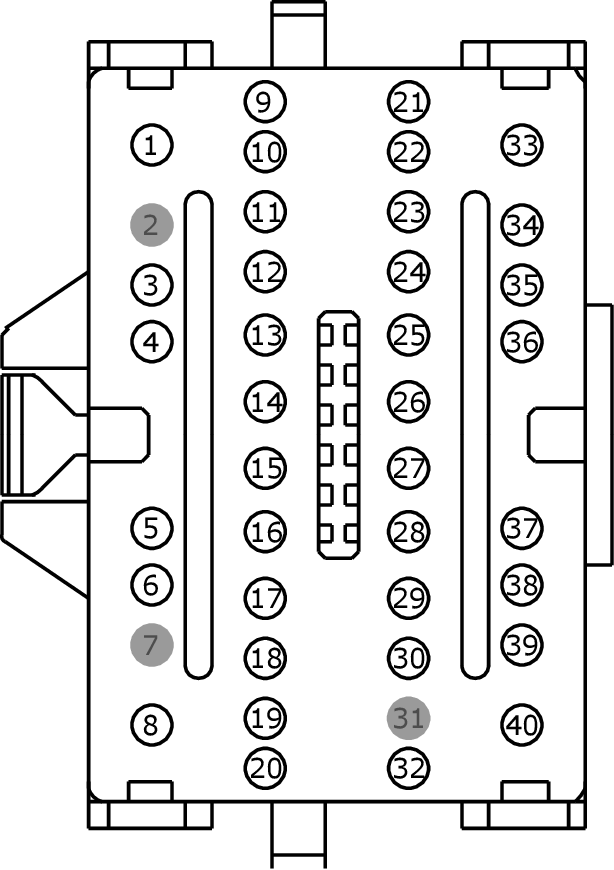

MALE
Harness 14B079

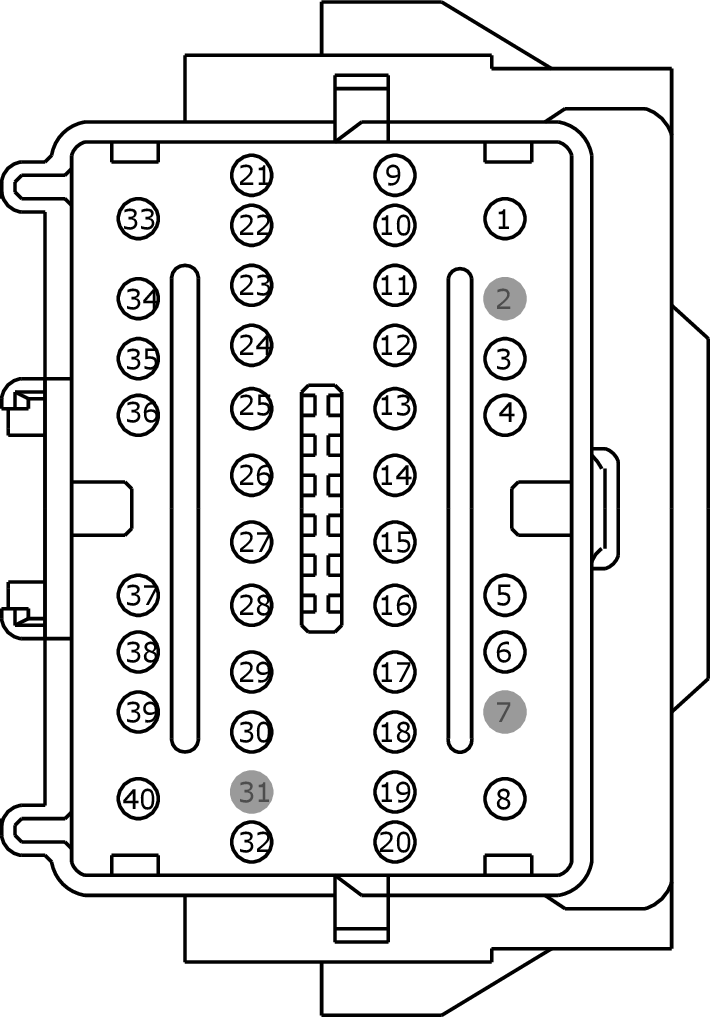

FEMALE
Harness 14401
| Pin | Circuit | Gauge | Qualifier |
| 1 | DME45 (*) | 20 | |
| 2 | * | * | |
| 3 | CCB20 (BU-WH) | 20 | 14401 |
| 3 | CCB20 (BU-WH) | 22 | 14B079 |
| 4 | CCB21 (GN-VT) | 20 | 14401 |
| 4 | CCB21 (GN-VT) | 22 | 14B079 |
| 5 | LYA03 (YE-VT) | 22 | |
| 6 | RYA03 (BU-BN) | 22 | |
| 7 | * | * | |
| 8 | DME88 (*) | 20 | |
| 9 | VPK05 (BN-GN) | 22 | |
| 10 | RPK05 (YE-OG) | 22 | |
| 11 | VME45 (BU) | 26 | |
| 12 | RME45 (YE) | 26 | 14B079 |
| 12 | RME45 (YE) | 26 | 14B079 |
| 12 | RME45 (YE-GN) | 26 | |
| 13 | VME46 (BU-WH) | 26 | 14B079 |
| 13 | VME46 (GN) | 26 | 14401 |
| 14 | RME46 (GN) | 26 | 14B079 |
| 14 | RME46 (WH) | 26 | 14401 |
| 15 | VME88 (BU-WH) | 26 | |
| 15 | VME88 (WH) | 26 | 14B079 |
| 16 | RME88 (GN) | 26 | 14401 |
| 16 | RME88 (GN-WH) | 26 | 14B079 |
| 17 | CCB22 (WH) | 26 | 14B079 |
| 17 | CCB22 (WH-BN) | 20 | 14401 |
| 17 | CET82 (GN) | 26 | 14B079 |
| 17 | CET82 (GN-VT) | 20 | 14401 |
| 18 | CCB23 (VT) | 26 | 14B079 |
| 18 | CCB23 (VT-GN) | 20 | 14401 |
| 18 | CET83 (BU-OG) | 20 | 14401 |
| 18 | CET83 (BU-OG) | 26 | 14B079 |
| 19 | CCB24 (OG) | 26 | 14B079 |
| 19 | CCB24 (WH-OG) | 20 | 14401 |
| 19 | GD383 (BK) | 26 | 14B079 |
| 19 | GD383 (BK-WH) | 20 | 14401 |
| 20 | CCB25 (BN) | 20 | 14401 |
| 20 | CCB25 (BN) | 22 | 14B079 |
| 21 | LME89 (YE-BU) | 22 | |
| 22 | CBX07 (GN) | 26 | 14401 |
| 22 | CBX07 (GN-RD) | 22 | |
| 22 | CBX07 (RD) | 26 | 14B079 |
| 23 | HYA01 (OG-GN) | 18 | |
| 23 | HYA01 (OG-GN) | 20 | 14401 |
| 24 | HYA02 (OG-WH) | 18 | |
| 24 | HYA02 (OG-WH) | 20 | 14401 |
| 25 | GD214 (BK-BU) | 22 | 14B079 |
| 25 | GD214 (BK-WH) | 22 | 14401 |
| 26 | CH253 (BN-WH) | 26 | 14B079 |
| 26 | CH253 (WH) | 26 | 14401 |
| 26 | CPL24 (YE-BU) | 22 | 14401 |
| 27 | CE469 (BN) | 26 | |
| 28 | CMP18 (GN-BN) | 22 | 14401 |
| 28 | CMP18 (GN-WH) | 26 | 14B079 |
| 28 | CMP32 (GN) | 22 | 14401 |
| 29 | CMP02 (BU) | 26 | |
| 30 | CMP32 (GN) | 22 | 14401 |
| 30 | CMP32 (GN) | 26 | 14B079 |
| 30 | CYT30 (GY-VT) | 22 | 14401 |
| 31 | * | * | |
| 32 | VDN07 (WH) | 22 | 14401 |
| 32 | VDN07 (WH-VT) | 22 | |
| 33 | VLN04 (BU-WH) | 22 | 14401 |
| 33 | VLN04 (VT-GY) | 22 | |
| 34 | SBB10 (YE-RD) | 16 | |
| 35 | SBB16 (VT-RD) | 16 | |
| 36 | SBB05 (GY-RD) | 16 | |
| 37 | GD214 (BK-BU) | 16 | |
| 38 | GD214 (BK-BU) | 16 | |
| 39 | GD214 (BK-BU) | 16 | |
| 40 | RME89 (WH-BU) | 22 |
