Connector End View (C312) - INLINE
InlineC312
Description
INLINE
Color
Base Part #
Service Pigtail
Not Available

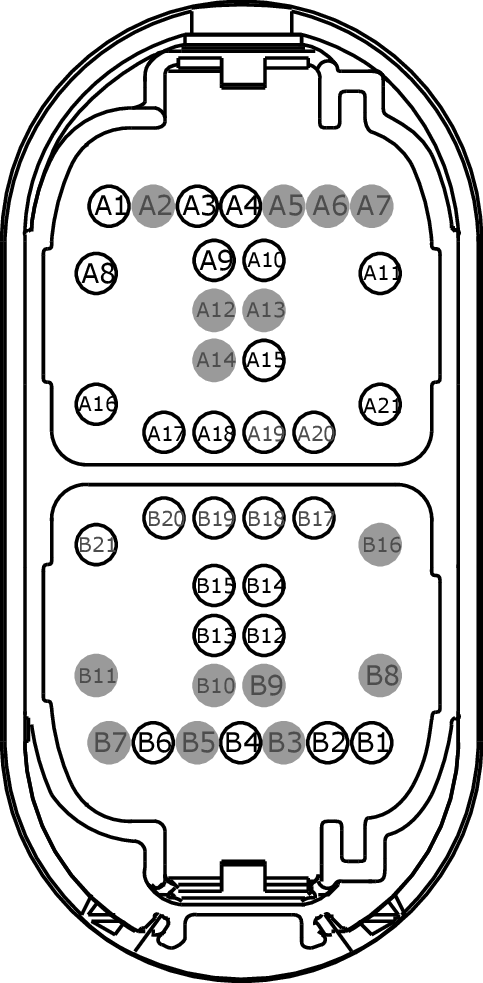

MALE
Harness 14630

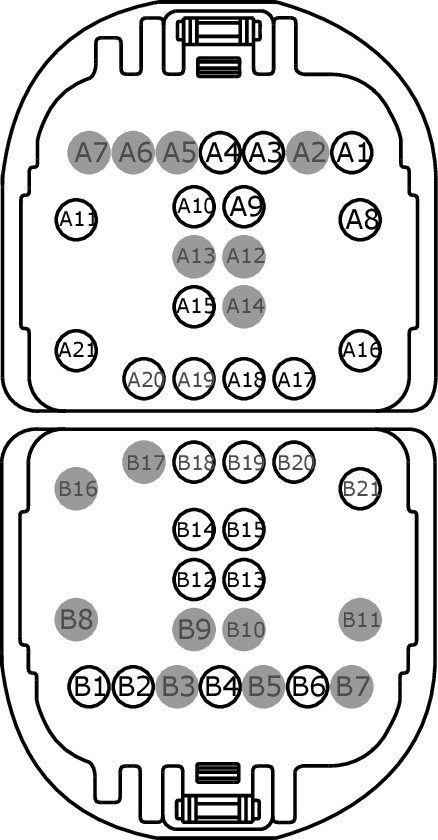

FEMALE
Harness 14A005
| Pin | Circuit | Gauge | Qualifier |
| A1 | CPL31 (WH) | 22 | |
| A2 | * | * | 14A005 |
| A3 | VDB06 (GY) | 22 | 14630 |
| A3 | VDB06 (GY-OG) | 22 | 14630 |
| A3 | VDB06 (GY-OG) | 22 | 14A005 |
| A4 | VDB07 (VT) | 22 | 14630 |
| A4 | VDB07 (VT-OG) | 22 | 14630 |
| A4 | VDB07 (VT-OG) | 22 | 14A005 |
| A5 | * | * | 14A005 |
| A6 | * | * | 14A005 |
| A7 | * | * | 14A005 |
| A8 | CPL13 (BN-GN) | 14 | |
| A9 | VR218 (YE) | 22 | 14630 |
| A9 | VR218 (YE-OG) | 22 | 14630 |
| A9 | VR218 (YE-OG) | 22 | 14A005 - FUSION |
| A9 | VR222 (GY-OG) | 22 | 14630 |
| A9 | VR222 (GY-OG) | 22 | 14A005 - MKZ |
| A10 | RR132 (BU) | 22 | 14630 |
| A10 | RR132 (BU-WH) | 22 | 14630 |
| A10 | RR132 (BU-WH) | 22 | 14A005 - FUSION |
| A10 | RR136 (BN-WH) | 22 | 14630 |
| A10 | RR136 (BN-WH) | 22 | 14A005 - MKZ |
| A11 | CPL11 (GN-BN) | 14 | 14630 |
| A11 | CPL11 (GY-BN) | 14 | |
| A12 | * | * | 14A005 |
| A13 | * | * | 14A005 |
| A14 | * | * | 14A005 |
| A15 | VDN10 (BN) | 22 | 14630 |
| A15 | VDN10 (BN-VT) | 20 | 14A005 - MKZ |
| A15 | VDN10 (BN-VT) | 22 | 14630 |
| A15 | VDN10 (BN-VT) | 22 | 14A005 - FUSION |
| A16 | SBP26 (YE-RD) | 10 | 14630 |
| A16 | SBP26 (YE-RD) | 12 | 14A005 |
| A17 | VME10 (WH-VT) | 18 | 14630 |
| A17 | VME10 (WH-VT) | 18 | 14A005 - FUSION |
| A17 | VME10 (WH-VT) | 20 | 14A005 - MKZ |
| A18 | RME10 (WH-OG) | 18 | 14630 |
| A18 | RME10 (WH-OG) | 18 | 14A005 - FUSION |
| A18 | RME10 (WH-OG) | 20 | 14A005 - MKZ |
| A19 | * | * | 14A005 |
| A20 | * | * | 14A005 |
| A21 | GD383 (BK-WH) | 10 | 14630 |
| A21 | GD383 (BK-WH) | 12 | 14A005 |
| B1 | VDN05 (YE-GY) | 22 | 14A005 |
| B1 | VLN73 (GY-BN) | 22 | 14630 |
| B2 | CBX07 (GN) | 22 | 14630 |
| B2 | CBX07 (GN-RD) | 22 | 14630 |
| B2 | CBX07 (GN-RD) | 22 | 14A005 |
| B3 | * | * | 14A005 |
| B4 | RPK39 (VT) | 22 | 14630 |
| B4 | RPK39 (VT-OG) | 22 | 14630 |
| B4 | RPK39 (VT-OG) | 22 | 14A005 |
| B5 | * | * | 14A005 |
| B6 | VPK40 (WH) | 22 | 14630 |
| B6 | VPK40 (WH-OG) | 22 | 14630 |
| B6 | VPK40 (WH-OG) | 22 | 14A005 |
| B7 | * | * | 14A005 |
| B8 | * | * | 14A005 |
| B9 | * | * | 14A005 |
| B10 | * | * | 14A005 |
| B11 | * | * | 14A005 |
| B12 | VPK02 (VT) | 22 | 14630 |
| B12 | VPK02 (VT-WH) | 22 | 14630 |
| B12 | VPK02 (VT-WH) | 22 | 14A005 |
| B13 | RPK02 (GY) | 22 | 14630 |
| B13 | RPK02 (GY-YE) | 22 | 14630 |
| B13 | RPK02 (GY-YE) | 22 | 14A005 |
| B14 | VME11 (VT-OG) | 20 | |
| B15 | RME11 (YE-OG) | 20 | |
| B16 | * | * | 14A005 |
| B17 | * | * | 14A005 |
| B18 | * | * | 14A005 |
| B19 | * | * | 14A005 |
| B20 | * | * | 14A005 |
| B21 | * | * | 14A005 |
