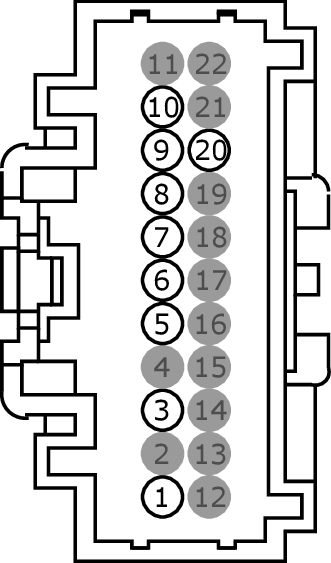

Connector End View (C238) - INLINE
InlineC238
Description
INLINE
Color
Base Part #
Service Pigtail
Not Available
MALE
Harness 14A005
FEMALE
Harness 14401
| Pin | Circuit | Gauge | Qualifier |
| 1 | CBX07 (GN-RD) | 22 | |
| 2 | * | * | |
| 3 | VLN04 (VT) | 26 | 14401 |
| 3 | VLN04 (VT-GY) | 22 | 14A005 |
| 4 | * | * | |
| 5 | VDB29 (GN) | 26 | |
| 5 | VDB29 (GN-BU) | 22 | 14401 |
| 6 | VDB30 (WH) | 26 | |
| 6 | VDB30 (WH-GN) | 22 | 14401 |
| 7 | VDB25 (GN) | 26 | |
| 7 | VDB25 (GN-WH) | 26 | 14A005 |
| 8 | VDB26 (GY) | 26 | |
| 9 | VDB04 (BU) | 26 | 14401 |
| 9 | VDB04 (WH) | 26 | 14A005 |
| 9 | VDB04 (WH-BU) | 22 | 14A005 |
| 10 | VDB05 (BU) | 26 | 14A005 |
| 10 | VDB05 (WH) | 22 | 14A005 |
| 10 | VDB05 (WH) | 26 | 14401 |
| 11 | * | * | |
| 12 | * | * | |
| 13 | * | * | |
| 14 | * | * | |
| 15 | * | * | |
| 16 | * | * | |
| 17 | * | * | |
| 18 | * | * | |
| 19 | * | * | |
| 20 | CME36 (GN-VT) | 18 | |
| 21 | * | * | |
| 22 | * | * |
