Connector End View (C215) - INLINE
InlineC215
Description
INLINE
Color
Base Part #
Service Pigtail
Not Available

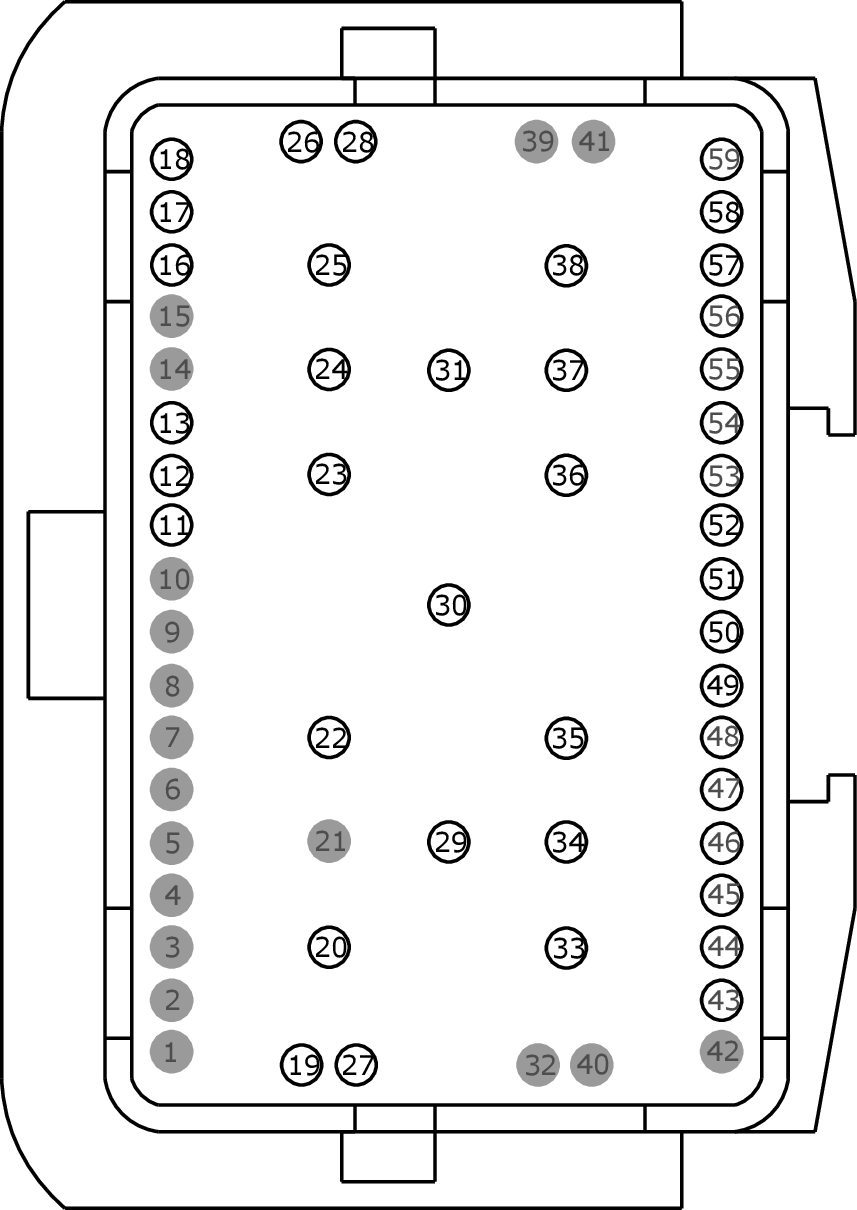

MALE
Harness 14A005

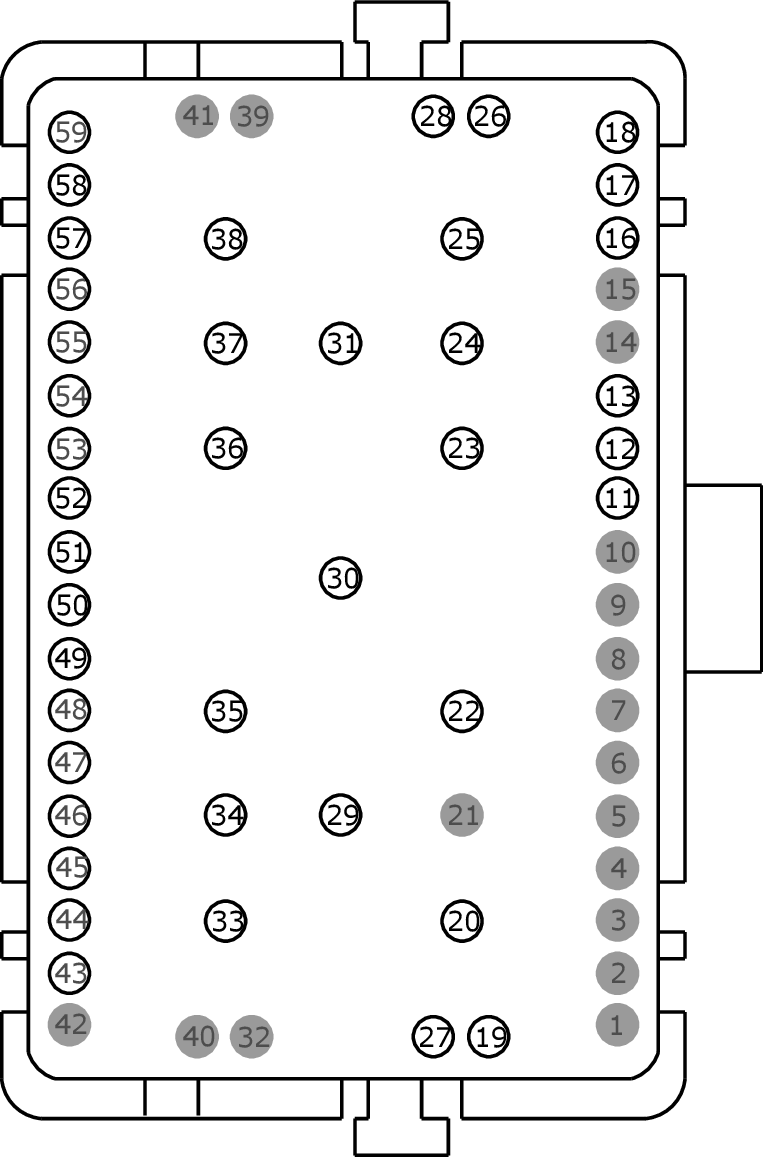

FEMALE
Harness 12A581
| Pin | Circuit | Gauge | Qualifier |
| 1 | * | * | |
| 2 | * | * | |
| 3 | * | * | |
| 4 | * | * | |
| 5 | * | * | |
| 6 | * | * | |
| 7 | * | * | |
| 8 | * | * | |
| 9 | * | * | |
| 10 | * | * | |
| 11 | LCD02 (YE-GN) | 18 | 14A005 |
| 11 | LCD02 (YE-GN) | 20 | 12A581 |
| 12 | VCD10 (BN) | 18 | |
| 13 | VCD11 (GY-VT) | 18 | |
| 14 | * | * | |
| 15 | * | * | |
| 16 | RCD02 (GN-BN) | 18 | 14A005 |
| 16 | RCD02 (GN-BN) | 20 | 12A581 |
| 17 | CCD03 (WH-BU) | 18 | |
| 18 | RCD03 (VT-BN) | 18 | |
| 19 | SBP32 (BN-RD) | 20 | 12A581 |
| 19 | SBP32 (VT-RD) | 20 | 14A005 |
| 20 | SBB74 (YE-RD) | 12 | |
| 21 | * | * | |
| 22 | CBB29 (WH-VT) | 18 | |
| 23 | SBB80 (VT-RD) | 12 | |
| 23 | SBB80 (VT-RD) | 14 | 14A005 |
| 24 | SBB72 (VT-RD) | 10 | |
| 25 | SBB35 (BU-RD) | 18 | |
| 26 | CPL18 (GY-VT) | 20 | 12A581 |
| 26 | CPL18 (GY-VT) | 22 | 14A005 |
| 27 | CBB53 (GY-BN) | 20 | 12A581 |
| 27 | CBB53 (GY-RD) | 20 | 14A005 |
| 28 | CBB23 (BN-YE) | 18 | 14A005 |
| 28 | CBB23 (BN-YE) | 20 | |
| 29 | SBB85 (GY-RD) | 10 | 14A005 |
| 29 | SBB85 (WH-RD) | 10 | 12A581 |
| 30 | CRD06 (BN-YE) | 10 | |
| 31 | SBB57 (RD) | 10 | |
| 32 | * | * | |
| 33 | SBB73 (RD) | 12 | 12A581 |
| 33 | SBB73 (RD) | 16 | 14A005 |
| 34 | CBB52 (GN-WH) | 18 | |
| 34 | CBB52 (GN-WH) | 20 | 14A005 |
| 35 | CCB16 (WH-VT) | 12 | |
| 36 | CE608 (VT-GN) | 12 | |
| 37 | SBB36 (GN-RD) | 18 | |
| 38 | CCB17 (BU-GN) | 12 | |
| 39 | * | * | |
| 40 | * | * | |
| 41 | * | * | |
| 42 | * | * | |
| 43 | * | * | |
| 44 | * | * | |
| 45 | * | * | |
| 46 | * | * | |
| 47 | * | * | |
| 48 | * | * | |
| 49 | VDB04 (WH-BU) | 22 | |
| 50 | VDB05 (WH) | 22 | |
| 51 | VDB25 (GN) | 26 | 14A005 |
| 51 | VDB25 (GN-OG) | 20 | 12A581 |
| 51 | VDB25 (GN-WH) | 26 | 14A005 |
| 52 | VDB26 (GY) | 26 | 14A005 |
| 52 | VDB26 (GY-BU) | 20 | 12A581 |
| 53 | * | * | |
| 54 | * | * | |
| 55 | * | * | |
| 56 | * | * | |
| 57 | VCA04 (BU-OG) | 20 | |
| 58 | RCA18 (BN-GN) | 20 | |
| 59 | * | * |
