Connector End View (C214) - INLINE
InlineC214
Description
INLINE
Color
Base Part #
Service Pigtail
Not Available

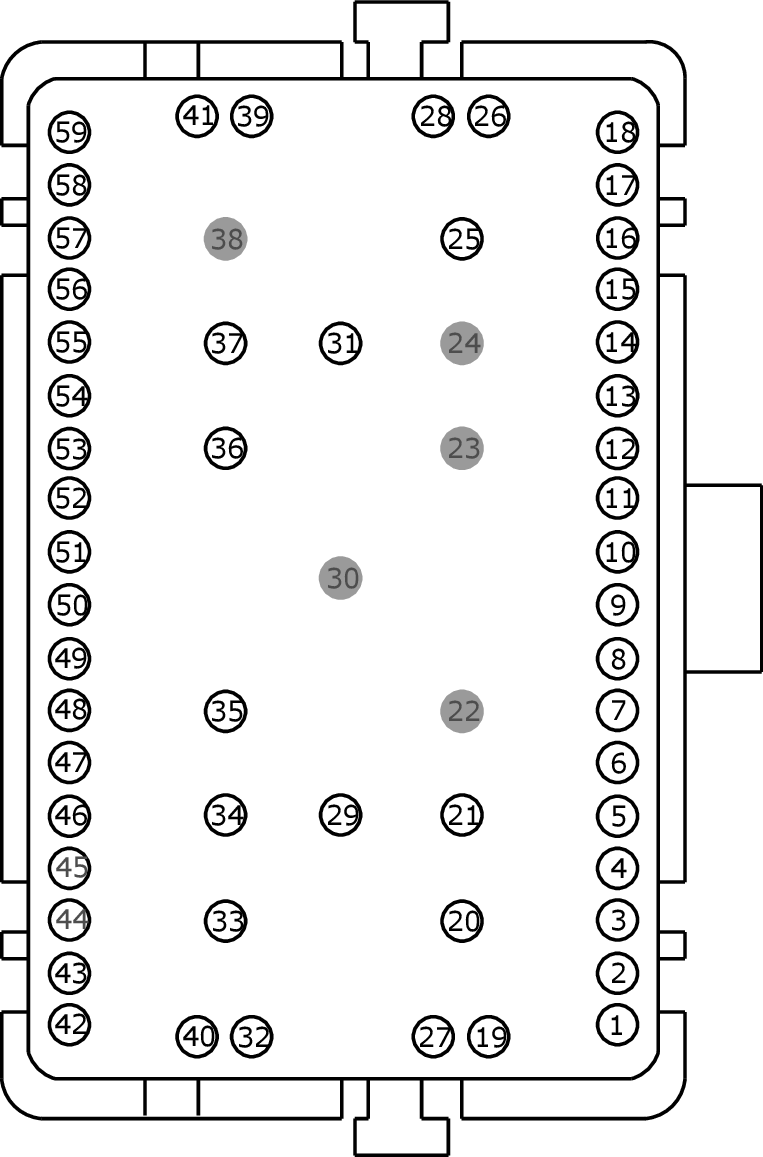

MALE
Harness 14B644

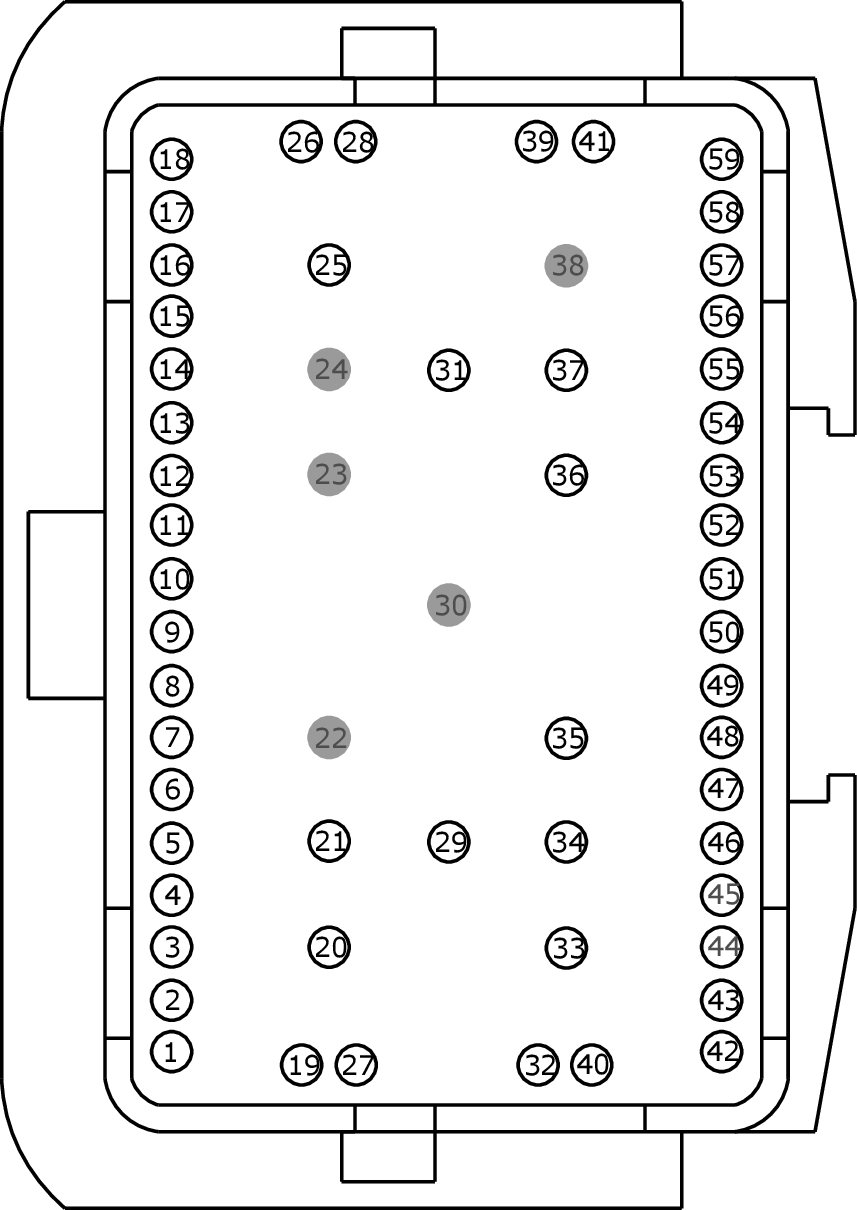

FEMALE
Harness 14A005
| Pin | Circuit | Gauge | Qualifier |
| 1 | VDB29 (GN) | 26 | 14A005 |
| 1 | VDB29 (GN-BU) | 22 | 14B644 |
| 2 | VDB30 (WH) | 26 | 14A005 |
| 2 | VDB30 (WH-GN) | 22 | 14B644 |
| 3 | VME06 (GN) | 20 | 14A005 |
| 3 | VME06 (GN) | 22 | 14B644 |
| 4 | RME06 (GY-YE) | 20 | 14A005 |
| 4 | RME06 (GY-YE) | 22 | 14B644 |
| 5 | VME07 (WH) | 20 | 14A005 |
| 5 | VME07 (WH) | 22 | 14B644 |
| 6 | RME07 (WH-BN) | 20 | 14A005 |
| 6 | RME07 (WH-BN) | 22 | 14B644 |
| 7 | VME09 (WH-GN) | 20 | 14A005 |
| 7 | VME09 (WH-GN) | 22 | 14B644 |
| 8 | RME09 (BN-YE) | 20 | 14A005 |
| 8 | RME09 (BN-YE) | 22 | 14B644 |
| 9 | VME10 (WH-VT) | 20 | 14A005 |
| 9 | VME10 (WH-VT) | 22 | 14B644 |
| 10 | RME10 (WH-OG) | 20 | 14A005 |
| 10 | RME10 (WH-OG) | 22 | 14B644 |
| 11 | VME12 (BN-WH) | 20 | 14A005 |
| 11 | VME12 (BN-WH) | 22 | 14B644 |
| 12 | RME12 (BN-BU) | 20 | 14A005 |
| 12 | RME12 (BN-BU) | 22 | 14B644 |
| 13 | VMEA9 (BU-GY) | 20 | 14B644 |
| 13 | VMEA9 (BU-GY) | 22 | 14A005 |
| 14 | RMEA9 (VT-BN) | 20 | 14B644 |
| 14 | RMEA9 (VT-BN) | 22 | 14A005 |
| 15 | VME52 (BU) | 20 | 14A005 |
| 15 | VME52 (BU) | 22 | 14B644 |
| 16 | RME52 (GY-OG) | 20 | 14A005 |
| 16 | RME52 (GY-OG) | 22 | 14B644 |
| 17 | VME53 (VT-GN) | 20 | 14A005 |
| 17 | VME53 (VT-GN) | 22 | 14B644 |
| 18 | RME53 (BN-WH) | 20 | 14A005 |
| 18 | RME53 (BN-WH) | 22 | 14B644 |
| 19 | SME56 (BN) | 20 | 14A005 |
| 19 | SME56 (BN) | 22 | 14B644 |
| 20 | VMEB0 (GN-WH) | 20 | 14B644 |
| 20 | VMEB0 (GN-WH) | 22 | 14A005 |
| 21 | RMEB0 (WH-BN) | 20 | 14B644 |
| 21 | RMEB0 (WH-BN) | 22 | 14A005 |
| 22 | * | * | |
| 23 | * | * | |
| 24 | * | * | |
| 25 | DME52 (*) | 20 | |
| 26 | VME99 (VT-OG) | 22 | |
| 27 | CDC54 (WH-GN) | 22 | |
| 28 | RME99 (YE-GY) | 22 | |
| 29 | CBP33 (WH-BN) | 18 | |
| 30 | * | * | |
| 31 | SBP05 (GY-RD) | 16 | 14A005 |
| 31 | SBP05 (GY-RD) | 18 | 14B644 |
| 32 | VME72 (WH) | 18 | 14A005 |
| 32 | VME72 (WH) | 22 | 14B644 |
| 33 | VME73 (WH-BN) | 18 | 14A005 |
| 33 | VME73 (WH-BN) | 22 | 14B644 |
| 34 | RME73 (VT-OG) | 18 | 14A005 |
| 34 | RME73 (VT-OG) | 22 | 14B644 |
| 35 | DME58 (*) | 20 | |
| 36 | GD313 (BK-GN) | 16 | |
| 37 | GD313 (BK-GN) | 16 | |
| 38 | * | * | |
| 39 | VME80 (VT-GN) | 20 | 14A005 |
| 39 | VME80 (VT-GN) | 22 | 14B644 |
| 40 | RME72 (BU-GN) | 18 | 14A005 |
| 40 | RME72 (BU-GN) | 22 | 14B644 |
| 41 | RME80 (BU-GY) | 20 | 14A005 |
| 41 | RME80 (BU-GY) | 22 | 14B644 |
| 42 | VME78 (GN-VT) | 20 | 14A005 |
| 42 | VME78 (GN-VT) | 22 | 14B644 |
| 43 | RME78 (GY) | 20 | 14A005 |
| 43 | RME78 (GY) | 22 | 14B644 |
| 44 | * | * | |
| 45 | * | * | |
| 46 | VME18 (VT) | 20 | 14A005 |
| 46 | VME18 (VT) | 22 | 14B644 |
| 47 | RME18 (YE) | 20 | 14A005 |
| 47 | RME18 (YE) | 22 | 14B644 |
| 48 | VME79 (GY-VT) | 20 | 14A005 |
| 48 | VME79 (GY-VT) | 22 | 14B644 |
| 49 | RME79 (BN-VT) | 20 | 14A005 |
| 49 | RME79 (BN-VT) | 22 | 14B644 |
| 50 | VME59 (YE-OG) | 20 | 14A005 |
| 50 | VME59 (YE-OG) | 22 | 14B644 |
| 51 | RME59 (WH-GN) | 20 | 14A005 |
| 51 | RME59 (WH-GN) | 22 | 14B644 |
| 52 | VME58 (YE-VT) | 20 | 14A005 |
| 52 | VME58 (YE-VT) | 22 | 14B644 |
| 53 | RME58 (BN-BU) | 20 | 14A005 |
| 53 | RME58 (BN-BU) | 22 | 14B644 |
| 54 | VME57 (YE-VT) | 22 | |
| 55 | RME57 (BU-BN) | 22 | |
| 56 | VMEA0 (BU-GN) | 22 | |
| 57 | RMEA0 (WH-OG) | 22 | |
| 58 | VME90 (GY-BU) | 20 | 14A005 |
| 58 | VME90 (GY-BU) | 22 | 14B644 |
| 59 | VME91 (WH-BN) | 20 | 14A005 |
| 59 | VME91 (WH-BN) | 22 | 14B644 |
