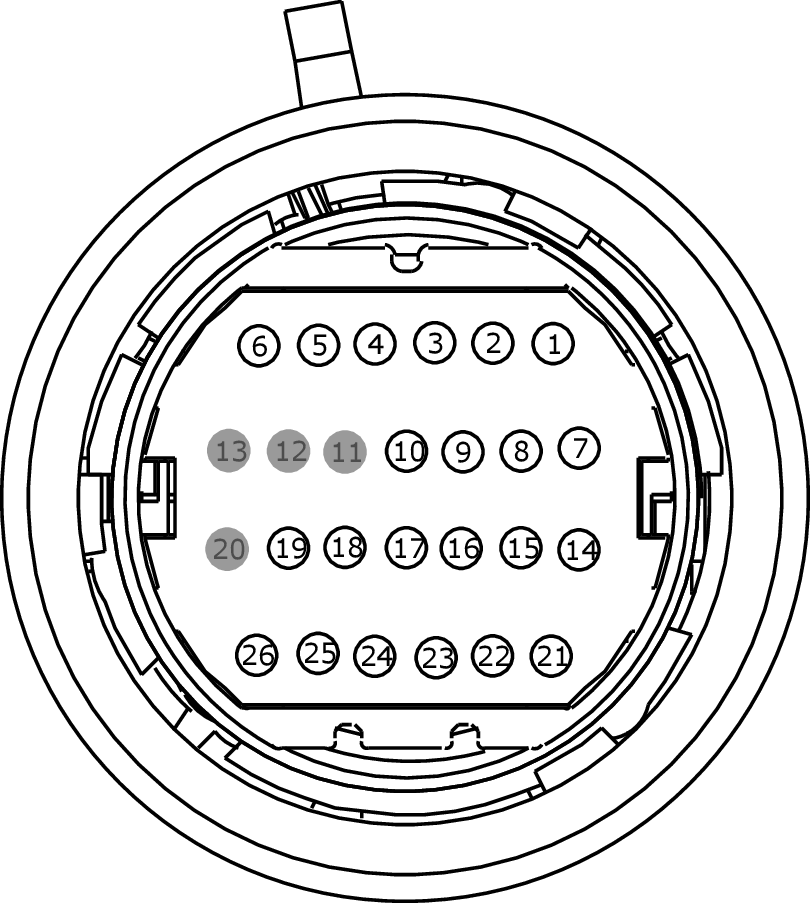

Connector End View (C168C) - HF35 TRANSMISSION
Connector:C168C
Description
HF35 TRANSMISSION
Color
BK
Harness
3C221
Base Part #
part# N/A
Service Pigtail
Not Available
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | VYT23 (WH) | 20 | GENERATOR RESOLVER 1 (GR1) | |
| 2 | VYT24 (BN-WH) | 20 | GENERATOR RESOLVER 2 (GR2) | |
| 3 | VYT25 (VT-BN) | 20 | GENERATOR COSINE 2 (GC2) | |
| 4 | VYT26 (YE-BU) | 20 | GENERATOR COSINE 1 (GC1) | |
| 5 | VYT27 (WH-BN) | 20 | GENERATOR SINE 2 (GS2) | |
| 6 | VYT28 (BN-YE) | 20 | GENERATOR SINE 1 (GS1) | |
| 7 | LET57 (WH-GN) | 20 | CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE ANALOG 1 (TR-A1BVREF) | |
| 8 | VET32 (VT) | 20 | SENSOR - TRANSMISSION RANGE # ANALOG 1 (TR-A1) | |
| 9 | RET24 (BN-BU) | 20 | CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE ANALOG 1 (TR-A1RTN) | |
| 10 | VET32 (VT) | 20 | SENSOR - TRANSMISSION RANGE # ANALOG 2 (TR-A2) | |
| 11 | * | * | Not Used | |
| 12 | * | * | Not Used | |
| 13 | * | * | Not Used | |
| 14 | VYT29 (VT-GN) | 20 | GENERATOR COIL TEMPERATURE (GCT) | |
| 15 | RYT29 (WH-BU) | 20 | GENERATOR COIL TEMPERATURE RETURN (GCTRTN) | |
| 16 | VYT21 (BU-GN) | 20 | MOTOR COIL TEMPERATURE (MCT) | |
| 17 | RYT21 (GN-WH) | 20 | MOTOR COIL TEMPERATURE RETURN (MCTRTN) | |
| 18 | VYT22 (GN-OG) | 20 | TRANSMISSION FLUID TEMPERATURE (TFT) | |
| 19 | RYT22 (GY-OG) | 20 | TRANSMISSION FLUID TEMPERATURE RETURN (TFTRTN) | |
| 20 | * | * | Not Used | |
| 21 | VYT19 (GN-BN) | 20 | MOTOR SINE 1 (MS1) | |
| 22 | VYT20 (YE-VT) | 20 | MOTOR SINE 2 (MS2) | |
| 23 | VYT17 (BN-BU) | 20 | MOTOR COSINE 1 (MC1) | |
| 24 | VYT18 (BU-WH) | 20 | MOTOR COSINE 2 (MC2) | |
| 25 | VYT16 (WH-GN) | 20 | MOTOR RESOLVER 2 (MR2) | |
| 26 | VYT15 (YE-GY) | 20 | MOTOR RESOLVER 1 (MR1) |
