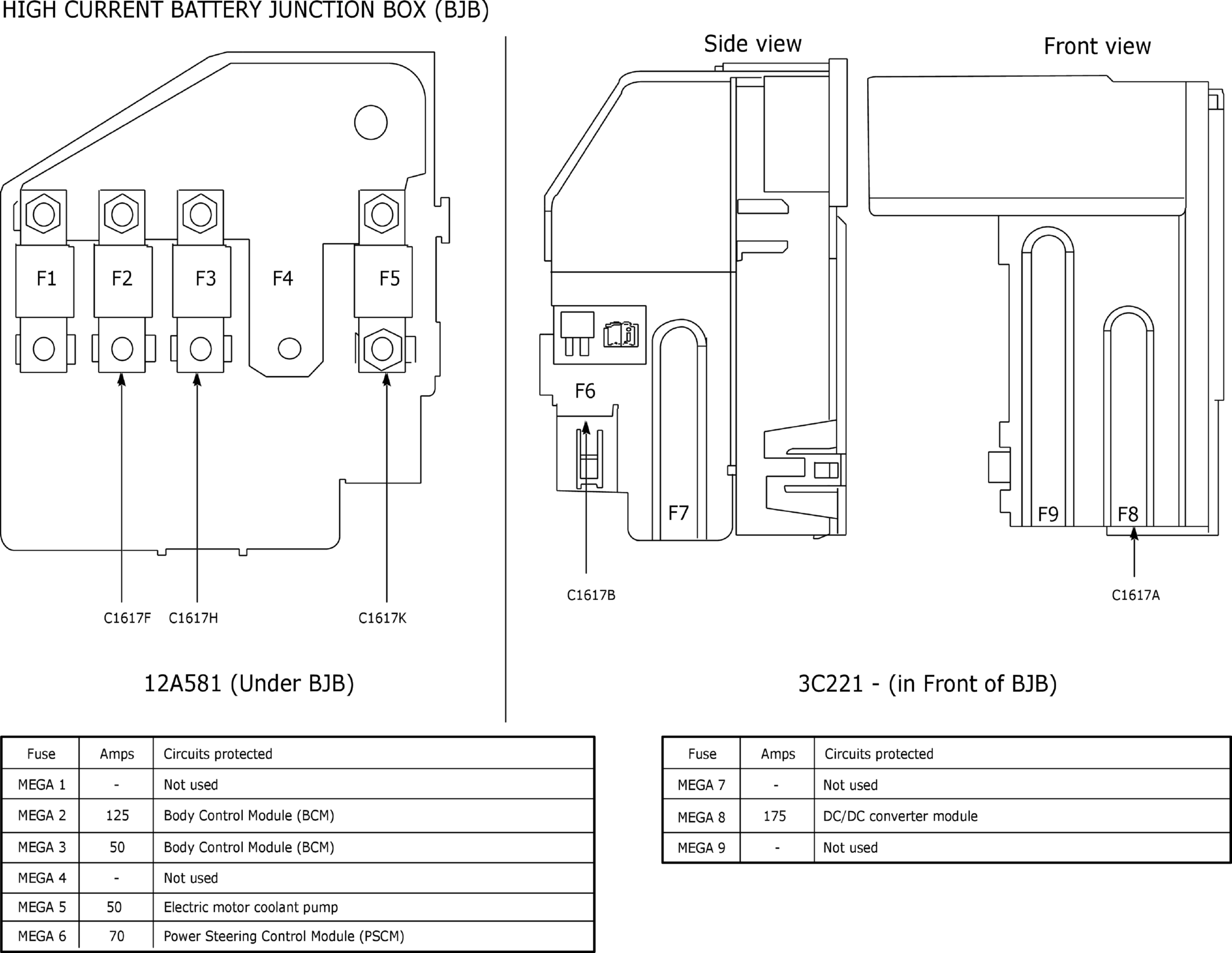

Fuse And Relay Location

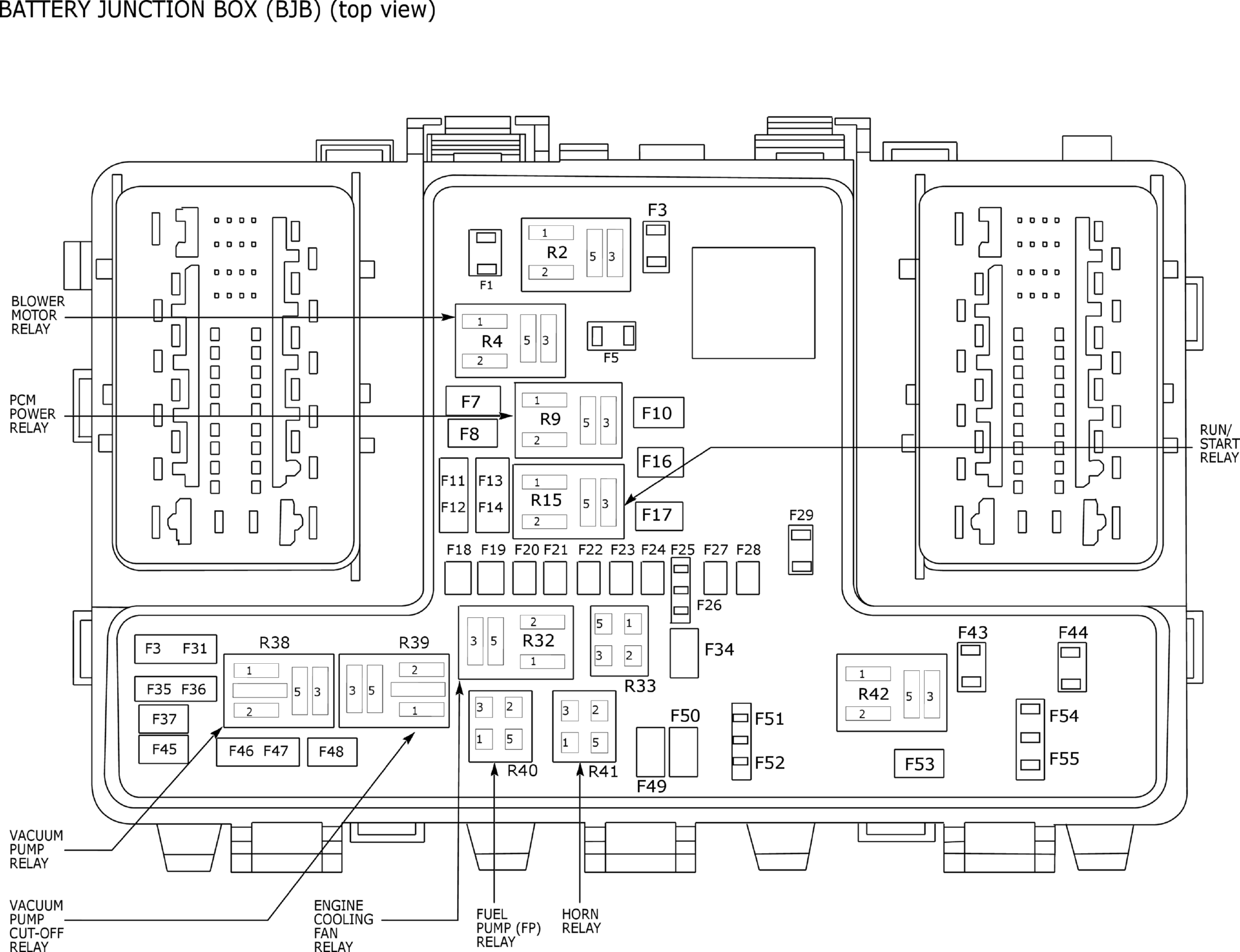

BATTERY JUNCTION BOX (BJB) RELAY IDENTIFICATION
| RELAY NUMBER | RELAY DESCRIPTION |
|---|---|
| R9 | PCM Power Relay |
| R4 | Blower Motor Relay |
| R15 | Run/Start Relay |
| R41 | Horn Relay |
| R40 | Fuel Pump (Fp) Relay |
| R32 | Engine Cooling Fan Relay |
| R39 | Vacuum Pump Cut-Off Relay |
| R38 | Vacuum Pump Relay |

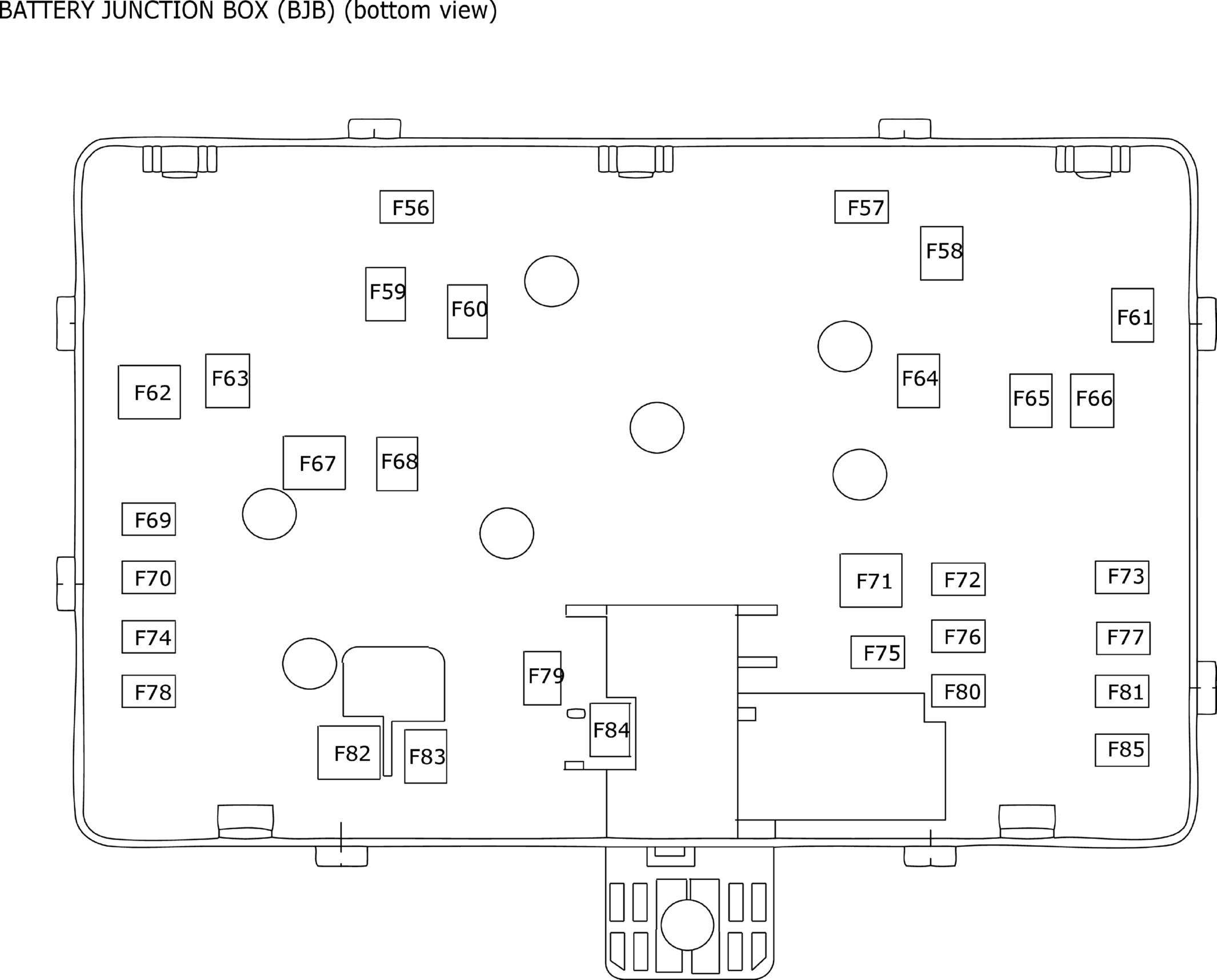

BATTERY JUNCTION BOX FUSE IDENTIFICATION LEGEND
| Fuse | Amps | Circuits Protected |
|---|---|---|
| F1 | 25 | Windshield wiper motor, right front |
| F3 | 15 | Rain sensor module |
| F5 | 20 | Rear passenger power outlet socket |
| F7 | 20 | Powertrain Control Module (PCM) |
| F8 | 20 | Mass Airflow/ Intake Air Temperature (MAF/IAT) sensor, EVAP leak detection control module, Evaporative Emission (EVAP) purge valve, Heater core shutoff EVAP vapor blocking valve, Fuel tank isolation valve, Heated Oxygen Sensors (HO2S), Variable Camshaft Timing 11 (VCT11) solenoid, EGR stepper motor |
| F10 | 20 | Cigar lighter |
| F11 | 15 | Coil On Plugs (COPs), Ignition transformer capacitor |
| F12 | 15 | Grille shutter actuator, Electric coolant pump, Cabin heater coolant pump |
| F13 | 10 | Not used |
| F14 | 10 | Not used |
| F16 | 20 | Front power outlet socket |
| F17 | 20 | Transmission fluid pump |
| F18 | 10 | Powertrain Control Module (PCM), Secondary on board diagnostic module C (SOBDMC) / Transmission Control Module (TCM) |
| F19 | 10 | Power Steering Control Module (PSCM) |
| F20 | 10 | Headlamp assembly LH, Headlamp assembly RH |
| F21 | 15 | Secondary on board diagnostic module C (SOBDMC)/Transmission Control Module (TCM) |
| F23 | 15 | Transmission Range Control Module (TRCM), Proximity warning radar unit, Head Up Display (HUD) module, Rear parking aid camera Side Obstacle Detection Control Module - Right (SOD-R), Side Obstacle Detection Control Module - Left (SOD-L) |
| F24 | 10 | Transmission fluid pump |
| F25 | 10 | Anti-lock Brake System (ABS) module |
| F26 | 10 | Powertrain Control Module (PCM) |
| F27 | 10 | Fuel door release relay |
| F29 | 15 | Battery Charger Control Module (BCCM), High voltage battery cooling fan |
| F35 | 15 | High voltage battery charger cooling fan |
| F36 | 15 | High voltage battery cooling fan |
| F37 | 5 | Not used |
| F45 | 5 | Anti-lock Brake System (ABS) module |
| F46 | 10 | Charge port light ring |
| F47 | 10 | Stoplamp switch |
| F48 | 20 | Left horn, Right horn |
| F51 | 15 | Secondary on board diagnostic module C (SOBDMC)/Transmission Control Module (TCM) |
| F52 | 15 | Battery Energy Control Module (BECM) |
| F53 | 10 | Multi contour seat relay |
| F54 | 10 | Motor Electronics Coolant System Pump (MECSP) |
| F55 | 10 | Air Conditioning Control Module (ACCM), In-vehicle temperature and humidity sensor, Cabin coolant heater |
| F56 | 30 | Fuel pump control module, Fuel injectors |
| F59 | 40 | Vacuum pump cut-off relay, Vacuum pump relay |
| F60 | 30 | Engine cooling fan relay |
| F62 | 50 | Body Control Module (BCM) |
| F63 | 20 | Not used |
| F64 | 40 | Battery Charger Control Module (BCCM) |
| F65 | 20 | Front Controls Interface Module (FCIM) |
| F67 | 50 | Body Control Module (BCM) |
| F68 | 40 | Rear window defrost relay |
| F69 | 30 | Anti-lock Brake System (ABS) module |
| F70 | 30 | Passenger side front seat control switch |
| F72 | 30 | Panoramic roof opening panel shield motor, Panoramic roof opening panel primary motor |
| F73 | 20 | Heated seat module, rear |
| F74 | 30 | Driver Seat Module (DSM), Driver side front seat control switch |
| F76 | 20 | Transmission Range Control Module (TRCM) |
| F77 | 30 | Dual Climate Controlled Seat Module (DCSM) |
| F78 | 40 | Not used |
| F79 | 40 | Blower motor relay |
| F80 | 30 | Power striker module, Rear Gate Trunk Module (RGTM) |
| F81 | 40 | Direct Current/Alternating Current (DC/AC) inverter |
| F82 | 60 | Anti-lock Brake System (ABS) module |
| F83 | 25 | Windshield wiper motor, left front |
| F84 | 30 | Not used |
| F85 | 30 | Panoramic roof opening panel secondary motor |

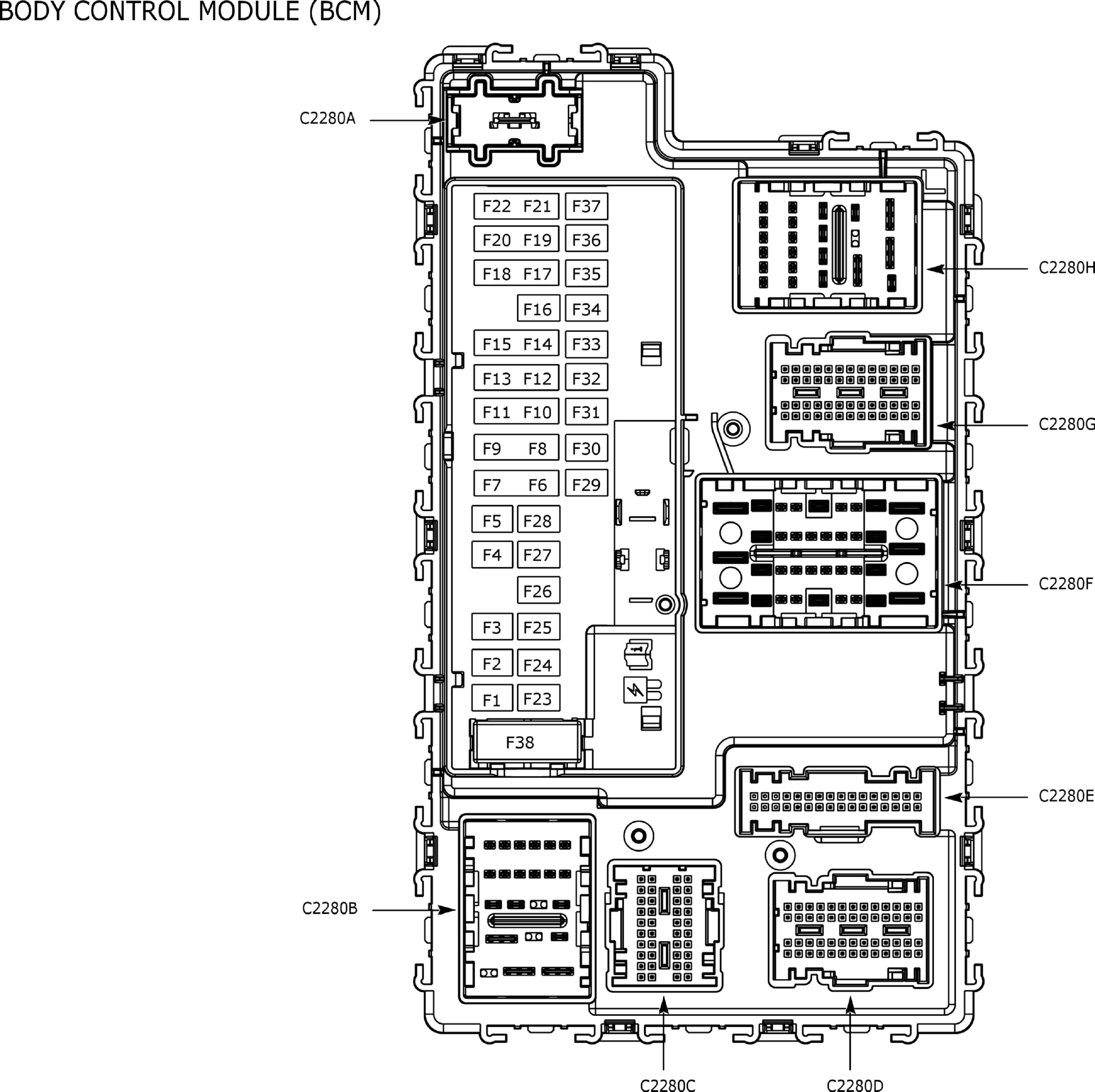

BODY CONTROL MODULE FUSE IDENTIFICATION LEGEND
| Fuse | Amps | Circuits protected |
|---|---|---|
| F1 | 10 | Interior lighting |
| F2 | 7.5 | Driver Seat Module (DSM), Driver side front seat control switch |
| F3 | 20 | Front door latch release motor LH |
| F5 | 20 | Subwoofer amplifier, Audio Digital Signal Processing (DSP) module |
| F10 | 5 | Keyless entry keypad, Rear Gate Trunk Module (RGTM), Telematic Control Unit module (TCU) |
| F12 | 7.5 | Front Controls Interface Module (FCIM), Gear Shift Module (GSM) |
| F13 | 7.5 | Gateway module, Steering Column Control Module (SCCM), Instrument Panel Cluster (IPC) |
| F14 | 10 | Battery Energy Control Module (BECM) |
| F15 | 10 | Gateway module |
| F16 | 15 | Luggage compartment lid latch |
| F17 | 5 | Global Positioning System Module (GPSM) - Brazil |
| F18 | 5 | Ignition switch, Ignition switch-push button start |
| F19 | 5 | Passenger Airbag Deactivation (PAD) switch, Selector lever assembly |
| F20 | 5 | Headlamp control module |
| F21 | 5 | In-vehicle temperature and humidity sensor, Rear heated seat module |
| F22 | 5 | Occupant Classification System Module (OCSM) |
| F24 | 30 | Door latch release motors |
| F25 | 30 | Driver Door Module (DDM) |
| F26 | 30 | Passenger Door Module (PDM) |
| F27 | 30 | Roof opening panel module |
| F28 | 20 | Audio Digital Signal Processing (DSP) module |
| F29 | 30 | Rear Door Module (RDM) LH |
| F30 | 30 | Rear Door Module (RDM) RH |
| F31 | 10 | Roof opening panel module, Panoramic roof opening panel primary motor, Direct Current/Alternating Current (DC/AC) inverter |
| F32 | 10 | Global Positioning System Module (GPSM), Accessory Protocol Interface Module (APIM), Front Control/Display Interface Module (FCDIM) Proximity warning radar unit, Radio Transceiver Module (RTM) |
| F33 | 20 | Digital Audio Control Module C (DACMC), Audio front Control Module (ACM), Compact disc player |
| F34 | 30 | Run/Start Relay |
| F35 | 5 | Restraints Control Module (RCM) |
| F36 | 15 | Vehicle Dynamics Module (VDM), Auto-dimming interior mirror |
| F37 | 15 | All Wheel Drive (AWD) relay module, Heated steering wheel module |
| F38 | 30 | Rear window blind module |
