Rear Brake Flexible Hose: Removal

NOTE: Do not spill brake fluid on painted or plastic surfaces or damage to the surface may occur. If brake fluid is spilled onto a painted or plastic surface, immediately wash the surface with water.

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove the wheel and tire. Refer to: Wheel and Tire .

2.

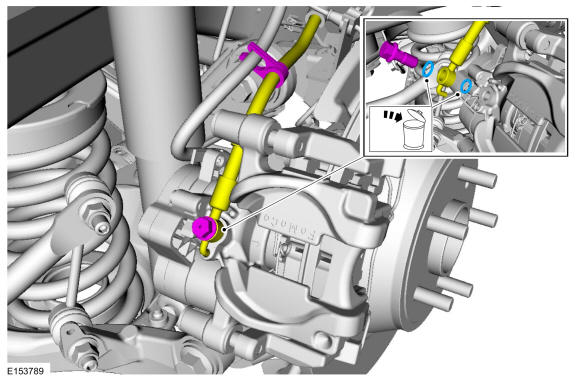

Remove the flow bolt, disconnect the brake hose and detach the routing bracket from the wiring harness. Discard the washers.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

3.

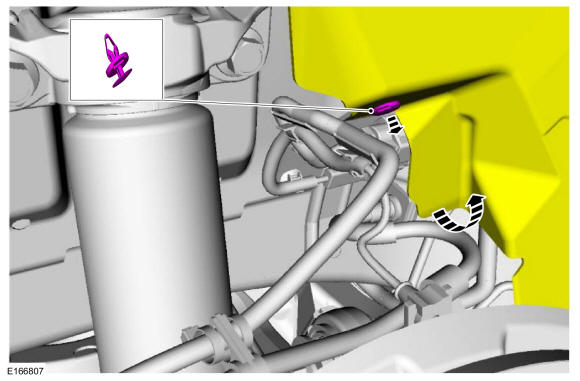

Remove the pin-type retainer and position the splash shield aside.

Courtesy of FORD MOTOR COMPANY

4.

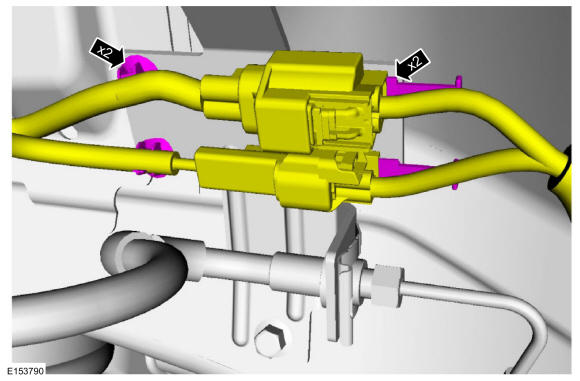

Detach the pin-type retainers and the electrical connectors from the brake hose bracket.

Courtesy of FORD MOTOR COMPANY

5.

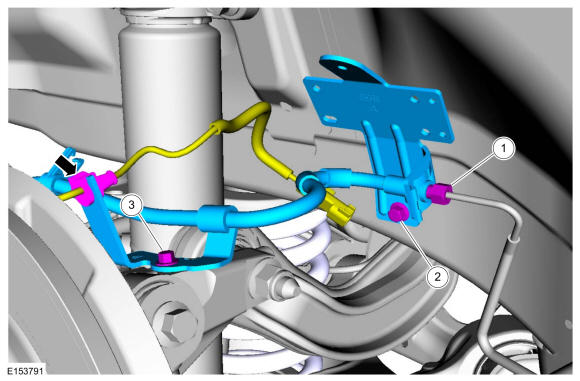

Remove the brake flexible hose.
- 1.

  Disconnect the brake tube.
  Torque: 159 lb.in (18 Nm)
- 2.

  Remove the bolt.
  Torque: 18 lb.ft (25 Nm)
- 3.

  Remove the bolt, detach the wheel speed sensor wiring and remove the brake flexible hose.
  Torque: 124 lb.in (14 Nm)

Courtesy of FORD MOTOR COMPANY
