Rear Brake Disc: Removal
NOTE:
Removal steps in this procedure may contain installation instructions.
- 1.WARNING: Service actions on vehicles equipped with electronic parking brakes may cause unexpected parking brake application, which could result in injury to hands or fingers. Deactivate the electronic parking brake system prior to servicing or removing rear brake components. Failure to follow this instruction may result in serious personal injury.
Activate the EPB service mode. Refer to: Electronic Parking Brake (EPB) Service Mode Activation and Deactivation .
- 2.
Remove the wheel and tire. Refer to: Wheel and Tire .
- 3.

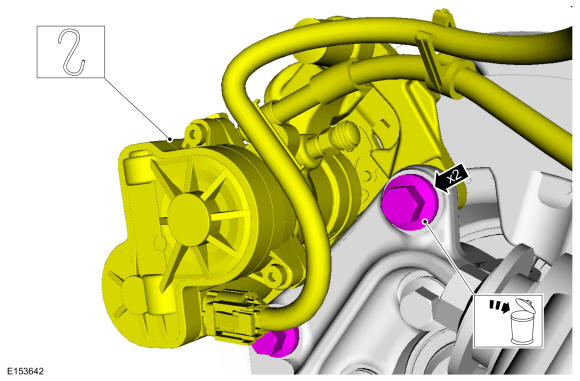

Remove the bolts and position the brake caliper and anchor plate assembly aside. Discard the bolts.Torque: 66 lb.ft (90 Nm)

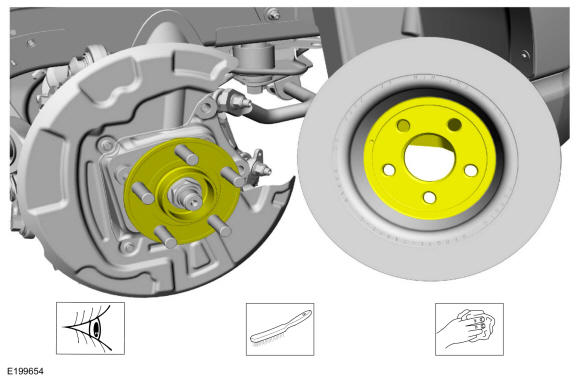

- 5.NOTE: Make sure that the mating faces are clean and free of foreign material.
Clean the brake disc-to-wheel hub mating surfaces.
Material: Motorcraft ® Metal Brake Parts Cleaner / PM-4-A, PM-4-B
