Rear Brake Disc Shield: Removal
NOTE:
Removal steps in this procedure may contain installation details.
1.
Remove the brake disc. Refer to:
Brake Disc
.
2.

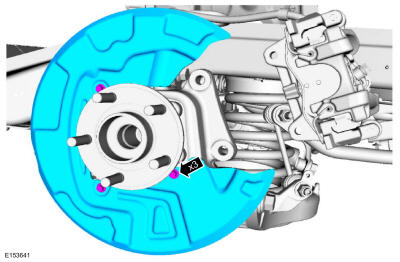

Remove the bolts and the brake disc shield.
Torque: 106 lb.in (12 Nm)
Courtesy of FORD MOTOR COMPANY
