Fender Splash Shield: Removal

NOTE: LH (left-hand) side shown, RH (right-hand) side similar.

  1. 1.

    WARNING: Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions .

  1. 2.

    Remove the wheel and tire. Refer to: Wheel and Tire .

  1. 3.

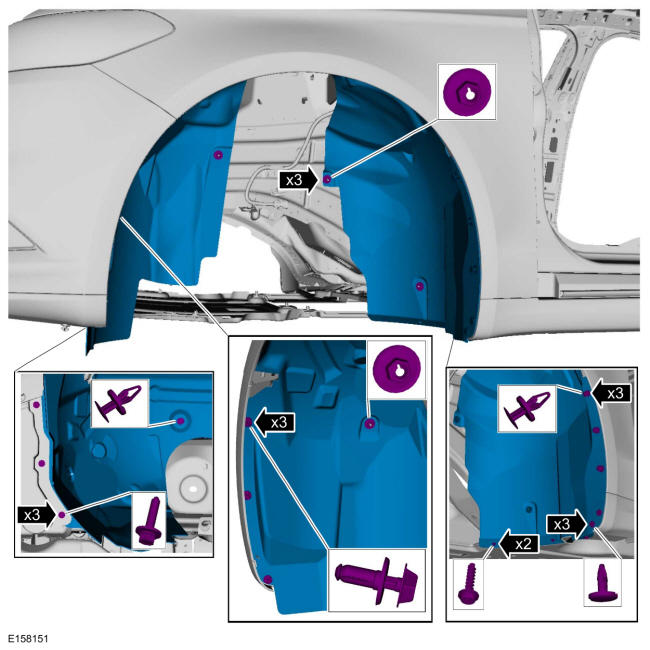

    Remove the fasteners and the fender splash shield.
GFD72040Courtesy of FORD MOTOR COMPANY
