Engine Front Undershield

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

Engine Front Undershield

  1. 1.

    Remove the screws, grommets and the engine front undershield.

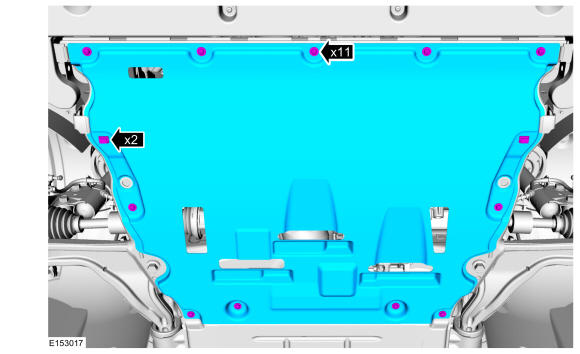

GFD70460Courtesy of FORD MOTOR COMPANY
