Cowl Panel Grille: Removal
- 1.WARNING: Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.
Refer to: Health and Safety Precautions .
- 2.
On both sides, remove the windshield wiper pivot arm. Refer to: Windshield Wiper Pivot Arm .
- 3.
- Detach the windshield washer hose coupling and the retainer.

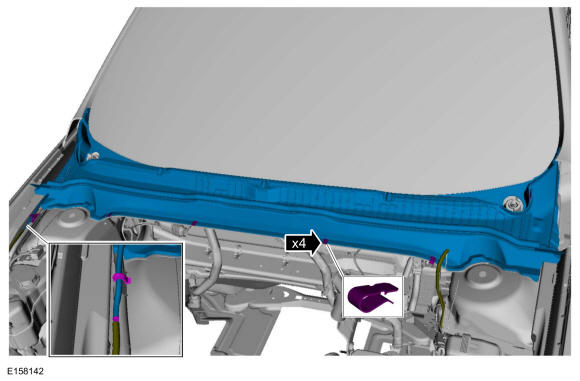

- Remove the clips and the cowl panel grille.
