Luggage Compartment Lid Alignment

Check

1. 1.

   Check the body to luggage compartment lid dimensions. Refer to: Body and Frame .

Adjustment

1. 1.

   Remove the luggage compartment lid latch. Refer to: Luggage Compartment Lid Latch .

1. 2.

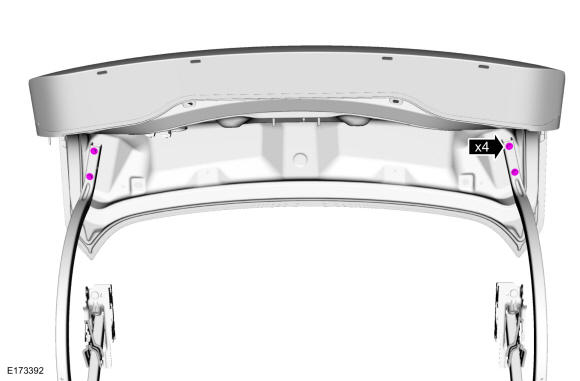

   Loosen the bolts to permit movement of the luggage compartment lid.Loosen: : 2 turn(s)

Courtesy of FORD MOTOR COMPANY

1. 3.

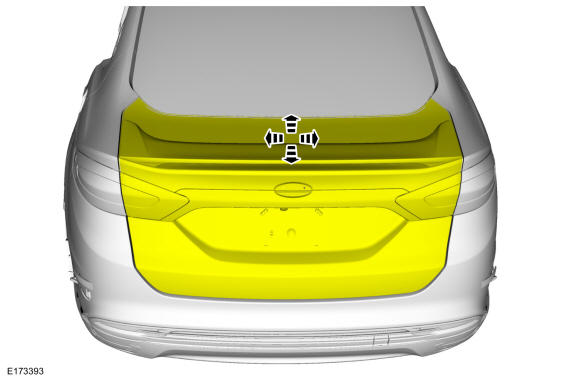

   Adjust the luggage compartment lid to specifications. Refer to: Body and Frame .

Courtesy of FORD MOTOR COMPANY

1. 4.

   Tighten the bolts.

   Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

1. 5.

   Check the luggage compartment lid to body dimensions. Refer to: Body and Frame .

Courtesy of FORD MOTOR COMPANY

1. 6.

   Install the luggage compartment lid latch. Refer to: Luggage Compartment Lid Latch .
