Hood Alignment

Adjustment

NOTE: Removal steps in this procedure may contain installation details.

All alignments

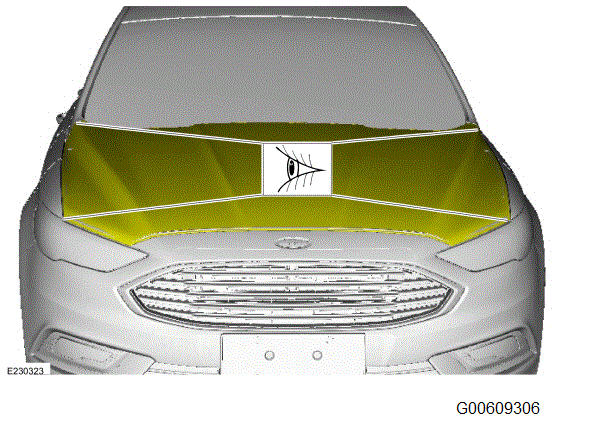

  1. Inspect the hood-to-body dimensions.

    Refer to: Body and Frame (501-26).

    G00609306Courtesy of FORD MOTOR COMPANY

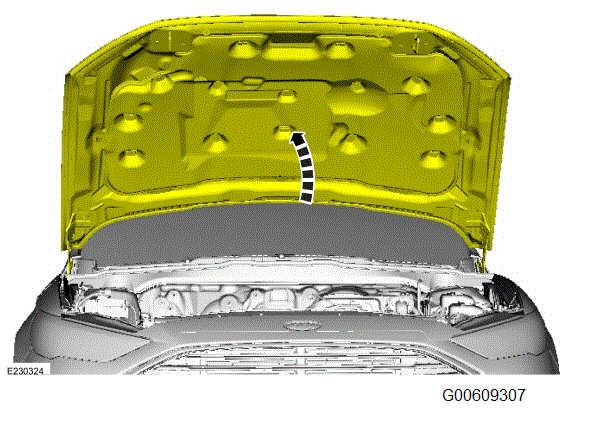

  2. Open the hood.
    G00609307Courtesy of FORD MOTOR COMPANY
  3. Remove the hood latch.

    Refer to: HOOD LATCH (501-14 Handles, Locks, Latches and Entry Systems, Removal and Installation).

    4. Hood fore and aft, left and right alignments

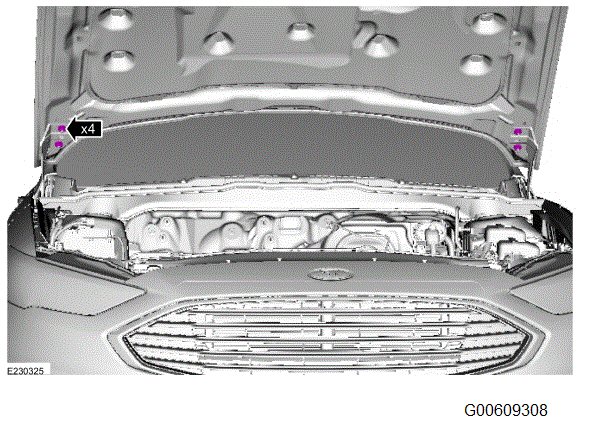

  4. Loosen the nuts enough to permit movement of the hood.
    G00609308Courtesy of FORD MOTOR COMPANY
  5. Carefully close the hood.
    G00609309Courtesy of FORD MOTOR COMPANY

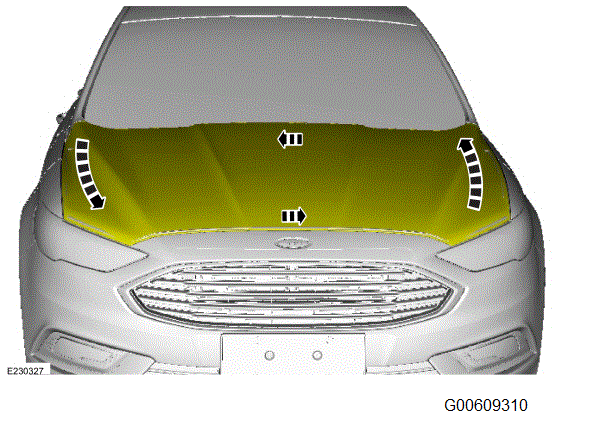

  6. Adjust the hood to specification.

    Refer to: Body and Frame (501-26).

    G00609310Courtesy of FORD MOTOR COMPANY

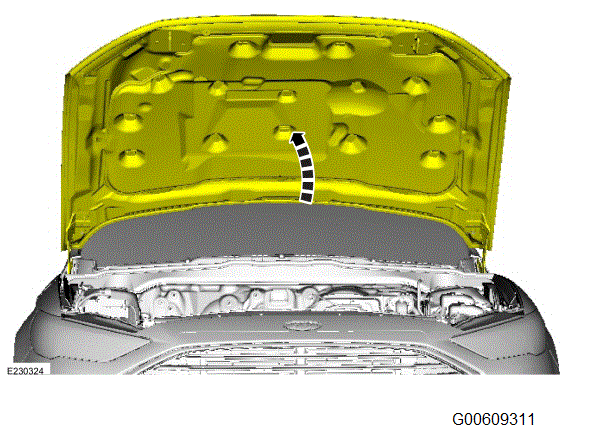

  7. Carefully open the hood.
    G00609311Courtesy of FORD MOTOR COMPANY
  8. Tighten the nuts.

    Torque: 18 lb.ft (25 Nm)

    G00609312Courtesy of FORD MOTOR COMPANY

    9. Hood front up and down alignments

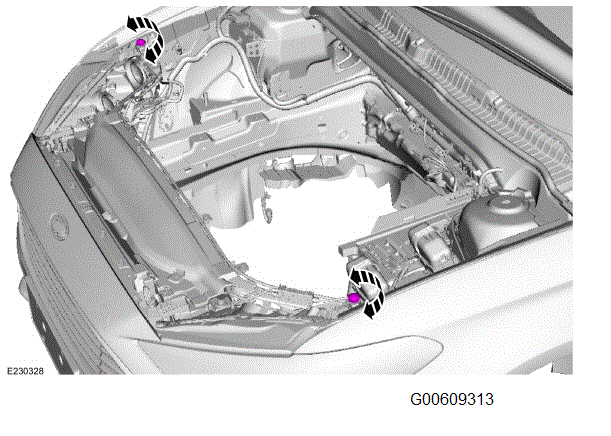

  9. Adjust the bump stop rubber.
    G00609313Courtesy of FORD MOTOR COMPANY

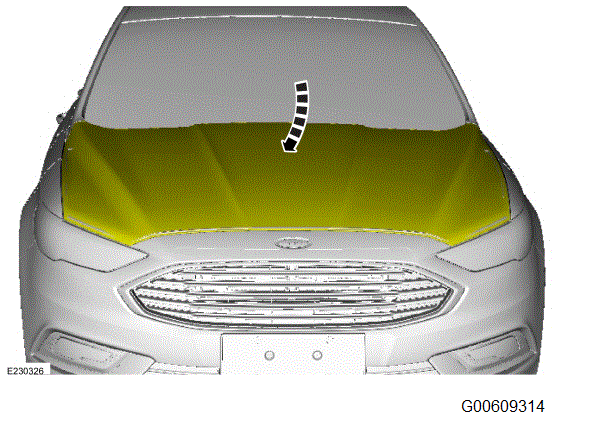

  10. Carefully close the hood.
    G00609314Courtesy of FORD MOTOR COMPANY
  11. Adjust the hood to specification.

    Refer to: Body and Frame (501-26).

    G00609315Courtesy of FORD MOTOR COMPANY

    12. All alignments

  12. Install the hood latch.

    Refer to: HOOD LATCH (501-14 Handles, Locks, Latches and Entry Systems, Removal and Installation).

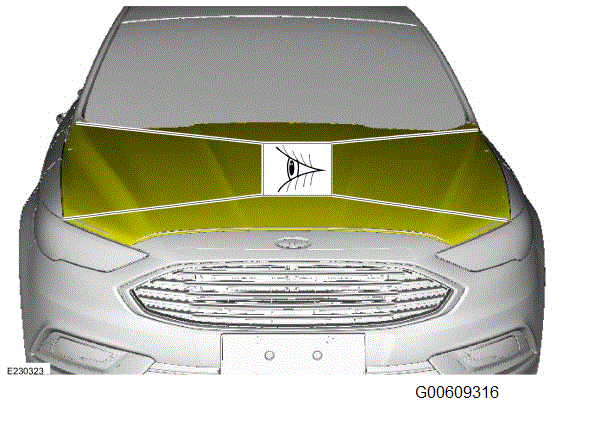

  13. Inspect the body-to-hood dimensions.

    Refer to: Body and Frame (501-26).

    G00609316Courtesy of FORD MOTOR COMPANY
