Azimuth System Check

WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

Check

1.

Turn the ignition ON, engine OFF.

GFD69134

Courtesy of FORD MOTOR COMPANY

2.

Set the parking brake on.

3.

Place the gearshift in DRIVE (D).

4.

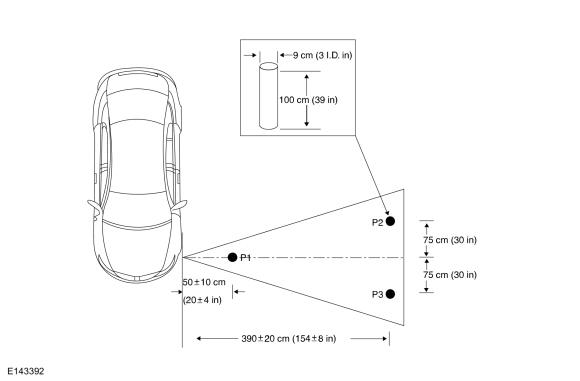

Verify the parking aid system detects the specified object when placed within the 3 specified locations (P1, P2, P3) and record the distances.

5.

Confirm the recorded distances are within the specification ranges.

6.

If the active park assist system does not detect the object, Refer to: Parking Aid .
