Audio System/Navigation - Fusion With Touchscreen/Without SONY
WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

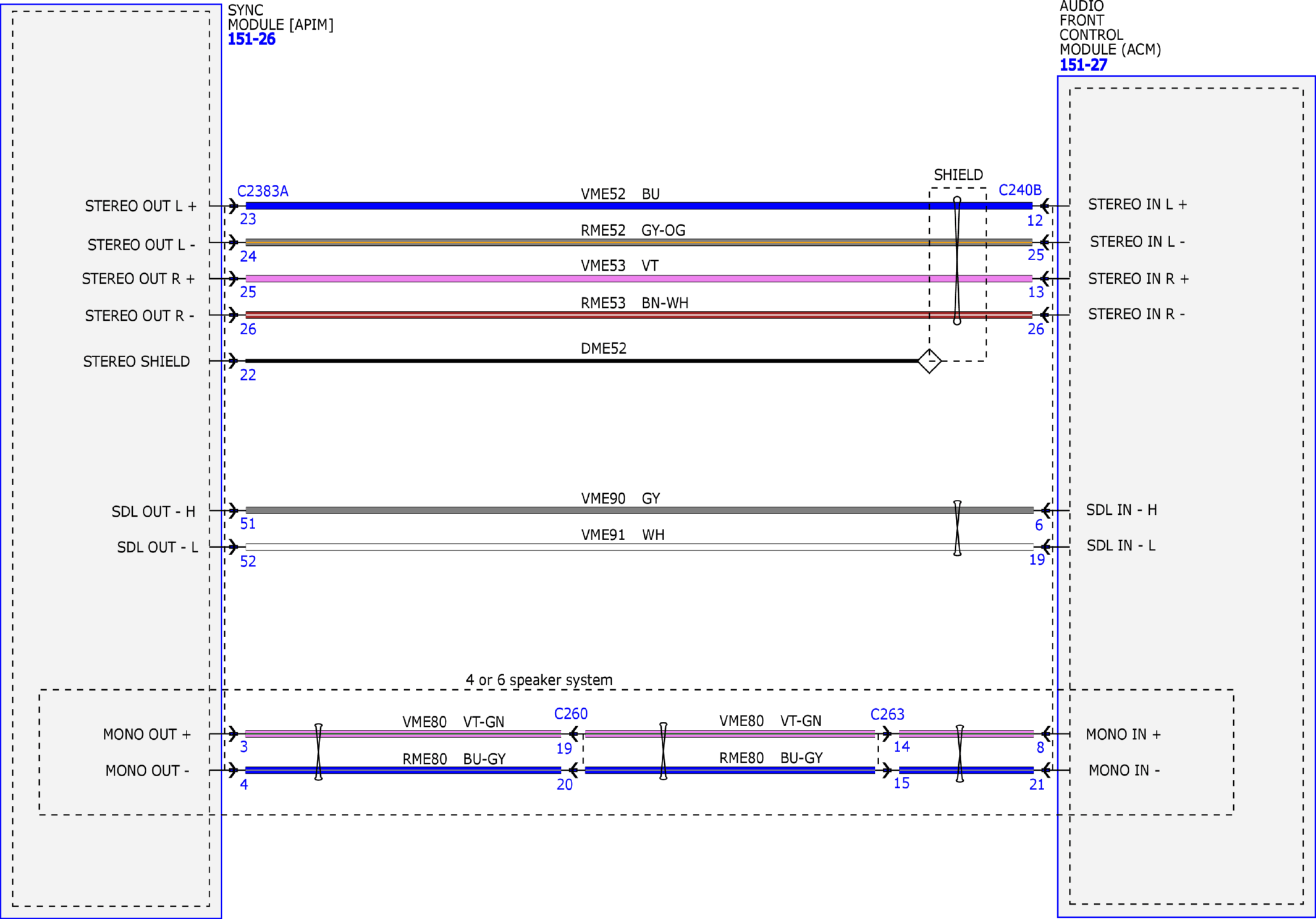

Fig 1: Audio System/Navigation - Fusion With Touchscreen/Without Sony Wiring Diagram (1 of 9)
Courtesy of FORD MOTOR COMPANY

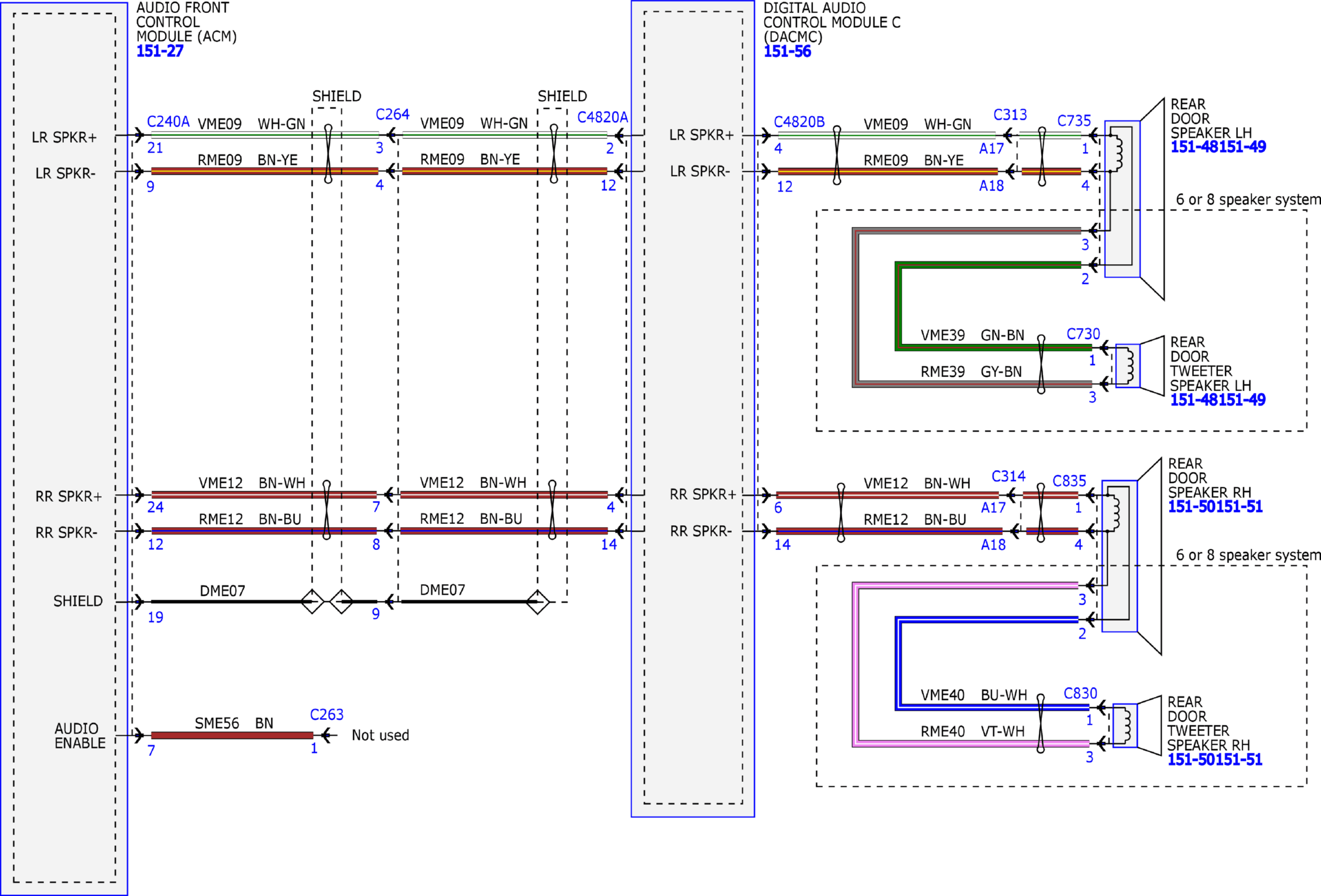

Fig 2: Audio System/Navigation - Fusion With Touchscreen/Without Sony Wiring Diagram (2 of 9)
Courtesy of FORD MOTOR COMPANY

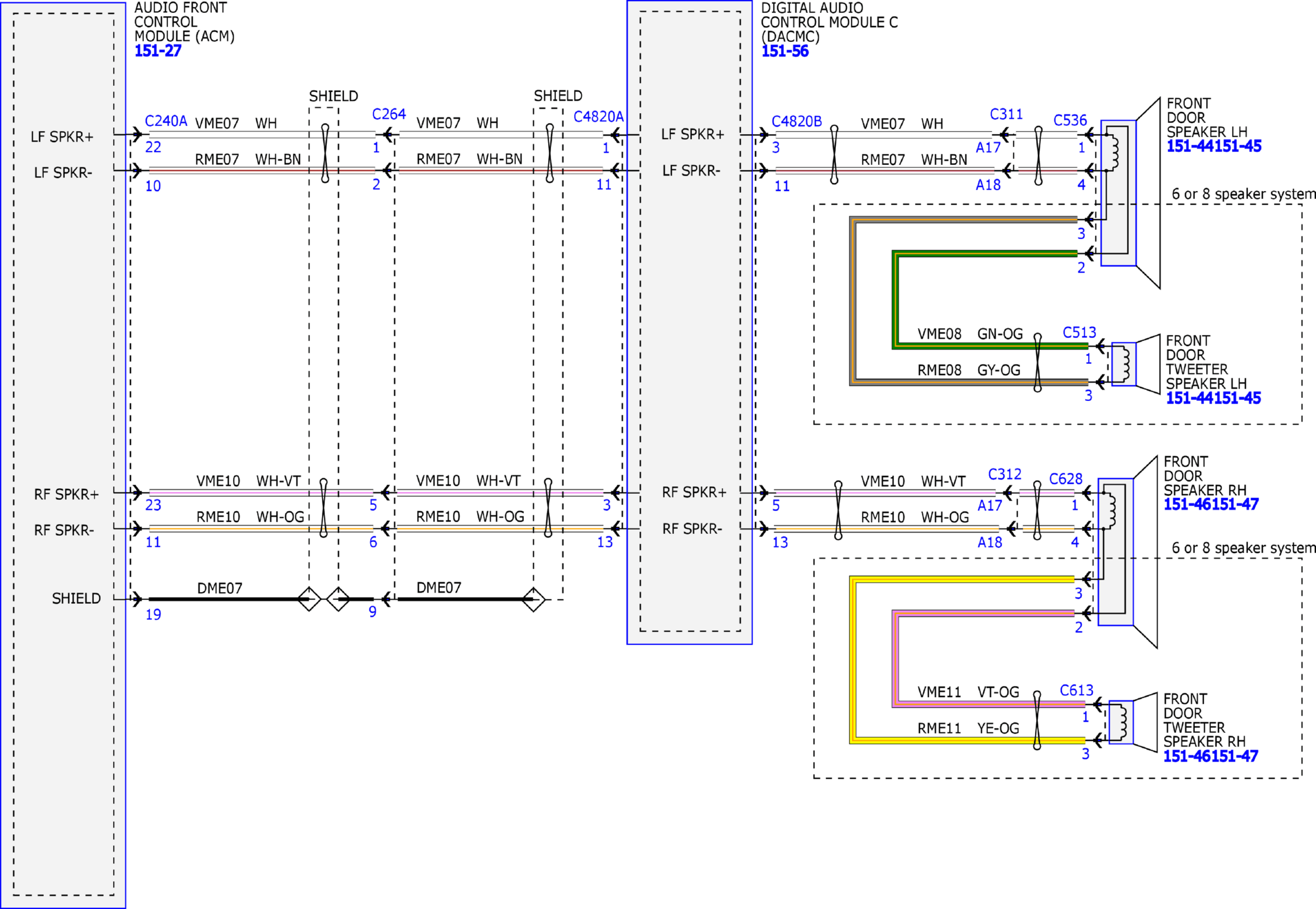

Fig 3: Audio System/Navigation - Fusion With Touchscreen/Without Sony Wiring Diagram (3 of 9)
Courtesy of FORD MOTOR COMPANY

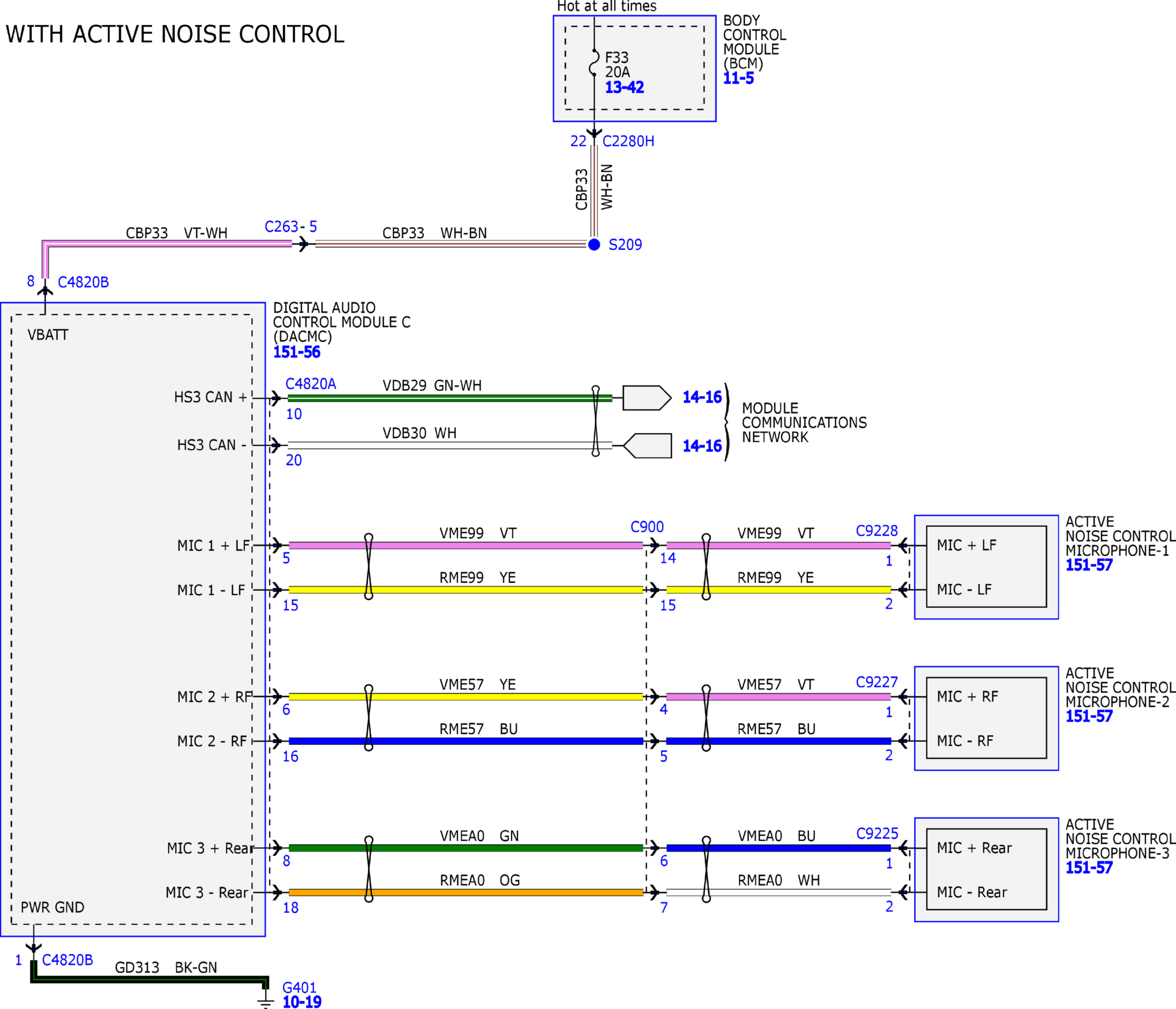

Fig 4: Audio System/Navigation - Fusion With Touchscreen/Without Sony Wiring Diagram (4 of 9)
Courtesy of FORD MOTOR COMPANY

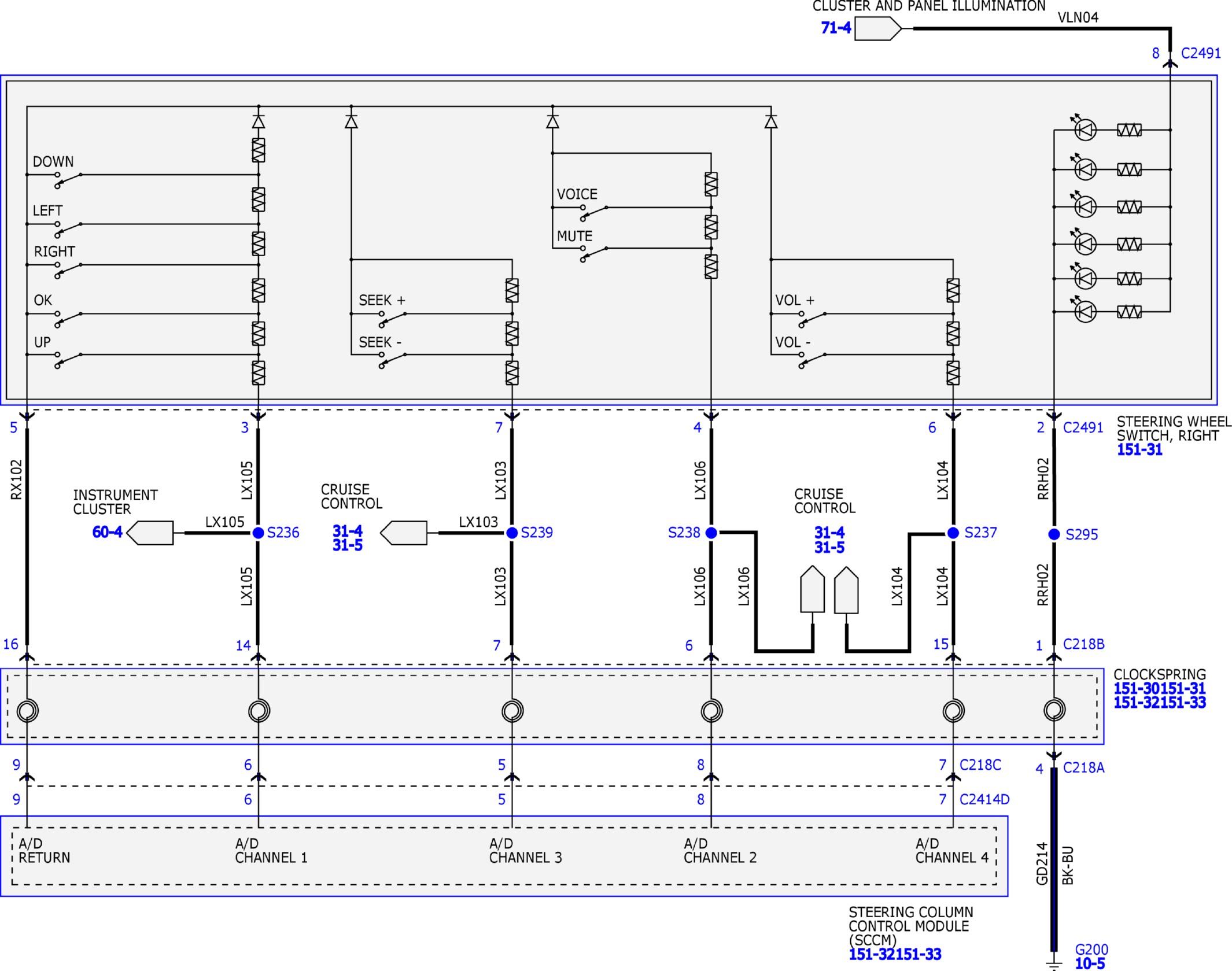

Fig 5: Audio System/Navigation - Fusion With Touchscreen/Without Sony Wiring Diagram (5 of 9)
Courtesy of FORD MOTOR COMPANY

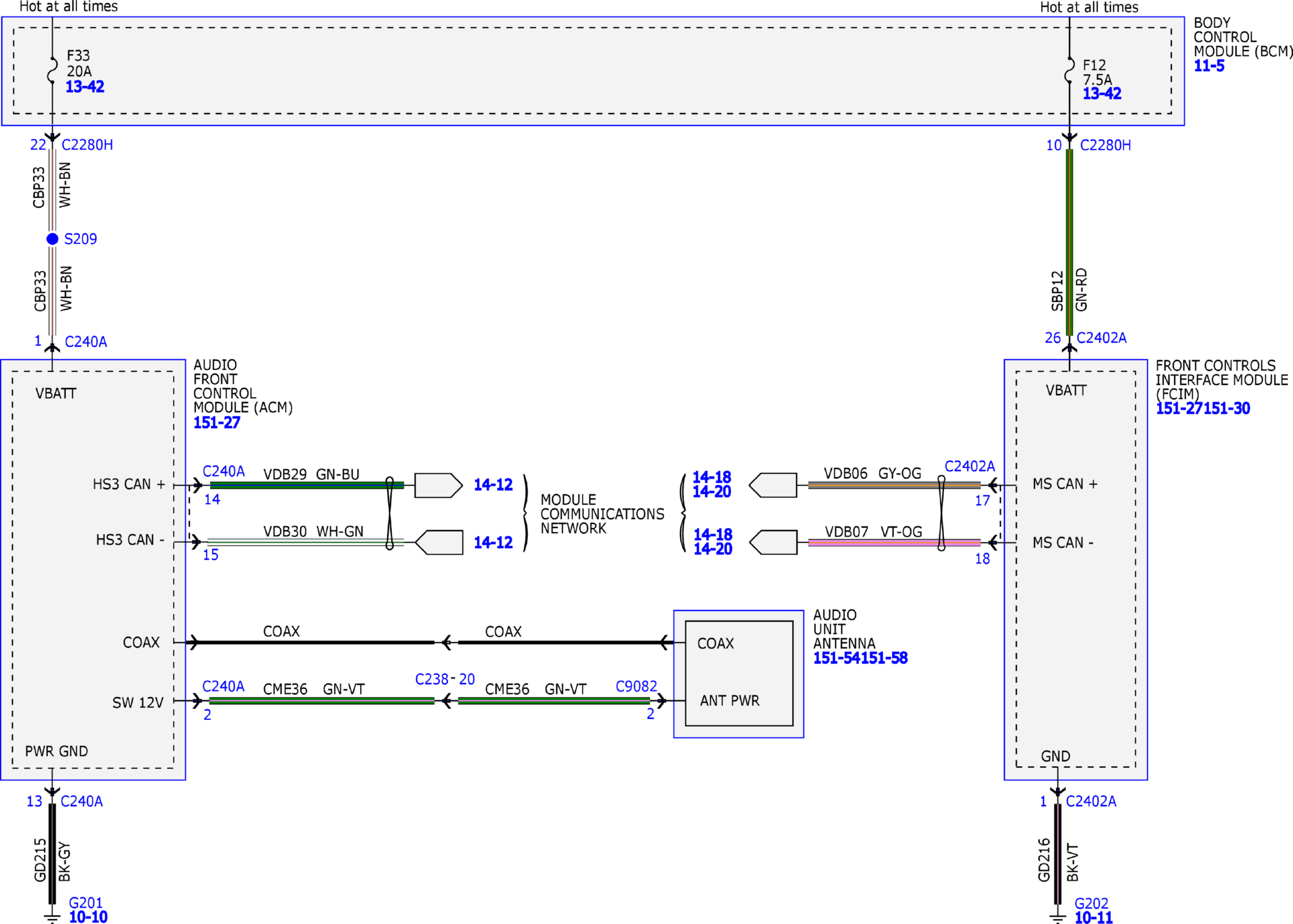

Fig 6: Audio System/Navigation - Fusion With Touchscreen/Without Sony Wiring Diagram (6 of 9)
Courtesy of FORD MOTOR COMPANY

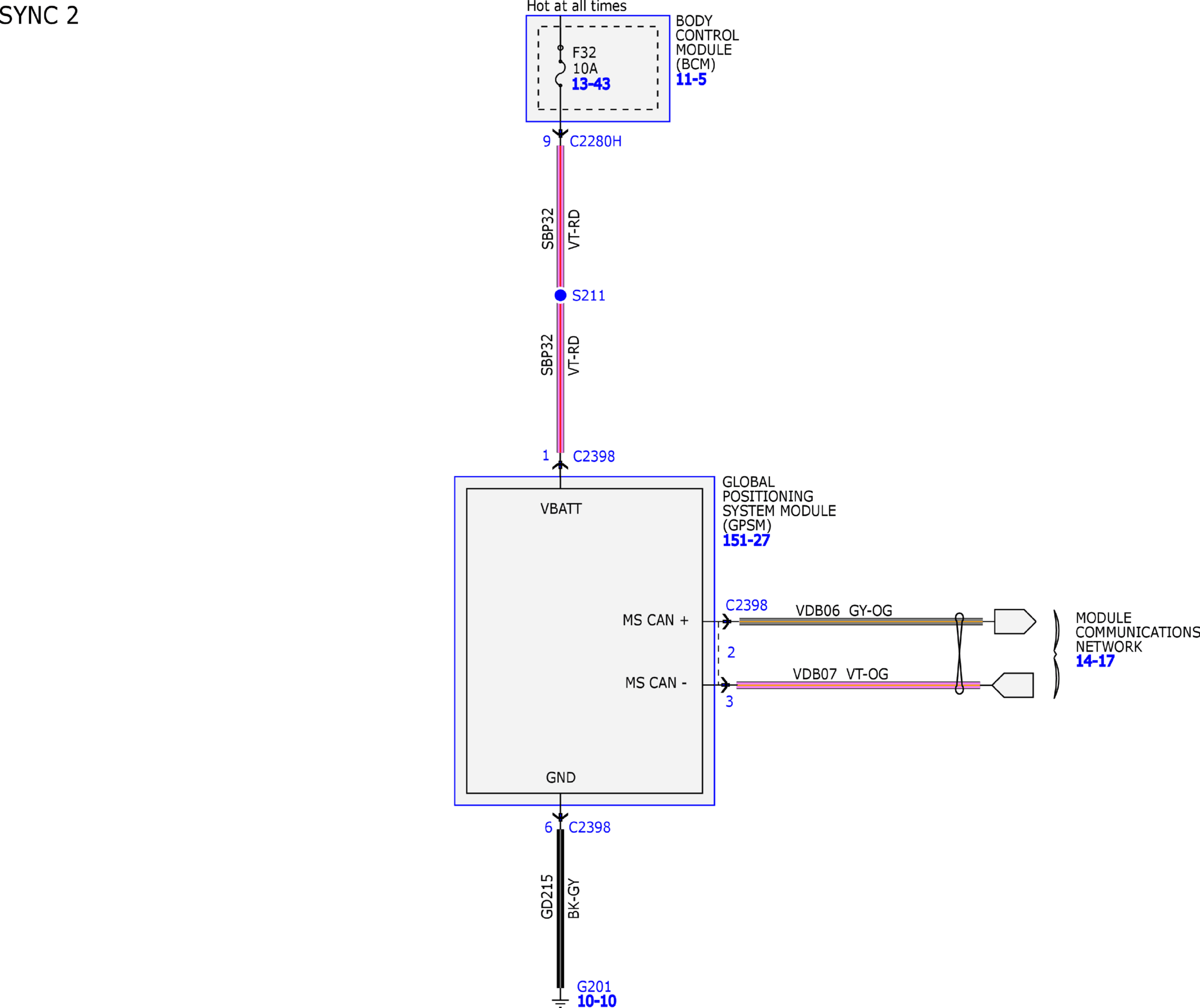

Fig 7: Audio System/Navigation - Fusion With Touchscreen/Without Sony Wiring Diagram (7 of 9)
Courtesy of FORD MOTOR COMPANY
Fig 8: Audio System/Navigation - Fusion With Touchscreen/Without Sony Wiring Diagram (8 of 9)
Courtesy of FORD MOTOR COMPANY
Fig 9: Audio System/Navigation - Fusion With Touchscreen/Without Sony Wiring Diagram (9 of 9)
