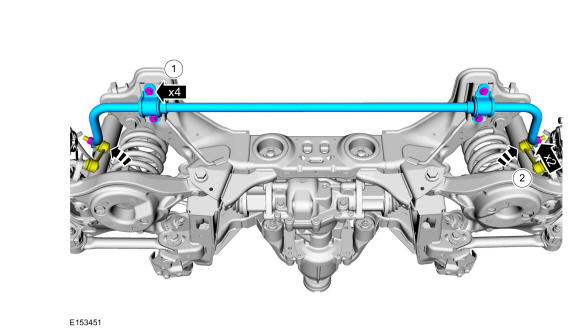

Rear Stabilizer Bar: Installation

Press the rear stabilizer bar brackets in place onto the rear stabilizer bar bushings.

• 1.

  Position the rear stabilizer bar and install the new rear stabilizer bar bracket bolts.

  Torque: 52 lb.ft (70 Nm)

• 2.

  Position the rear stabilizer bar links and install the new rear stabilizer bar link nuts.

  Torque: 76 lb.ft (103 Nm)
