Rear Stabilizer Bar Link: Removal

NOTE: Removal steps in this procedure may contain installation details.

1.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

2.

NOTE: Do not use power tools to remove or install the stabilizer bar link nuts. Damage to the stabilizer bar link ball joints and boots may occur.

NOTE: Make sure that the ball joint ball does not rotate.
- Remove and discard the rear stabilizer link nuts and remove the rear stabilizer link.
  Torque: 76 lb.ft (103 Nm)

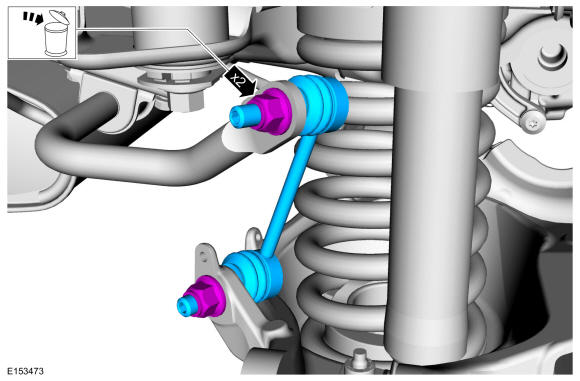

GFD70501

Courtesy of FORD MOTOR COMPANY
