Active Park Assist Switch: Removal

WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

  1. 1.

    WARNING: Before beginning any service procedure in this article, refer to Health and Safety Precautions . Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions .

  1. 2.

    Remove the console top trim panel. Refer to: Floor Console .

  1. 3.

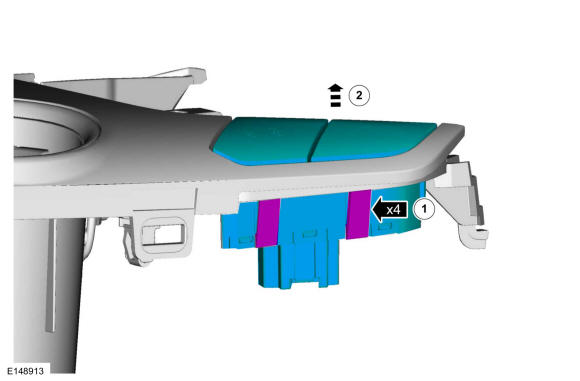

    NOTE: Two tabs on each side.

    1. 1.

      Release the tabs.

    1. 2.

      Remove the active park assist switch.
GFD71660Courtesy of FORD MOTOR COMPANY
