Connector End View (C328) - INLINE
WARNING: This page is about a different car, the 2017 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Inline C328
Description
INLINE
Color
Base Part #
Service Pigtail
See Below
MALE
Harness 14B079
FEMALE
Harness 14A005
| Pin | Circuit | Gauge | Qualifier |
| 1 | CHS31 (YE) | 26 | 14B079 |
| 1 | CHS31 (YE-OG) | 22 | 14A005 |
| 2 | LME89 (YE-BU) | 22 | |
| 3 | CHS48 (YE) | 22 | 14A005 |
| 3 | CHS48 (YE) | 26 | 14B079 |
| 4 | CHS49 (VT) | 22 | 14A005 |
| 4 | CHS49 (VT) | 26 | 14B079 |
| 5 | CHS80 (BU-OG) | 22 | 14A005 |
| 5 | CHS80 (BU-OG) | 26 | 14B079 |
| 6 | RME89 (WH-BU) | 22 | |
| 7 | CHS52 (BU) | 22 | 14A005 |
| 7 | CHS52 (BU) | 26 | 14B079 |
| 8 | CHS53 (WH) | 26 | 14B079 |
| 8 | CHS53 (WH-BN) | 22 | 14A005 |
| 9 | * | * | |
| 10 | * | * | |
| 11 | * | * | |
| 12 | GD382 (BK) | 26 | 14B079 |
| 12 | GD382 (BK-GY) | 22 | 14A005 |

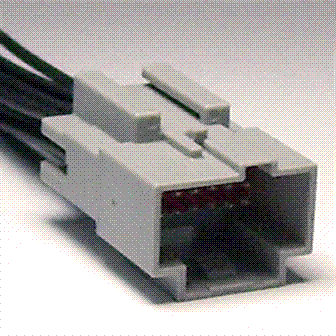

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1185 |
Service Part Number: BU2Z-14S411-AJA Gauge: 18 Pin material: Tin (greased) Cavities: 12 Vehicle Uses: Camera - Reverse Park Aid Switch - Gear Shift Select/Neutral Safety |
| Pigtail Kit Part Number WPT-949 |
Service Part Number: 3U2Z-14S411-BMAB Gauge: 18 Pin material: Silver Cavities: 12 Vehicle Uses: Control - Navigation Display Module - Driver Door Module - Front Interface Monitor - Video/DVD Switch - Gear Shift Select/Neutral Safety |
