Connector End View (C218E) - CLOCKSPRING

WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

Connector:C218E

Description

CLOCKSPRING

Color

Harness

PIA

Base Part #

14A664

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	* (*)	*	CTRL MOD. - HEATER STEERING WHEEL # HEATER ELEMENT
2	* (*)	*	CTRL MOD. - HEATER STEERING WHEEL # HEATER ELEMENT

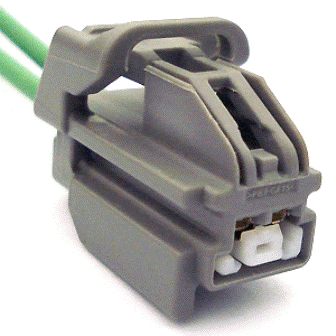

Available Pigtail Kits

Pigtail Kit Part Number

WPT-965

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-AEB

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Actuator - Door Lock - Decklid/Liftgate

Element - Heated Seat

Lamp - CHMSL (Center High Mount Stop Lamp)

Module - Heated Seat

Motor - Adjustable Pedal

Motor - Decklid / Liftgate

Sensor - Air Charge Temperature

Sensor - EATC In Car Temperature

Speaker - Subwoofer

Switch - Adjustable Pedal

Switch - Brake Deactivation

Switch - Brake Pressure

Switch - Clutch Pedal Position

Switch - Stop Lamp

Switch - Third Row Power Folding Seat
