Connector End View (C218B) - CLOCKSPRING

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

RRH02 (*)

*

ILLUMINATION GROUND

2

*

*

Not Used

3

*

*

Not Used

4

CRH02 (*)

*

SWITCH - HORN

5

CET42 (*)

*

SWITCH - TRANSMISSION SELECT SHIFT # DOWN (SST)

6

LX103 (*)

*

SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 3

7

LX104 (*)

*

SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 4

8

RX101 (*)

*

SWITCH - STEERING WHEEL CONTROLS # RETURN LEFT (SW GND LEFT)

9

*

*

Not Used

10

*

*

Not Used

11

VLN04 (*)

*

ILLUMINATION FEED

12

CET43 (*)

*

SWITCH - TRANSMISSION SELECT SHIFT # UP (SST)

13

RE407 (*)

*

CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (SIGRTN)

14

LX105 (*)

*

SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 1

15

LX106 (*)

*

SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 2

16

RX102 (*)

*

SWITCH - STEERING WHEEL CONTROLS # RETURN RIGHT (SW GND RIGHT)

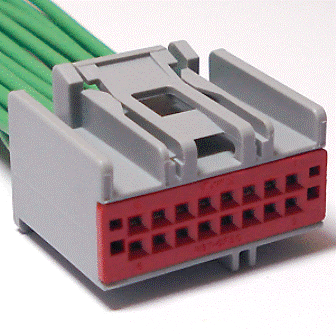

Available Pigtail Kits

Pigtail Kit Part Number

WPT-968

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-DPB

Gauge:

18

Pin material:

Silver

Cavities:

16

Vehicle Uses

Module - Reverse Park Aid (RPA)

Radio

Switch - Power Window - Driver

Switch - Reverse Park Aid
