Transmission Controls

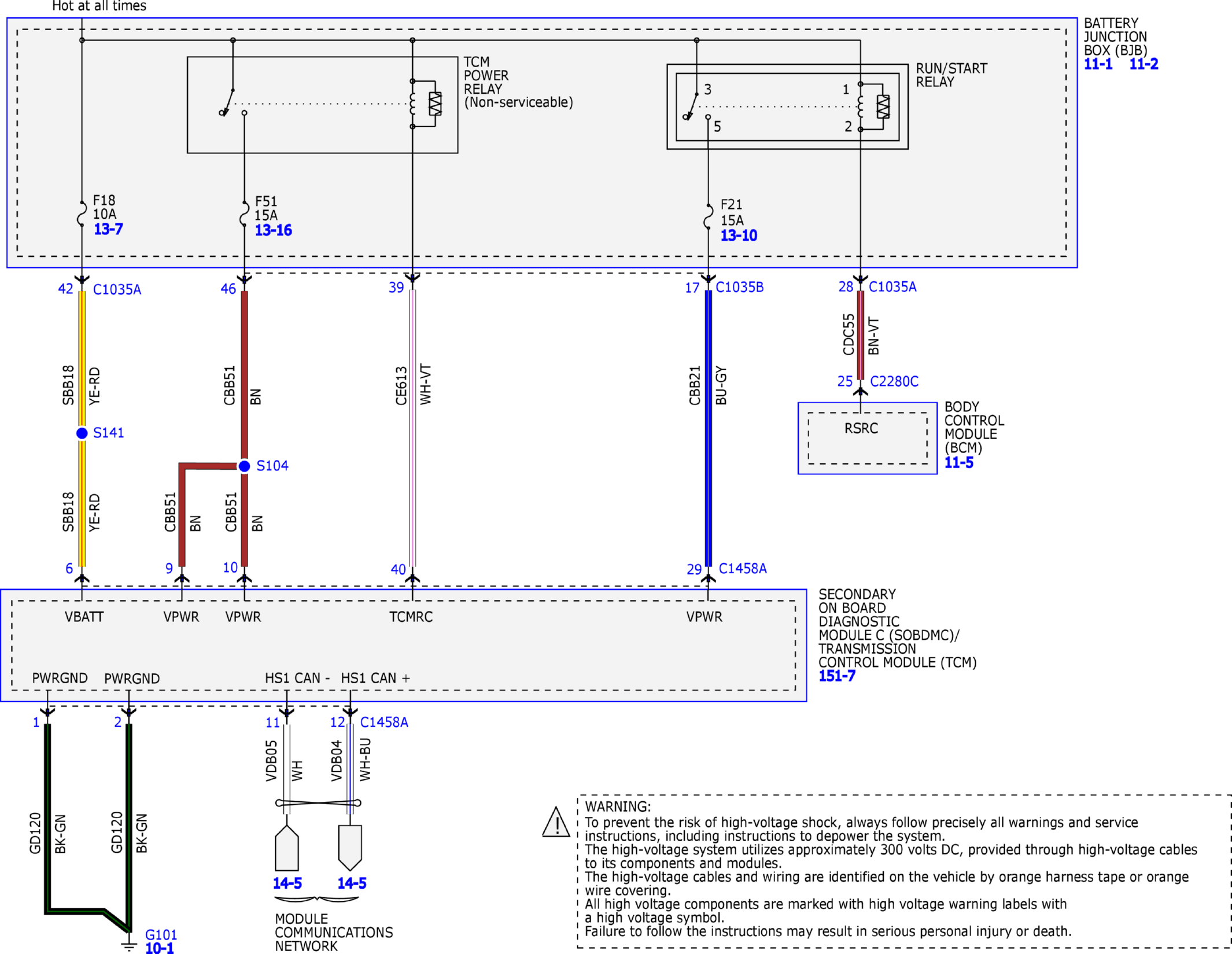

Fig 1: Transmission Controls Wiring Diagram (1 of 8)
GFDW51505Courtesy of FORD MOTOR COMPANY

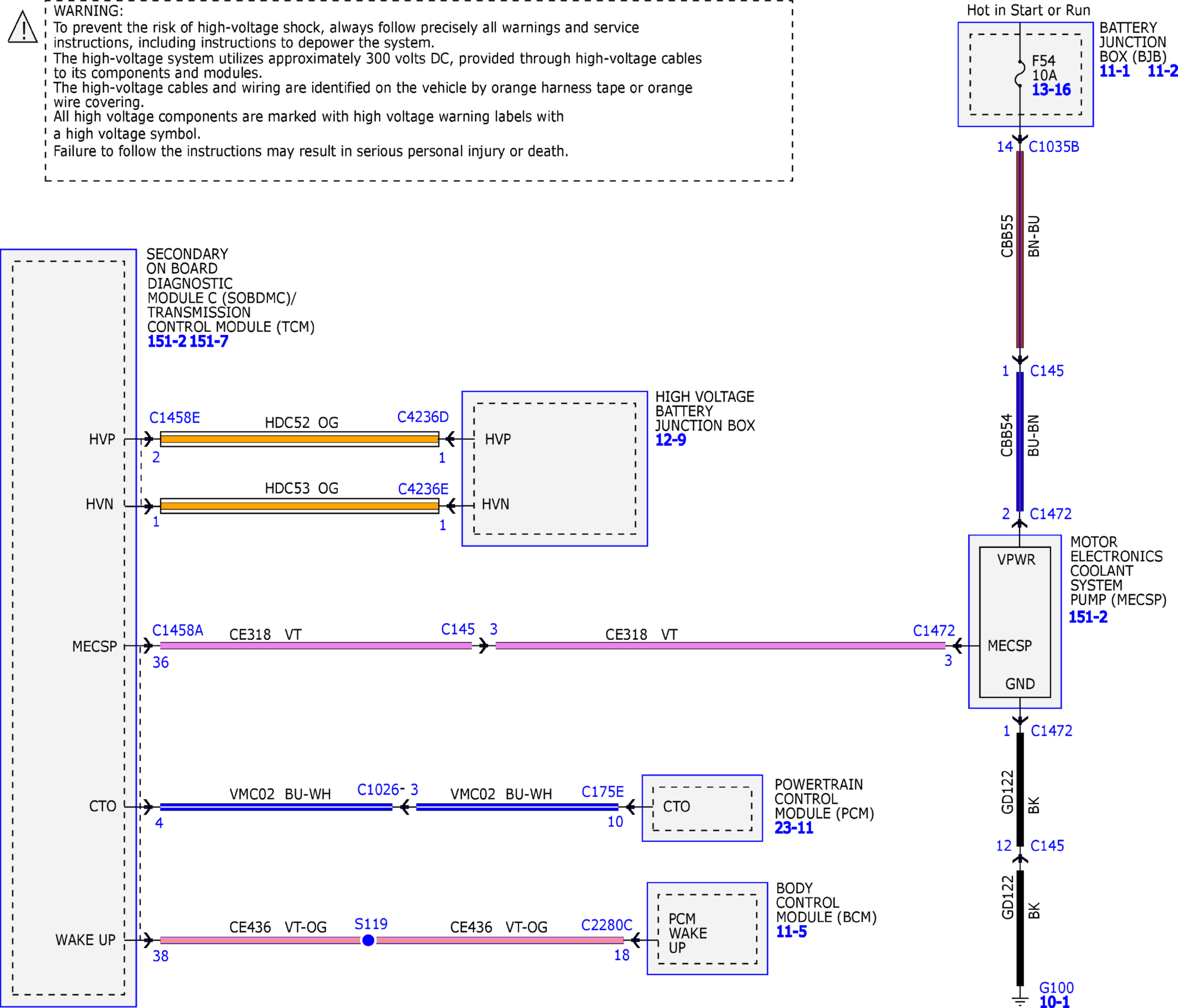

Fig 2: Transmission Controls Wiring Diagram (2 of 8)
GFDW51506Courtesy of FORD MOTOR COMPANY

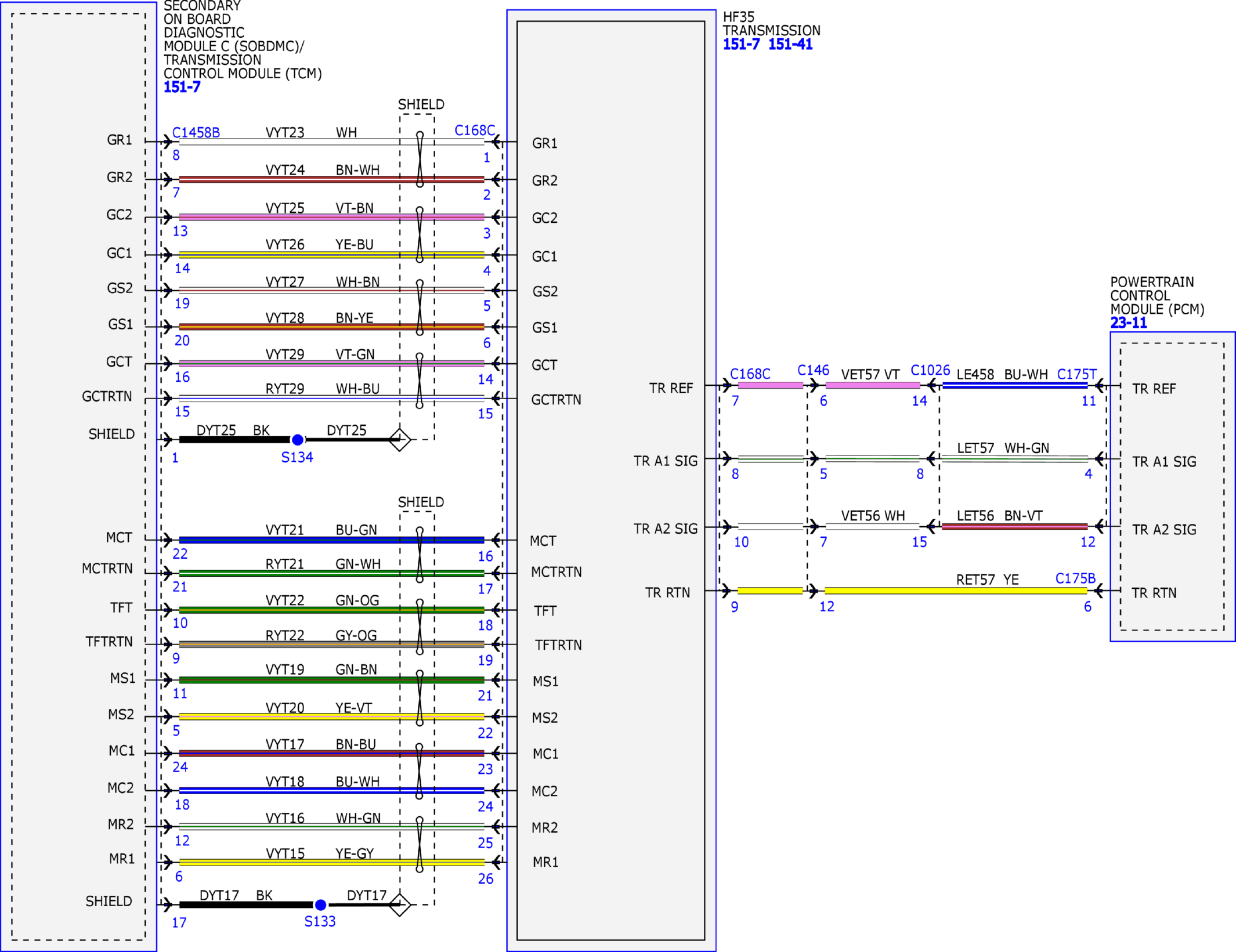

Fig 3: Transmission Controls Wiring Diagram (3 of 8)
GFDW51507Courtesy of FORD MOTOR COMPANY

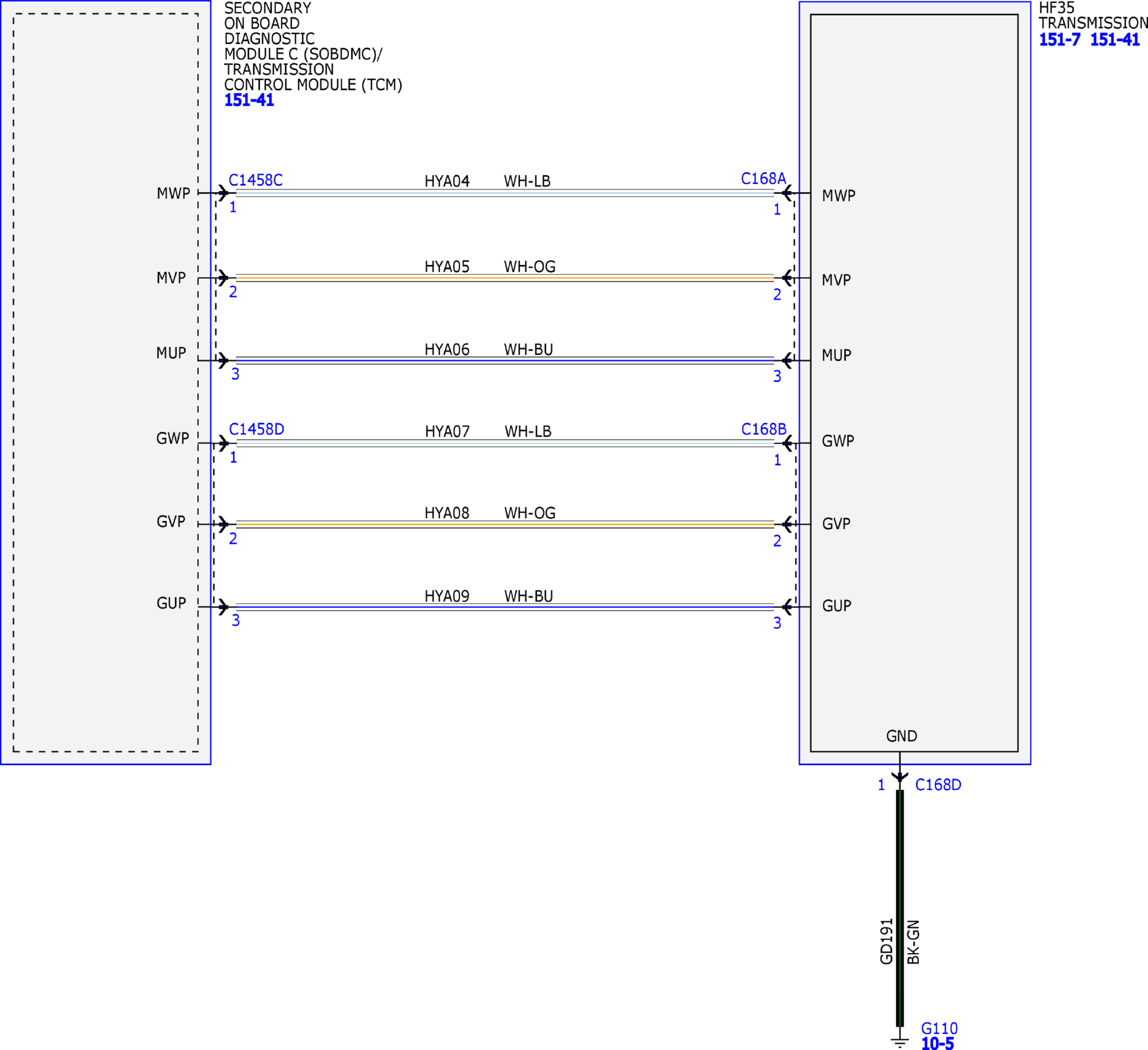

Fig 4: Transmission Controls Wiring Diagram (4 of 8)
GFDW51508Courtesy of FORD MOTOR COMPANY

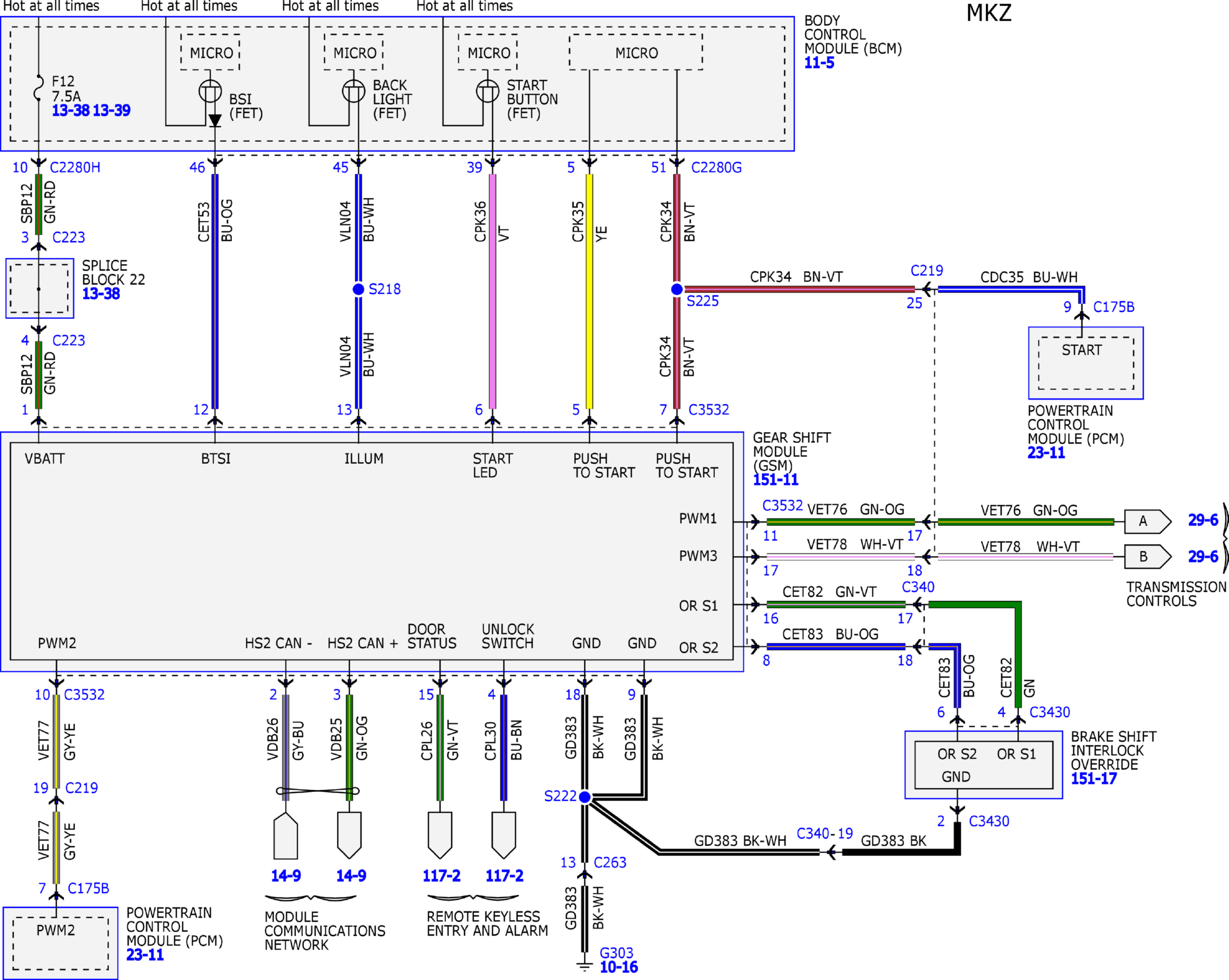

Fig 5: Transmission Controls Wiring Diagram (5 of 8)
GFDW51509Courtesy of FORD MOTOR COMPANY

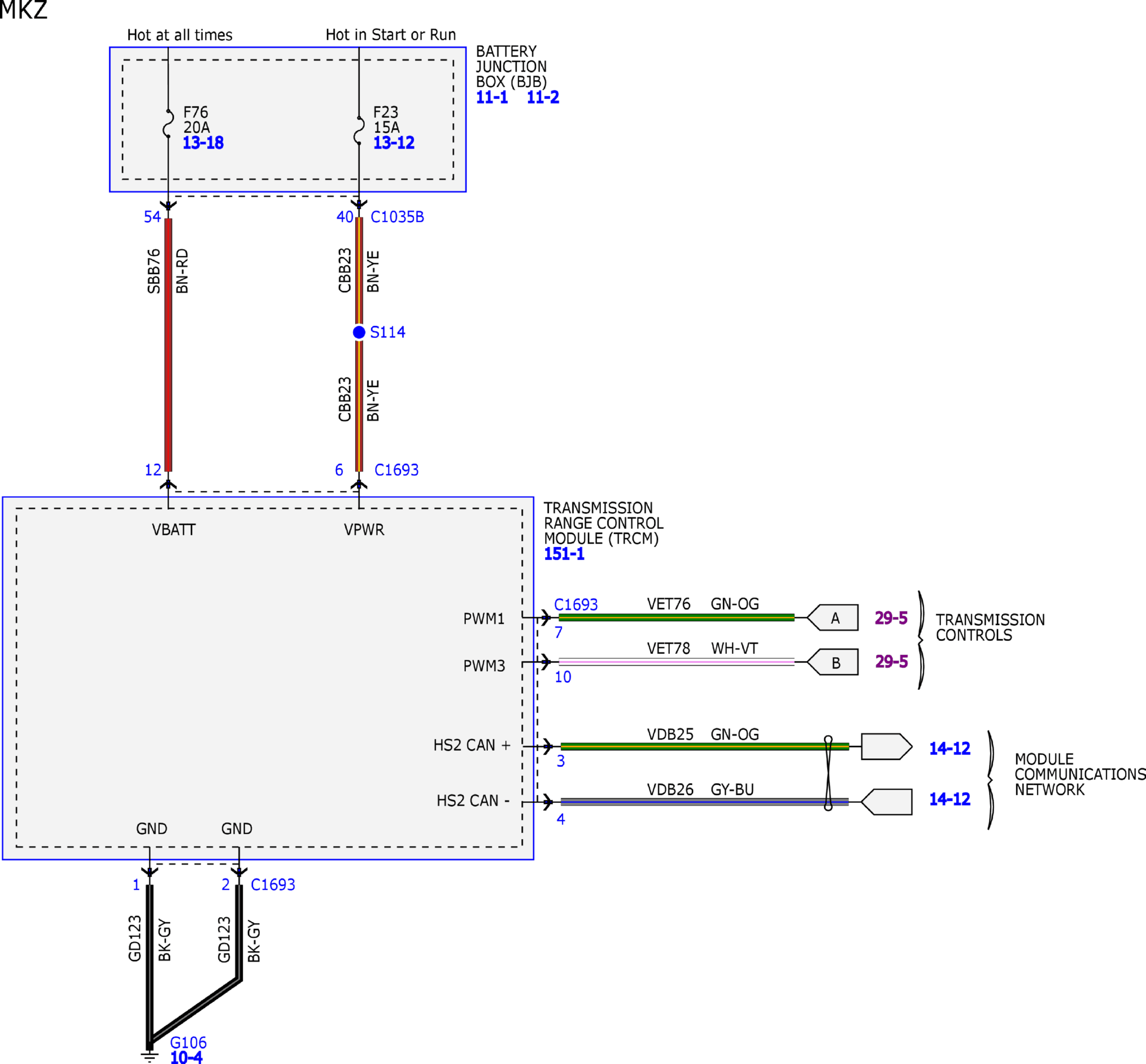

Fig 6: Transmission Controls Wiring Diagram (6 of 8)
GFDW51510Courtesy of FORD MOTOR COMPANY

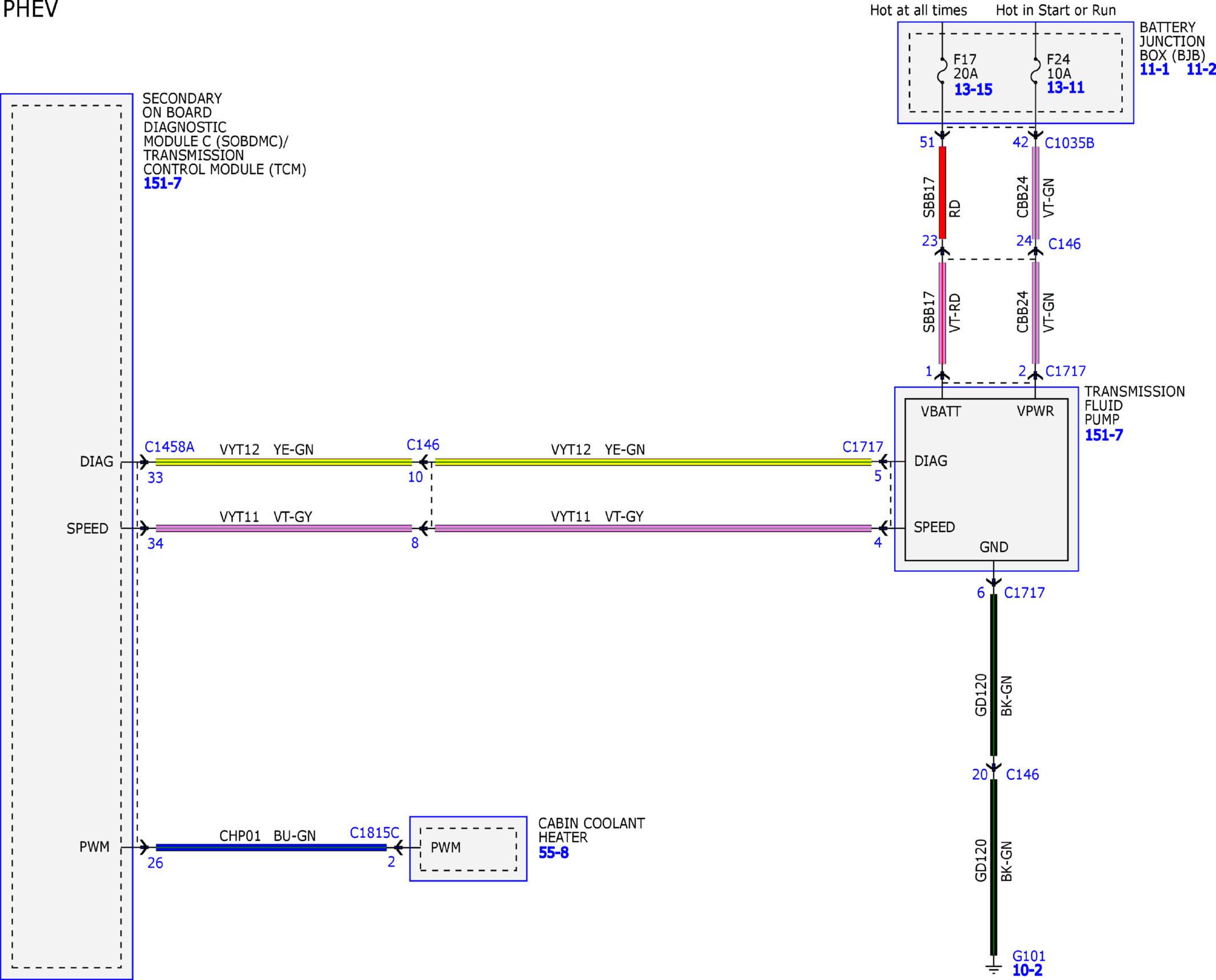

Fig 7: Transmission Controls Wiring Diagram (7 of 8)
GFDW51511Courtesy of FORD MOTOR COMPANY

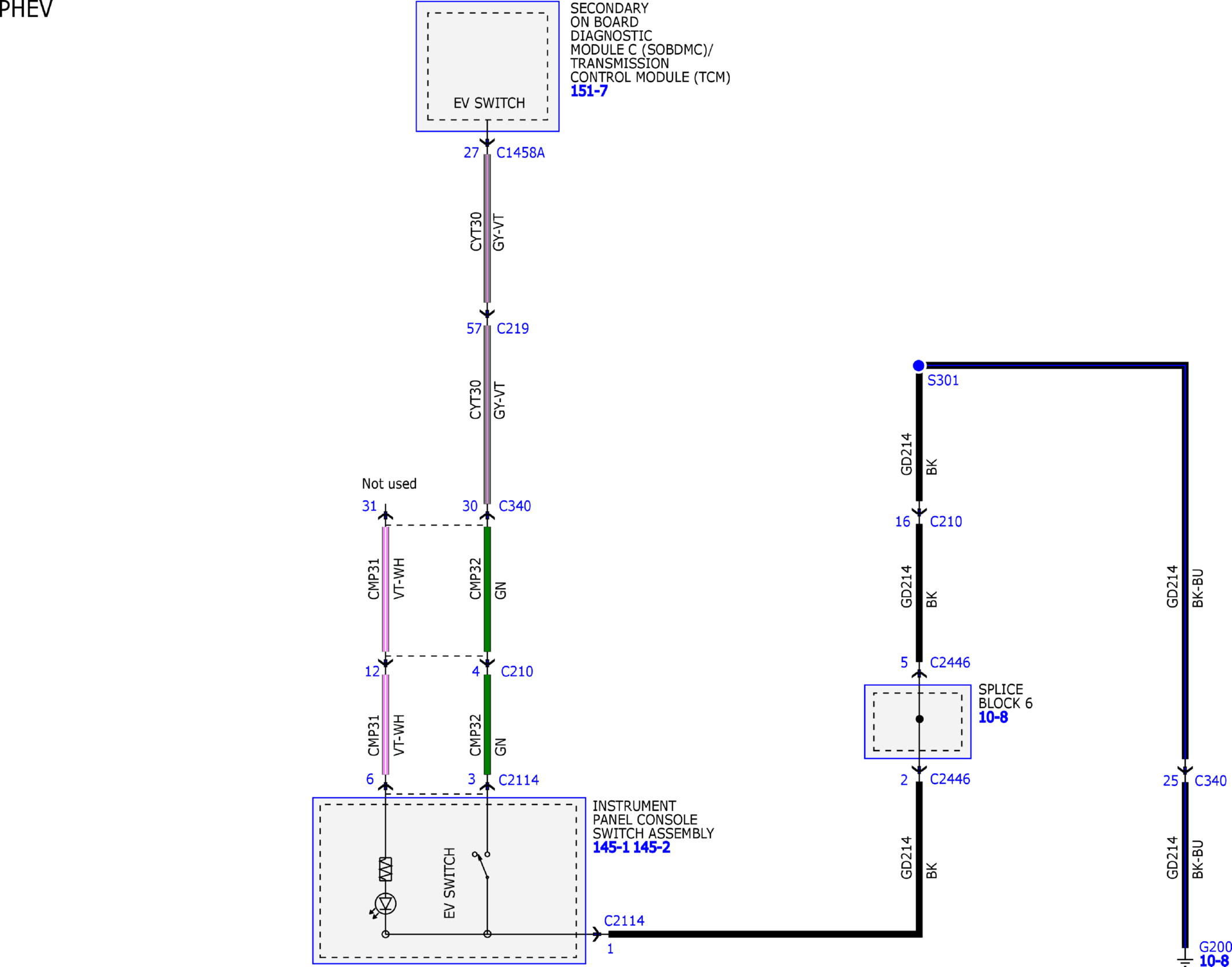

Fig 8: Transmission Controls Wiring Diagram (8 of 8)
GFDW51512Courtesy of FORD MOTOR COMPANY
