Fusion Energi Titanium
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams (Hybrid/ENERGI)
>>
Tire Pressure Monitor System
Tire Pressure Monitor System

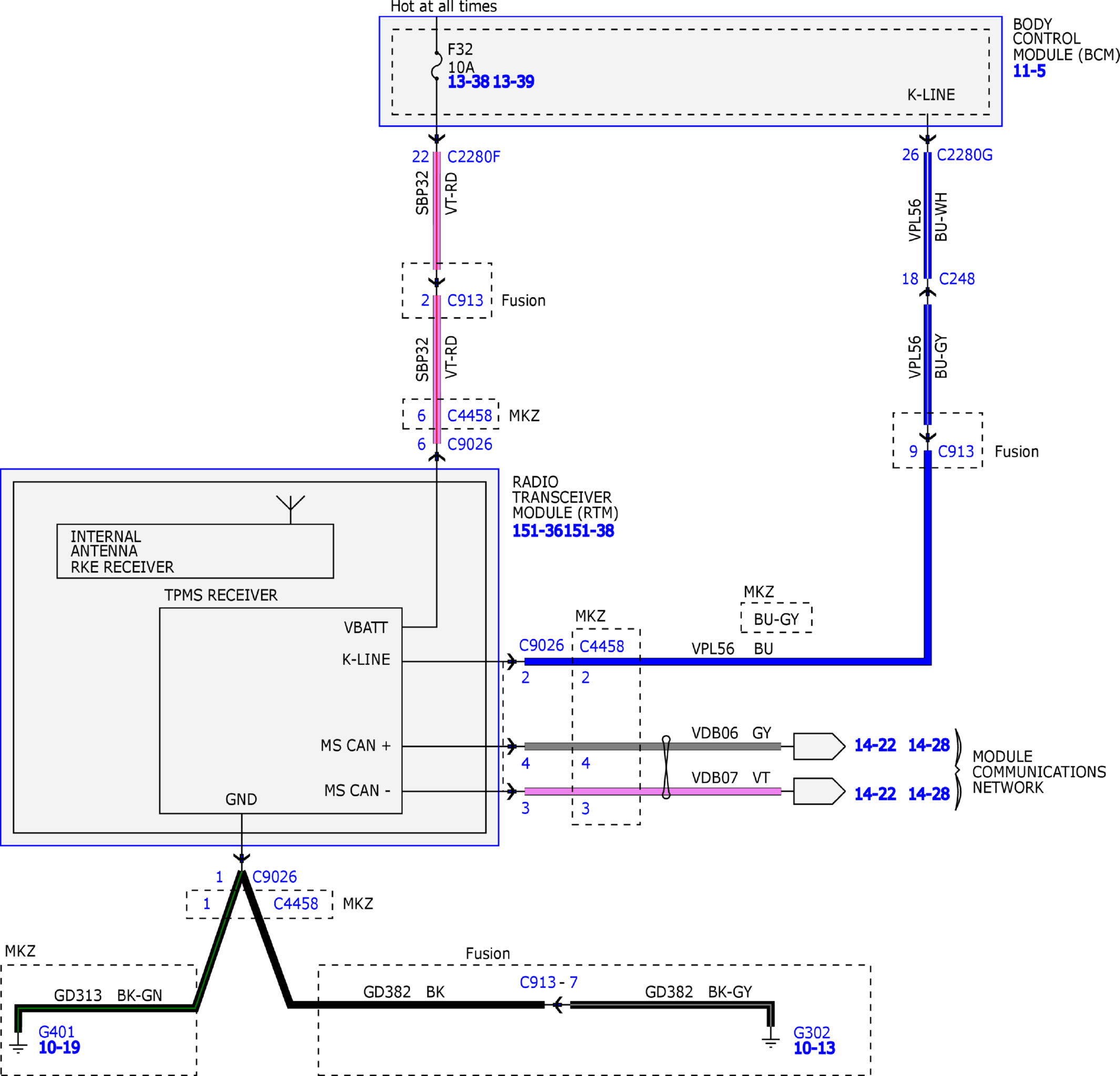

Fig 1: Tire Pressure Monitor System Wiring Diagram
Courtesy of FORD MOTOR COMPANY
