Supplemental Restraint System

Fig 1: Supplemental Restraint System Wiring Diagram (1 of 9)
GFDW51495Courtesy of FORD MOTOR COMPANY
Fig 2: Supplemental Restraint System Wiring Diagram (2 of 9)
GFDW51496Courtesy of FORD MOTOR COMPANY
Fig 3: Supplemental Restraint System Wiring Diagram (3 of 9)
GFDW51497Courtesy of FORD MOTOR COMPANY
Fig 4: Supplemental Restraint System Wiring Diagram (4 of 9)
GFDW51498Courtesy of FORD MOTOR COMPANY

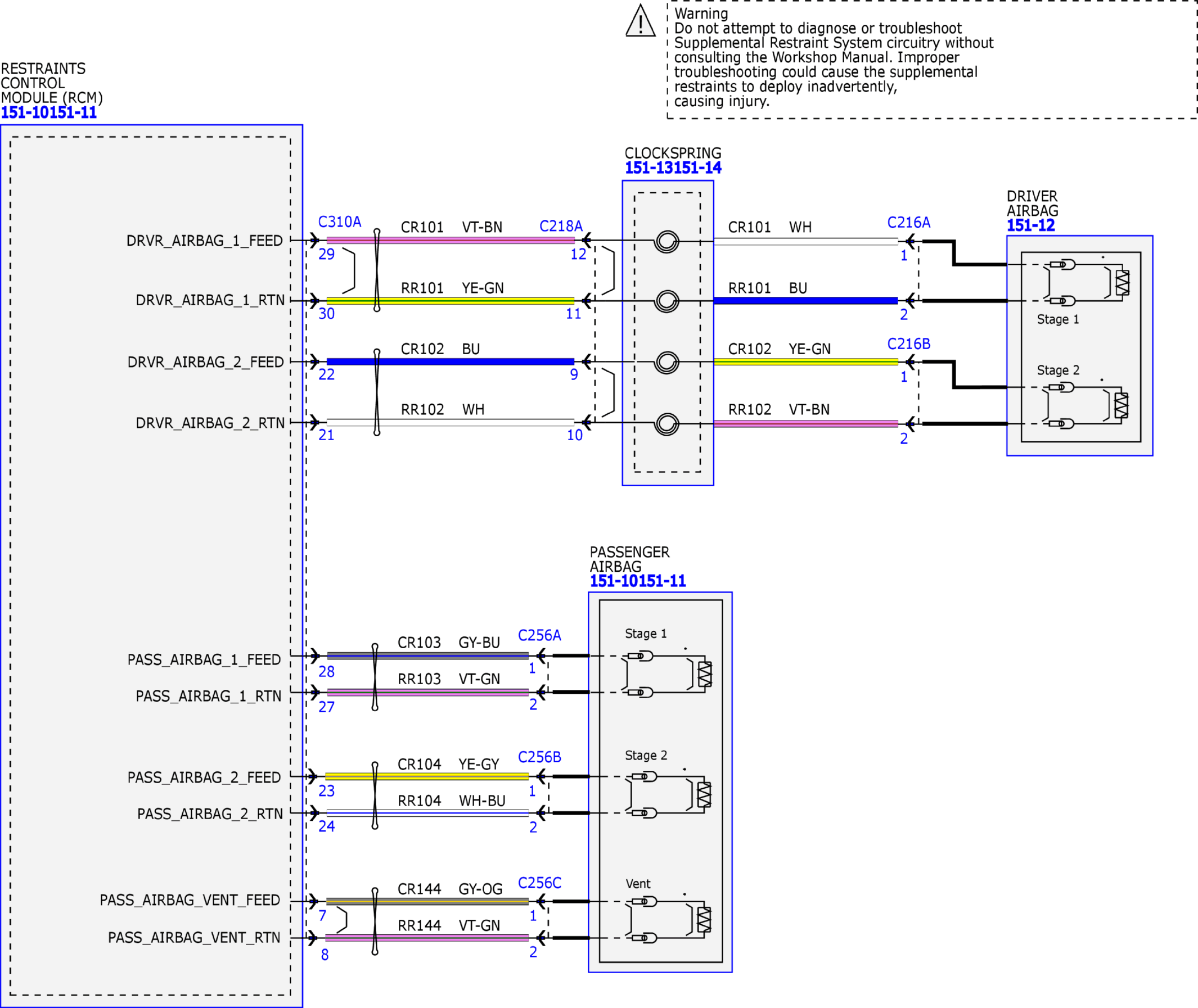

Fig 5: Supplemental Restraint System Wiring Diagram (5 of 9)
GFDW51499Courtesy of FORD MOTOR COMPANY
Fig 6: Supplemental Restraint System Wiring Diagram (6 of 9)
GFDW51500Courtesy of FORD MOTOR COMPANY
Fig 7: Supplemental Restraint System Wiring Diagram (7 of 9)
GFDW51501Courtesy of FORD MOTOR COMPANY
Fig 8: Supplemental Restraint System Wiring Diagram (8 of 9)
GFDW51502Courtesy of FORD MOTOR COMPANY
Fig 9: Supplemental Restraint System Wiring Diagram (9 of 9)
GFDW51503Courtesy of FORD MOTOR COMPANY
