Shift Interlock

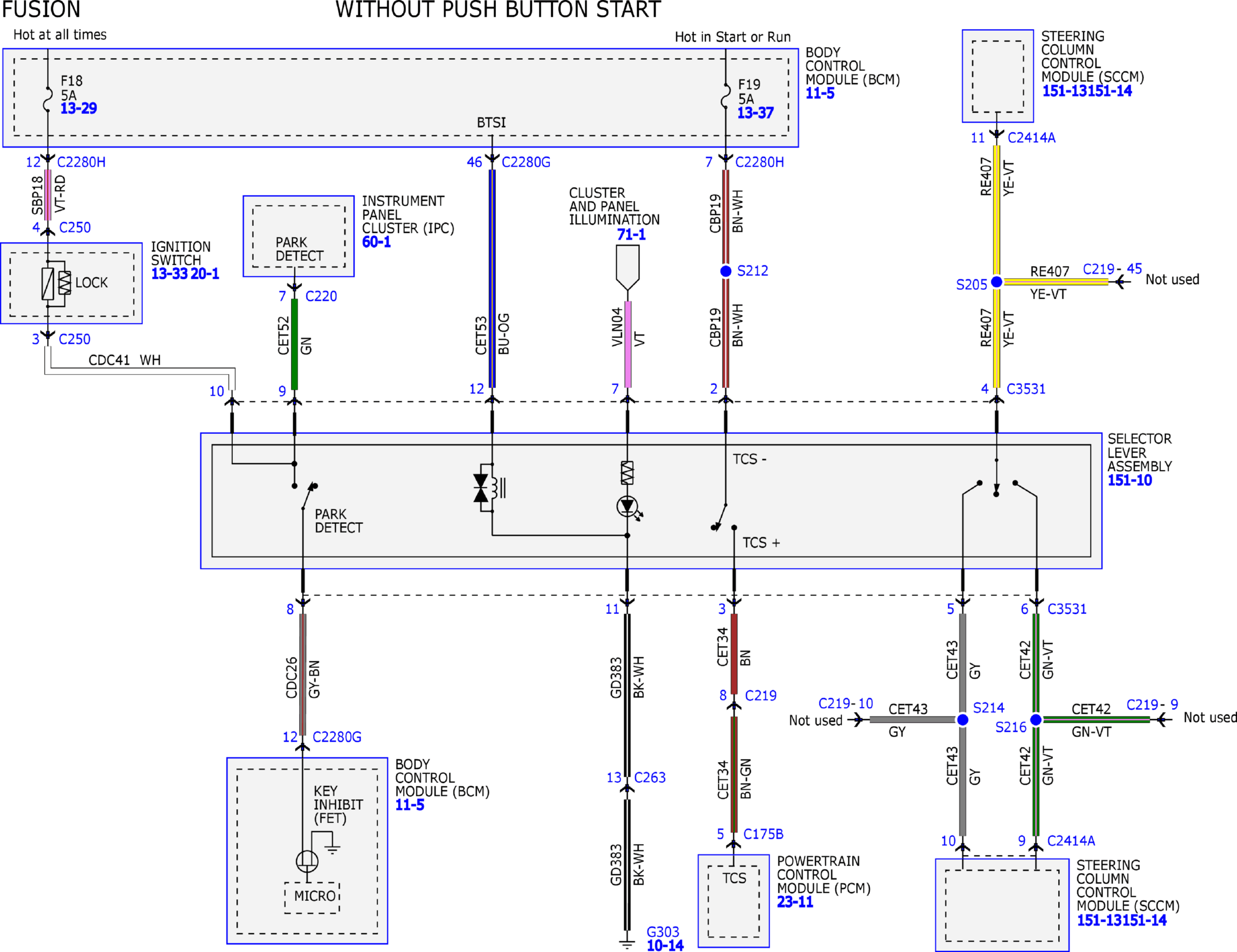

Fig 1: Shift Interlock Wiring Diagram (1 of 3)
GFDW51489Courtesy of FORD MOTOR COMPANY

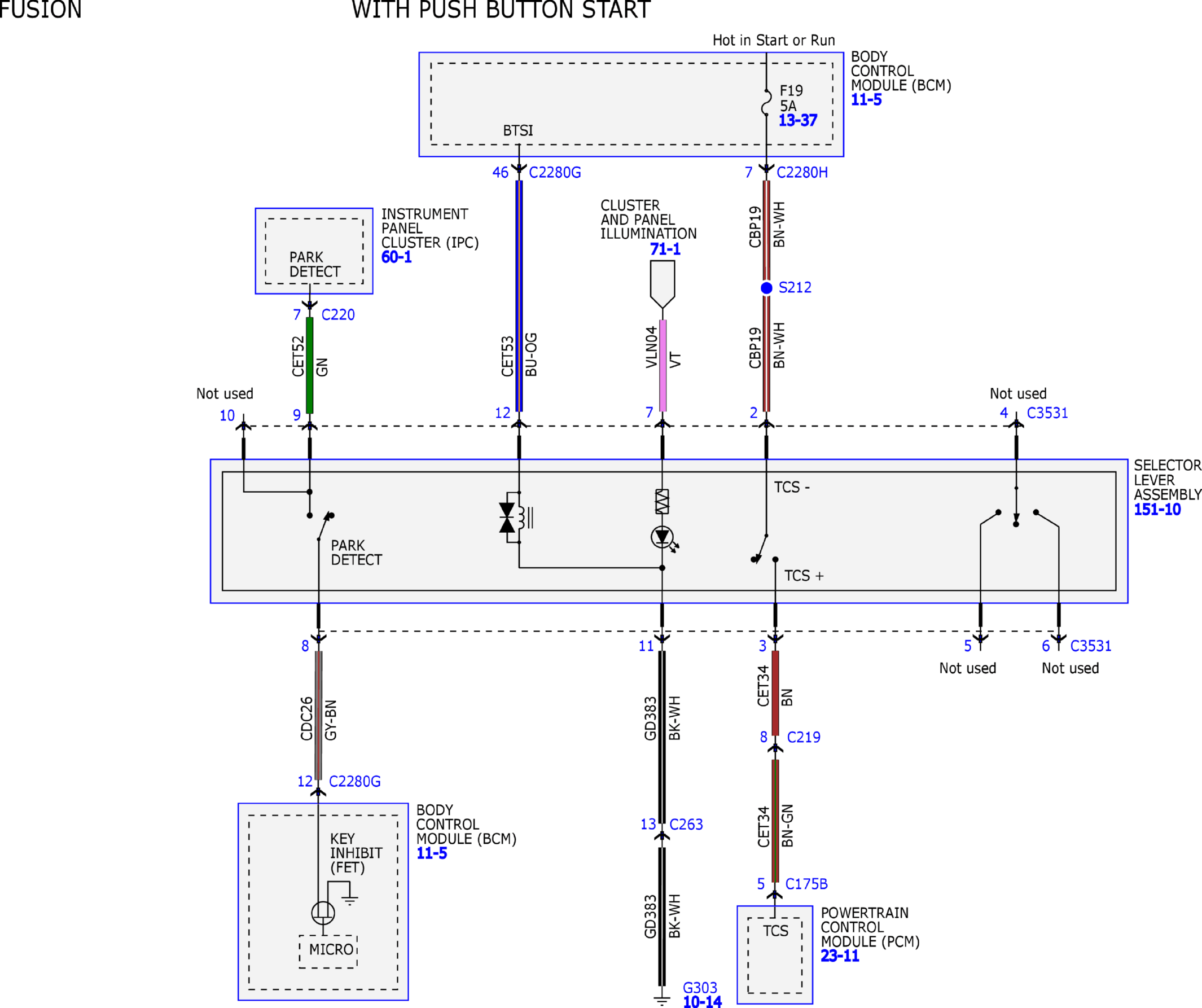

Fig 2: Shift Interlock Wiring Diagram (2 of 3)
GFDW51490Courtesy of FORD MOTOR COMPANY

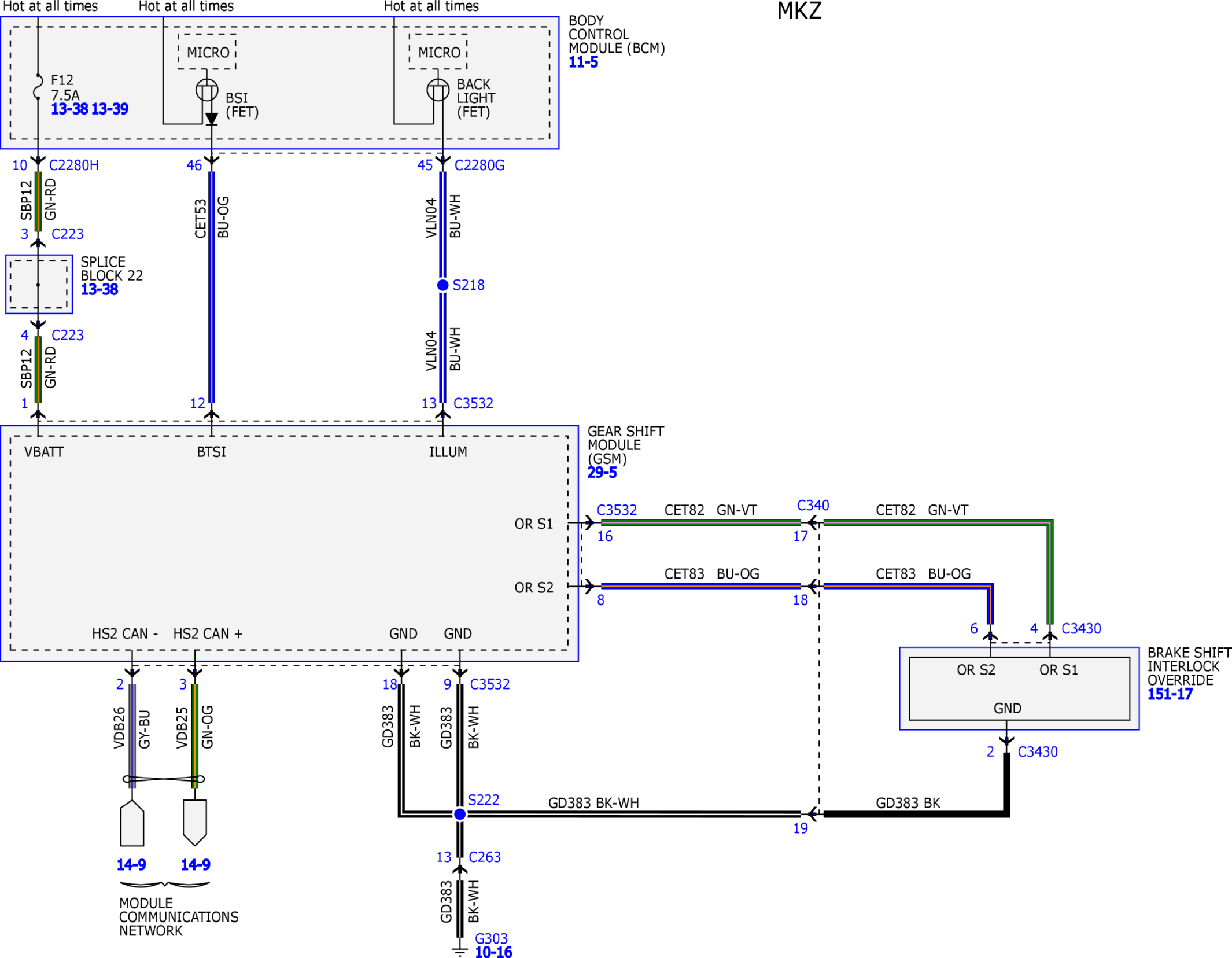

Fig 3: Shift Interlock Wiring Diagram (3 of 3)
GFDW51491Courtesy of FORD MOTOR COMPANY
