Roof Opening Panel

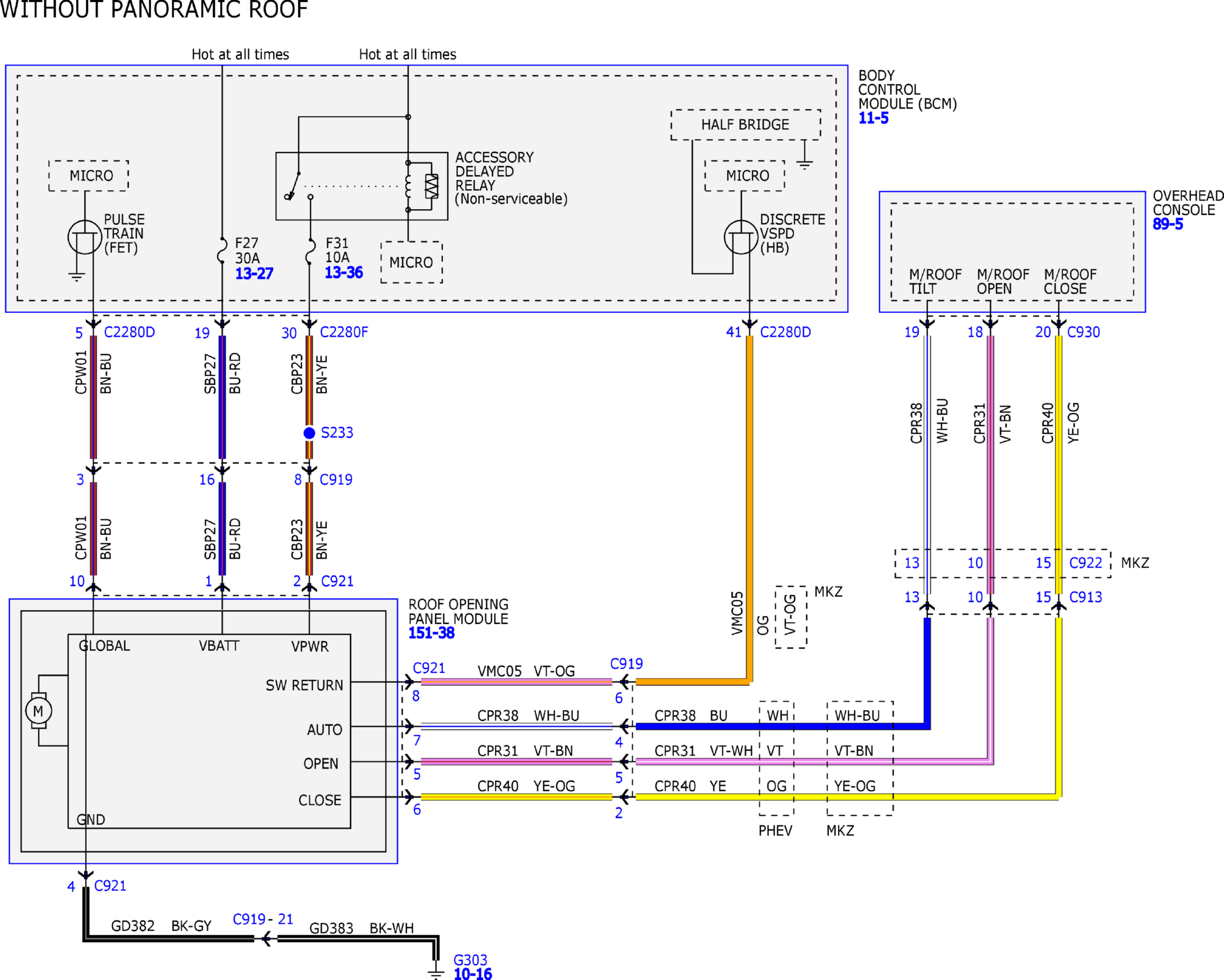

Fig 1: Roof Opening Panel Wiring Diagram (1 of 4)
GFDW51485Courtesy of FORD MOTOR COMPANY

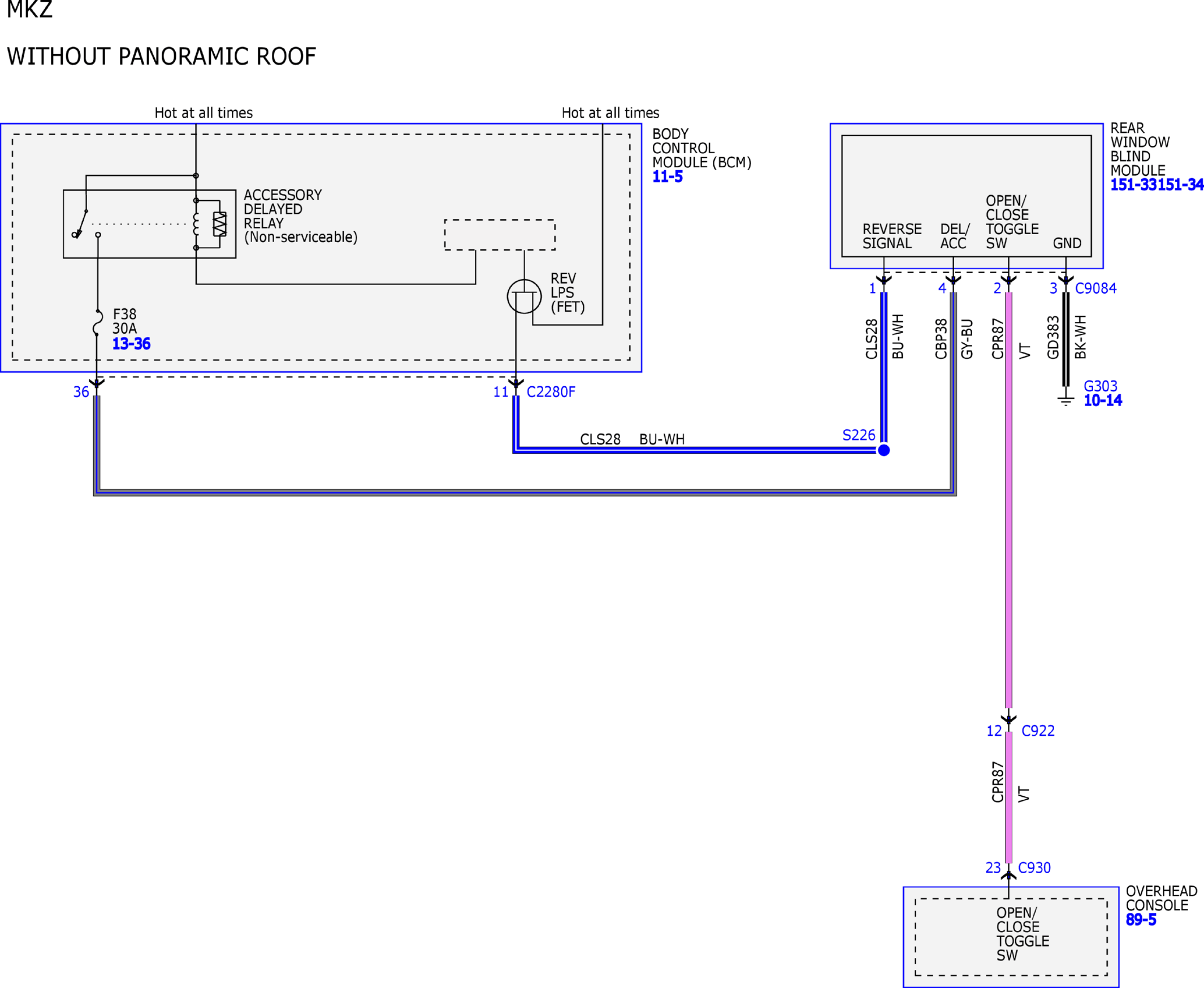

Fig 2: Roof Opening Panel Wiring Diagram (2 of 4)
GFDW51486Courtesy of FORD MOTOR COMPANY

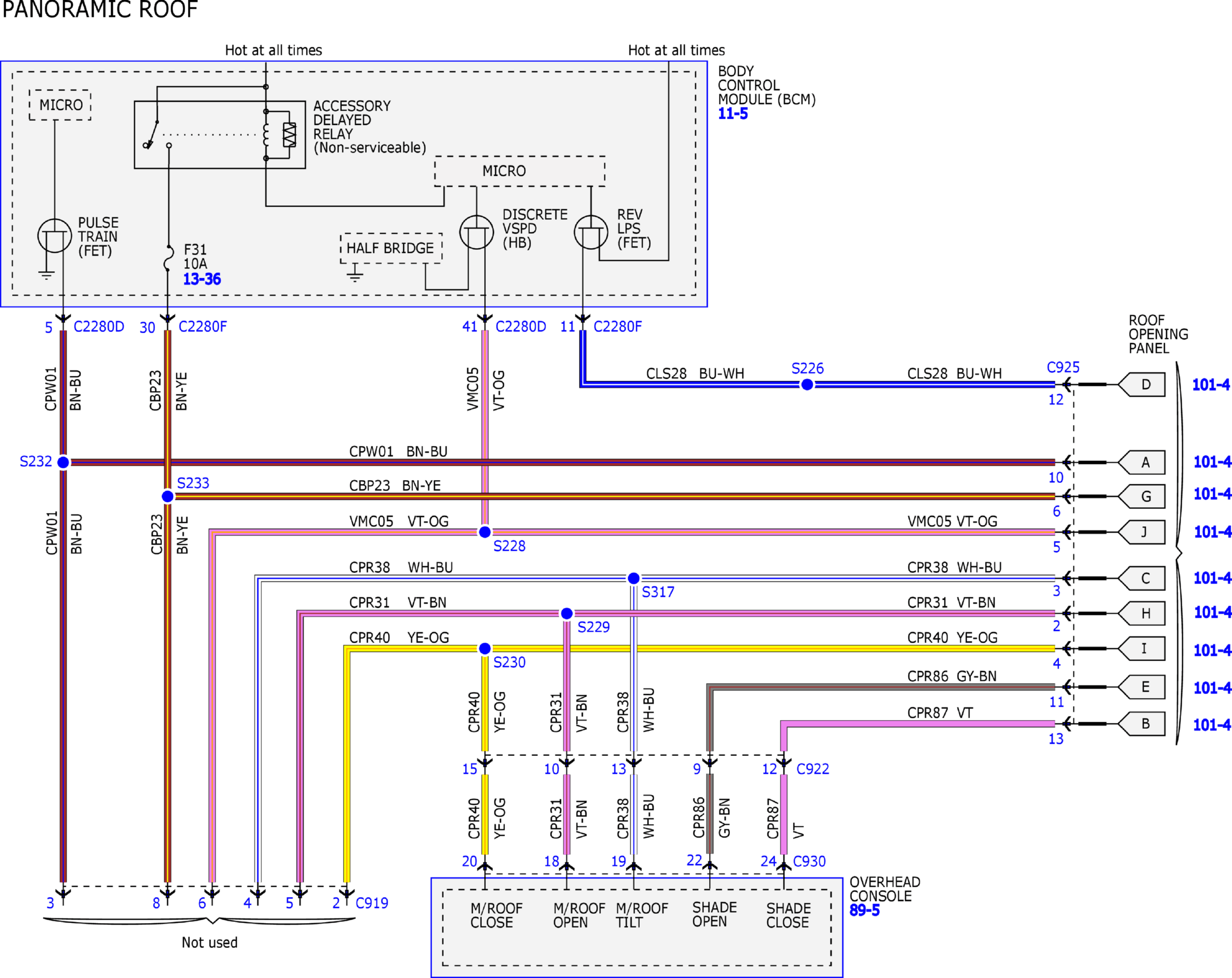

Fig 3: Roof Opening Panel Wiring Diagram (3 of 4)
GFDW51487Courtesy of FORD MOTOR COMPANY

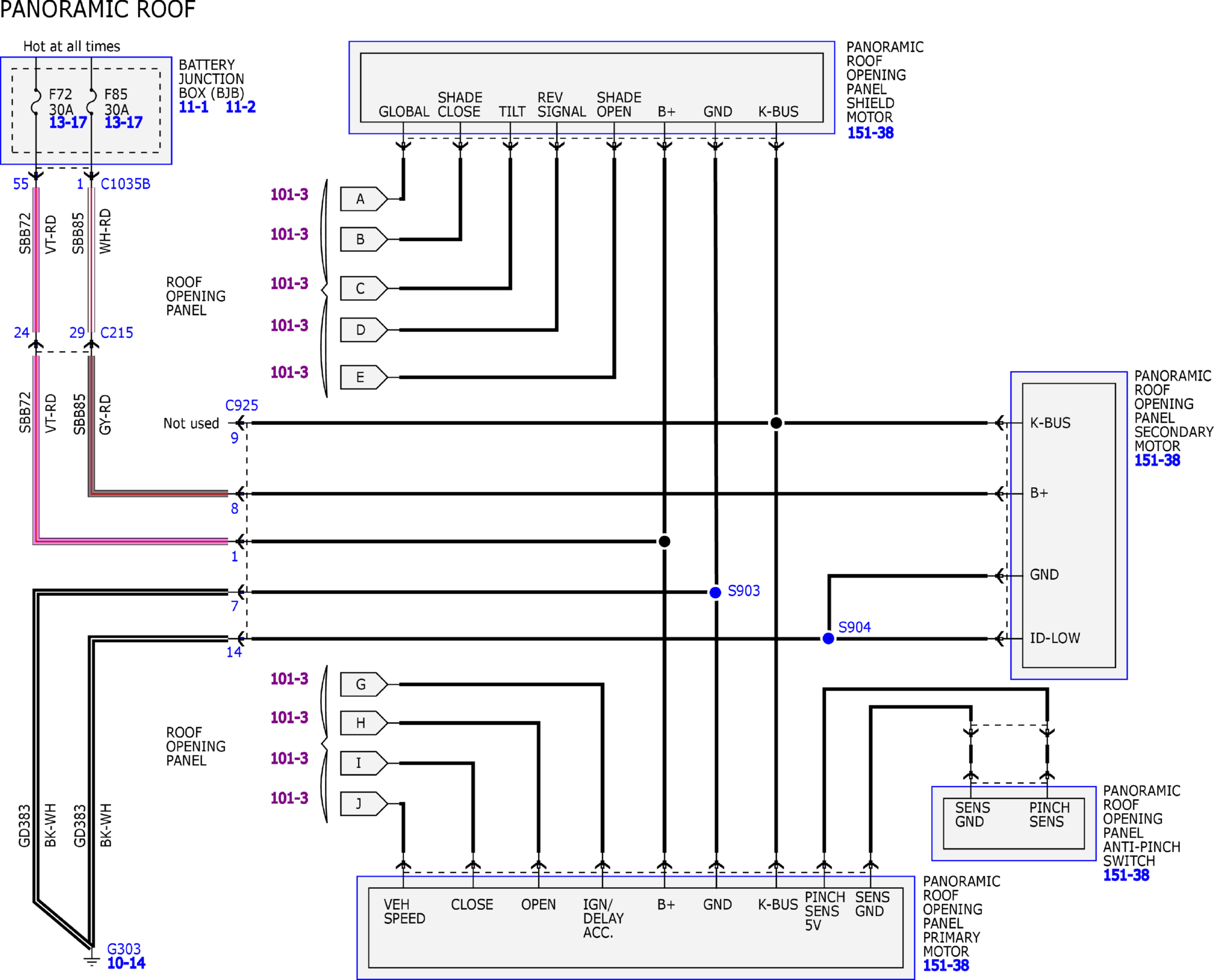

Fig 4: Roof Opening Panel Wiring Diagram (4 of 4)
GFDW51488Courtesy of FORD MOTOR COMPANY
