Remote Keyless Entry And Alarm

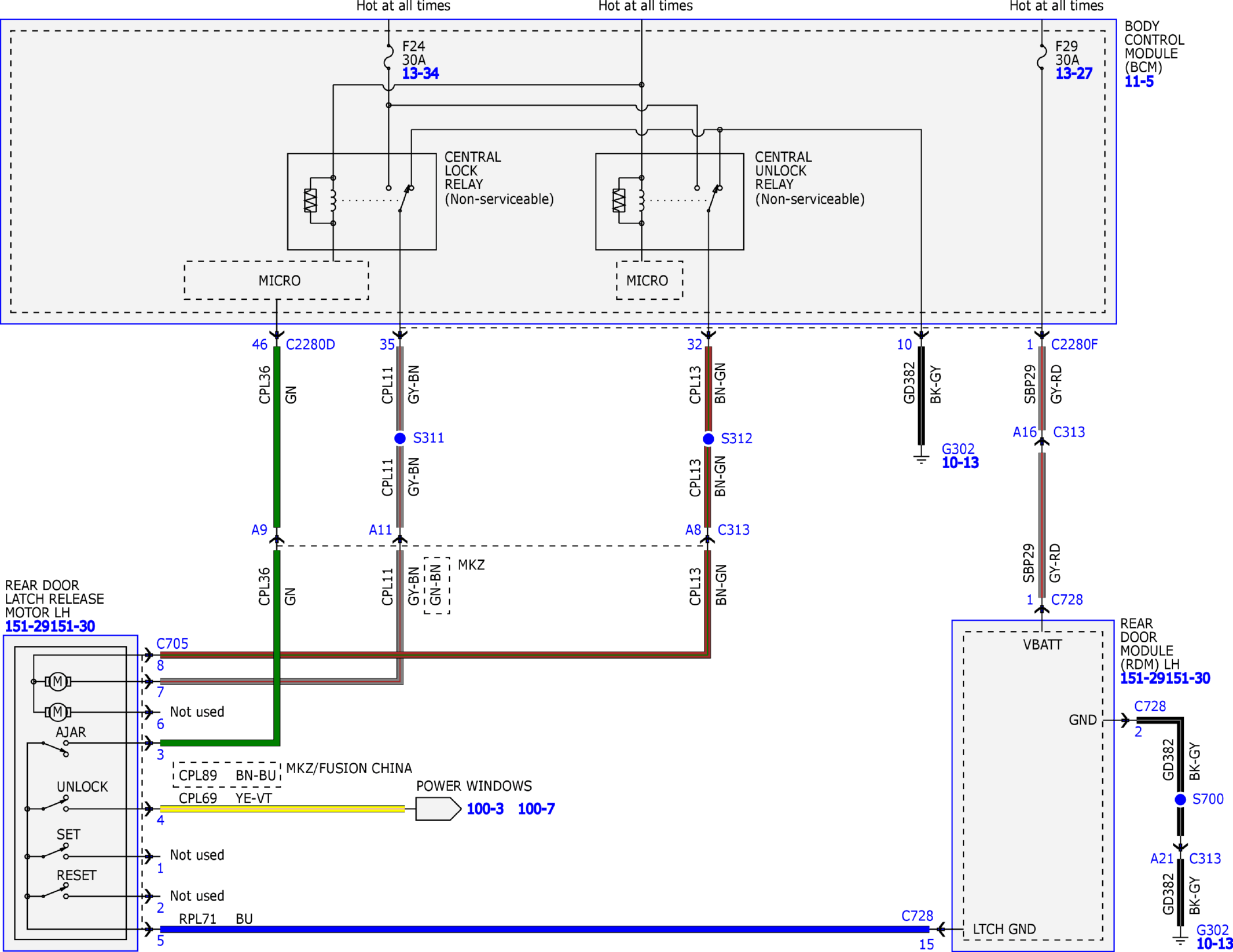

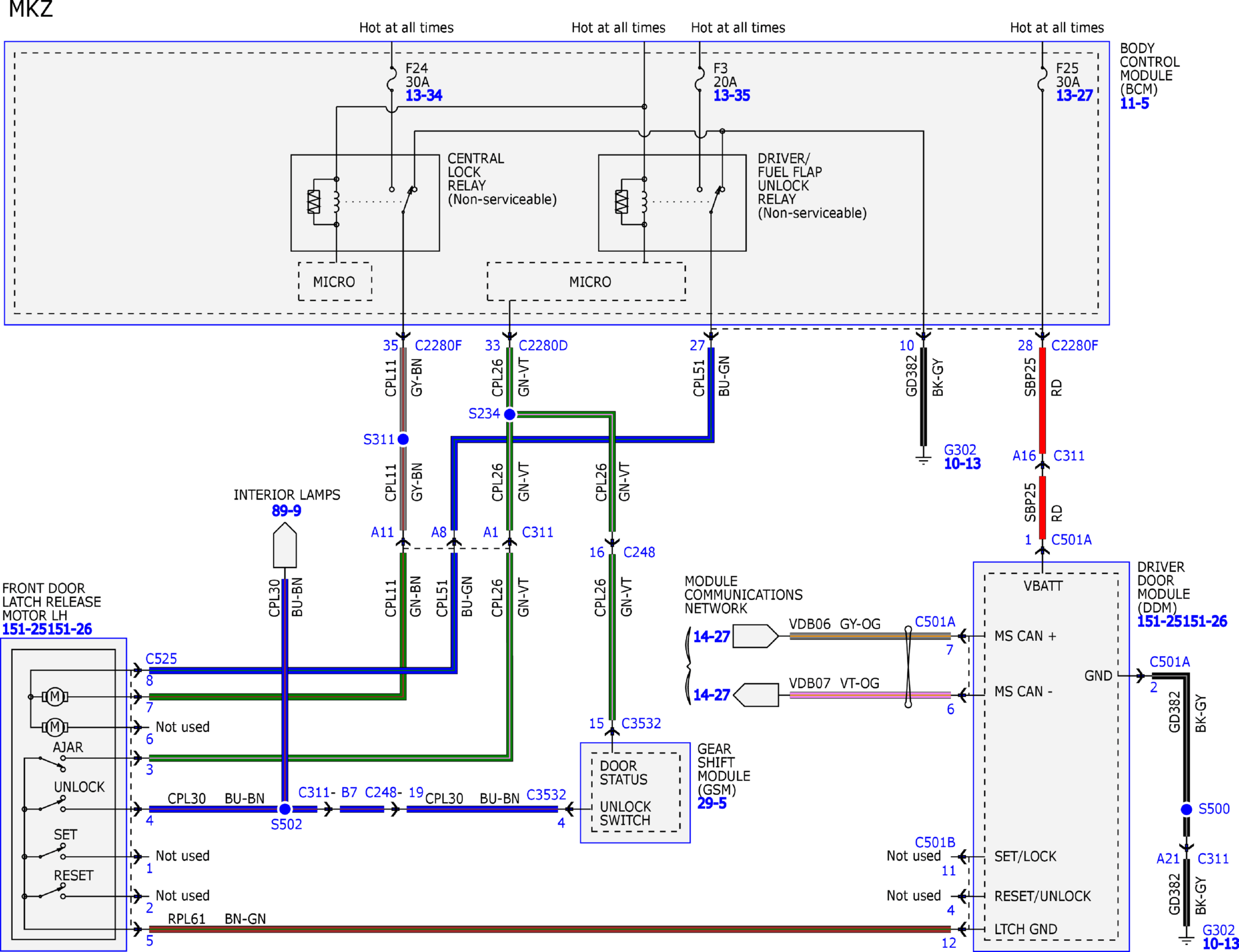

Fig 1: Remote Keyless Entry and Alarm Wiring Diagram (1 of 18)

Courtesy of FORD MOTOR COMPANY

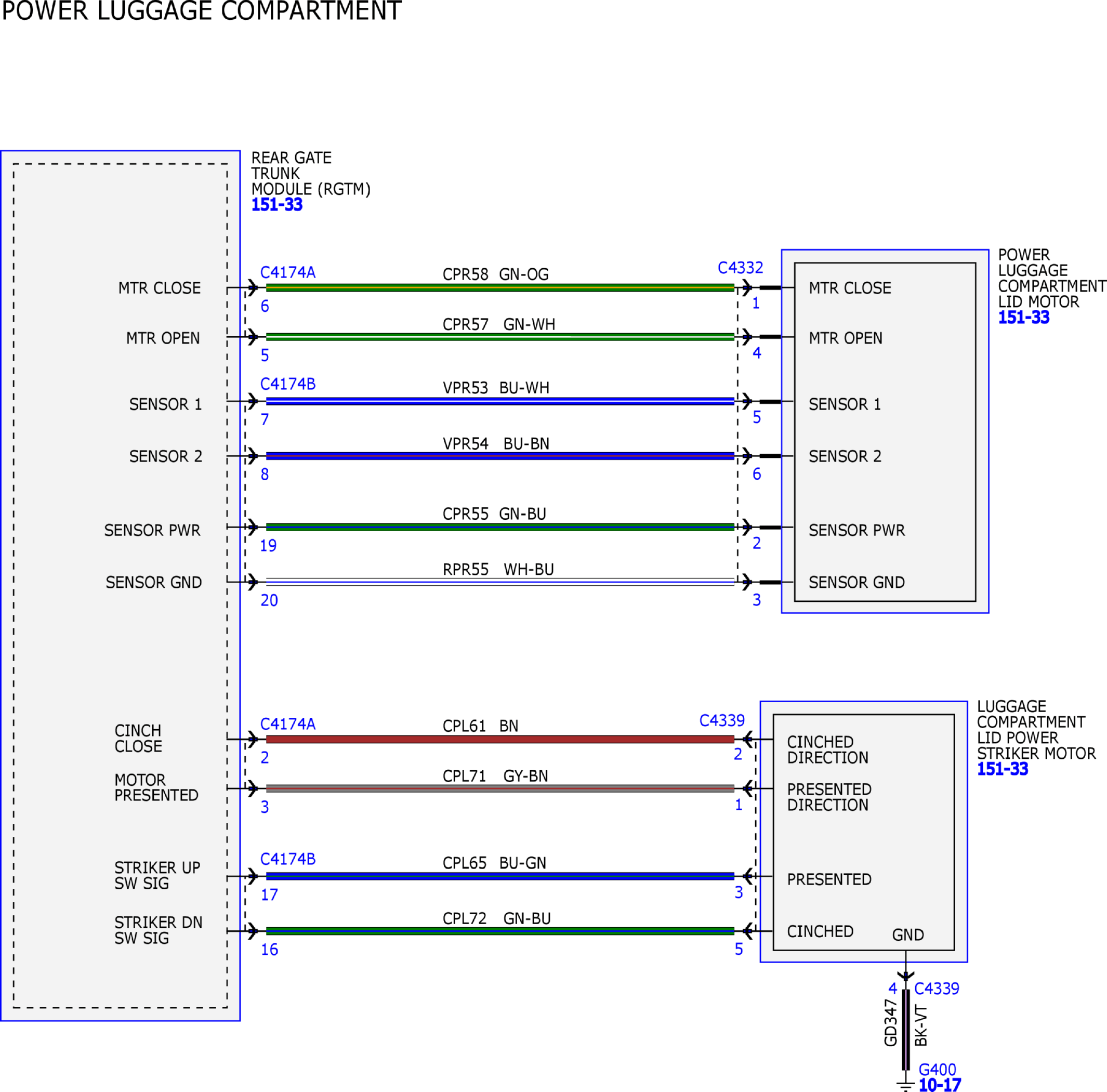

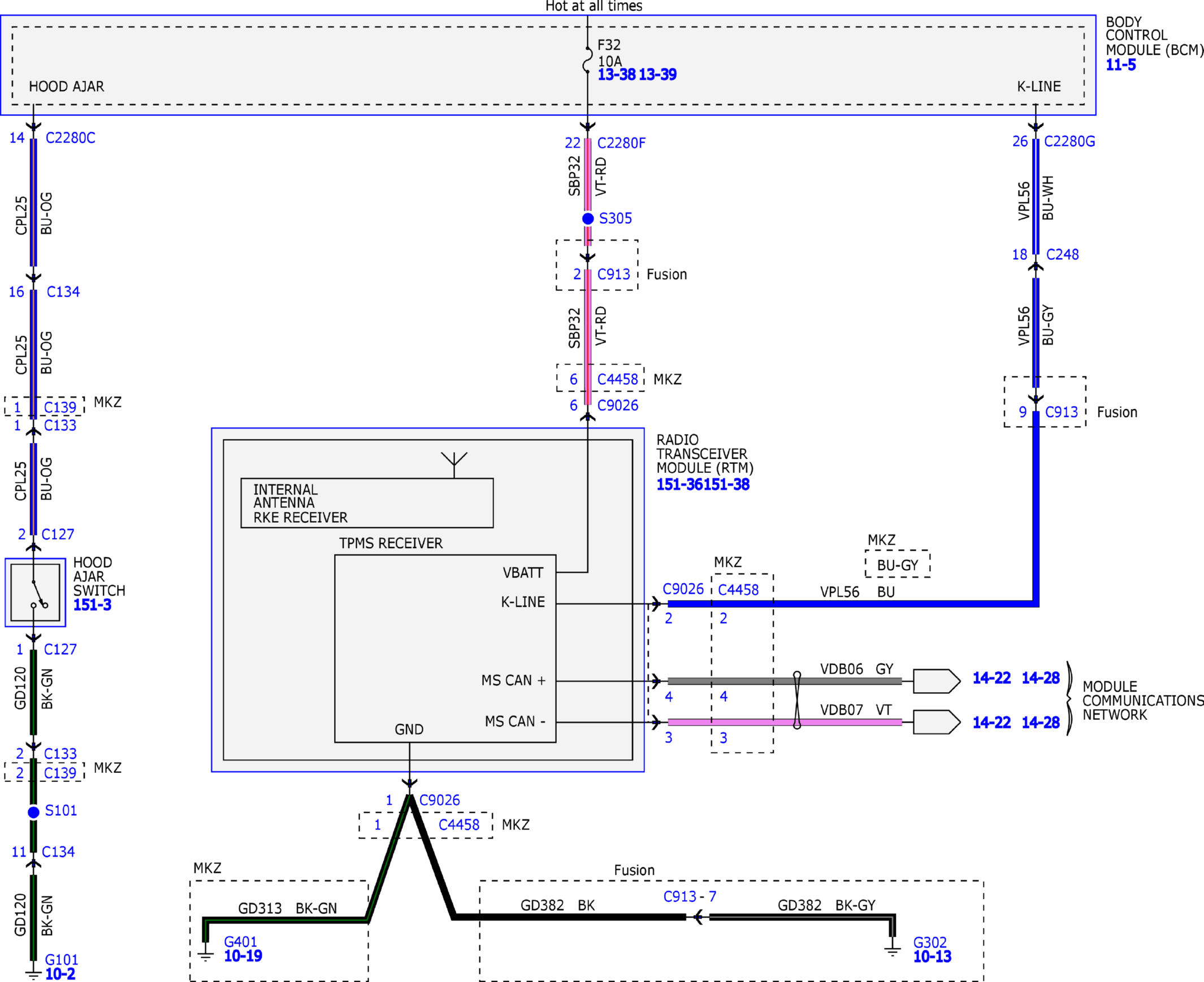

Fig 2: Remote Keyless Entry and Alarm Wiring Diagram (2 of 18)

Courtesy of FORD MOTOR COMPANY

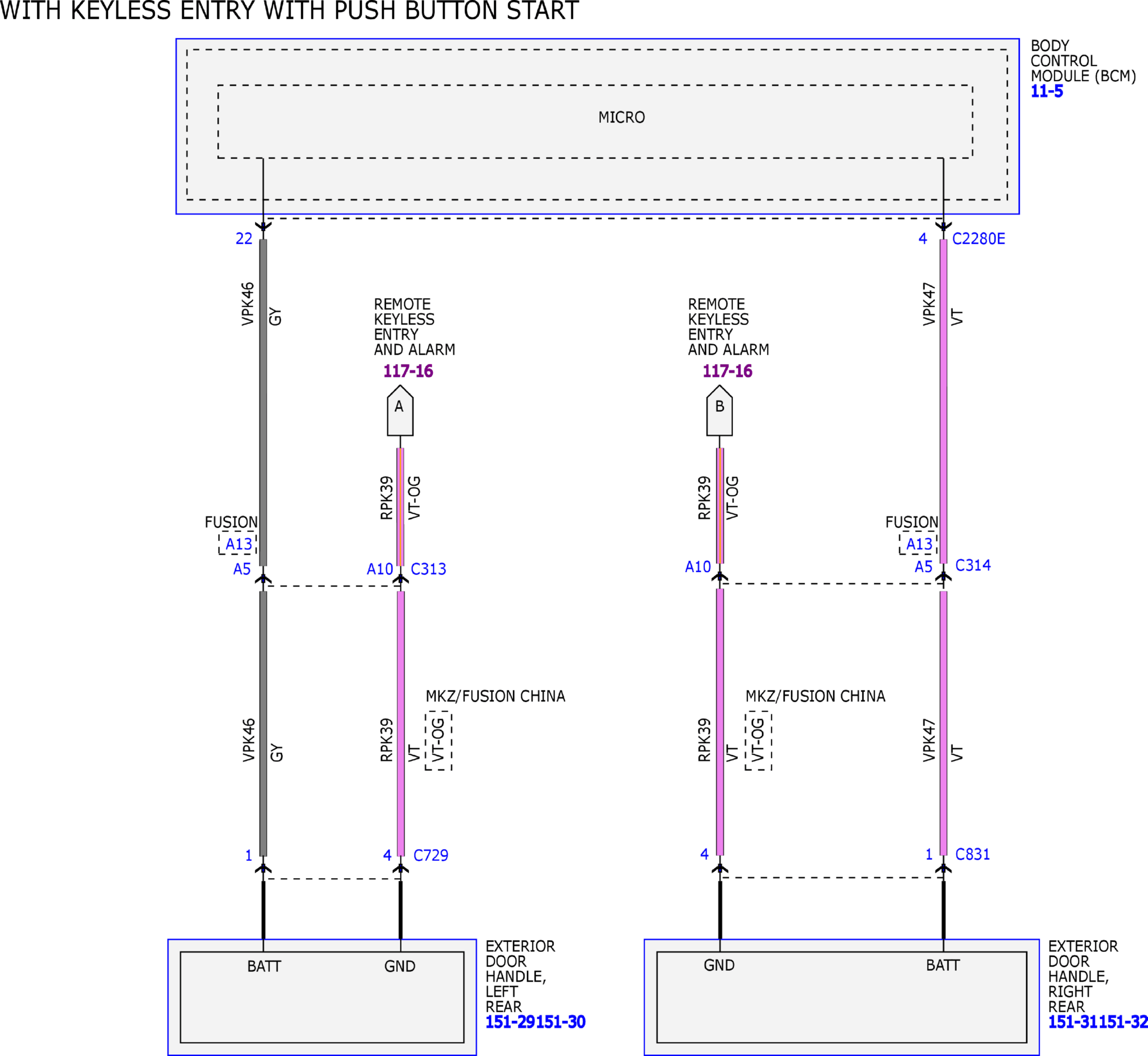

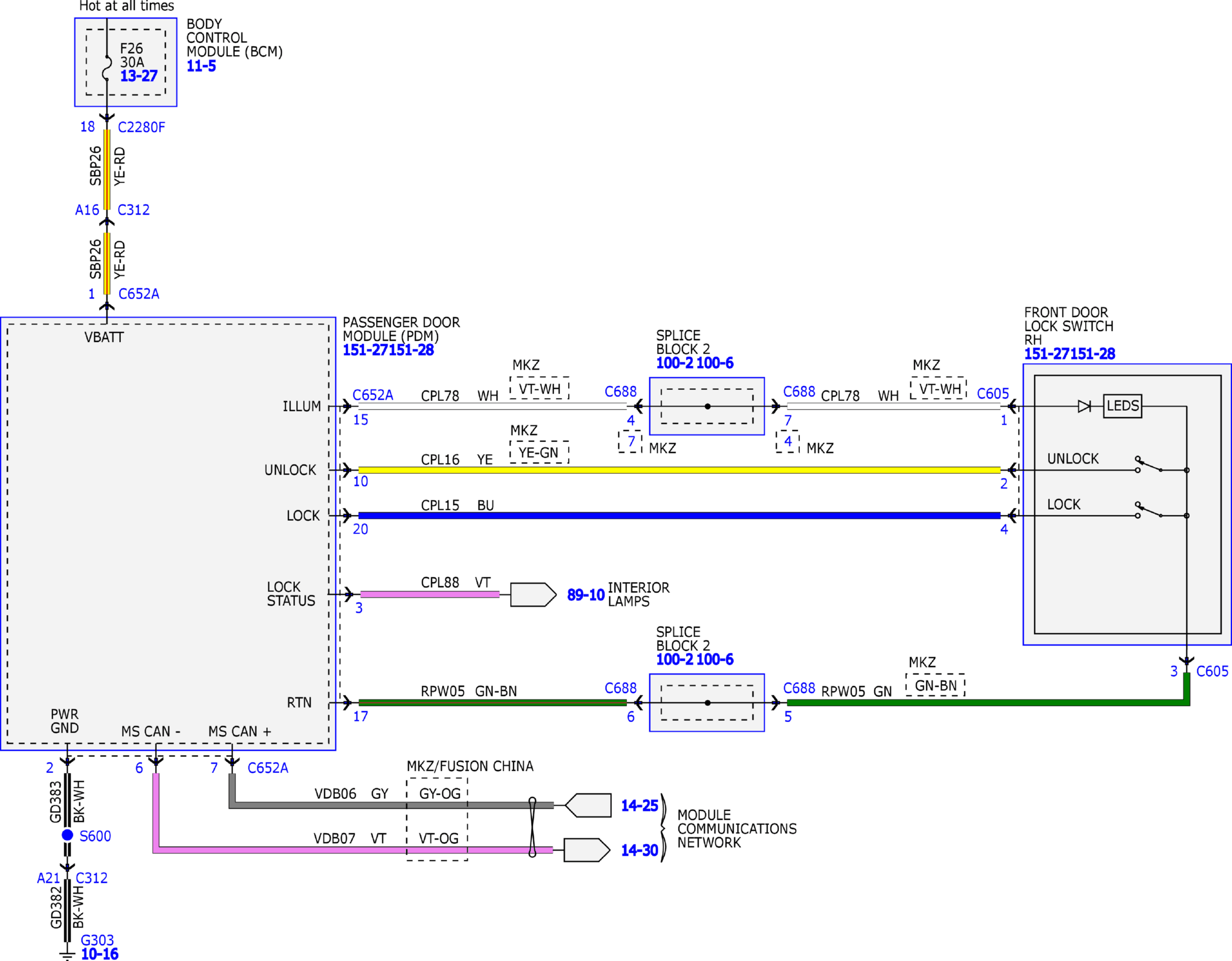

Fig 3: Remote Keyless Entry and Alarm Wiring Diagram (3 of 18)

Courtesy of FORD MOTOR COMPANY

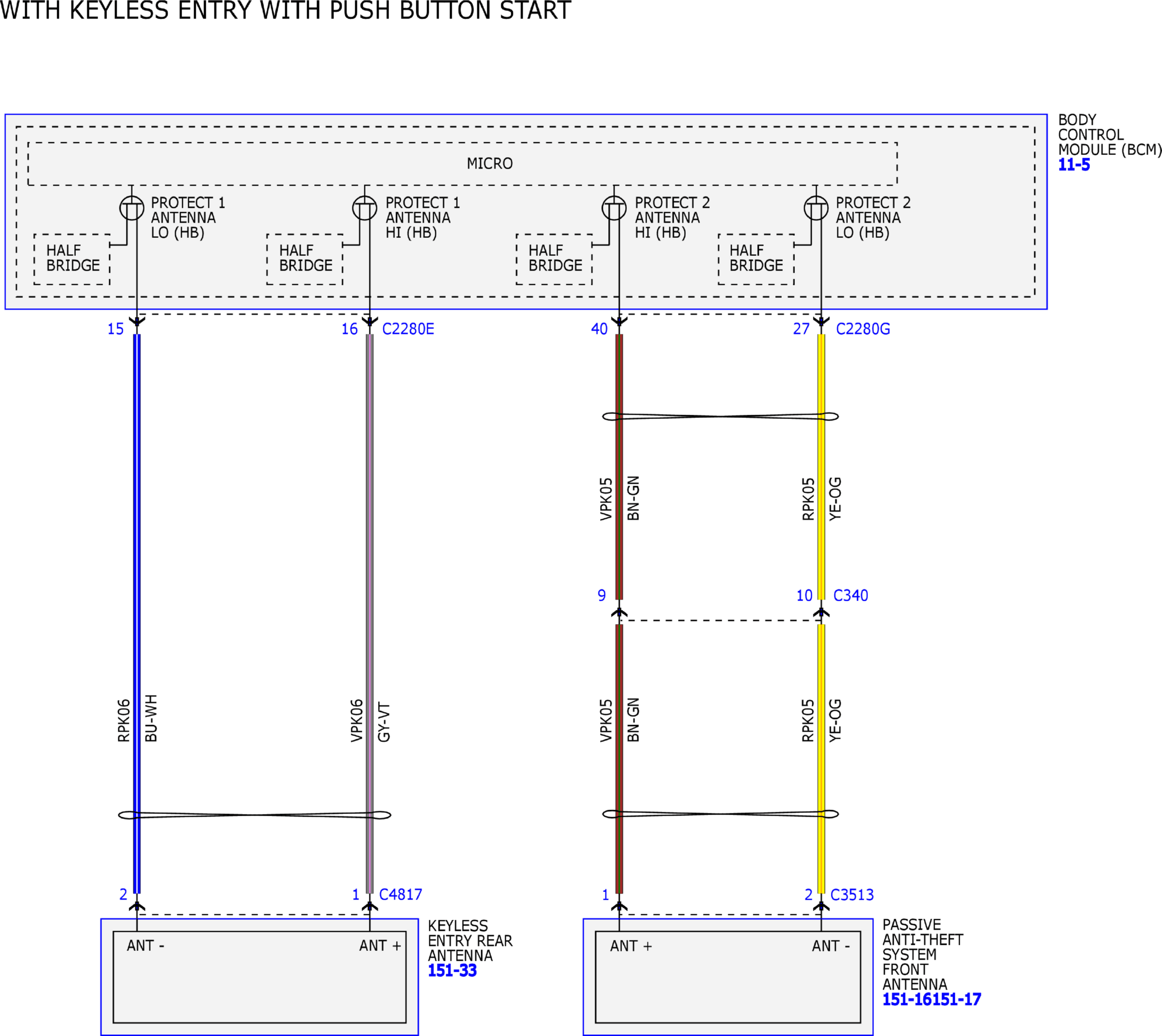

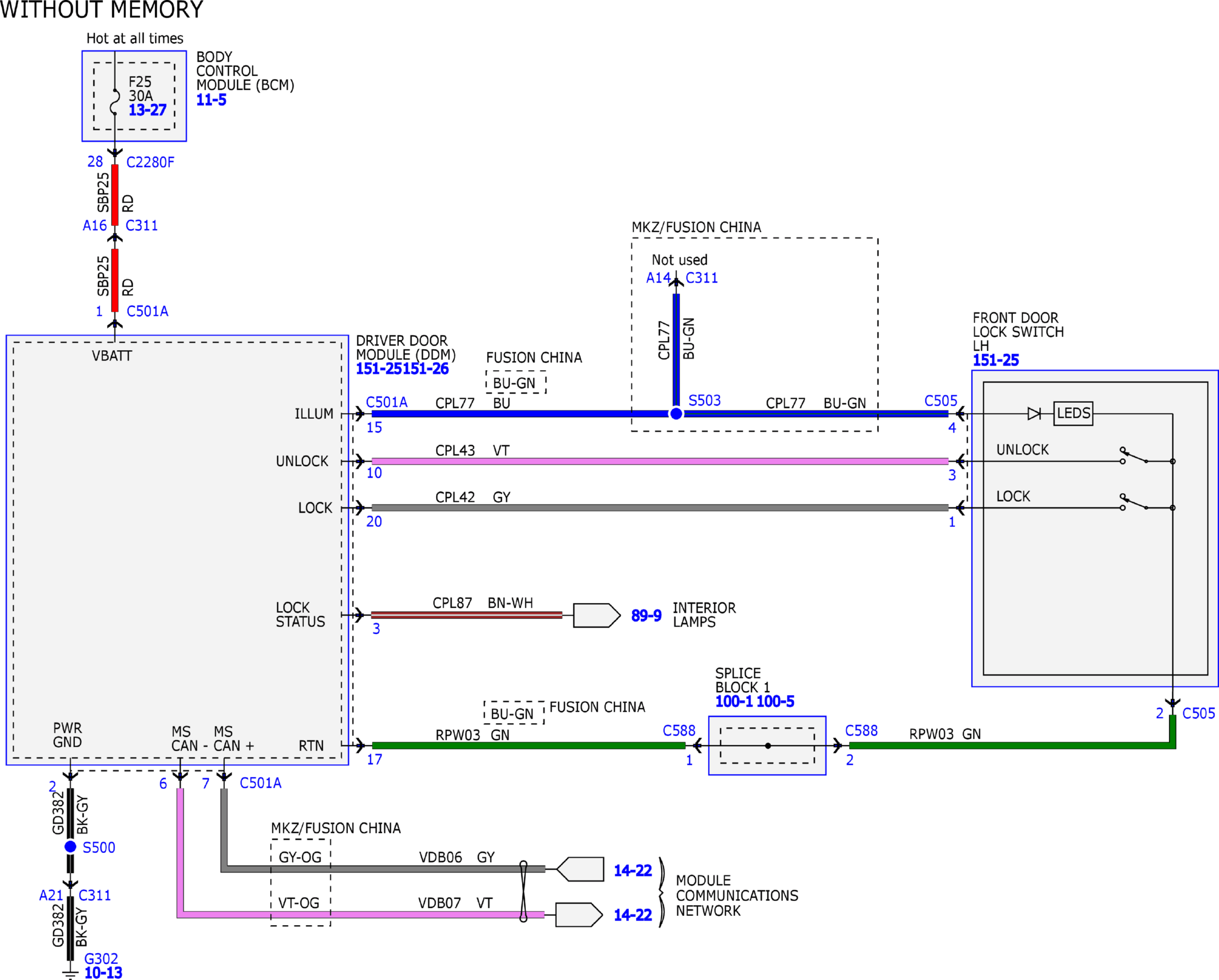

Fig 4: Remote Keyless Entry and Alarm Wiring Diagram (4 of 18)

Courtesy of FORD MOTOR COMPANY

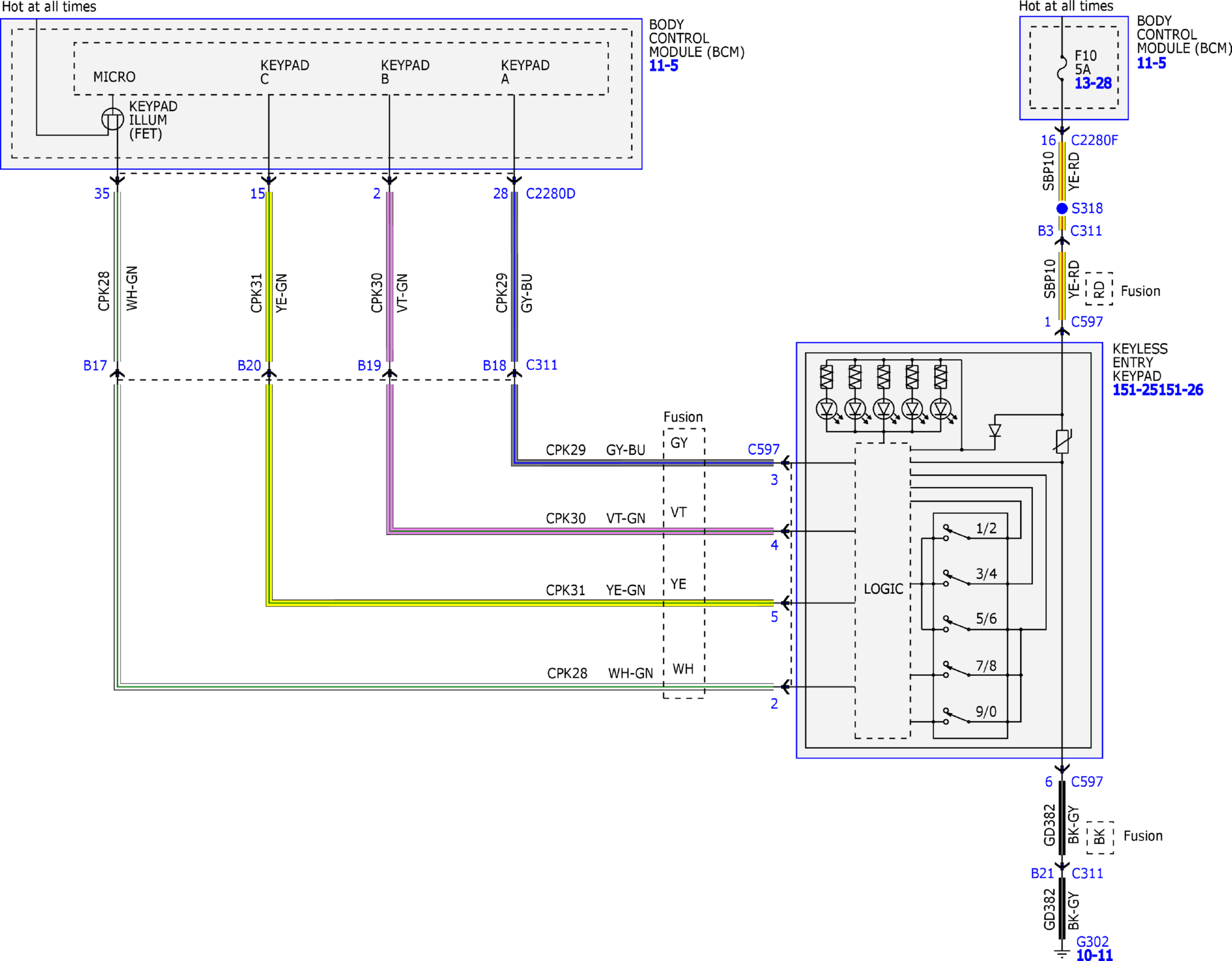

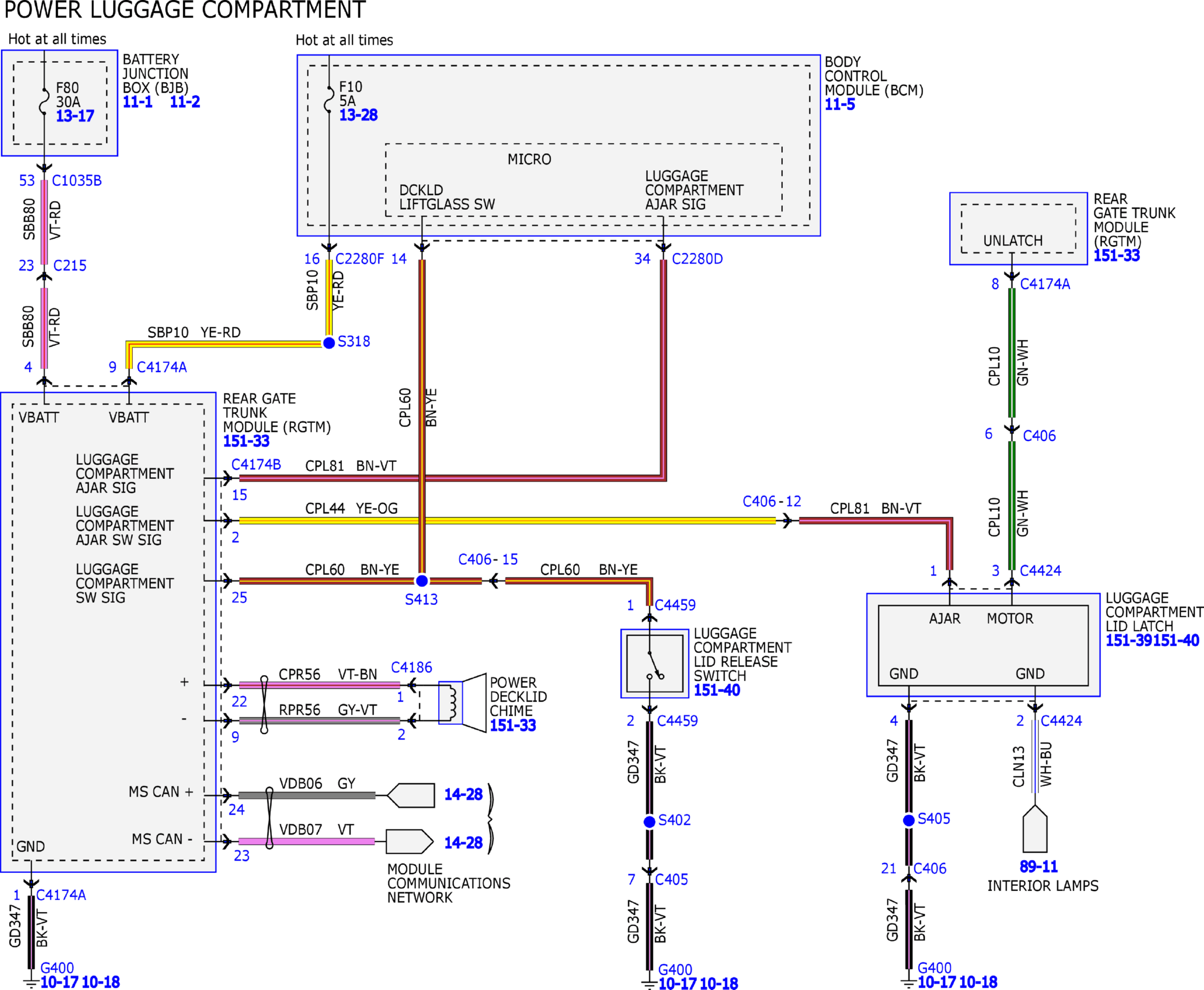

Fig 5: Remote Keyless Entry and Alarm Wiring Diagram (5 of 18)

Courtesy of FORD MOTOR COMPANY

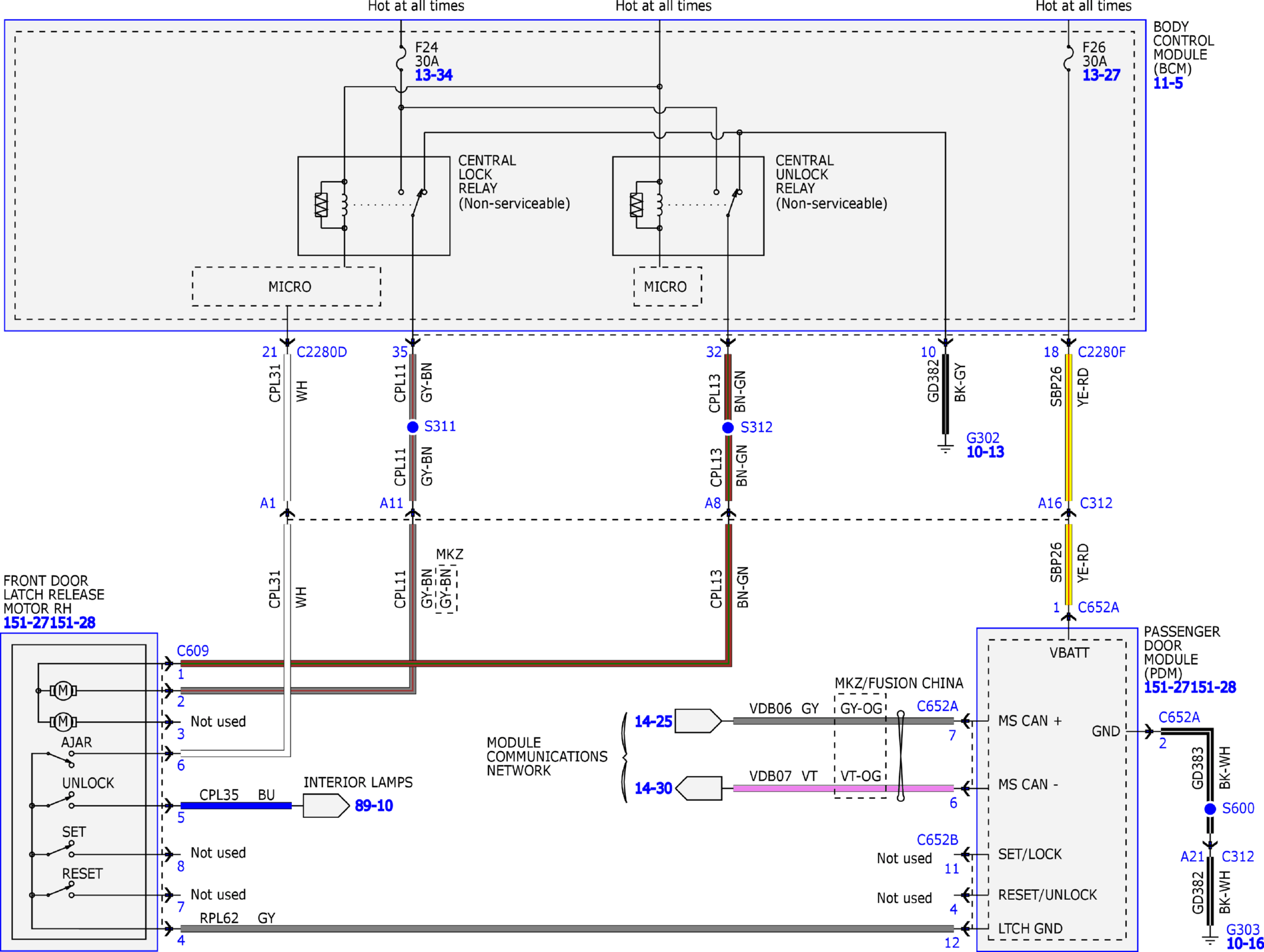

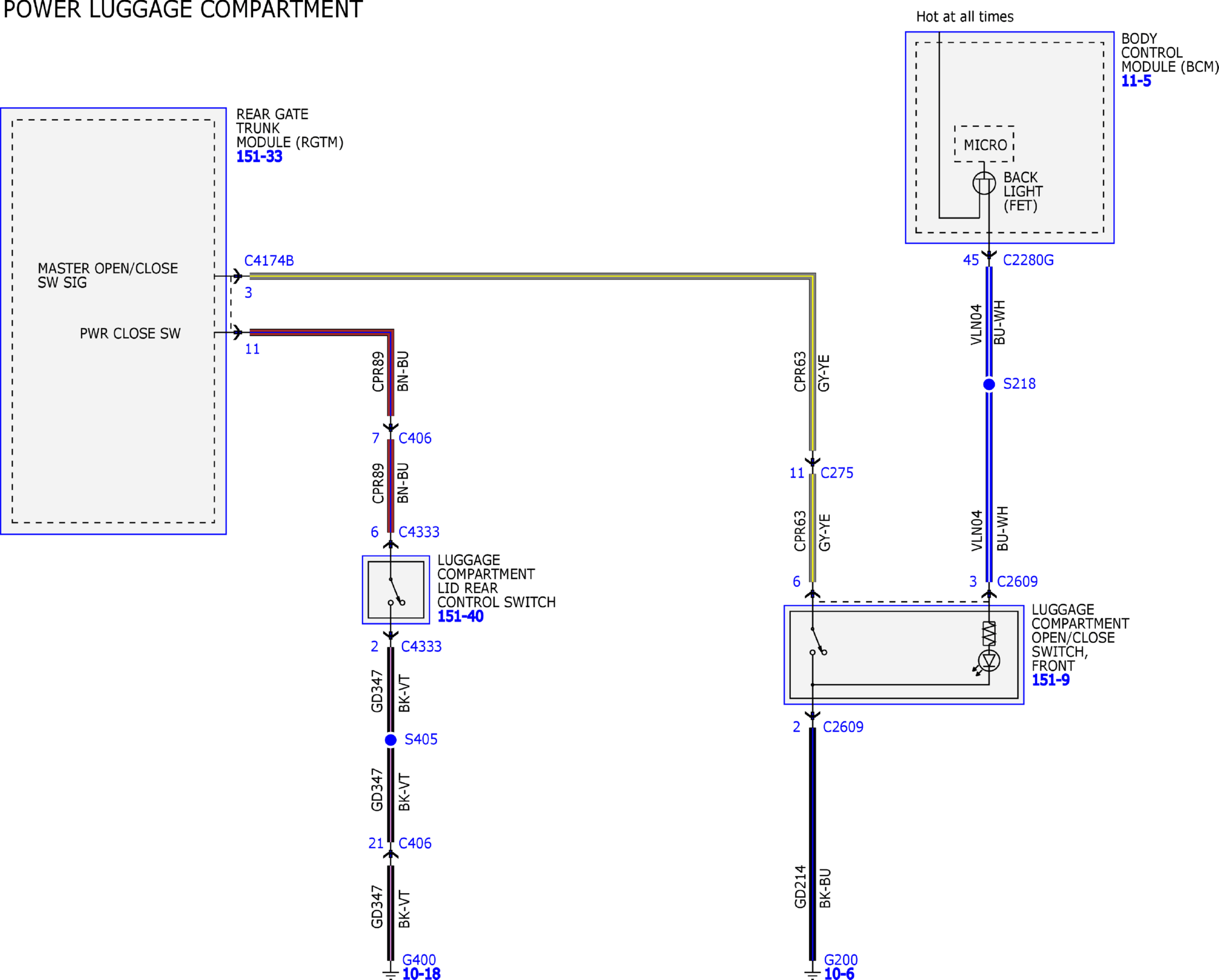

Fig 6: Remote Keyless Entry and Alarm Wiring Diagram (6 of 18)

Courtesy of FORD MOTOR COMPANY

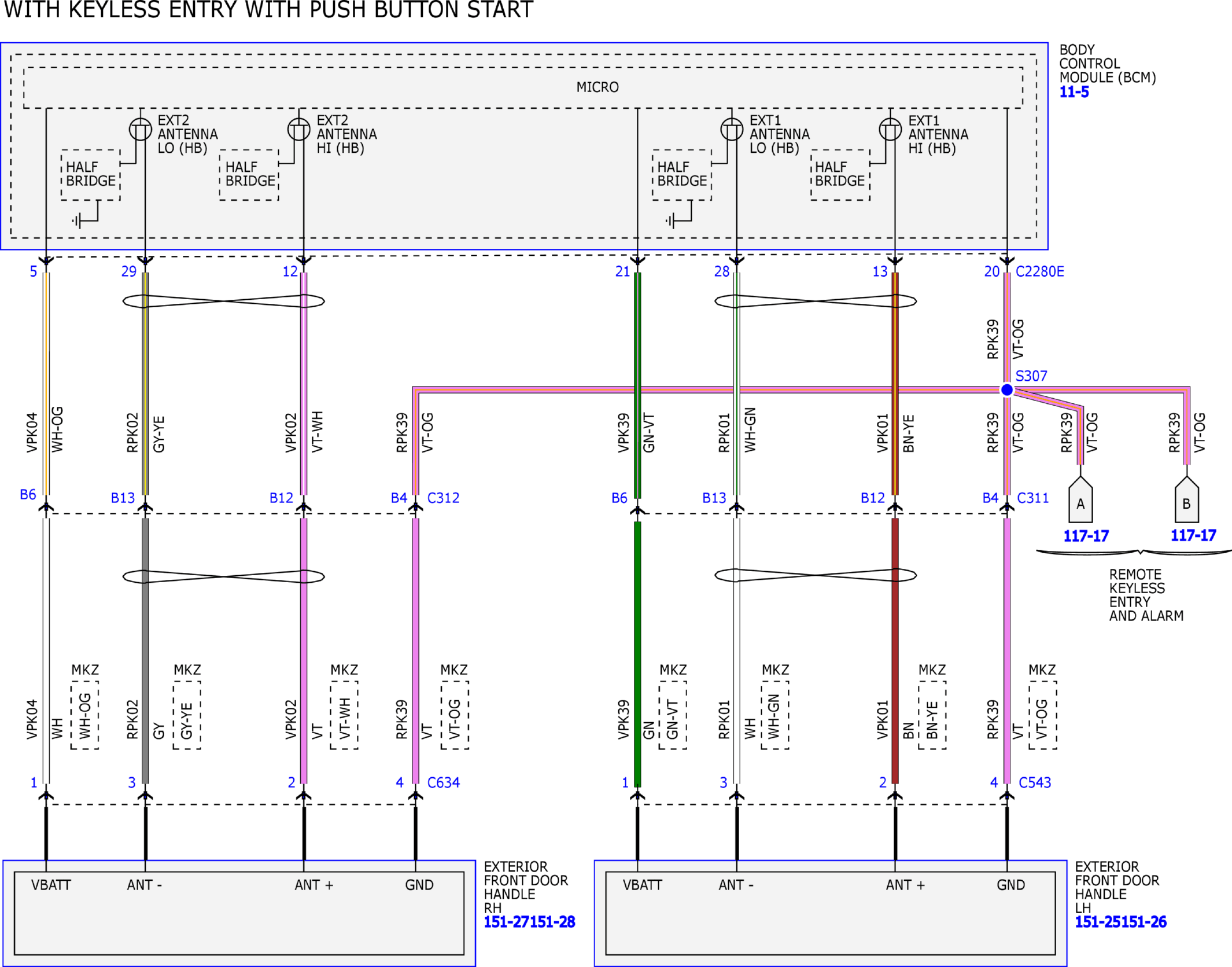

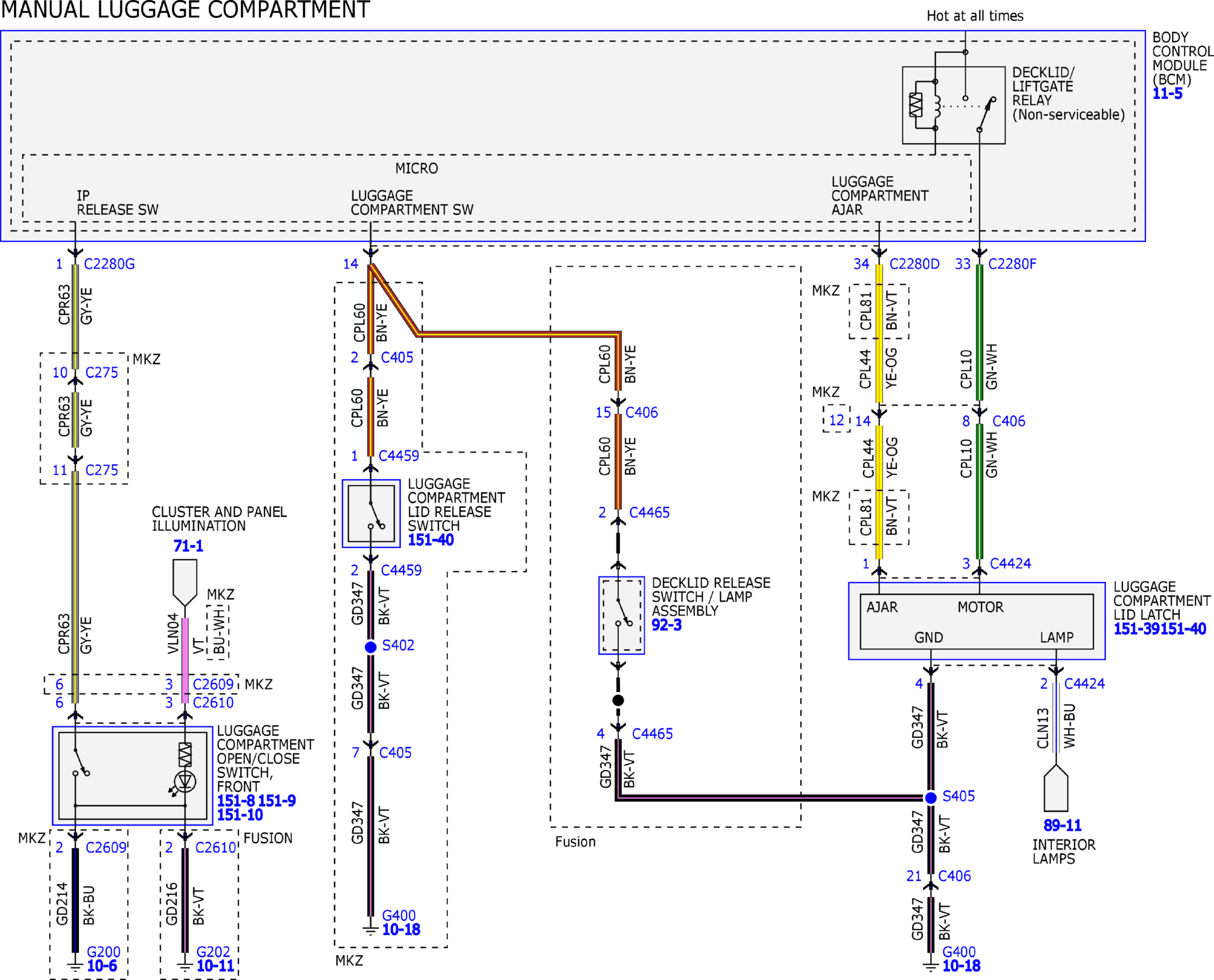

Fig 7: Remote Keyless Entry and Alarm Wiring Diagram (7 of 18)

Courtesy of FORD MOTOR COMPANY

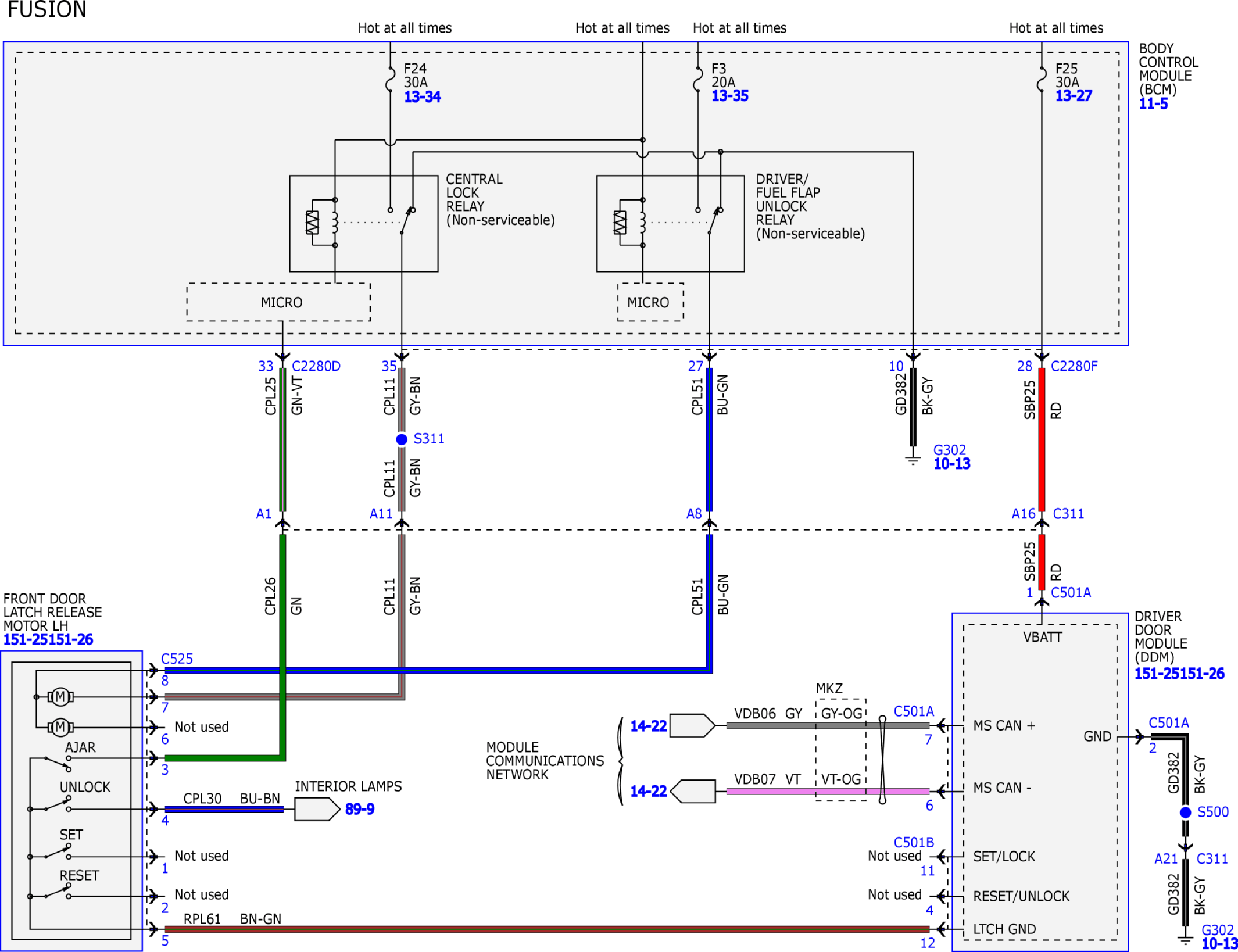

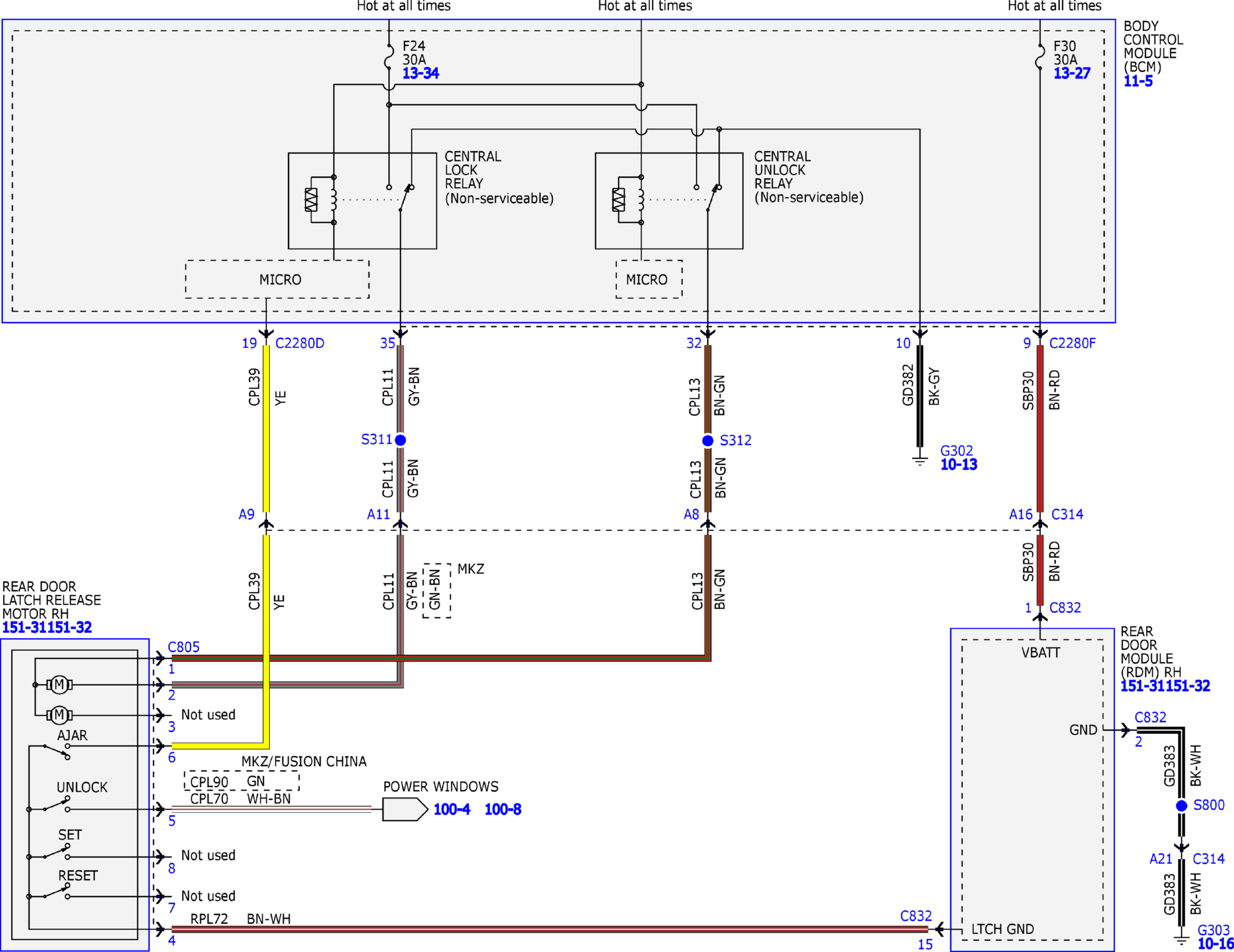

Fig 8: Remote Keyless Entry and Alarm Wiring Diagram (8 of 18)

Courtesy of FORD MOTOR COMPANY

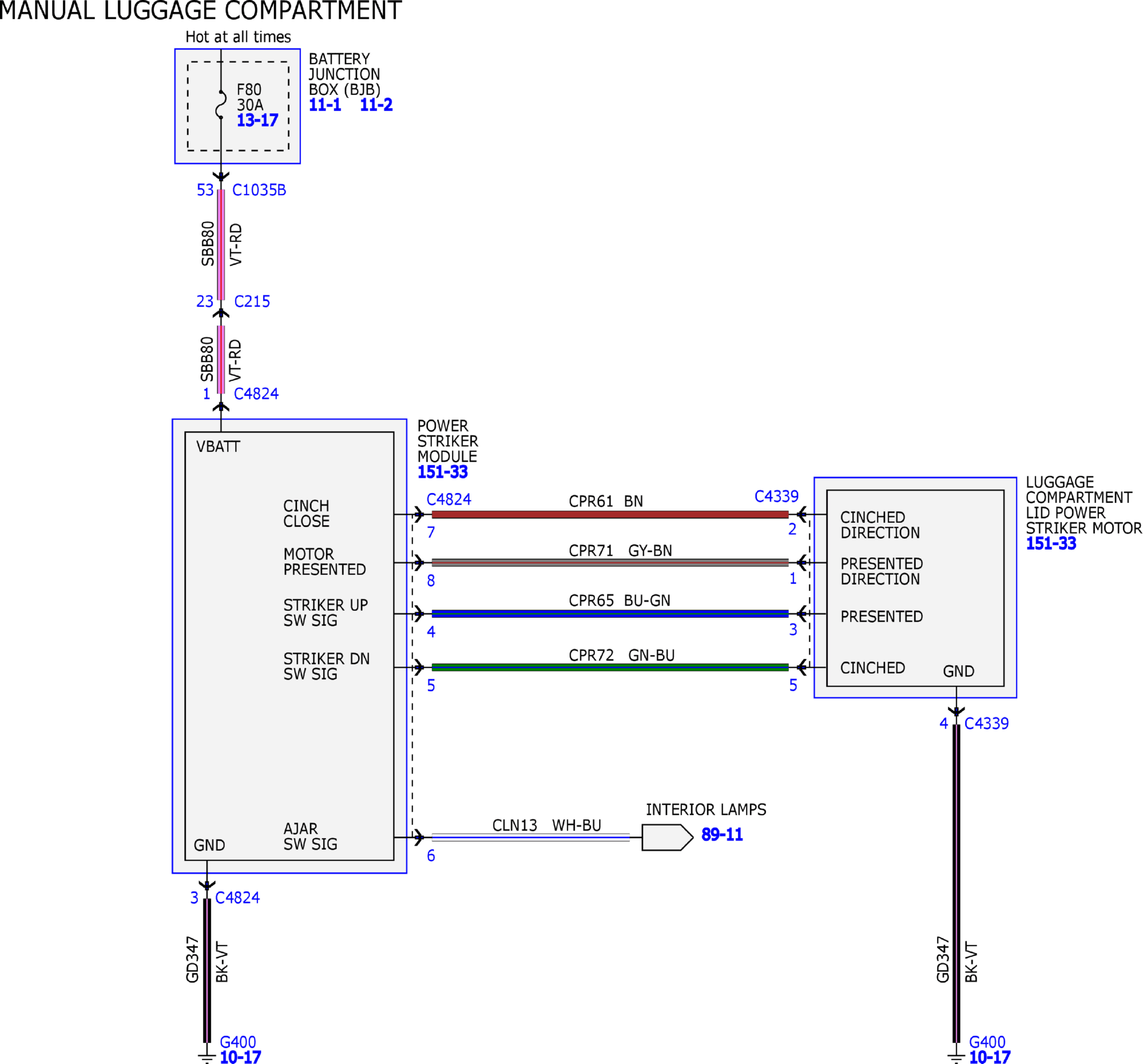

Fig 9: Remote Keyless Entry and Alarm Wiring Diagram (9 of 18)

Courtesy of FORD MOTOR COMPANY

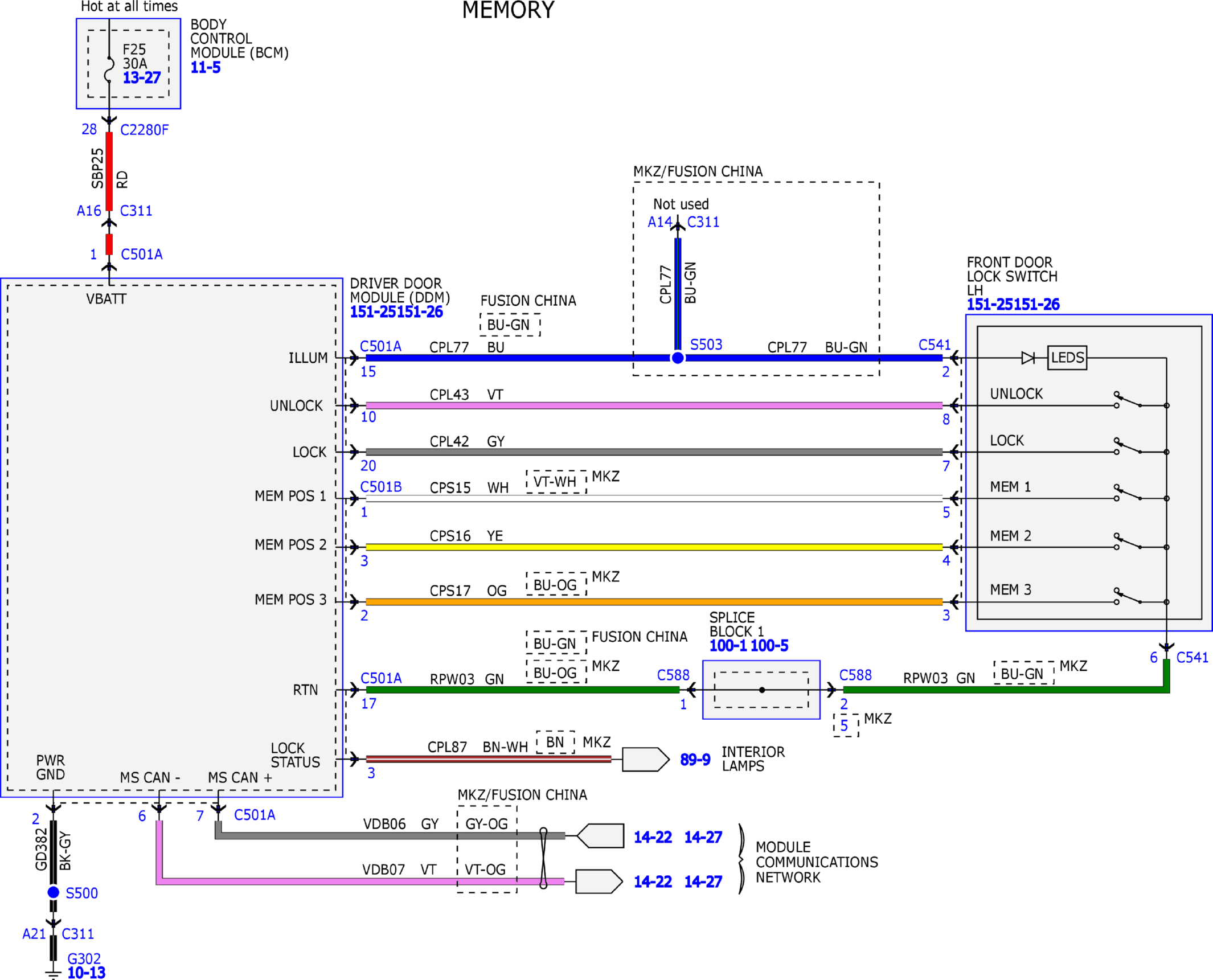

Fig 10: Remote Keyless Entry and Alarm Wiring Diagram (10 of 18)

Courtesy of FORD MOTOR COMPANY

Fig 11: Remote Keyless Entry and Alarm Wiring Diagram (11 of 18)

Courtesy of FORD MOTOR COMPANY

Fig 12: Remote Keyless Entry and Alarm Wiring Diagram (12 of 18)

Courtesy of FORD MOTOR COMPANY

Fig 13: Remote Keyless Entry and Alarm Wiring Diagram (13 of 18)

Courtesy of FORD MOTOR COMPANY

Fig 14: Remote Keyless Entry and Alarm Wiring Diagram (14 of 18)

Courtesy of FORD MOTOR COMPANY

Fig 15: Remote Keyless Entry and Alarm Wiring Diagram (15 of 18)

Courtesy of FORD MOTOR COMPANY

Fig 16: Remote Keyless Entry and Alarm Wiring Diagram (16 of 18)

Courtesy of FORD MOTOR COMPANY

Fig 17: Remote Keyless Entry and Alarm Wiring Diagram (17 of 18)

Courtesy of FORD MOTOR COMPANY

Fig 18: Remote Keyless Entry and Alarm Wiring Diagram (18 of 18)

Courtesy of FORD MOTOR COMPANY
