Power Windows

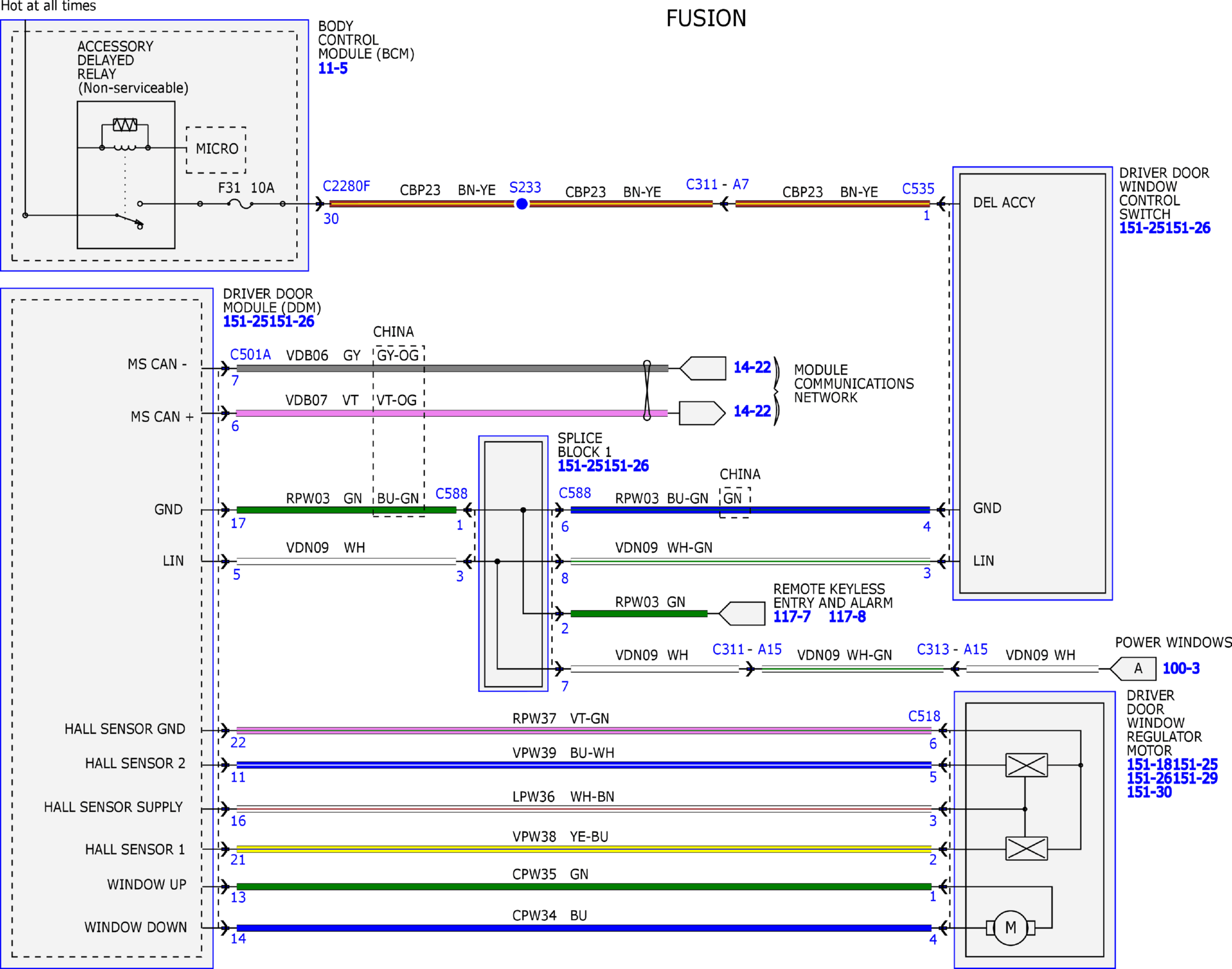

Fig 1: Power Windows Wiring Diagram (1 of 8)
GFDW51459Courtesy of FORD MOTOR COMPANY

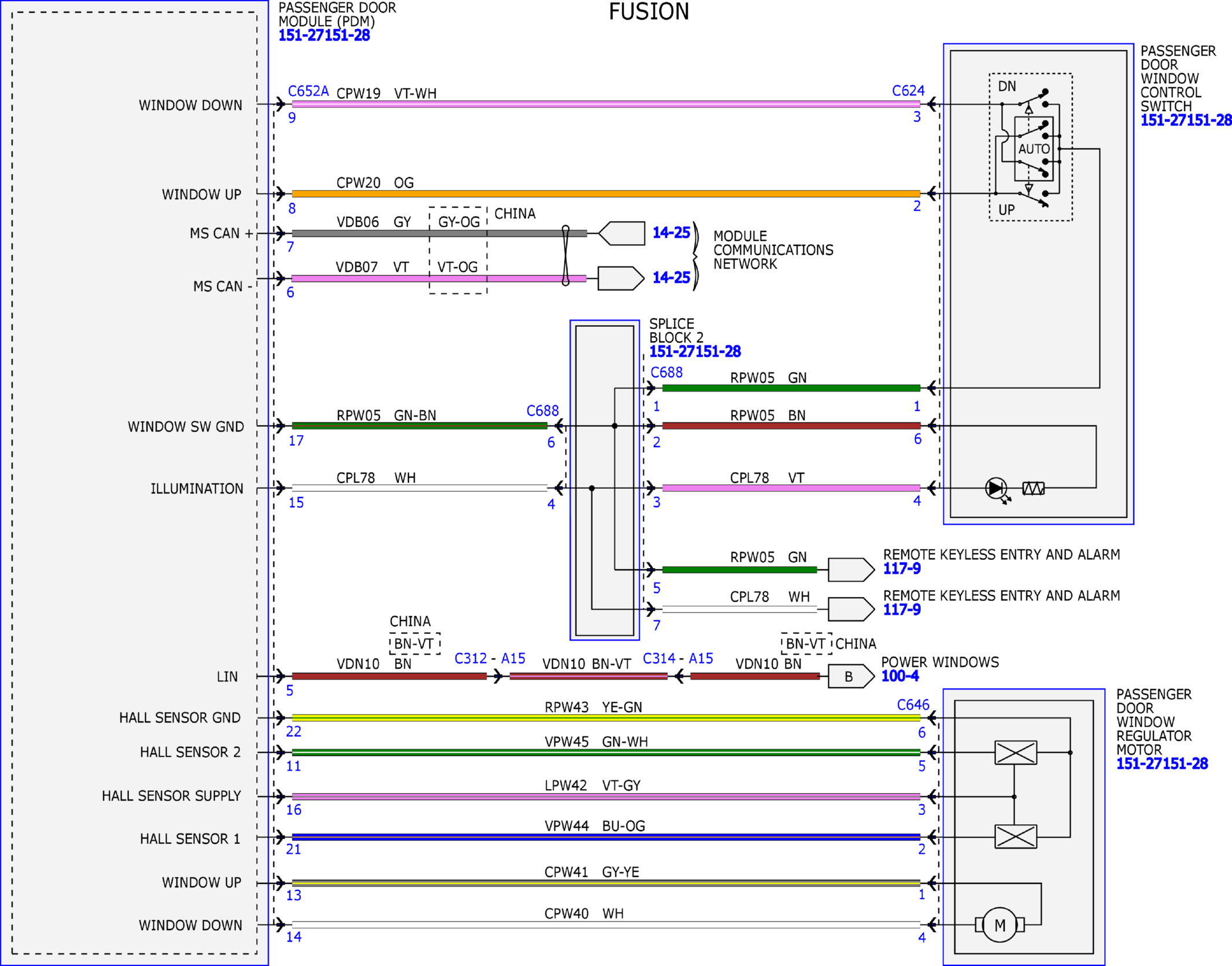

Fig 2: Power Windows Wiring Diagram (2 of 8)
GFDW51460Courtesy of FORD MOTOR COMPANY

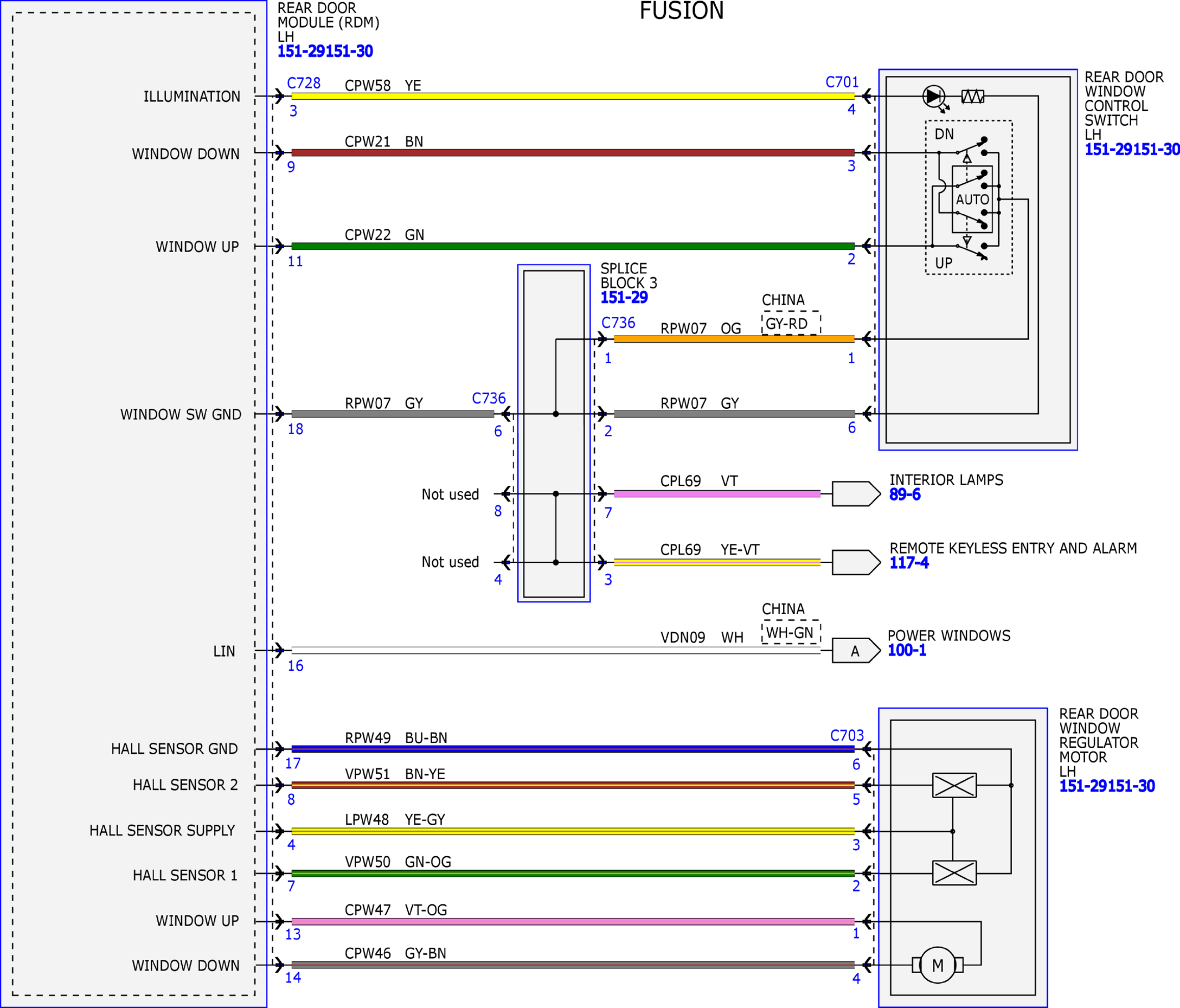

Fig 3: Power Windows Wiring Diagram (3 of 8)
GFDW51461Courtesy of FORD MOTOR COMPANY

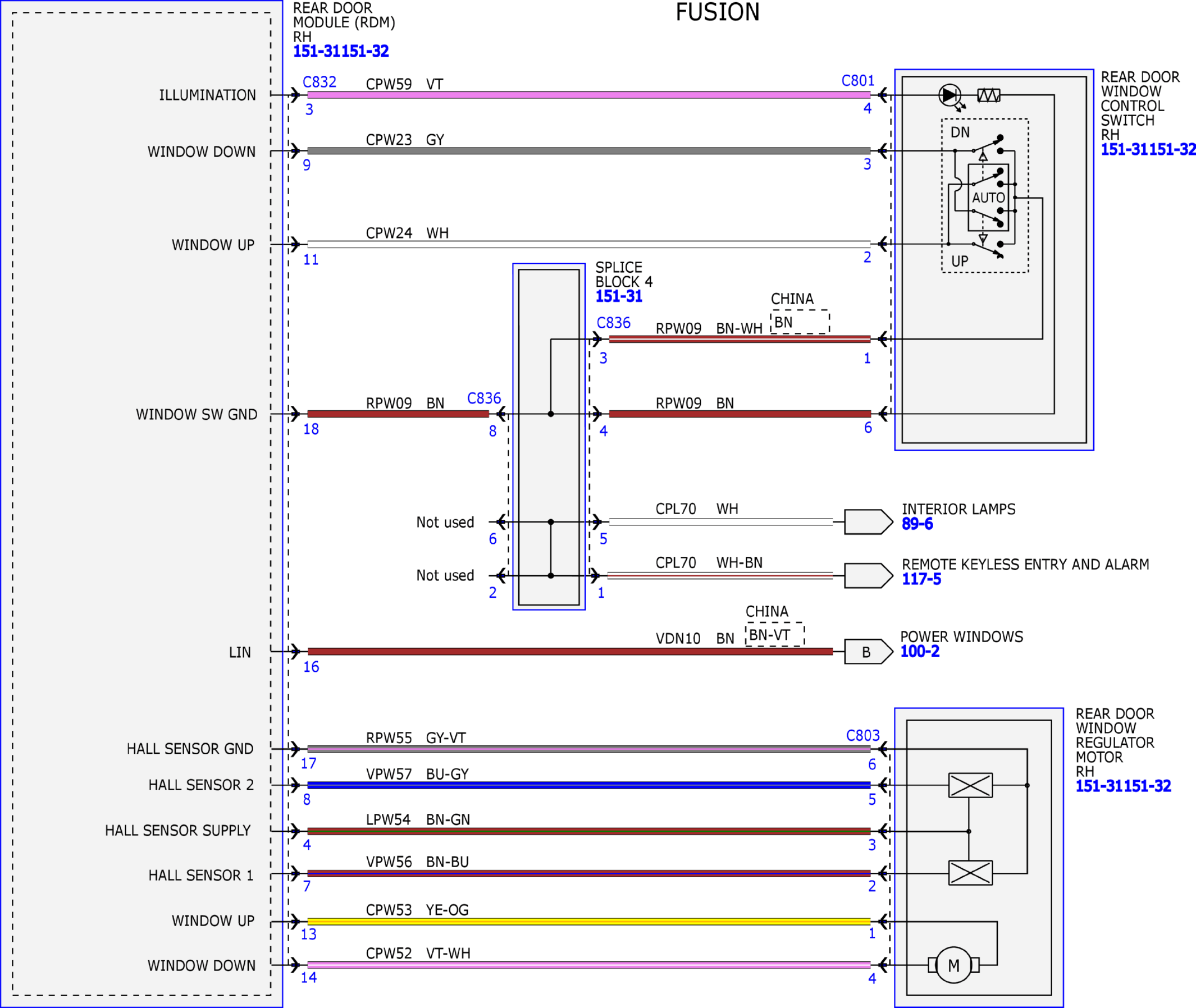

Fig 4: Power Windows Wiring Diagram (4 of 8)
GFDW51462Courtesy of FORD MOTOR COMPANY

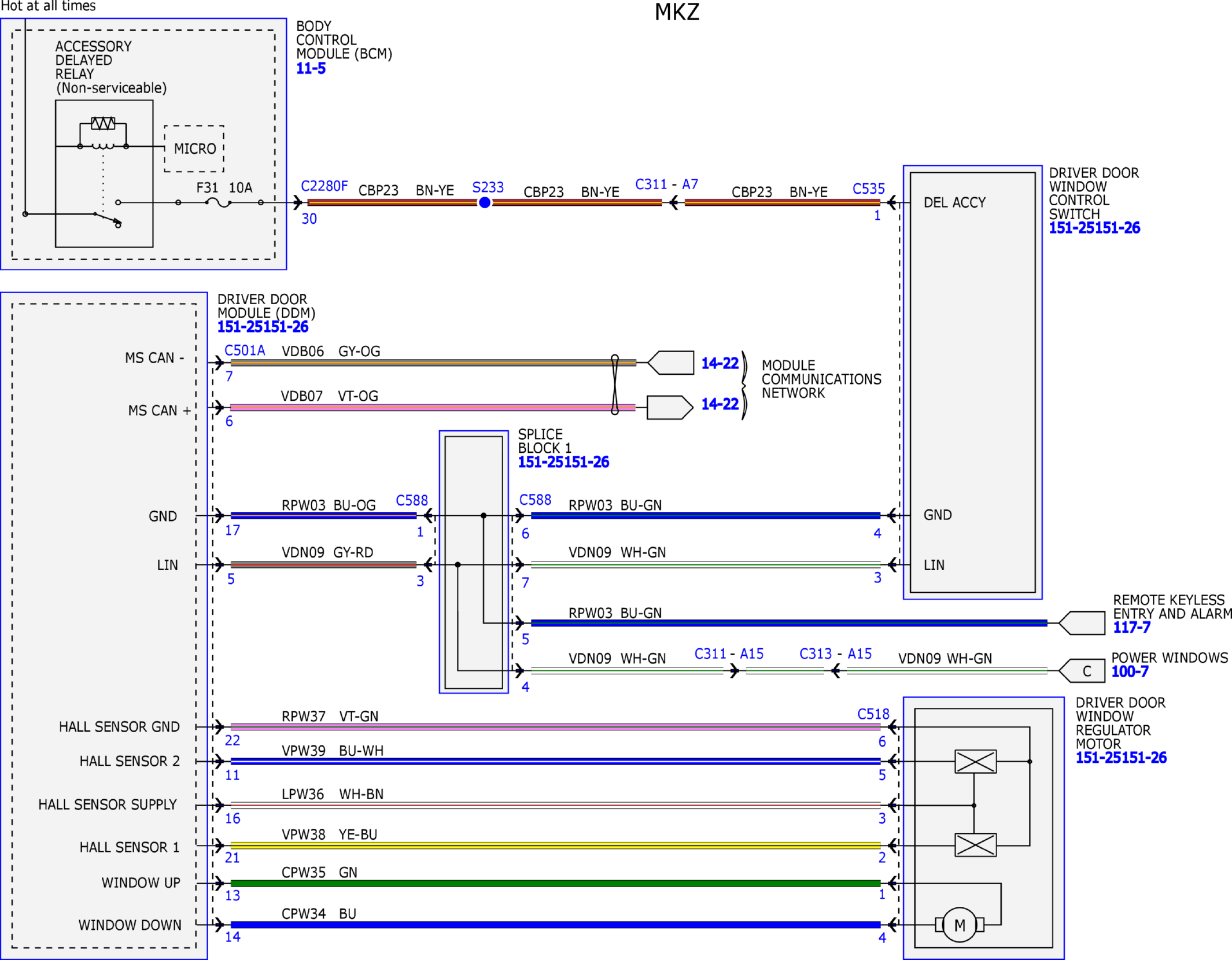

Fig 5: Power Windows Wiring Diagram (5 of 8)
GFDW51463Courtesy of FORD MOTOR COMPANY

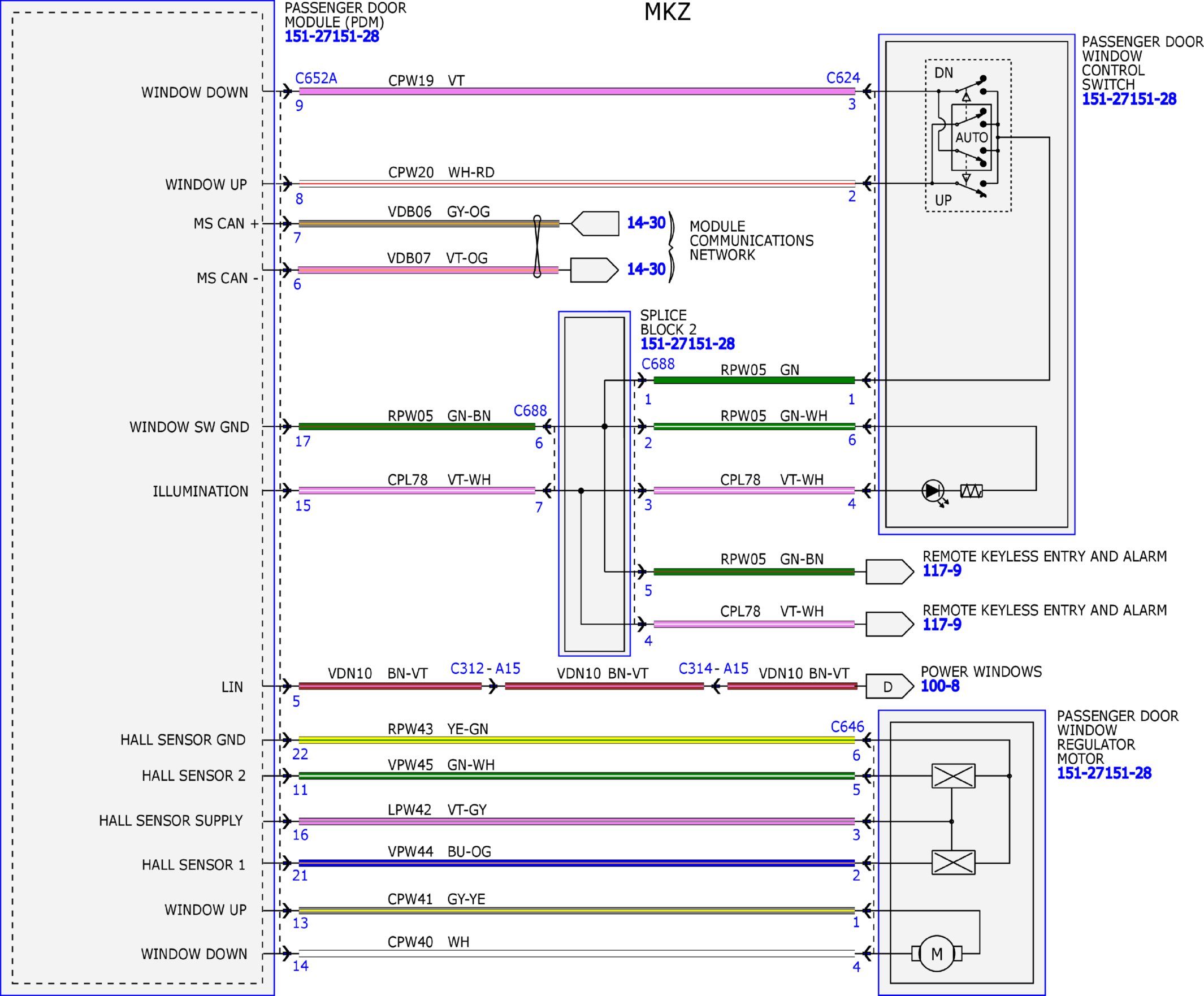

Fig 6: Power Windows Wiring Diagram (6 of 8)
GFDW51464Courtesy of FORD MOTOR COMPANY
Fig 7: Power Windows Wiring Diagram (7 of 8)
GFDW51465Courtesy of FORD MOTOR COMPANY

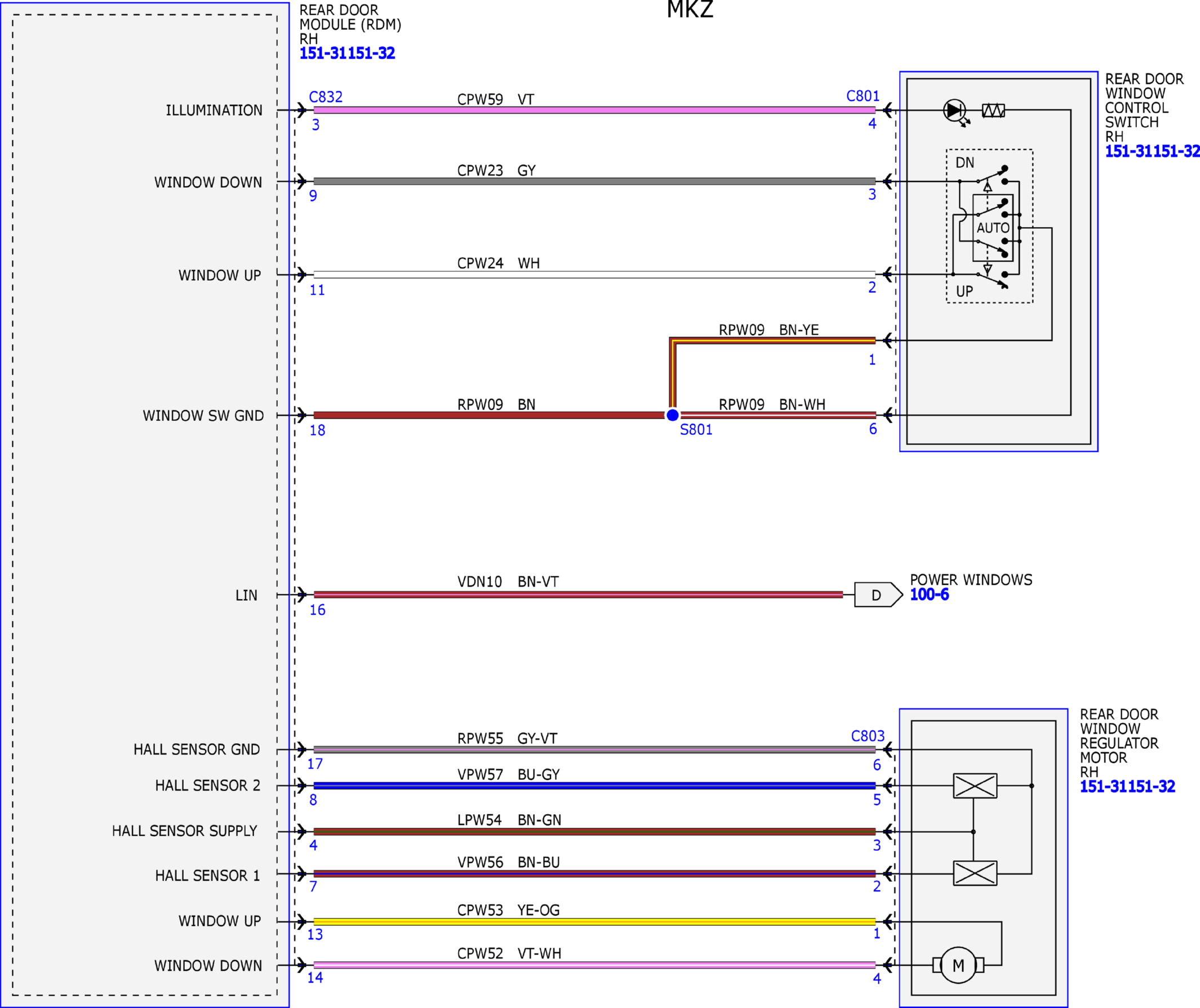

Fig 8: Power Windows Wiring Diagram (8 of 8)
GFDW51466Courtesy of FORD MOTOR COMPANY
