Instrument Cluster

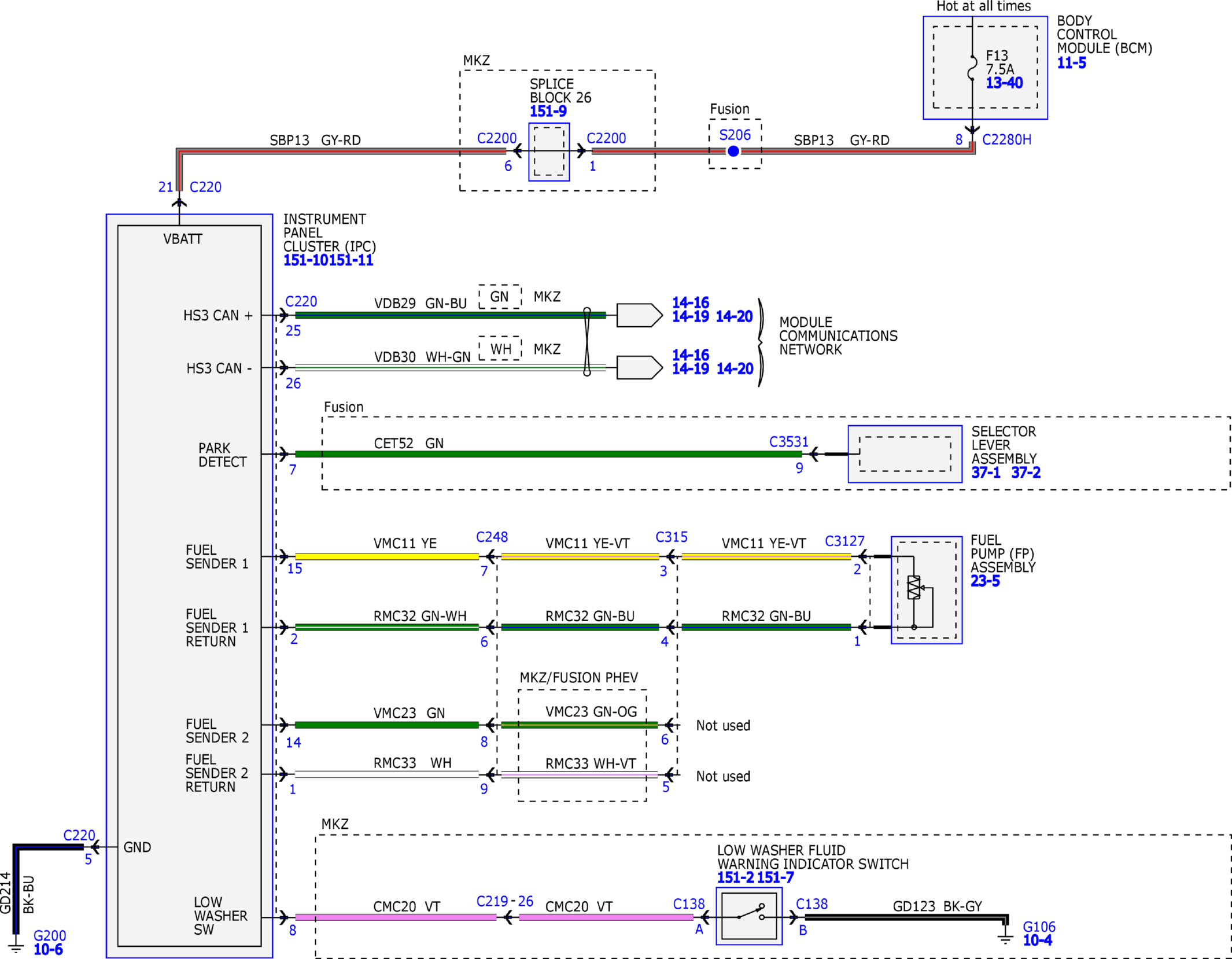

Fig 1: Instrument Cluster Wiring Diagram (1 of 6)
GFDW51326Courtesy of FORD MOTOR COMPANY

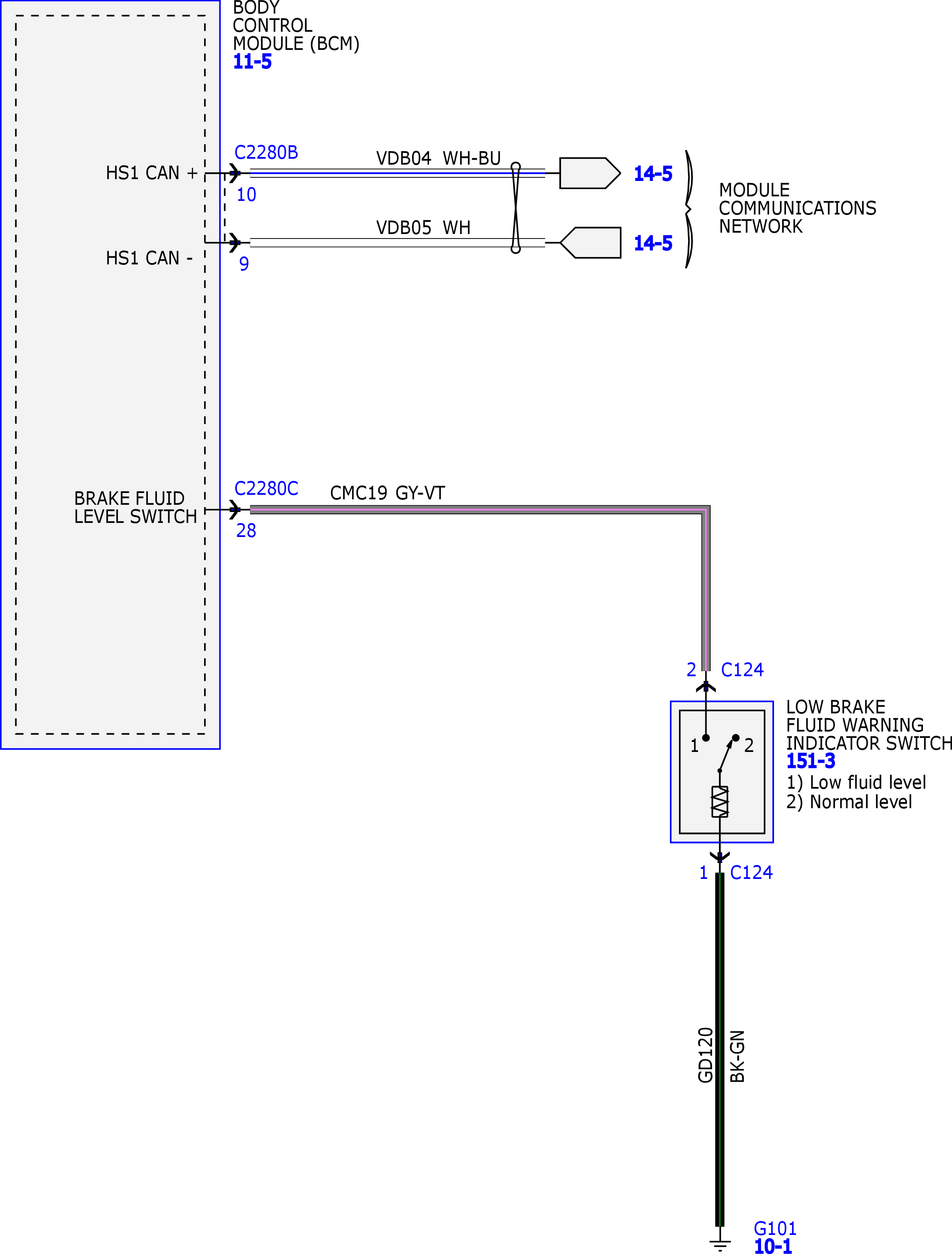

Fig 2: Instrument Cluster Wiring Diagram (2 of 6)
GFDW51327Courtesy of FORD MOTOR COMPANY

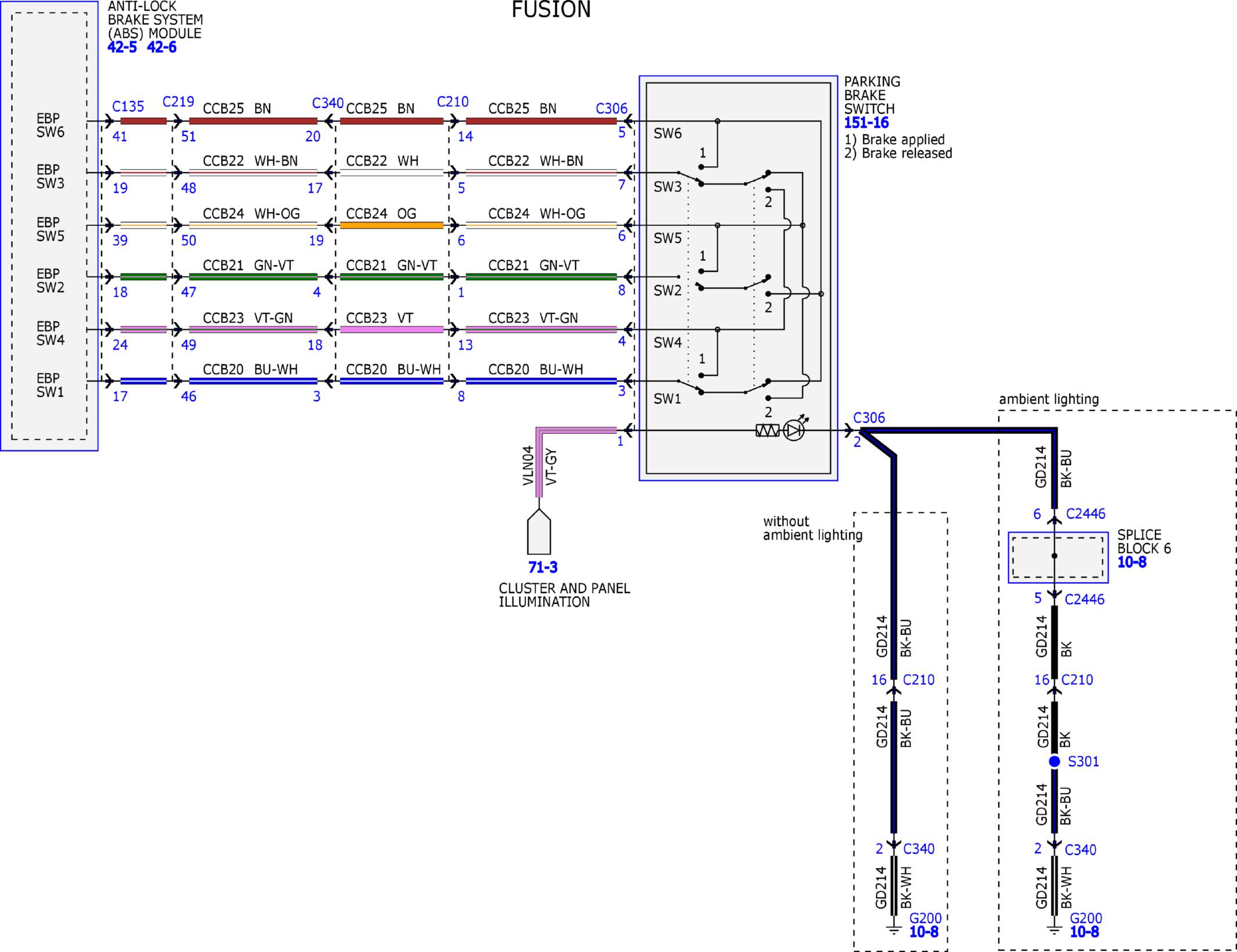

Fig 3: Instrument Cluster Wiring Diagram (3 of 6)
GFDW51328Courtesy of FORD MOTOR COMPANY

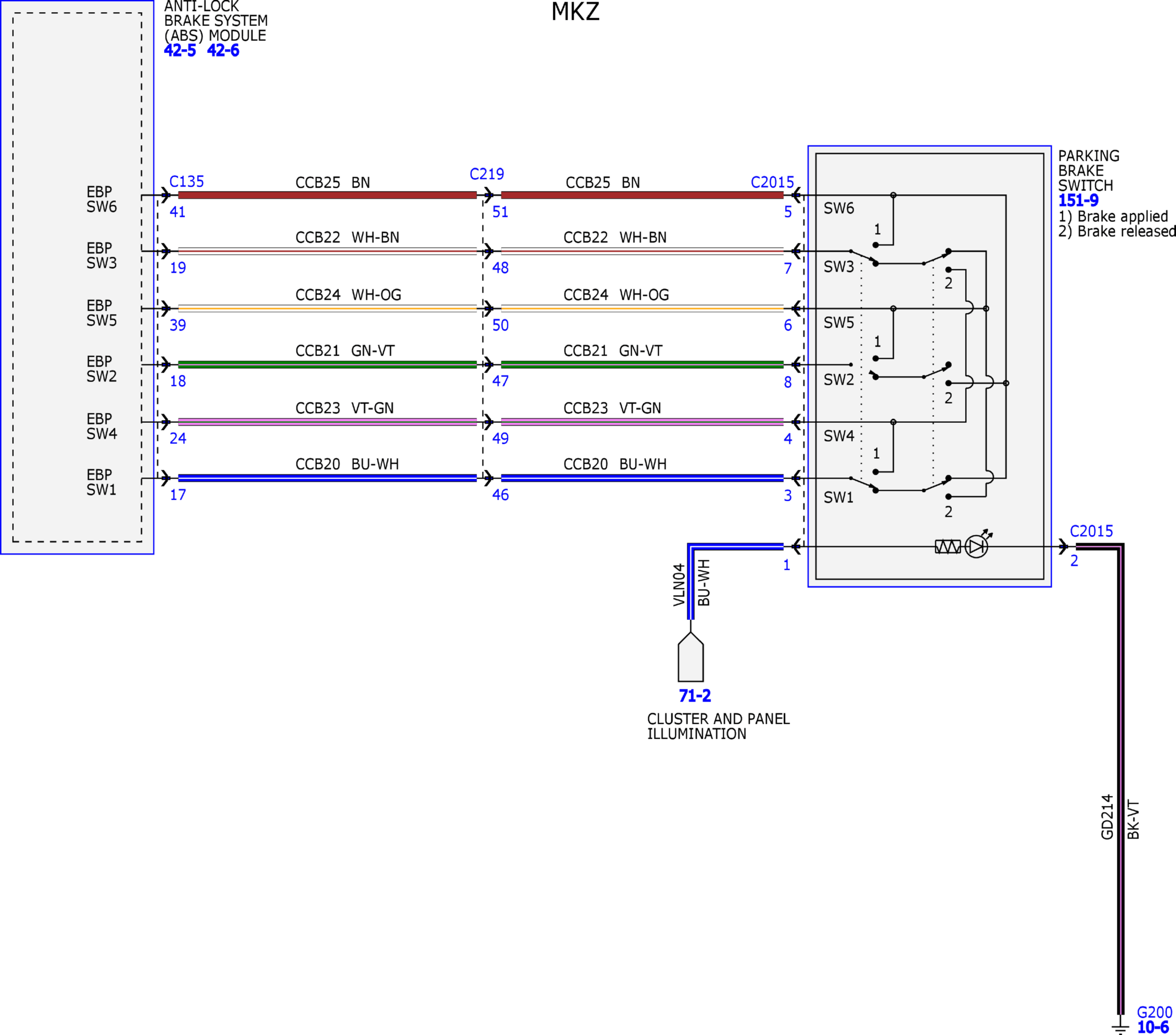

Fig 4: Instrument Cluster Wiring Diagram (4 of 6)
GFDW51329Courtesy of FORD MOTOR COMPANY

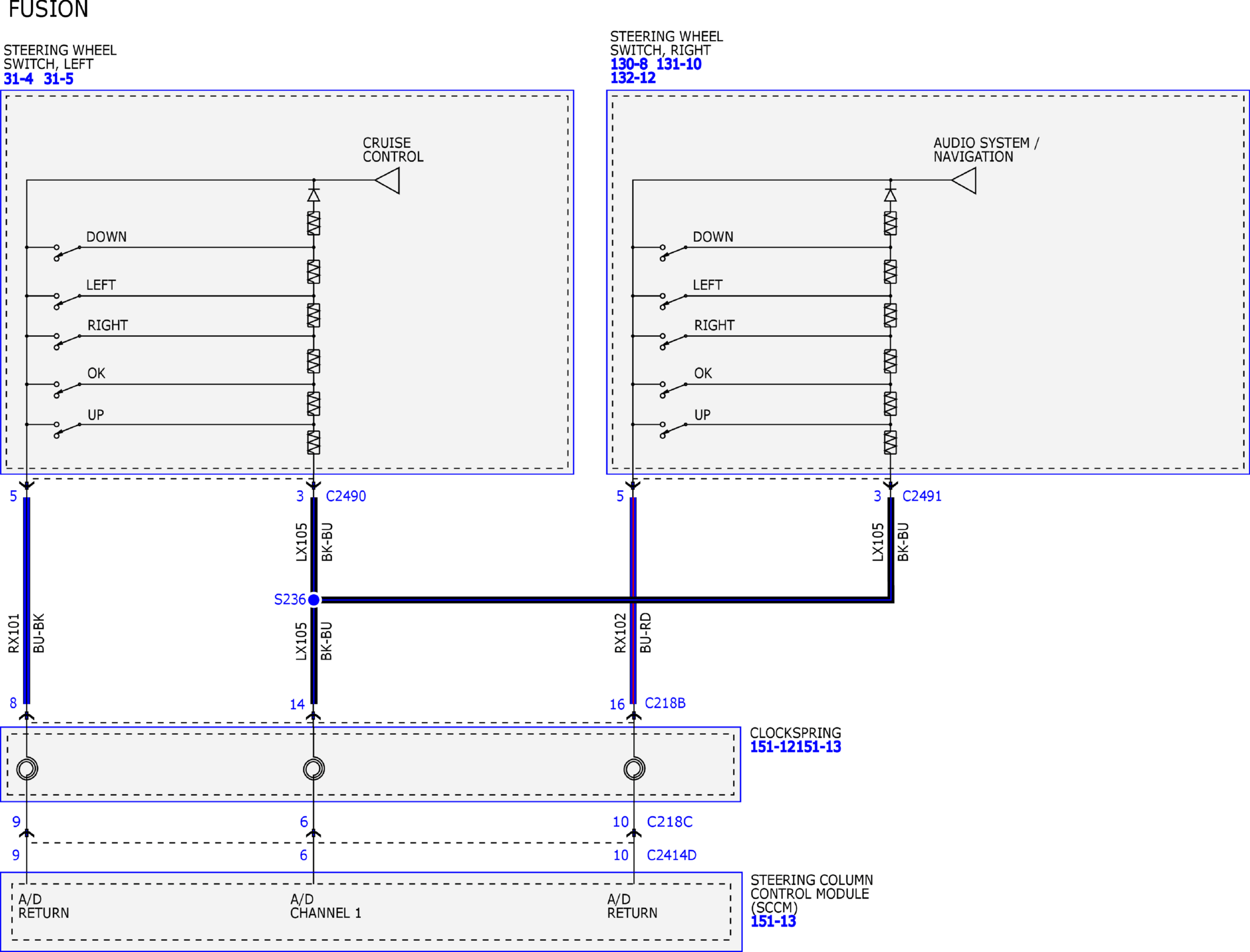

Fig 5: Instrument Cluster Wiring Diagram (5 of 6)
GFDW51330Courtesy of FORD MOTOR COMPANY

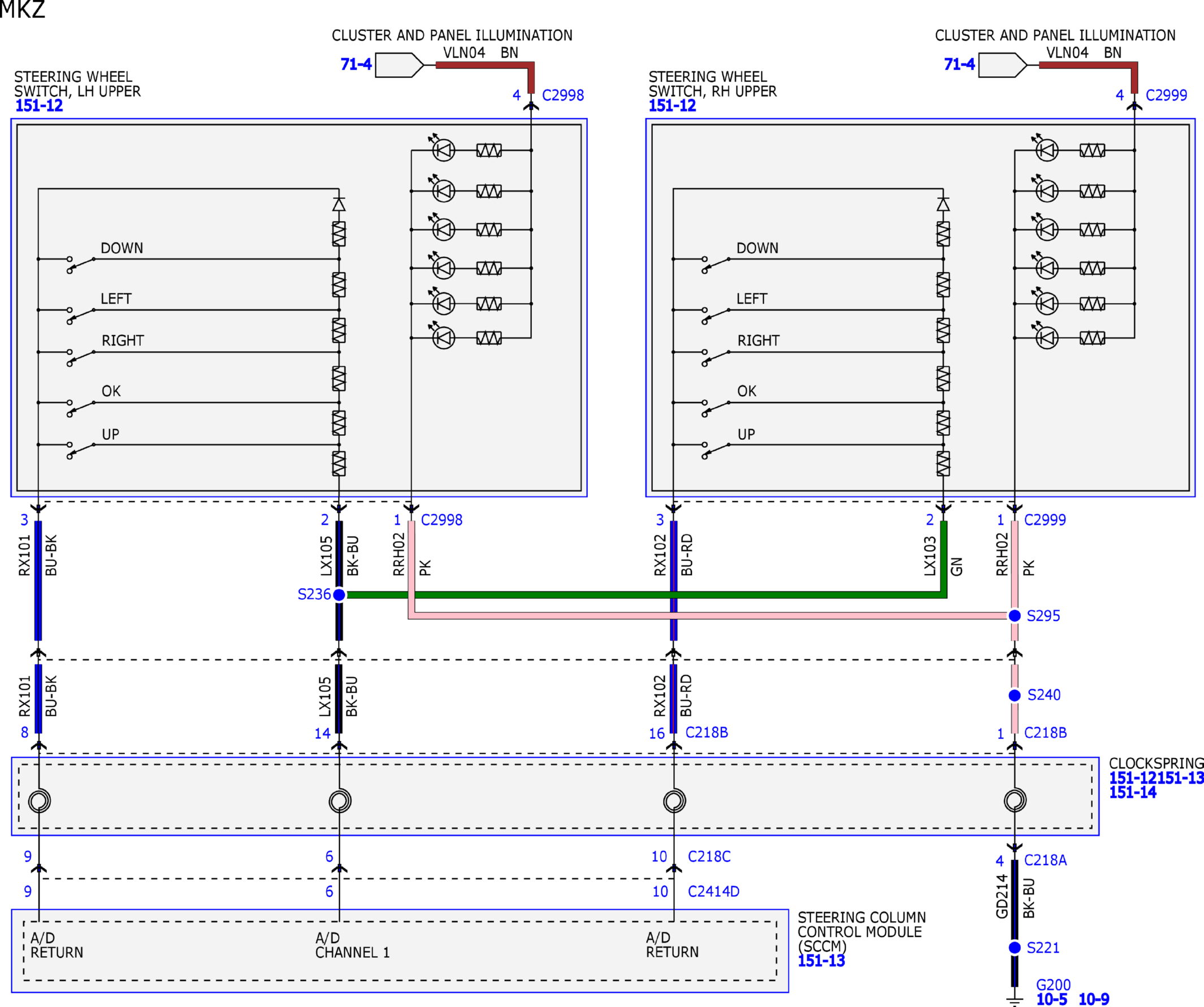

Fig 6: Instrument Cluster Wiring Diagram (6 of 6)
GFDW51331Courtesy of FORD MOTOR COMPANY
